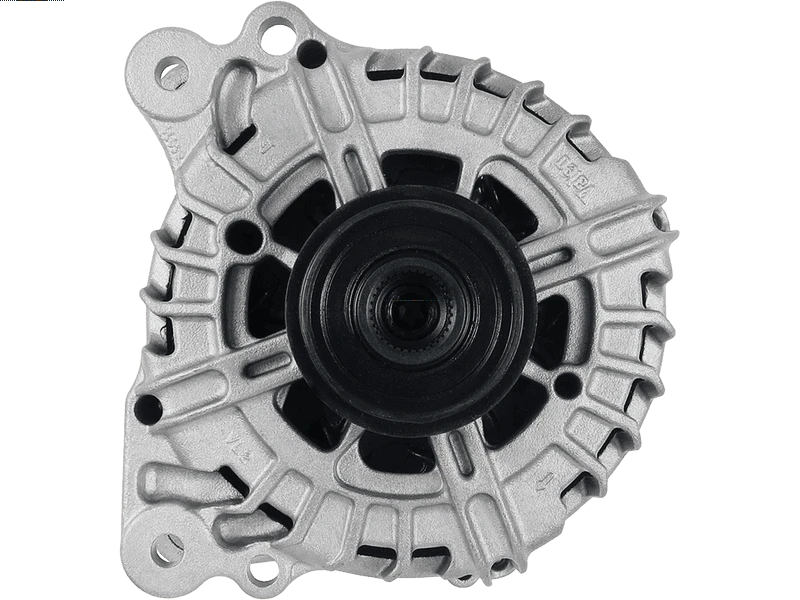

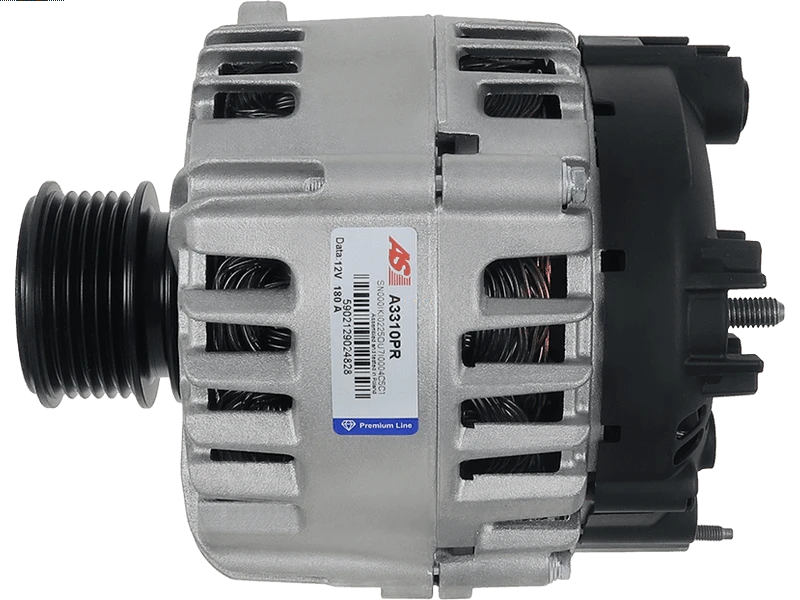

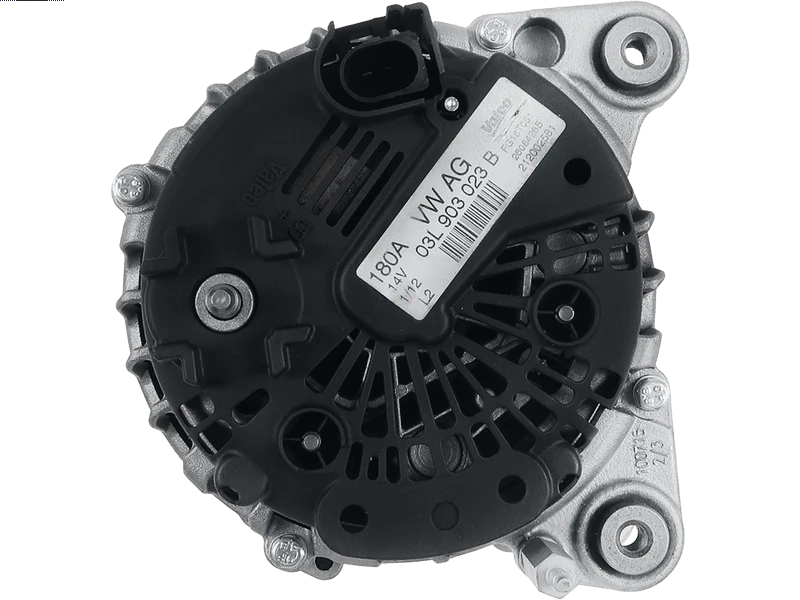

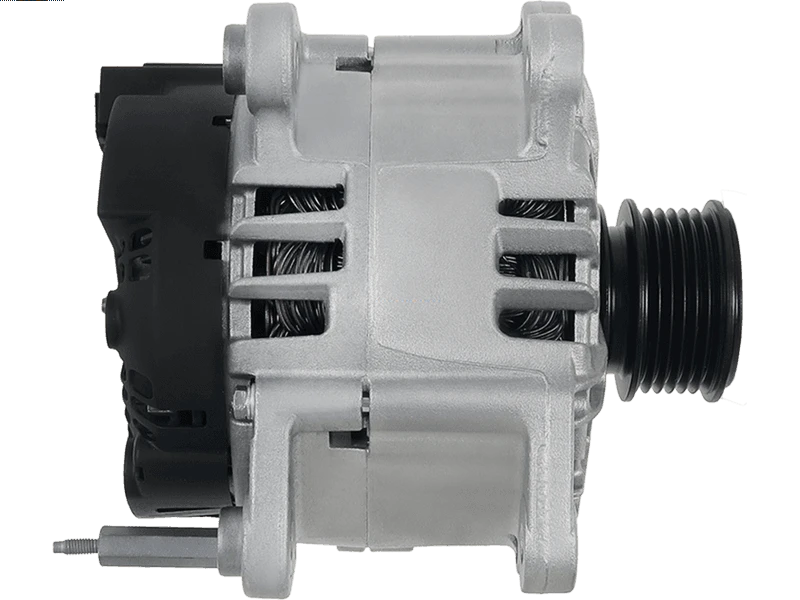

A3310PR - Remanufactured AS-PL Alternator

Specifications

Amp	180 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	6 qty
Length (L.1)	193 mm
Mount Inside Length or Pad Mount C-C (C)	60.8 mm
OEM Product	No
Outside Diameter (O.D.1)	56 mm
Plug Code	PL_2306
Product Line	Premium Line
Product Type	Remanufactured
Pulley to Mount Distance (A)	40 mm
Pulley Type	CLUTCH
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
SEAT	Alhambra 2.0 TDi	[CFFA]	01.2010-
SEAT	Alhambra 2.0 TDi	[CFFB]	01.2010-
SEAT	Alhambra 2.0 TDi	[CFFE]	01.2010-
SEAT	Alhambra 2.0 TDi	[CFGB]	01.2010-
SEAT	Alhambra 2.0 TDi	[CFGC]	01.2010-
SEAT	Alhambra 2.0 TDi 4WD	[CFFA]	01.2011-
SEAT	Alhambra 2.0 TDi 4WD	[CFFB]	01.2011-
SEAT	Alhambra 2.0 TDi 4WD	[CFFE]	01.2011-
SEAT	Alhambra 2.0 TDi 4WD	[CFGB]	01.2011-
SEAT	Alhambra 2.0 TDi 4WD	[CFGC]	01.2011-
SKODA	Superb 1.6 TDi	[CAYB]	01.2010-12.2015
SKODA	Superb 1.6 TDi	[CAYC]	01.2010-12.2015
SKODA	Superb 2.0 TDi	[CFFB]	01.2010-12.2015
SKODA	Superb 2.0 TDi	[CFGB]	01.2010-12.2015
SKODA	Superb 2.0 TDi	[CLJA]	01.2010-12.2015
SKODA	Superb 2.0 TDi 4x4	[CFFB]	01.2010-12.2015
SKODA	Superb 2.0 TDi 4x4	[CFGB]	01.2010-12.2015
SKODA	Superb 2.0 TDi 4x4	[CLJA]	01.2010-12.2015
VW	Passat 1.6 TDi	[CAYC]	01.2009-12.2010
VW	Passat 1.6 TDi	[CAYC]	01.2010-
VW	Passat 2.0 TDi	[CBAA]	01.2008-12.2010
VW	Passat 2.0 TDi	[CBAB]	01.2008-12.2010
VW	Passat 2.0 TDi	[CBAC]	01.2008-12.2010
VW	Passat 2.0 TDi	[CBBB]	01.2008-12.2010
VW	Passat 2.0 TDi	[CBDC]	01.2008-12.2010
VW	Passat 2.0 TDi	[CFFA]	01.2010-
VW	Passat 2.0 TDi	[CFFB]	01.2010-
VW	Passat 2.0 TDi	[CFGB]	01.2010-
VW	Passat 2.0 TDi	[CLLA]	01.2010-
VW	Passat 2.0 TDi 4-Motion	[CBAB]	01.2008-12.2010
VW	Passat 2.0 TDi 4-Motion	[CBBB]	01.2008-12.2010
VW	Passat 2.0 TDi 4-Motion	[CFFA]	01.2010-
VW	Passat 2.0 TDi 4-Motion	[CFFB]	01.2010-
VW	Passat 2.0 TDi 4-Motion	[CFGB]	01.2010-
VW	Passat 2.0 TDi 4-Motion	[CLLA]	01.2010-
VW	Passat Alltrack 2.0 TDi	[CFFB]	01.2012-12.2014
VW	Passat Alltrack 2.0 TDi	[CFGB]	01.2012-12.2014
VW	Passat Alltrack 2.0 TDi	[CFGC]	01.2012-12.2014
VW	Passat Alltrack 2.0 TDi 4-Motion	[CFFB]	01.2012-12.2014
VW	Passat Alltrack 2.0 TDi 4-Motion	[CFGB]	01.2012-12.2014
VW	Passat Alltrack 2.0 TDi 4-Motion	[CFGC]	01.2012-12.2014
VW	Passat CC 2.0 TDi	[CFFA]	01.2011-
VW	Passat CC 2.0 TDi	[CFFB]	01.2011-
VW	Passat CC 2.0 TDi	[CFGB]	01.2011-
VW	Passat CC 2.0 TDi	[CFGC]	01.2011-
VW	Passat CC 2.0 TDi	[CLLA]	01.2011-
VW	Passat CC 2.0 TDi 4-Motion	[CFFA]	01.2011-
VW	Passat CC 2.0 TDi 4-Motion	[CFFB]	01.2011-
VW	Passat CC 2.0 TDi 4-Motion	[CFGB]	01.2011-
VW	Passat CC 2.0 TDi 4-Motion	[CFGC]	01.2011-
VW	Passat CC 2.0 TDi 4-Motion	[CLLA]	01.2011-
VW	Sharan 2.0 TDi	[CFFA]	01.2010-
VW	Sharan 2.0 TDi	[CFFB]	01.2010-
VW	Sharan 2.0 TDi	[CFGB]	01.2010-
VW	Sharan 2.0 TDi	[CFGC]	01.2013-

Reference Information

55151069 CAL15431GS LRA03402 3L903023BX 5510394 115713 CAL15431OS 4848 03L903024FX 03L903024F 03L903023DX 03L903024K 0121715071 DRA0539 AEK3402 CAL15431RS EAA-254214 FG18T119 VALFG18T051 A12VA0187AS A12BH0187 0121715171 3L903023DX 3L903024FX 125811028 125811027 553958RIV CAL15431ES 121715171 8EL012240-061 03L903023BX 28-6514 ALT00643 BOS0125811028 442536 3L903023B ALTL620 3L903023D 2015431 A12BH0187AS CAL15431AS CAL15431 209271 439718 440308 FG18T051 305.570.180 03L903024KX LRA3402 121715071 03L903023B 03L903023D 3L903024F 0125811027 0125811028 209191

Video/Publications

0121715071 0121715171 0125811027 0125811028 03L903023B 03L903023BX 03L903023D 03L903023DX 03L903024F 03L903024K 115713 2015431 28-6514 305.570.180 439718 440308 4848 553958RIV 8EL012240-061 AEK3402 ALTL620 BOS0125811028 CAL15431 CAL15431AS CAL15431ES CAL15431GS CAL15431OS CAL15431RS DRA0539 EAA-254214 FG18T051 FG18T119 LRA03402 LRA3402 VALFG18T051 209191 209271
