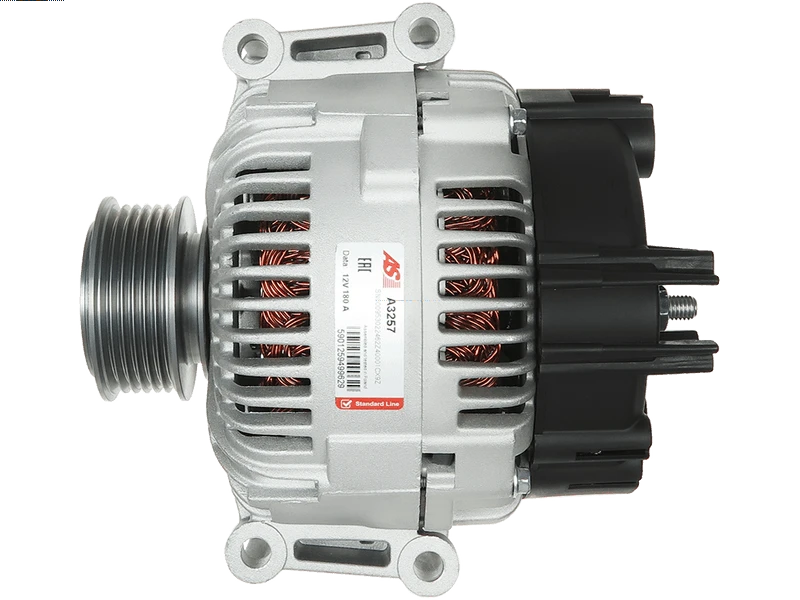

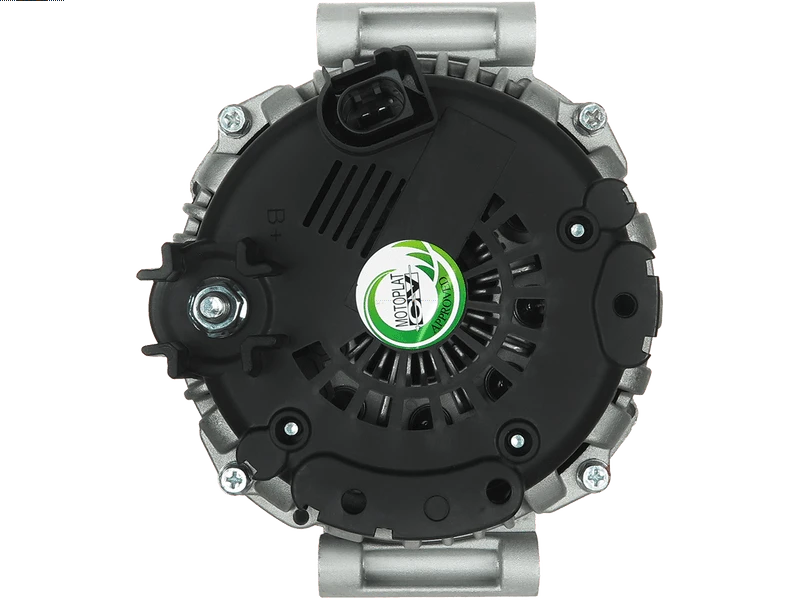

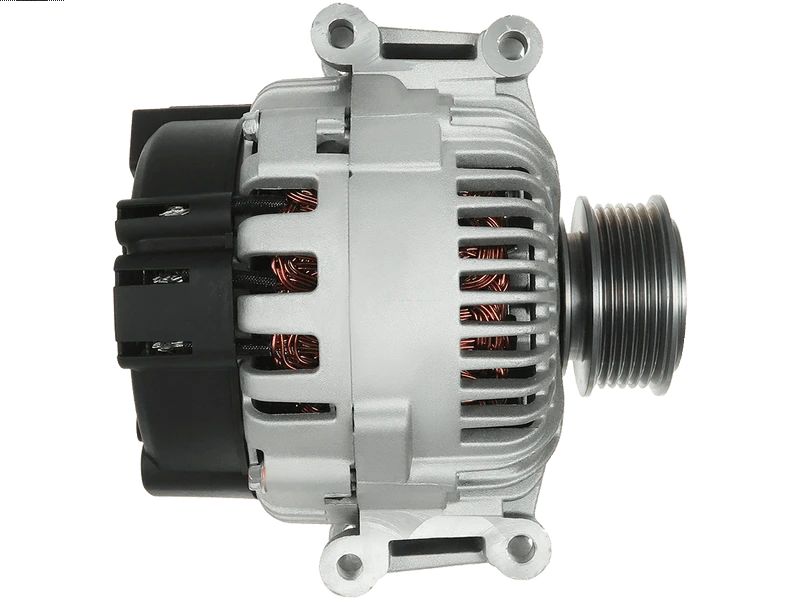

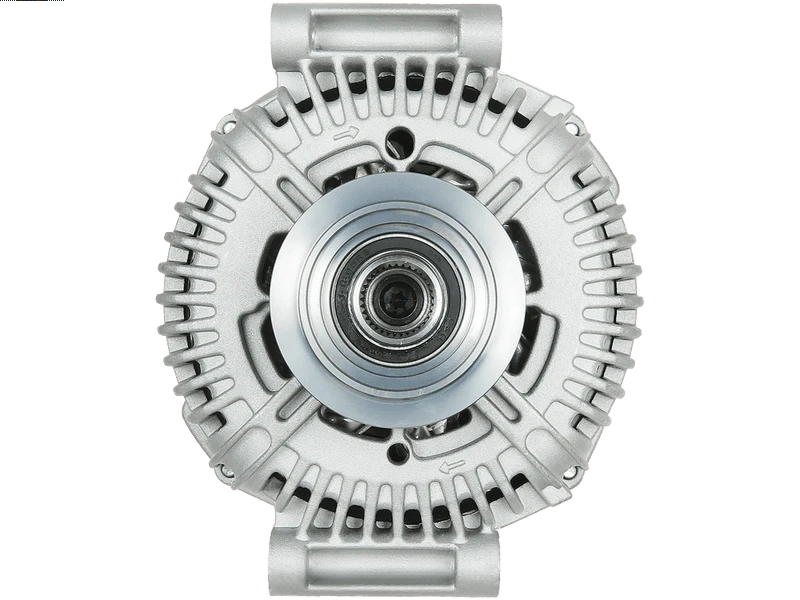

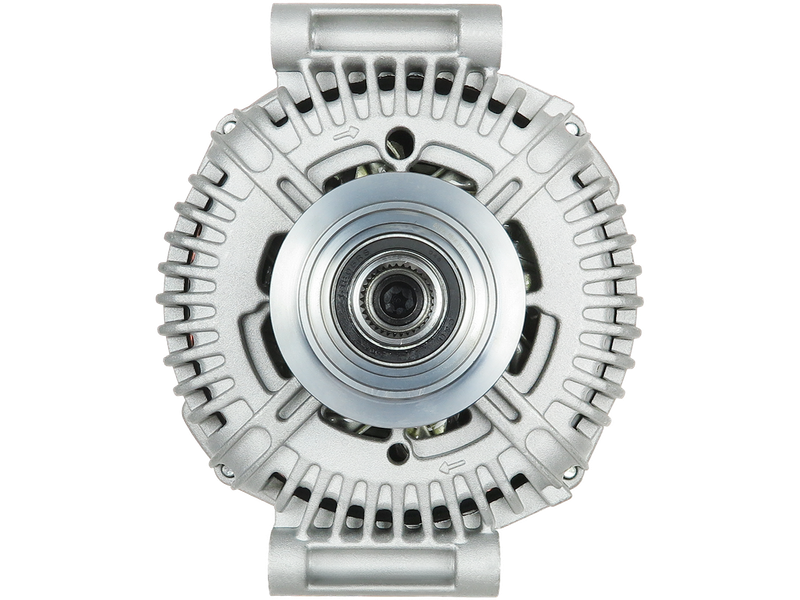

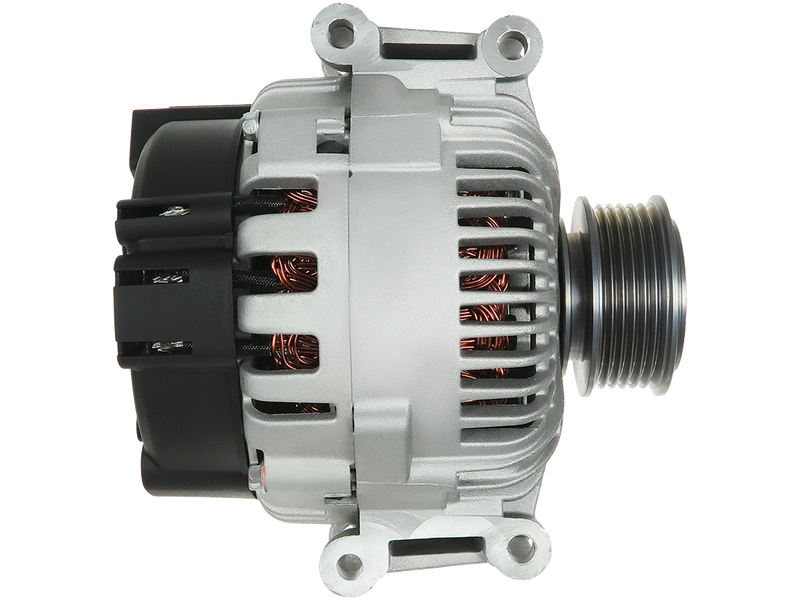

A3257 - Brand new AS-PL Alternator

Specifications

Amp	180 A
Diameter (D.1)	9.5 mm
Diameter (D.2)	9.5 mm
Diameter (D.3)	9.5 mm
Diameter (D.4)	9.5 mm
Grooves	6 qty
Length (L.1)	198 mm
Outside Diameter (O.D.1)	64.5 mm
Pad mount thickness (E.1)	70 mm
Pad mount thickness (E.2)	70 mm
Pivot Inside Length (C)	57 mm
Plug Code	PL_2303
Pulley Type	CLUTCH
Pulley to Mount Distance (A)	30 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A6 2.4	[BDW]	01.2004-
AUDI	A6 2.8 FSi	[BDX]	01.2007-
AUDI	A6 2.8 FSi	[CCEA]	01.2007-
AUDI	A6 2.8 FSi Quattro	[BDX]	01.2007-
AUDI	A6 2.8 FSi Quattro	[CCEA]	01.2007-
AUDI	A6 3.0 TFSi	[CAJA]	01.2008-
AUDI	A6 3.2 FSi	[AUK]	01.2004-2007
AUDI	A6 3.2 FSi	[BKH]	01.2006-
AUDI	A6 3.2 FSi Quattro	[BYU]	01.2006-2008

Reference Information

06E903016L 06E903016M 06E903016K 06E903016LX 437528 20179663OE LRA2365 115414 9.44391E+11 442087 CAL15366GS 5510633 A12BH0739AS 06E903016G 28-4871 553122RIV 4649 554417RIR DRA0358 TG17C044 06E903016KX TG17C023 2542798 A3257 LRA02365 06E903016GX 205.521.180 121715022 ALTF355 UD90031A 2015366 9214975

Video/Publications

0121715022 06E903016G 06E903016GX 06E903016K 06E903016KX 06E903016L 06E903016LX 06E903016M 115414 2015366 20179663OE 205.521.180 2542798 28-4871 437528 4649 553122RIV 554417RIR 9214975 944390903920 ALTF355 CAL15366GS DRA0358 LRA02365 LRA2365 TG17C023 TG17C044 UD90031A A3257
