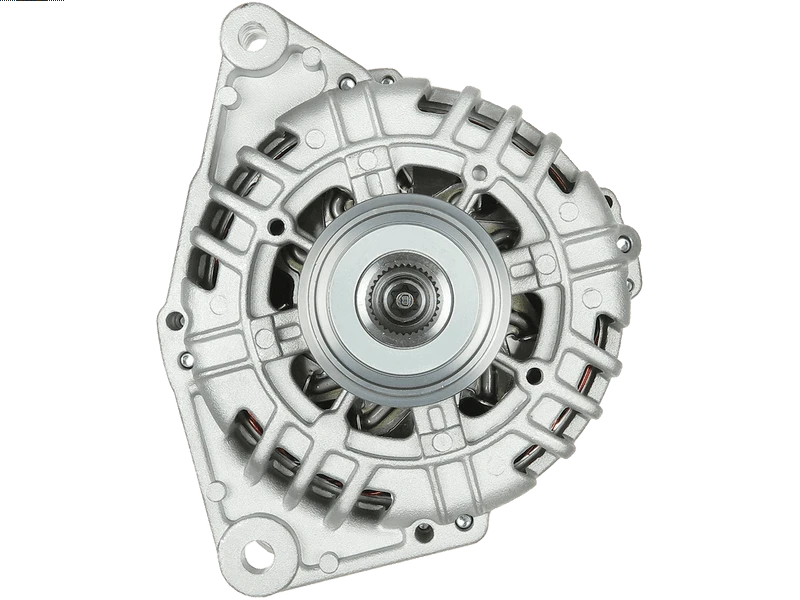

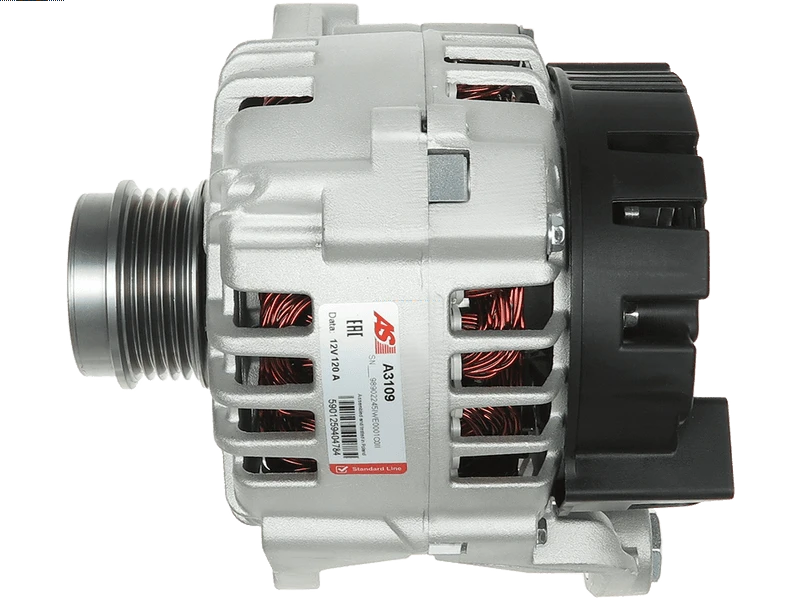

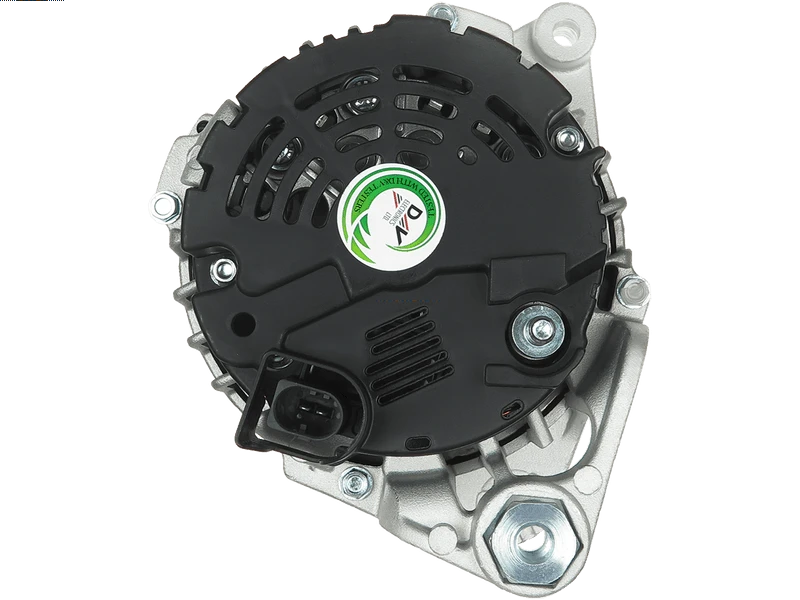

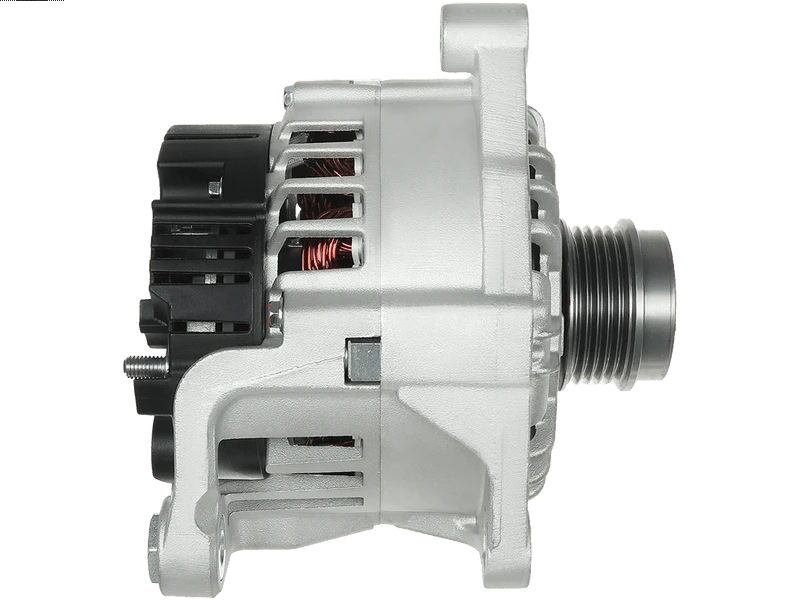

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 530.35 including GST
NZ$ 461.17 excluding GST
or four payments of $132.59
with
Learn More
UOM:
each
Product Code:
A3109
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
SG12B010Associated Numbers
0124515025 06B903016AD 06B903016B 06B903016E 06B903016EX 0986044320 113882 2542232 2542680 2574347 28-3900 301588RI 301588RIR 301588RIV 301759RI 32044320 437188 437420 439271 8EL738140-001 AEC1759 ALT10375 B120516094 CA1759IR DRB4320 EAA-221231 LRA01996 SG12B010 SG12B074 11212N 11212RSpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 183 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.2) | 56 mm |
| Pulley to Mount Distance (A) | 34.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 1.6 | [AHL] | 01.1999-07.1999 |
| AUDI | A4 1.6 | [ANA] | 08.1998-07.2000 |
| AUDI | A4 1.6 | [ARM] | 08.1998-07.1999 |
| AUDI | A4 1.8 | [ADR] | 01.1999-04.1999 |
| AUDI | A4 1.8 | [AFY] | 01.1999-09.2001 |
| AUDI | A4 1.8 | [APT] | 04.1999-10.2000 |
| AUDI | A4 1.8 | [ARG] | 08.1998-10.2000 |
| AUDI | A4 1.8 | [AVV] | 06.2000-10.2000 |
| AUDI | A4 1.8 Quattro | [AFY] | 01.1999-09.2001 |
| AUDI | A4 1.8 Quattro | [APT] | 04.1999-09.2001 |
| AUDI | A4 1.8 Quattro | [ARG] | 08.1998-06.2000 |
| AUDI | A4 1.8 Turbo | [AJL] | 01.1999-09.2001 |
| AUDI | A4 1.8 Turbo | [ANB] | 05.1999-06.2000 |
| AUDI | A4 1.8 Turbo | [AWT] | 06.2000-11.2000 |
| AUDI | A4 1.8 Turbo Quattro | [ANB] | 07.1999-06.2000 |
| AUDI | A4 1.8 Turbo Quattro | [AWT] | 06.2000-09.2001 |
| AUDI | A4 B5 (8D2) 1.6 | ADP | 11.1994-10.2000 |
| AUDI | A4 B5 (8D2) 1.6 | AHL | 11.1994-10.2000 |
| AUDI | A4 B5 (8D2) 1.6 | ALZ | 07.2000-11.2000 |
| AUDI | A4 B5 (8D2) 1.6 | ANA | 11.1994-10.2000 |
| AUDI | A4 B5 (8D2) 1.6 | ARM | 11.1994-10.2000 |
| AUDI | A4 B5 (8D2) 1.8 | ADR | 11.1994-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 | APT | 11.1994-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 | ARG | 11.1994-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 | AVV | 11.1994-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 quattro | ADR | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 quattro | APT | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 quattro | ARG | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T | AEB | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T | AJL | 12.1997-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T | ANB | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T | APU | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T | ARK | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T | ATW | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T | AWT | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T quattro | AEB | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T quattro | AJL | 12.1997-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T quattro | ANB | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T quattro | APU | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T quattro | ARK | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T quattro | ATW | 01.1995-11.2000 |
| AUDI | A4 B5 (8D2) 1.8 T quattro | AWT | 01.1995-11.2000 |
| AUDI | A4 B5 Avant (8D5) 1.6 | ADP | 11.1994-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.6 | AHL | 11.1994-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.6 | ALZ | 07.2000-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.6 | ANA | 11.1994-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.6 | ARM | 11.1994-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 | ADR | 02.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 | APT | 02.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 | ARG | 02.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 | AVV | 02.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 quattro | ADR | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 quattro | APT | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 quattro | ARG | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T | AEB | 03.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T | AJL | 12.1997-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T | ANB | 03.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T | APU | 03.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T | ARK | 03.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T | AWT | 03.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T quattro | AEB | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T quattro | AJL | 12.1997-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T quattro | ANB | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T quattro | APU | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T quattro | ARK | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T quattro | ATW | 01.1996-09.2001 |
| AUDI | A4 B5 Avant (8D5) 1.8 T quattro | AWT | 01.1996-09.2001 |
| AUDI | A4 B6 (8E2) 1.6 | ALZ | 11.2000-12.2004 |
| AUDI | A4 B6 (8E2) 1.8 T | AVJ | 11.2000-07.2002 |
| AUDI | A4 B6 (8E2) 1.9 TDI | AVF | 11.2000-12.2004 |
| AUDI | A4 B6 (8E2) 1.9 TDI | AWX | 11.2000-12.2004 |
| AUDI | A4 B6 (8E2) 2.0 | ALT | 11.2000-12.2004 |
| AUDI | A4 B6 (8E2) 2.0 FSI | AWA | 07.2002-12.2004 |
| AUDI | A4 B6 (8E2) 2.4 | BDV | 09.2001-12.2004 |
| AUDI | A4 B6 (8E2) 2.5 TDI | AYM | 08.2001-07.2002 |
| AUDI | A4 B6 (8E2) 3.0 | ASN | 11.2000-12.2004 |
| AUDI | A4 B6 (8E2) 3.0 | AVK | 11.2000-12.2004 |
| AUDI | A4 B6 (8E2) 3.0 | BBJ | 04.2001-12.2004 |
| AUDI | A4 B6 Avant (8E5) 1.8 T | AVJ | 09.2001-07.2002 |
| AUDI | A4 B6 Avant (8E5) 1.9 TDI | AVB | 11.2001-12.2004 |
| AUDI | A4 B6 Avant (8E5) 1.9 TDI | AVF | 09.2001-12.2004 |
| AUDI | A4 B6 Avant (8E5) 1.9 TDI | AWX | 09.2001-12.2004 |
| AUDI | A4 B6 Avant (8E5) 2.0 | ALT | 09.2001-12.2004 |
| AUDI | A4 B6 Avant (8E5) 2.0 FSI | AWA | 07.2002-12.2004 |
| AUDI | A4 B6 Avant (8E5) 2.4 | BDV | 09.2001-12.2004 |
| AUDI | A4 B6 Avant (8E5) 2.5 TDI | AYM | 09.2001-07.2002 |
| AUDI | A4 B6 Avant (8E5) 3.0 | ASN | 09.2001-12.2004 |
| AUDI | A4 B6 Avant (8E5) 3.0 | BBJ | 04.2001-12.2004 |
| AUDI | A4 B6 Convertible (8H7) 2.0 | ALT | 09.2004-12.2005 |
| AUDI | A6 1.8 | [AFY] | 07.1998- |
| AUDI | A6 1.8 | [AWT] | 05.2000-04.2001 |
| AUDI | A6 1.8 Turbo | [AWT] | 05.2000-04.2001 |
| AUDI | A6 1.8 Turbo Quattro | [AWT] | 05.2000-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 | AJP | 07.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 | AQE | 07.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 | ARH | 07.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | AEB | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | ANB | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | APU | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | ARK | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 1.8 T | AWT | 01.1997-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 4.2 quattro | ARS | 11.1998-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 4.2 quattro | ART | 11.1998-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 4.2 quattro | ASG | 11.1998-01.2005 |
| AUDI | A6 C5 (4B2, 4B4) 4.2 quattro | AWN | 11.1998-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | AEB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | ANB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | APU | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | ARK | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T | AWT | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | AEB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | ANB | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | APU | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | ARK | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 1.8 T quattro | AWT | 12.1997-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 4.2 quattro | ARS | 11.1998-01.2005 |
| AUDI | A6 C5 Avant (4B5, 4B6) 4.2 quattro | ASG | 11.1998-01.2005 |
| AUDI | A8 3.0 | [ASN] | 08.2003- |
| AUDI | A8 D3 (4E2, 4E8) 3.0 | BBJ | 07.2003-05.2006 |
| SKODA | Superb 2.0 | [AZM] | 12.2001- |
| SKODA | SUPERB I (3U4) 2.0 | AZM | 12.2001-03.2008 |
| VW | Passat 1.6 | [AHL] | 06.1997-11.2000 |
| VW | Passat 1.6 | [ALZ] | 11.2000-05.2005 |
| VW | Passat 1.6 | [ANA] | 07.1999-11.2000 |
| VW | Passat 1.6 | [ARM] | 01.1999-11.2000 |
| VW | Passat 1.8 | [ARG] | 02.1999-11.2000 |
| VW | Passat 1.8 Syncro 4-Motion | [ARG] | 01.1999-11.2000 |
| VW | Passat 1.8 Turbo | [AEB] | 05.1997-11.2000 |
| VW | Passat 1.8 Turbo | [ANB] | 08.1998-11.2000 |
| VW | Passat 1.8 Turbo | [APU] | 01.1999-11.2000 |
| VW | Passat 2.0 | [AZM] | 11.2000-05.2005 |
| VW | Passat 2.0 | [BFF] | 11.2000-02.2007 |
| VW | Passat 2.0 4-Motion | [AZM] | 11.2000-05.2005 |
| VW | PASSAT B5 (3B2) 1.8 T | AEB | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 1.8 T | ANB | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 1.8 T | APU | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 1.8 T | ATW | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 1.8 T | AUG | 10.1996-11.2000 |
| VW | PASSAT B5.5 (3B3) 1.6 | ALZ | 11.2000-05.2005 |
| VW | PASSAT B5.5 (3B3) 1.8 T | AWM | 02.2001-11.2005 |
| VW | PASSAT B5.5 (3B3) 1.8 T 20V | AWT | 11.2000-05.2005 |
| VW | PASSAT B5.5 (3B3) 2.0 | ALT | 11.2001-05.2005 |
| VW | PASSAT B5.5 (3B3) 2.0 | AZM | 11.2000-05.2005 |
| VW | PASSAT B5.5 (3B3) 2.0 4motion | AZM | 11.2000-05.2005 |
| VW | PASSAT B5.5 Variant (3B6) 1.6 | ALZ | 11.2000-05.2005 |
| VW | PASSAT B5.5 Variant (3B6) 1.8 T | AWM | 05.2002-08.2005 |
| VW | PASSAT B5.5 Variant (3B6) 1.8 T 20V | AWT | 11.2000-05.2005 |
| VW | PASSAT B5.5 Variant (3B6) 2.0 | ALT | 11.2001-05.2005 |
| VW | PASSAT B5.5 Variant (3B6) 2.0 | AZM | 11.2000-05.2005 |
| VW | PASSAT B5.5 Variant (3B6) 2.0 4motion | AZM | 11.2000-05.2005 |
| VW | PASSAT B5 Variant (3B5) 1.8 T | AEB | 05.1997-11.2000 |
| VW | PASSAT B5 Variant (3B5) 1.8 T | ANB | 05.1997-11.2000 |
| VW | PASSAT B5 Variant (3B5) 1.8 T | APU | 05.1997-11.2000 |
| VW | PASSAT B5 Variant (3B5) 1.8 T | ATW | 05.1997-11.2000 |
| VW | PASSAT B5 Variant (3B5) 1.8 T | AUG | 05.1997-11.2000 |
| VW | PASSAT B5 Variant (3B5) 2.0 | ASU | 04.2000-11.2000 |
| VW | PASSAT B5 Variant (3B5) 2.0 | AUZ | 04.2000-11.2000 |
| VW | PASSAT B5 Variant (3B5) 2.0 4motion | ASU | 04.2000-11.2000 |
| VW | PASSAT B5 Variant (3B5) 2.0 4motion | AUZ | 04.2000-11.2000 |
| VW | SCIROCCO III (137, 138) 2.0 TFSI | CAWB | 05.2008-11.2009 |
Reference Information
| 0124515025 | BOSCH |
| 038903018FX | VW |
| 06B903016AD | VW |
| 06B903016B | VW |
| 06B903016BX | VW |
| 06B903016E | VW |
| 06B903016EX | VW |
| 06B903018EX | VW |
| 0986044320 | BOSCH |
| 11212N | WAI |
| 11212R | WAI |
| 113882 | CARGO |
| 2015248.1 | SANDO |
| 20179842OE | REAL |
| 210524 | ERA |
| 216037 | CUMMINS |
| 2542232 | VALEO |
| 2542232A | VALEO |
| 2542680 | VALEO |
| 2574347 | VALEO |
| 28-3900 | ELSTOCK |
| 301588RI | KUHNER |
| 301588RIR | KUHNER |
| 301588RIV | KUHNER |
| 301759RI | KUHNER |
| 32044320 | HERTH+BUSS |
| 3948717 | VOLVO |
| 437188 | VALEO |
| 437420 | VALEO |
| 439271 | VALEO |
| 441906 | LOGISTIK |
| 6B903016AD | VW |
| 6B903016B | VW |
| 6B903016BX | VW |
| 6B903016E | VW |
| 6B903016EX | VW |
| 8EL738140-001 | HELLA |
| A12VA0502 | SIDAT |
| A12VA0502A2 | SIDAT |
| A3109 | AS-PL |
| AEC1759 | AUTOELECTRO |
| ALT00452 | ELECTROLOG |
| ALT10375 | WOODAUTO |
| ALT172480 | SIOM |
| ALTS177 | 3EFFE |
| B120516094 | BOSCH |
| CA1759IR | HC PARTS |
| CAL15248GS | CASCO |
| DRB4320 | DELCO |
| F032113882 | CARGO |
| L06B903016E | VW |
| LRA01996 | LUCAS |
| LRA1996 | LUCAS |
| SG12B010 | VALEO |
| SG12B074 | VALEO |
| STA0528R | BOVEZ |
| STX100044 | STARDAX |
| STX100044R | STARDAX |
| STX100514 | STARDAX |
| STX100514R | STARDAX |
| STX102219 | STARDAX |
Video/Publications
A3109Related Items
View your shopping basket or Browse other items in Alternators.
