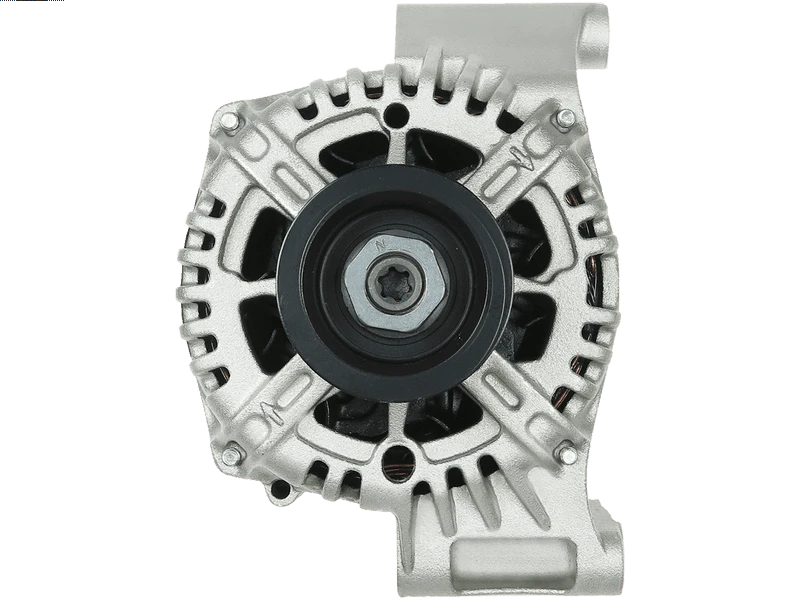

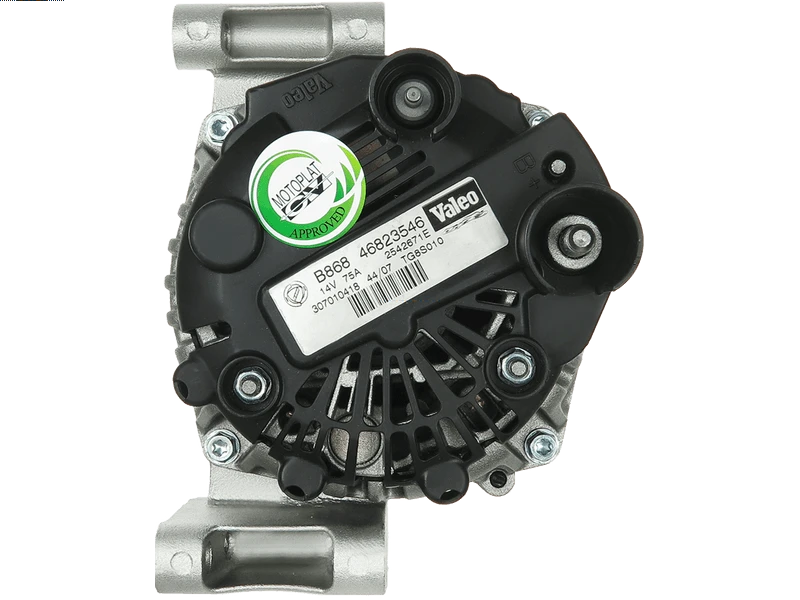

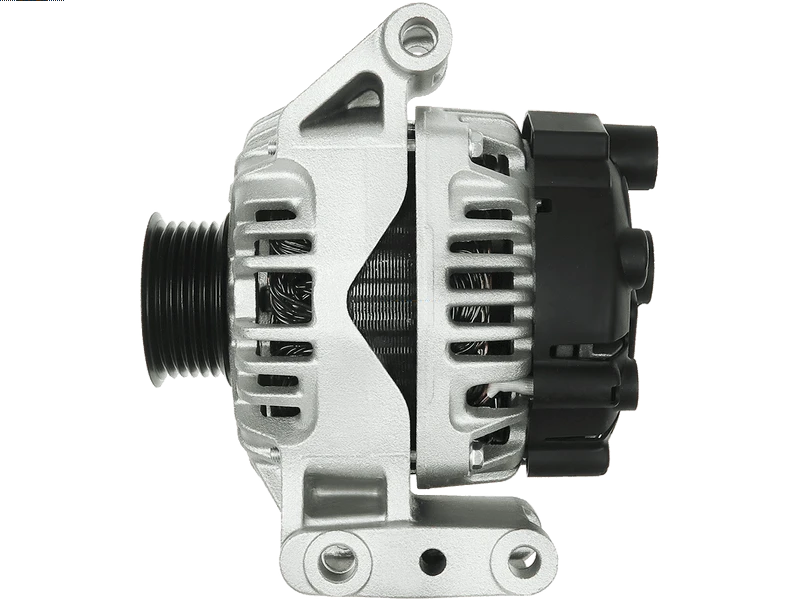

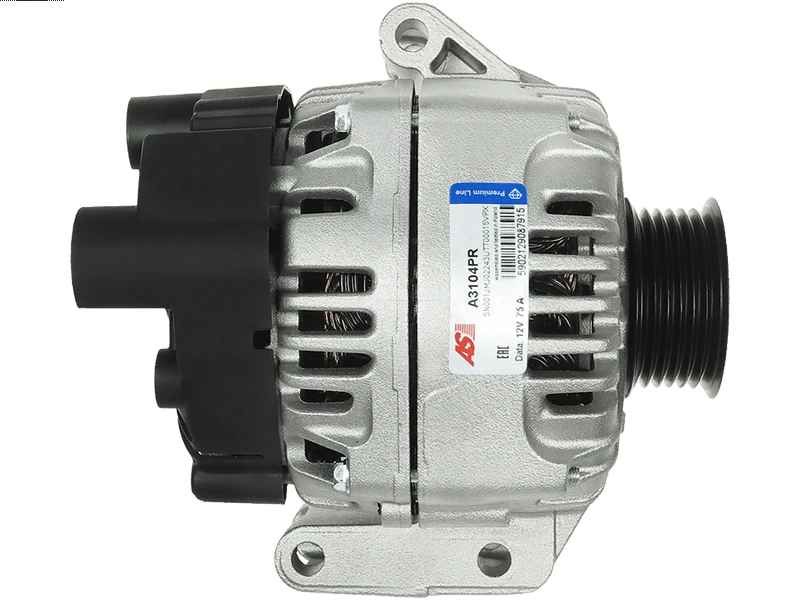

A3104PR - Remanufactured AS-PL Alternator

Specifications

Amp	75 A
Bottom Mounting Foot Width (B)	64 mm
Diameter (D.1)	9 mm
Diameter (D.2)	9 mm
Diameter (D.3)	9 mm
Grooves	6 qty
Length (L.1)	173 mm
Mount Inside Length or Pad Mount C-C (C)	55 mm
OEM Product	No
Outside Diameter (O.D.1)	53 mm
Pad mount thickness (E.1)	64.5 mm
Pad mount thickness (E.2)	64.5 mm
Plug Code	PL_9104
Product Line	Premium Line
Product Type	Remanufactured
Pulley to Mount Distance (A)	43 mm
Pulley Type	SOLID
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FIAT	500 1.3 Multijet	[169A1.000]	10.2007-
FIAT	Doblo 1.2 Multijet	[199A3.000]	02.2010-
FIAT	Doblo 1.3 JTD 16V	[188A8.000]	05.2004-
FIAT	Doblo 1.3 JTD 16V	[188A9.000]	05.2004-
FIAT	Doblo 1.3 Multijet	[199A3.000]	02.2010-
FIAT	Doblo 1.3 Multijet	[263A6.000]	03.2015-
FIAT	Fiorino 1.3 Multijet	[199A2.000]	11.2007-
FIAT	Fiorino 1.3 Multijet	[199A9.000]	11.2007-
FIAT	Fiorino 1.3 Multijet QUBO	[199A2.000]	02.2008-
FIAT	Grande Punto 1.2 Multijet	[199A2.000]	04.2008-
FIAT	Grande Punto 1.3 Multijet	[199A2.000]	10.2005-
FIAT	Grande Punto 1.3 Multijet	[199A3.000]	10.2005-
FIAT	Idea 1.3 JTD	[188A9.000]	01.2004-
FIAT	Idea 1.3 Multijet	[199A3.000]	10.2005-
FIAT	Linea 1.3 Multijet	[199A3.000]	06.2007-
FIAT	Panda 1.2 Multijet	[169A1.000]	06.2006-
FIAT	Panda 1.3 JTD	[188A8.000]	09.2003-
FIAT	Panda 1.3 JTD	[188A9.000]	09.2003-
FIAT	Panda 1.3 JTD 4x4	[188A8.000]	10.2004-
FIAT	Panda 1.3 JTD 4x4	[188A9.000]	10.2004-
FIAT	Panda 1.3 Multijet 4x4	[169A1.000]	01.2006-
FIAT	Punto 1.3 JTD	[188A9.000]	06.2003-
FIAT	Punto 1.3 Multijet	[188A9.000]	02.2005-10.2009
FIAT	Punto 1.3 Multijet	[199A2.000]	03.2012-
FIAT	Punto 1.3 Multijet	[199A9.000]	03.2012-
FIAT	Punto Evo 1.3 Multijet	[199A2.000]	03.2009-
FIAT	Punto Evo 1.3 Multijet	[199A3.000]	10.2009-
FIAT	Punto Evo 1.3 Multijet	[199A9.000]	03.2009-
FIAT	Strada 1.3 Multijet	[223A9.000]	05.2006-
LANCIA	Musa 1.3 Multijet	[188A9.000]	10.2004-
LANCIA	Musa 1.3 Multijet	[199A3.000]	09.2006-
LANCIA	Ypsilon 1.3 JTD	[188A9.000]	10.2003-
LANCIA	Ypsilon 1.3 Multijet	[199A2.000]	09.2006-
LANCIA	Ypsilon 1.3 Multijet	[199A3.000]	09.2006-

Reference Information

MRA90210 DA5359 9.43358E+11 TG8S021 301856RI 5184905 55185075 10443159 210547 CAL15124RS R1530097 986048781 12090026 23797N CA1856IR 51854905 20179421OE 9562206 51854909 703009641 DAN1003 51805799 468235460 CAL15124AS TG8S010 505.542.075.260 WG2280918 MAN1098 PRAS735 3119297 89212139 101210-1210 ALTS735 101210-1211 5515220 VAL439506 H5515220 218303752 A12VA0919 311082 71723041 93169027 93169026 0986048781 301862RIV 51984050 2015124.1 5185803 BBA2450 4752 MAR1098 CAL15124 439506 104210-1212 301856RIV 51805803 MQA1856 LRA02797 747036 13256930 63377024010 9.44391E+11 505.542.075.500 116330 ALT00588 ALT00589 28-4914 210465 51787208 MAN7024 11443725 113721 8EL738211-031 1204432 1571296 CAL15124ES 13283343 51784847 DRA4249 63377024 2015124 ALT322000 AVA124 71793518 51854914 51718499 505.542.075.008 9090210 301855RI 210406A ALT171240 505.542.075.000 112902 210406 46823546 WG2194109 9S51-10346-CA 4-1142 9S51-10346-CB 63731856010 437475 CGB-84914 13117278 301855RIV 505.542.075 52003511 AG1205 ALT571 AZMT-49-035-1605 57297 ALV1856 LRA2797 1539098 TG8S031 CAL15124GS A12VA0919A2 8EL012429-111 WG2011873 CAL15124OS WG2011872 52092133 1648225280 13243462

Video/Publications

063377024010 063731856010 0986048781 101210-1210 101210-1211 104210-1212 113721 1539098 1571296 2015124 210406 23797N 28-4914 301855RI 301855RIV 301856RIV 301862RIV 311082 437475 439506 46823546 505.542.075 51784847 51805803 51854905 747036 89212139 8EL738211-031 944390902100 9S51-10346-CA 9S51-10346-CB ALT171240 ALT322000 ALTS735 ALV1856 CA1856IR CAL15124 CAL15124AS CAL15124ES CAL15124GS CAL15124OS CAL15124RS CGB-84914 DA5359 DAN1003 DRA4249 LRA02797 LRA2797 MAN7024 MQA1856 MRA90210 PRAS735 TG8S010 TG8S021 VAL439506 210465 210547
