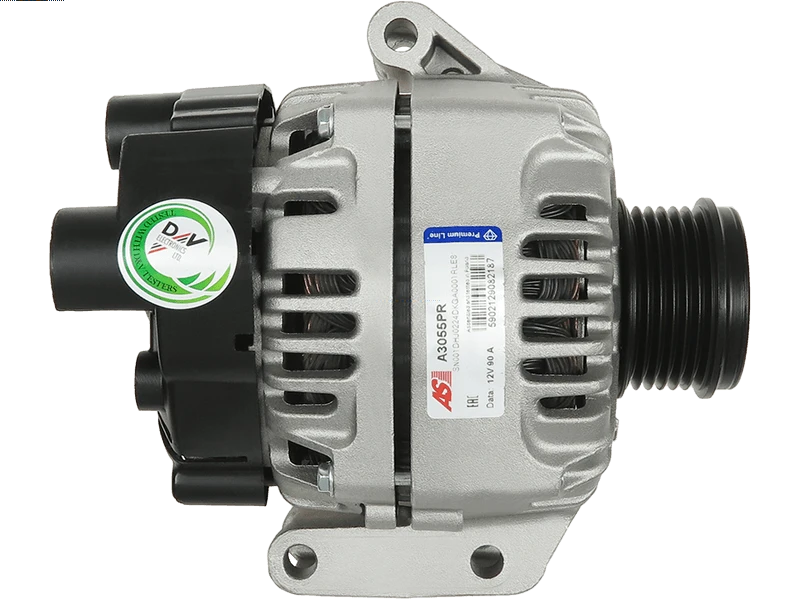

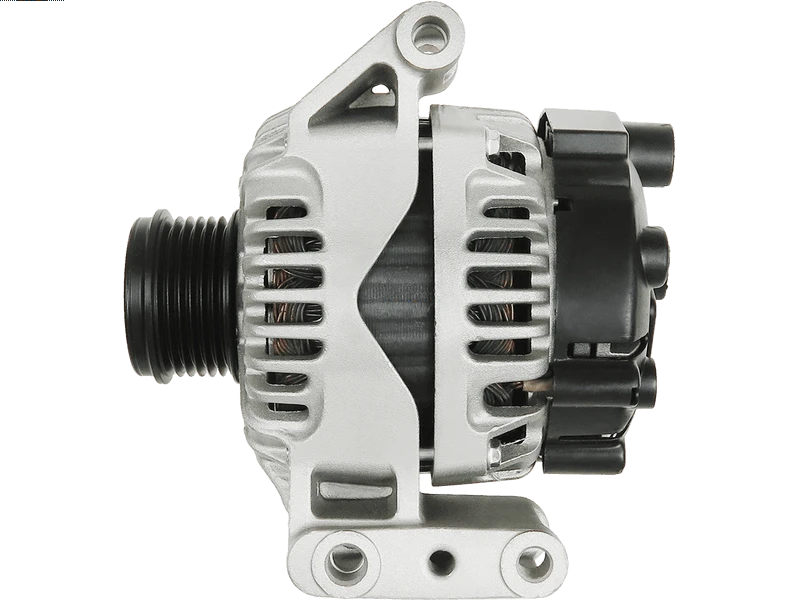

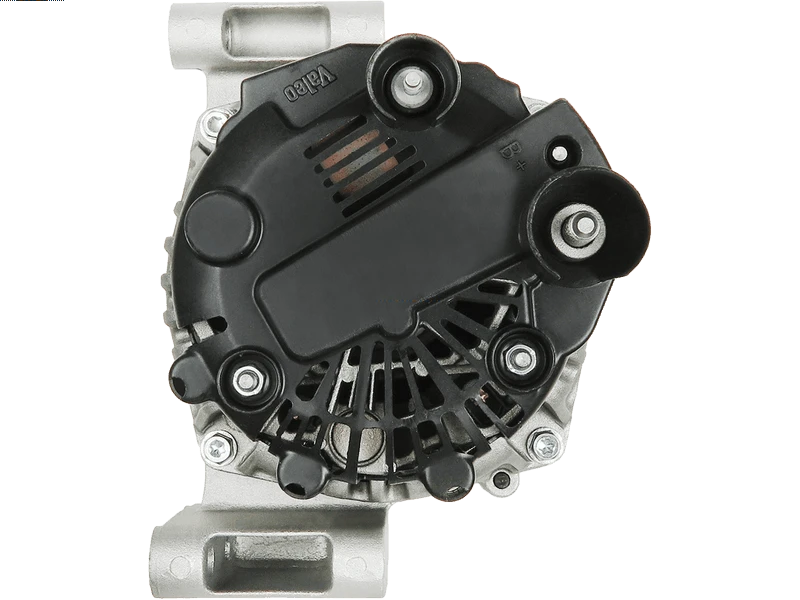

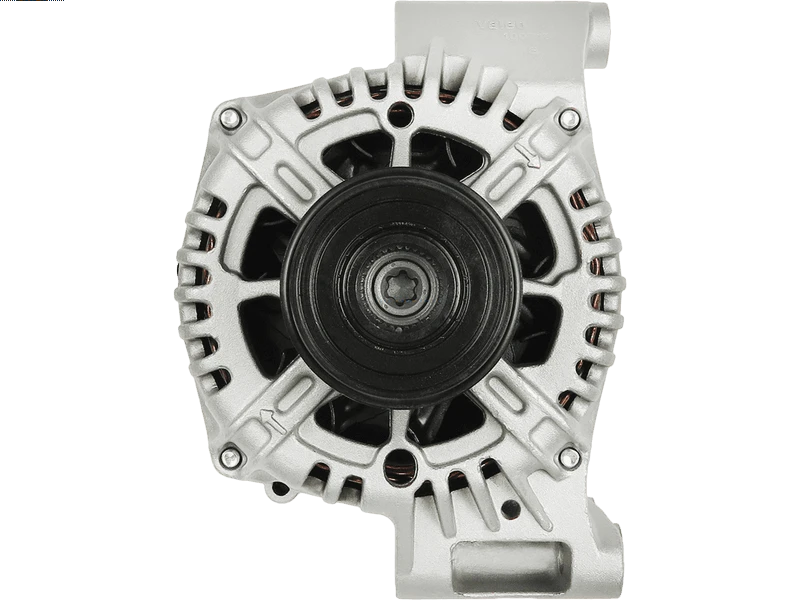

A3055PR - Remanufactured AS-PL Alternator

Specifications

Amp	90 A
Diameter (D.1)	9 mm
Diameter (D.2)	9 mm
Diameter (D.3)	8.5 mm
Grooves	6 qty
Length (L.1)	185 mm
Outside Diameter (O.D.1)	54 mm
Pad mount thickness (E.1)	64 mm
Pad mount thickness (E.2)	64 mm
Pivot Inside Length (C)	56 mm
Plug Code	PL_9104
Pulley Type	CLUTCH
Pulley to Mount Distance (A)	42 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ALFA ROMEO	Mito 1.3 JTDM	[199A3.000]	09.2008-
ALFA ROMEO	Mito 1.3 JTDM	[199B1.000]	10.2009-
FIAT	500 1.3 Multijet	[169A1.000]	10.2007-
FIAT	500 C 1.3 Multijet	[169A1.000]	09.2009-
FIAT	Doblo 1.2 Multijet	[199A3.000]	02.2010-
FIAT	Doblo 1.2 Multijet	[263A2.000]	02.2010-
FIAT	Doblo 1.2 Multijet	[263A6.000]	11.2013-
FIAT	Doblo 1.3 16V JTD Cargo	[223A9.000]	08.2006-
FIAT	Doblo 1.3 JTD 16V	[188A8.000]	05.2004-
FIAT	Doblo 1.3 JTD 16V	[188A9.000]	05.2004-
FIAT	Doblo 1.3 Multijet	[199A2.000]	10.2005-
FIAT	Doblo 1.3 Multijet	[199A3.000]	02.2010-
FIAT	Doblo 1.3 Multijet	[223A9.000]	10.2005-
FIAT	Doblo 1.3 Multijet	[263A6.000]	03.2015-
FIAT	Fiorino 1.3 Multijet	[199A2.000]	11.2007-
FIAT	Fiorino 1.3 Multijet	[199A9.000]	11.2007-
FIAT	Fiorino 1.3 Multijet		01.2007-
FIAT	Fiorino 1.3 Multijet QUBO	[199A2.000]	02.2008-
FIAT	Grande 1.3 Multijet	[199A2.000]	02.2006-06.2013
FIAT	Grande Punto 1.3 Multijet	[199A2.000]	10.2005-
FIAT	Grande Punto 1.3 Multijet	[199A3.000]	10.2005-
FIAT	Idea 1.2 Multijet	[199B1.000]	05.2008-
FIAT	Idea 1.3 JTD	[188A9.000]	01.2004-
FIAT	Idea 1.3 Multijet	[199A3.000]	10.2005-
FIAT	Linea 1.3 Multijet	[199A3.000]	06.2007-
FIAT	Palio 1.3 Multijet	[188A9.000]	06.2003-
FIAT	Panda 1.2 Multijet	[169A1.000]	06.2006-
FIAT	Panda 1.2 Multijet 4x4	[188A8.000]	10.2004-
FIAT	Panda 1.2 Multijet 4x4	[188A9.000]	10.2004-
FIAT	Panda 1.3 16V Multijet 4x4	[169A1.000]	09.2003-
FIAT	Panda 1.3 16V Multijet 4x4	[169A5.000]	09.2003-
FIAT	Panda 1.3 JTD	[169A1.000]	06.2006-
FIAT	Panda 1.3 JTD	[188A8.000]	03.2004-
FIAT	Panda 1.3 JTD	[188A8.000]	09.2003-
FIAT	Panda 1.3 JTD	[188A9.000]	03.2004-
FIAT	Panda 1.3 JTD	[188A9.000]	09.2003-
FIAT	Panda 1.3 JTD 4x4	[188A8.000]	10.2004-
FIAT	Panda 1.3 JTD 4x4	[188A9.000]	10.2004-
FIAT	Panda 1.3 Multijet 4x4	[169A1.000]	01.2006-
FIAT	Punto 1.2 Multijet	[199A3.000]	01.2010-02.2012
FIAT	Punto 1.3 JTD	[188A9.000]	06.2003-
FIAT	Punto 1.3 JTD	[188A9.000]	06.2003-10.2005
FIAT	Punto 1.3 Multijet	[188A9.000]	02.2005-10.2009
FIAT	Punto 1.3 Multijet	[199A2.000]	03.2012-
FIAT	Punto 1.3 Multijet	[199A9.000]	03.2012-
FIAT	Punto Evo 1.3 Multijet	[199A2.000]	03.2009-
FIAT	Punto Evo 1.3 Multijet	[199A2.000]	03.2009-02.2012
FIAT	Punto Evo 1.3 Multijet	[199A2.000]	10.2009-
FIAT	Punto Evo 1.3 Multijet	[199A3.000]	10.2009-
FIAT	Punto Evo 1.3 Multijet	[199A9.000]	03.2009-
FIAT	Punto Evo 1.3 Multijet	[199A9.000]	03.2009-02.2012
FIAT	Punto Evo 1.3 Multijet	[199A9.000]	10.2009-
FIAT	Siena 1.3 JTD	[188A9.000]	11.2007-
FIAT	Strada 1.3 Multijet	[199B1.000]	10.2010-
FIAT	Strada 1.3 Multijet	[223A9.000]	05.2006-
LANCIA	Musa 1.3 Multijet	[188A9.000]	10.2004-
LANCIA	Musa 1.3 Multijet	[199A3.000]	09.2006-
LANCIA	Musa 1.3 Multijet	[199B1.000]	03.2009-
LANCIA	Ypsilon 1.3 JTD	[188A9.000]	10.2003-
LANCIA	Ypsilon 1.3 Multijet	[199A2.000]	09.2006-
LANCIA	Ypsilon 1.3 Multijet	[199A3.000]	09.2006-
OPEL	Agila 1.3 CDTi	[Z13DT]	08.2003-12.2007
OPEL	Astra H 1.3 CDTi	[Z13DTH]	02.2007-
OPEL	Astra H 1.3 CDTi	[Z13DTH]	08.2005-
OPEL	Astra H 1.3 CDTi GTC	[Z13DTH]	01.2006-
OPEL	Astra H 1.4	[Z14XEL]	03.2005-
OPEL	Combo 1.3 CDTi 16V	[Z13DTJ]	10.2005-
OPEL	Combo 1.3 CDTi 16V	[Z13DT]	08.2005-
OPEL	Combo 1.3 CDTi 16V Tour	[Y13DT]	10.2004-
OPEL	Combo 1.3 CDTi 16V Tour	[Z13DT]	10.2004-
OPEL	Corsa C 1.3 CDTi	[Z13DT]	06.2003-
OPEL	Corsa C 1.3 CDTi 16V	[Z13DT]	08.2005-
OPEL	Corsa D 1.3 CDTi	[A13DTC]	07.2006-
OPEL	Corsa D 1.3 CDTi	[A13DTE]	06.2010-
OPEL	Corsa D 1.3 CDTi	[A13DTR]	06.2010-
OPEL	Corsa D 1.3 CDTi	[Z13DTE]	06.2010-
OPEL	Corsa D 1.3 CDTi	[Z13DTJ]	07.2006-
OPEL	Meriva 1.4 16V Twinport LPG	[Z14XEP]	07.2004-05.2010
OPEL	Meriva A 1.3 CDTi	[Z13DTJ]	09.2003-
OPEL	Tigra 1.3 CDTi	[Z13DT]	06.2004-
SUZUKI	Ignis 1.3 DDiS	[Z13DT]	09.2003-
SUZUKI	Splash 1.3 CDTi	[D13A]	01.2008-
SUZUKI	Splash 1.3 CDTi	[Z13DTJ]	01.2008-
SUZUKI	Swift 1.3 DDiS	[Z13DTJ]	08.2005-
SUZUKI	Swift 1.3 DDiS	[Z13DT]	08.2005-
SUZUKI	Wagon R+ 1.25 DDiS	[Z13DT]	09.2003-
VAUXHALL	Astra Mk V 1.3 CDTi	[Z13DTH]	08.2005-
VAUXHALL	Astra Mk V 1.3 CDTi	[Z13DTH]	10.2005-
VAUXHALL	Astra Mk V 1.3 CDTi Sport	[Z13DTH]	04.2005-11.2010
VAUXHALL	Astravan 1.3 CDTi	[Z13DTH]	08.2005-
VAUXHALL	Combo 1.3 CDTi 16V	[Z13DTJ]	10.2005-11.2011
VAUXHALL	Combo 1.3 CDTi 16V	[Z13DT]	09.2004-
VAUXHALL	Combo Mk II 1.3 CDTi 16V Tour	[Z13DTJ]	07.2006-02.2012
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[A13DTE]	06.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[A13DTR]	06.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[Z13DTE]	06.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[Z13DTJ]	09.2005-09.2006
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[Z13DT]	08.2003-
VAUXHALL	Corsavan Mk III 1.3 CDTi 16V	[Z13DT]	04.2004-06.2006
VAUXHALL	Tigra 1.3 CDTi TwinTop	[Z13DT]	06.2004-08.2009

Reference Information

135.535.090.059 89212358 135.535.090.058 135.535.090.056 DA5354 55185076 A12VA0001 AG0509 CGB-84921 NEK2804 DAN1002 441977 23923N 6204261 71794523 LRA2804 986048771 MAN1097 51854910 210451 ALT321990 CA1862IR MRA90196 VAL439505 CAL15118GS CGB-14254 20179811OE 2542851A 2015118 LRA02804 A12VA0001A2 ALTL245NE 135.535.090.260 311088 2542851 301862RIV 51984055 4753 703000096 63358061 TG9S036 439505 CAL15118AS 13117279YQ ALT171180 63358061010 9.44391E+11 ALT00902 51805800 31400-T85E00 101210-1191 MARC1862 101210-1192 101210-1190 31400-85E00 EAA-221013 6204291 210466 51787209 ALTL245 ALT14002R AEK2804 TG9S140 TG9S022 TG9S021 135.535.090.008 113722 63377019 135.535.090.000 5515034 71795805 8EL738211-151 DRA4244 1571297 28-4921 6204181 51784845 TG9S016 210750 9S51-10346-DB TG9S015 13283344 TG9S010 51854915 20179811BN ALTL245V ALTL245U 63377022010 2542884 ALT172610 46823547 6204191 ALV1862 2015118.1 437474 13117279 135.535.090.505 52003517 PRAL245U 135.535.090.501 63377019010 101210-1120 101210-1121 115963 PRAL245 9.43319E+11 63731862010 RAA15355 439524 GA435505-A 8EL011710-841 13243463 ALT0097 PRAL245V

Video/Publications

063358061010 063377019010 063377022010 063731862010 0986048771 101210-1120 101210-1121 101210-1190 101210-1191 101210-1192 113722 115963 13117279 13117279YQ 13243463 13283344 135.535.090 1571297 2015118 210451 23923N 2542851 2542851A 28-4921 301862RIV 311088 31400-85E00 31400-T85E00 437474 439505 439524 46823547 4753 51784845 51787209 51805800 51854910 51854915 51984055 52003517 55185076 6204181 6204191 6204261 6204291 703000096 71794523 71795805 89212358 8EL011710-841 8EL738211-151 943318621010 944390901960 9S51-10346-DB AEK2804 AG0509 ALE1862 ALT14002R ALT171180 ALT172610 ALT321990 ALTL245 ALTL245NE ALTL245U ALTL245V ALV1862 AX 1223 CA1862IR CAL15118 CAL15118AS CAL15118ES CAL15118GS CAL15118OS CAL15118RS CGB-14254 CGB-84921 DA5354 DAN1002 DRA4244 EAA-221013 GA435505-A LRA02804 LRA2804 MAN1097 MARC1862 MRA90196 NEK2804 PRAL245 PRAL245U PRAL245V RAA15355 TG9S010 TG9S015 TG9S016 TG9S021 TG9S022 TG9S036 TG9S140 VAL439505 210466 210750
