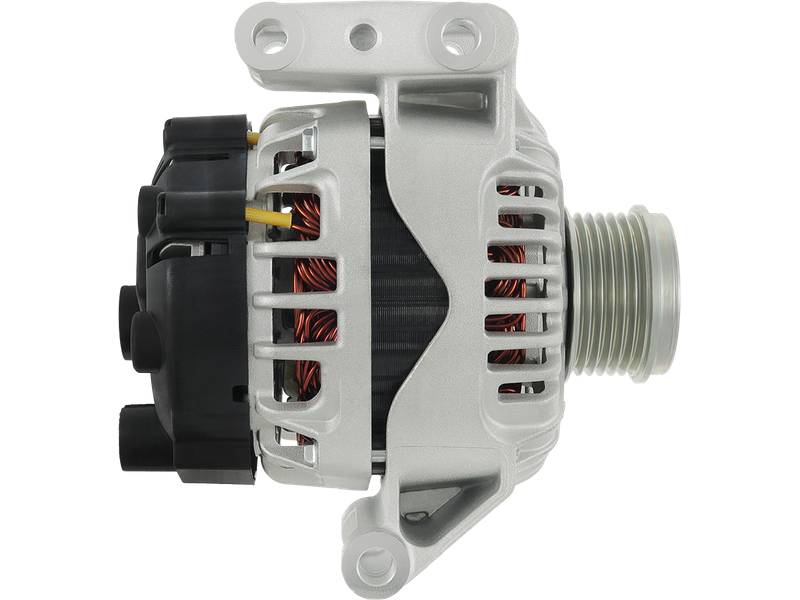

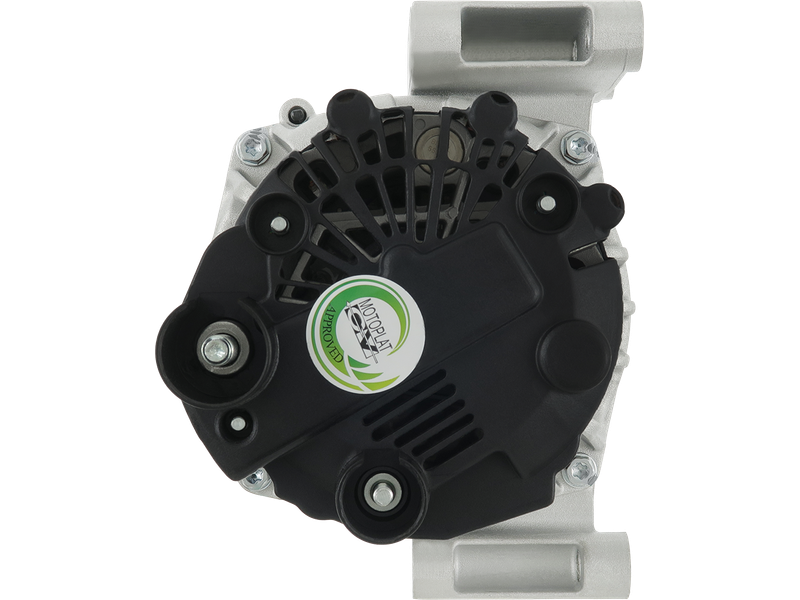

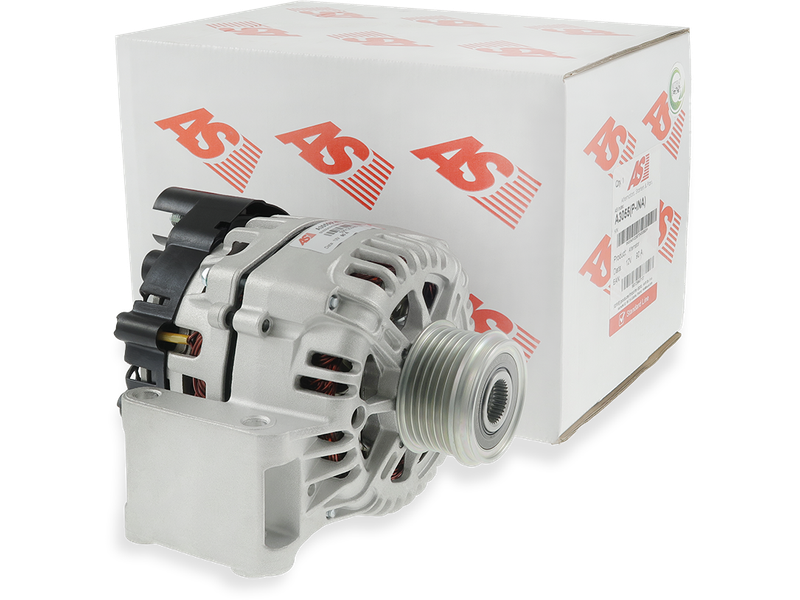

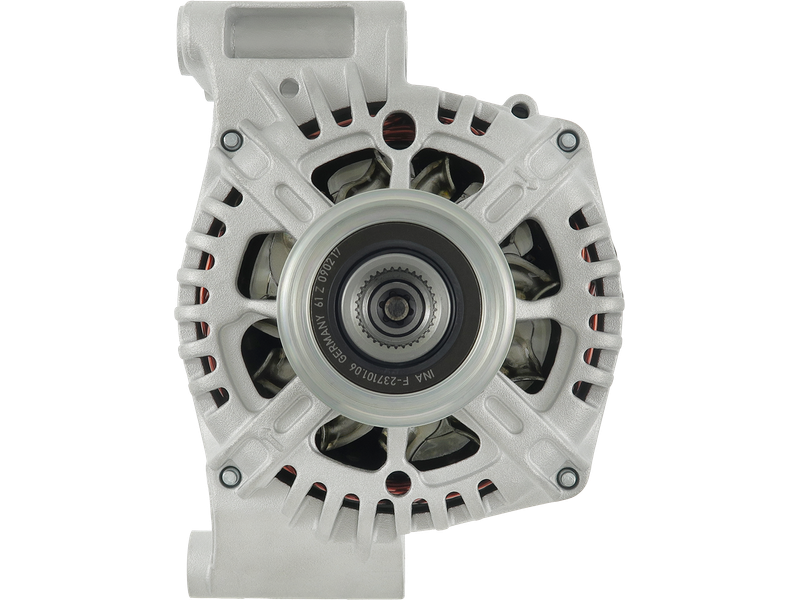

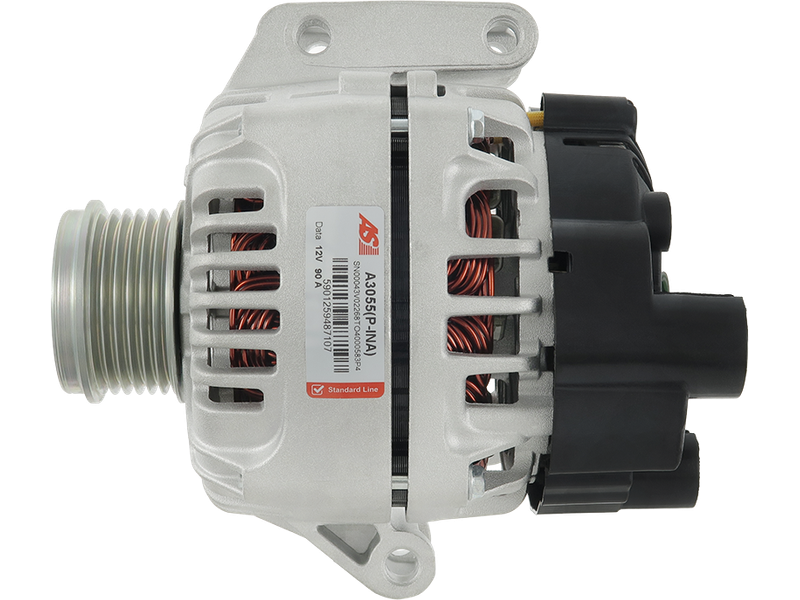

A3055(P-INA) - Brand new AS-PL Alternator with INA freewheel pulley

Specifications

Amp	90 A
Bottom Mounting Foot Width (B)	56 mm
Diameter (D.1)	9.5 mm
Diameter (D.2)	9.5 mm
Diameter (D.3)	9.5 mm
Grooves	6 qty
Length (L.1)	185 mm
Mount Inside Length or Pad Mount C-C (C)	56 mm
OEM Product	No
Outside Diameter (O.D.1)	54 mm
Pad mount thickness (E.1)	64 mm
Pad mount thickness (E.2)	64 mm
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	42 mm
Pulley Type	CLUTCH
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ALFA ROMEO	Mito 1.3 JTDM	[199A3.000]	09.2008-
ALFA ROMEO	Mito 1.3 JTDM	[199B1.000]	10.2009-
FIAT	500 1.3 Multijet	[169A1.000]	10.2007-
FIAT	500 C 1.3 Multijet	[169A1.000]	09.2009-
FIAT	Doblo 1.2 Multijet	[199A3.000]	02.2010-
FIAT	Doblo 1.2 Multijet	[263A2.000]	02.2010-
FIAT	Doblo 1.2 Multijet	[263A6.000]	11.2013-
FIAT	Doblo 1.3 16V JTD Cargo	[223A9.000]	08.2006-
FIAT	Doblo 1.3 JTD 16V	[188A8.000]	05.2004-
FIAT	Doblo 1.3 JTD 16V	[188A9.000]	05.2004-
FIAT	Doblo 1.3 Multijet	[199A2.000]	10.2005-
FIAT	Doblo 1.3 Multijet	[199A3.000]	02.2010-
FIAT	Doblo 1.3 Multijet	[223A9.000]	10.2005-
FIAT	Doblo 1.3 Multijet	[263A6.000]	03.2015-
FIAT	Fiorino 1.3 Multijet	[199A2.000]	11.2007-
FIAT	Fiorino 1.3 Multijet	[199A9.000]	11.2007-
FIAT	Fiorino 1.3 Multijet		01.2007-
FIAT	Fiorino 1.3 Multijet QUBO	[199A2.000]	02.2008-
FIAT	Grande 1.3 Multijet	[199A2.000]	02.2006-06.2013
FIAT	Grande Punto 1.3 Multijet	[199A2.000]	10.2005-
FIAT	Grande Punto 1.3 Multijet	[199A3.000]	10.2005-
FIAT	Idea 1.2 Multijet	[199B1.000]	05.2008-
FIAT	Idea 1.3 JTD	[188A9.000]	01.2004-
FIAT	Idea 1.3 Multijet	[199A3.000]	10.2005-
FIAT	Linea 1.3 Multijet	[199A3.000]	06.2007-
FIAT	Palio 1.3 Multijet	[188A9.000]	06.2003-
FIAT	Panda 1.2 Multijet	[169A1.000]	06.2006-
FIAT	Panda 1.2 Multijet 4x4	[188A8.000]	10.2004-
FIAT	Panda 1.2 Multijet 4x4	[188A9.000]	10.2004-
FIAT	Panda 1.3 16V Multijet 4x4	[169A1.000]	09.2003-
FIAT	Panda 1.3 16V Multijet 4x4	[169A5.000]	09.2003-
FIAT	Panda 1.3 JTD	[169A1.000]	06.2006-
FIAT	Panda 1.3 JTD	[188A8.000]	03.2004-
FIAT	Panda 1.3 JTD	[188A8.000]	09.2003-
FIAT	Panda 1.3 JTD	[188A9.000]	03.2004-
FIAT	Panda 1.3 JTD	[188A9.000]	09.2003-
FIAT	Panda 1.3 JTD 4x4	[188A8.000]	10.2004-
FIAT	Panda 1.3 JTD 4x4	[188A9.000]	10.2004-
FIAT	Panda 1.3 Multijet 4x4	[169A1.000]	01.2006-
FIAT	Punto 1.2 Multijet	[199A3.000]	01.2010-02.2012
FIAT	Punto 1.3 JTD	[188A9.000]	06.2003-
FIAT	Punto 1.3 JTD	[188A9.000]	06.2003-10.2005
FIAT	Punto 1.3 Multijet	[188A9.000]	02.2005-10.2009
FIAT	Punto 1.3 Multijet	[199A2.000]	03.2012-
FIAT	Punto 1.3 Multijet	[199A9.000]	03.2012-
FIAT	Punto Evo 1.3 Multijet	[199A2.000]	03.2009-
FIAT	Punto Evo 1.3 Multijet	[199A2.000]	03.2009-02.2012
FIAT	Punto Evo 1.3 Multijet	[199A2.000]	10.2009-
FIAT	Punto Evo 1.3 Multijet	[199A3.000]	10.2009-
FIAT	Punto Evo 1.3 Multijet	[199A9.000]	03.2009-
FIAT	Punto Evo 1.3 Multijet	[199A9.000]	03.2009-02.2012
FIAT	Punto Evo 1.3 Multijet	[199A9.000]	10.2009-
FIAT	Siena 1.3 JTD	[188A9.000]	11.2007-
FIAT	Strada 1.3 Multijet	[199B1.000]	10.2010-
FIAT	Strada 1.3 Multijet	[223A9.000]	05.2006-
LANCIA	Musa 1.3 Multijet	[188A9.000]	10.2004-
LANCIA	Musa 1.3 Multijet	[199A3.000]	09.2006-
LANCIA	Musa 1.3 Multijet	[199B1.000]	03.2009-
LANCIA	Ypsilon 1.3 JTD	[188A9.000]	10.2003-
LANCIA	Ypsilon 1.3 Multijet	[199A2.000]	09.2006-
LANCIA	Ypsilon 1.3 Multijet	[199A3.000]	09.2006-
OPEL	Agila 1.3 CDTi	[Z13DT]	08.2003-12.2007
OPEL	Astra H 1.3 CDTi	[Z13DTH]	02.2007-
OPEL	Astra H 1.3 CDTi	[Z13DTH]	08.2005-
OPEL	Astra H 1.3 CDTi GTC	[Z13DTH]	01.2006-
OPEL	Astra H 1.4	[Z14XEL]	03.2005-
OPEL	Combo 1.3 CDTi 16V	[Z13DT]	08.2005-
OPEL	Combo 1.3 CDTi 16V	[Z13DTJ]	10.2005-
OPEL	Combo 1.3 CDTi 16V Tour	[Y13DT]	10.2004-
OPEL	Combo 1.3 CDTi 16V Tour	[Z13DT]	10.2004-
OPEL	Corsa C 1.3 CDTi	[Z13DT]	06.2003-
OPEL	Corsa C 1.3 CDTi 16V	[Z13DT]	08.2005-
OPEL	Corsa D 1.3 CDTi	[A13DTC]	07.2006-
OPEL	Corsa D 1.3 CDTi	[A13DTE]	06.2010-
OPEL	Corsa D 1.3 CDTi	[A13DTR]	06.2010-
OPEL	Corsa D 1.3 CDTi	[Z13DTE]	06.2010-
OPEL	Corsa D 1.3 CDTi	[Z13DTJ]	07.2006-
OPEL	Meriva 1.4 16V Twinport LPG	[Z14XEP]	07.2004-05.2010
OPEL	Meriva A 1.3 CDTi	[Z13DTJ]	09.2003-
OPEL	Tigra 1.3 CDTi	[Z13DT]	06.2004-
SUZUKI	Ignis 1.3 DDiS	[Z13DT]	09.2003-
SUZUKI	Splash 1.3 CDTi	[D13A]	01.2008-
SUZUKI	Splash 1.3 CDTi	[Z13DTJ]	01.2008-
SUZUKI	Swift 1.3 DDiS	[Z13DT]	08.2005-
SUZUKI	Swift 1.3 DDiS	[Z13DTJ]	08.2005-
SUZUKI	Wagon R+ 1.25 DDiS	[Z13DT]	09.2003-
VAUXHALL	Astra Mk V 1.3 CDTi	[Z13DTH]	08.2005-
VAUXHALL	Astra Mk V 1.3 CDTi	[Z13DTH]	10.2005-
VAUXHALL	Astra Mk V 1.3 CDTi Sport	[Z13DTH]	04.2005-11.2010
VAUXHALL	Astravan 1.3 CDTi	[Z13DTH]	08.2005-
VAUXHALL	Combo 1.3 CDTi 16V	[Z13DT]	09.2004-
VAUXHALL	Combo 1.3 CDTi 16V	[Z13DTJ]	10.2005-11.2011
VAUXHALL	Combo Mk II 1.3 CDTi 16V Tour	[Z13DTJ]	07.2006-02.2012
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[A13DTE]	06.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[A13DTR]	06.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[Z13DT]	08.2003-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[Z13DTE]	06.2010-
VAUXHALL	Corsa Mk III 1.3 CDTi 16V	[Z13DTJ]	09.2005-09.2006
VAUXHALL	Corsavan Mk III 1.3 CDTi 16V	[Z13DT]	04.2004-06.2006
VAUXHALL	Tigra 1.3 CDTi TwinTop	[Z13DT]	06.2004-08.2009

Reference Information

135.535.090.059 89212358 135.535.090.058 135.535.090.056 DA5354 95520871 55185076 A12VA0001 71796258 0986048771 71794193 9562205 71723039 R1530096 AG0509 CGB-84921 NEK2804 51854909 DAN1002 441977 51805799 23923N 6204261 71794523 LRA2804 986048771 MAN1097 71792860 51854910 210451 ALT321990 CA1862IR MRA90196 51784842 VAL439505 71794527 CAL15118GS CGB-14254 20179811OE 2542851A ALT855CP 2015118 93193612 LRA02804 A12VA0001A2 93169025 ALTL245NE 93169024 135.535.090.260 311088 2542851 301862RIV 51984055 4753 703000096 63358061 TG9S036 439505 CAL15118AS 13117279YQ ALT171180 63358061010 9.44391E+11 ALT00902 51805800 31400-T85E00 6204213 101210-1191 MARC1862 101210-1192 101210-1190 31400-85E00 EAA-221013 6204291 93185261 210466 51787209 ALTL245 ALT14002R 31400850 AEK2804 TG9S140 TG9S022 TG9S021 135.535.090.008 113722 63377019 135.535.090.000 5515034 71795805 8EL738211-151 DRA4244 71793471 2382269 1571297 28-4921 6204181 51784845 TG9S016 9S51-10346-DD 210750 9S51-10346-DB TG9S015 1608858280 9S5110346DA 9S51-10346-DA 13283344 TG9S010 51854915 20179811BN 51854914 ALTL245V ALTL245U 63377022010 2542884 71789694 71796872 ALT172610 46823547 6204191 ALV1862 2015118.1 52003512 437474 13117279 135.535.090.505 52003517 PRAL245U 135.535.090.501 63377019010 101210-1120 101210-1121 115963 1539099 PRAL245 52092136 9.43319E+11 31400-85E00-001 63731862010 RAA15355 439524 GA435505-A 8EL011710-841 13243463 ALT0097 PRAL245V 95519875

Video/Publications

063358061010 063377019010 063377022010 063731862010 0986048771 101210-1120 101210-1121 101210-1190 101210-1191 101210-1192 113722 115963 13117279 13117279YQ 13243463 13283344 135.535.090 1571297 2015118 210451 23923N 2542851 2542851A 28-4921 301862RIV 311088 31400-85E00 31400-T85E00 437474 439505 439524 46823547 4753 51784845 51787209 51805800 51854910 51854915 51984055 52003517 55185076 6204181 6204191 6204261 6204291 703000096 71794523 71795805 89212358 8EL011710-841 8EL738211-151 943318621010 944390901960 9S51-10346-DB AEK2804 AG0509 ALE1862 ALT14002R ALT171180 ALT172610 ALT321990 ALTL245 ALTL245NE ALTL245U ALTL245V ALV1862 AX 1223 CA1862IR CAL15118 CAL15118AS CAL15118ES CAL15118GS CAL15118OS CAL15118RS CGB-14254 CGB-84921 DA5354 DAN1002 DRA4244 EAA-221013 GA435505-A LRA02804 LRA2804 MAN1097 MARC1862 MRA90196 NEK2804 PRAL245 PRAL245U PRAL245V RAA15355 TG9S010 TG9S015 TG9S016 TG9S021 TG9S022 TG9S036 TG9S140 VAL439505 210466 210750
