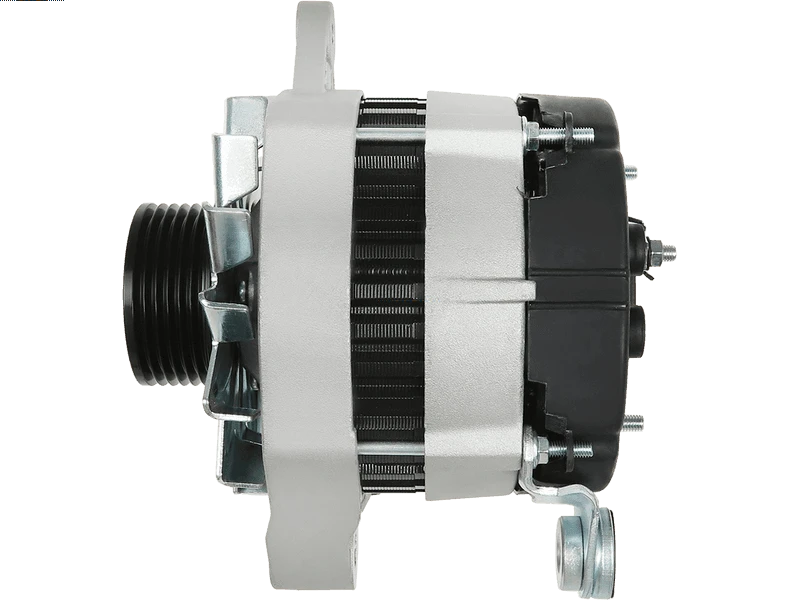

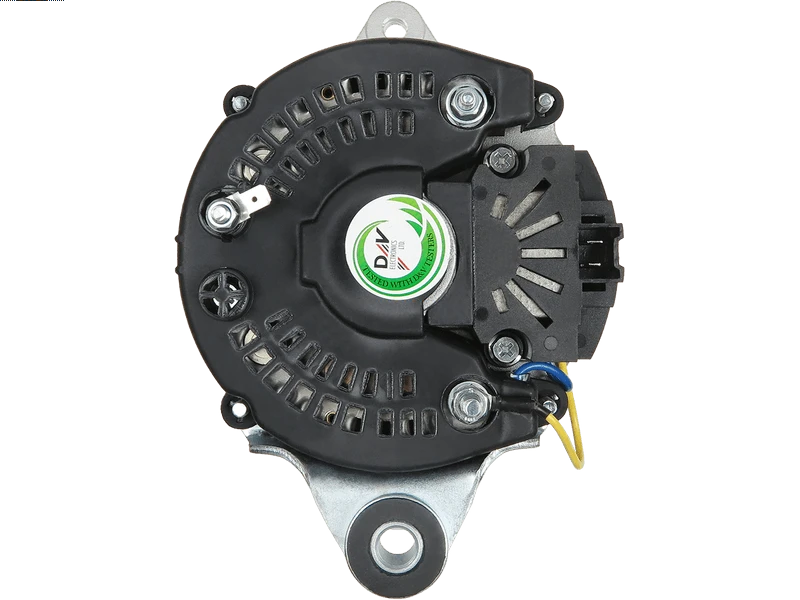

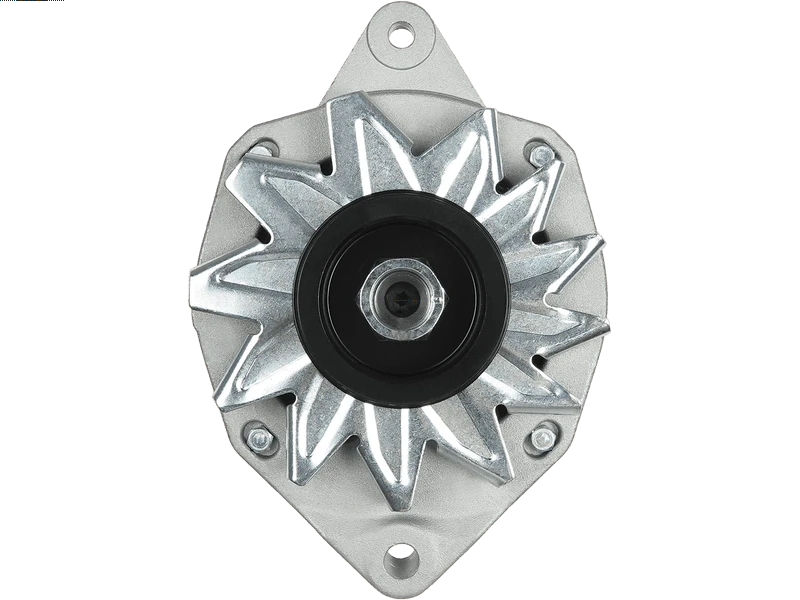

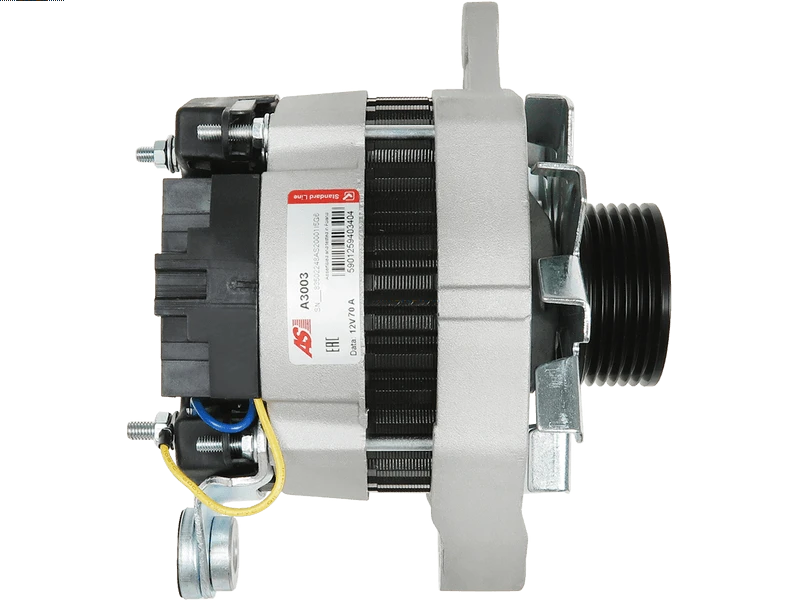

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 391.67 including GST
NZ$ 340.58 excluding GST
or four payments of $97.92
with
Learn More
UOM:
each
Product Code:
A3003
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
A13N164Associated Numbers
0986037311 11.0602 11.201.536 113500 2015164 20179461BN 2147 22630R 2541124 28-2797 30602RI 32037311 4297 433460 56125 66021576 66021577 7700784979 7701499438 8111537 8982775029 8EL725884-001 9037311 9213333 A13N163 A13N164 AAK3595 AEA2273 ALT14028 CA602IR CAL15164AS DRA7311 EAA-221491 IA0536 LRA01626 SA520 SA690 VA345Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 27.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65.50 mm |
| OEM Product | No |
| Plug Code | PL_2703 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 60 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | 11 (B/C37_) 1.6 D (B/C374) | F8M700 | 08.1983-12.1988 |
| RENAULT | 11 (B/C37_) 1.6 D (B/C374) | F8M720 | 08.1983-12.1988 |
| RENAULT | 11 (B/C37_) 1.6 D (B/C374) | F8M730 | 08.1983-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B37N, C73N) | F2N708 | 10.1986-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B37N, C73N) | F2N710 | 10.1986-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B37N, C73N) | F2N798 | 10.1986-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B/C376) | F2N700 | 10.1983-12.1987 |
| RENAULT | 11 (B/C37_) 1.7 (B/C376) | F2N704 | 10.1983-12.1987 |
| RENAULT | 11 (B/C37_) 1.7 (B/C37D) | F2N732 | 06.1987-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B/C37D) | F2N742 | 06.1987-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B/C37E) | F3N708 | 06.1987-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B/C37F) | F3N718 | 10.1984-12.1988 |
| RENAULT | 11 (B/C37_) 1.7 (B/C37L) | F2N730 | 10.1986-12.1988 |
| RENAULT | 19 I (B/C53_) 1.7 (B/C53B) | F3N740 | 09.1988-04.1992 |
| RENAULT | 19 I (B/C53_) 1.7 (B/C53B) | F3N741 | 09.1988-04.1992 |
| RENAULT | 19 I (B/C53_) 1.7 (B/C53C) | F3N742 | 09.1988-04.1992 |
| RENAULT | 19 I (B/C53_) 1.7 (B/C53C) | F3N743 | 09.1988-04.1992 |
| RENAULT | 19 I (B/C53_) 1.8 16V (B/C53D) | F7P704 | 06.1989-04.1992 |
| RENAULT | 19 I (B/C53_) 1.9 D (B/C534, B/C53J) | F8Q706 | 09.1988-04.1992 |
| RENAULT | 19 I (B/C53_) 1.9 D (B/C534, B/C53J) | F8Q742 | 09.1988-04.1992 |
| RENAULT | 19 I (B/C53_) 1.9 DT | F8Q610 | 09.1990-04.1992 |
| RENAULT | 19 I Cabriolet (D53_) 1.7 | F3N742 | 07.1991-04.1992 |
| RENAULT | 19 I Cabriolet (D53_) 1.7 | F3N743 | 07.1991-04.1992 |
| RENAULT | 19 I Cabriolet (D53_) 1.8 16V (D53D) | F7P700 | 07.1991-04.1992 |
| RENAULT | 19 I Cabriolet (D53_) 1.8 16V (D53D) | F7P704 | 07.1991-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.7 (L53B) | F3N740 | 10.1989-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.7 (L53B) | F3N741 | 10.1989-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.7 (L53C) | F3N742 | 07.1988-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.7 (L53C) | F3N743 | 07.1988-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.8 16V (L53D) | F7P704 | 10.1989-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.9 D (L534, L53J) | F8Q706 | 10.1989-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.9 D (L534, L53J) | F8Q742 | 10.1989-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.9 DT | F8Q740 | 09.1990-04.1992 |
| RENAULT | 19 I Chamade (L53_) 1.9 TD (L53K) | F8Q740 | 09.1990-04.1992 |
| RENAULT | 19 I Hatchback Van (S53_) 1.9 D | F8Q706 | 01.1988-12.1992 |
| RENAULT | 19 I Hatchback Van (S53_) 1.9 D | F8Q742 | 01.1988-12.1992 |
| RENAULT | 19 II (B/C53_) 1.7 (B/C53B) | F3N740 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.7 (B/C53B) | F3N741 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.7 (B/C53C) | F3N743 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 16V (B/C53D) | F7P704 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (5/353A) | F3P706 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (5/353A) | F3P760 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (5/353F, B/C538) | F3P682 | 05.1994-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (5/353F, B/C538) | F3P765 | 05.1994-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (B/C538) | F3P700 | 04.1992-05.1994 |
| RENAULT | 19 II (B/C53_) 1.8 (B/C53Y) | F3P706 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (B/C53Y) | F3P707 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (B/C53Y) | F3P708 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.8 (B/C53Y) | F3P760 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.9 D (B/C53J) | F8Q742 | 04.1992-12.1995 |
| RENAULT | 19 II (B/C53_) 1.9 dT (B/C53T) | F8Q744 | 04.1992-12.1995 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.7 (D53C) | F3N742 | 04.1992-09.1993 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.7 (D53C) | F3N743 | 04.1992-09.1993 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 16V (D53D) | F7P704 | 04.1992-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (853A) | F3P706 | 09.1993-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (853A) | F3P760 | 09.1993-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53V, 853F, D53C) | F3P682 | 07.1994-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53V, 853F, D53C) | F3P764 | 07.1994-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53V, 853F, D53C) | F3P765 | 07.1994-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53Y) | F3P704 | 04.1992-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53Y) | F3P705 | 04.1992-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53Y) | F3P706 | 04.1992-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53Y) | F3P707 | 04.1992-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53Y) | F3P708 | 04.1992-06.1996 |
| RENAULT | 19 II Cabriolet (D53_, 853_) 1.8 (D53Y) | F3P760 | 04.1992-06.1996 |
| RENAULT | 19 II Chamade (L53_) 1.7 (L53B) | F3N740 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.7 (L53B) | F3N741 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 16V (L53D) | F7P704 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (453A/F) | F3P706 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (453A/F) | F3P760 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L538) | F3P700 | 04.1992-05.1994 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L53V, L538) | F3P682 | 05.1994-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L53Y) | F3P704 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L53Y) | F3P705 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L53Y) | F3P706 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L53Y) | F3P707 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L53Y) | F3P708 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.8 (L53Y) | F3P760 | 04.1992-12.1995 |
| RENAULT | 19 II Chamade (L53_) 1.9 D | F8Q740 | 05.1992-11.1995 |
| RENAULT | 19 II Chamade (L53_) 1.9 D | F8Q744 | 05.1992-11.1995 |
| RENAULT | 19 II Chamade (L53_) 1.9 D (L53J) | F8Q742 | 04.1992-12.1997 |
| RENAULT | 19 II Chamade (L53_) 1.9 dT (L53T) | F8Q744 | 04.1992-12.1995 |
| RENAULT | 19 II Hatchback Van (S53_) 1.9 D | F8Q706 | 03.1992-12.1995 |
| RENAULT | 19 II Hatchback Van (S53_) 1.9 D | F8Q742 | 03.1992-12.1995 |
| RENAULT | 19 II Hatchback Van (S53_) 1.9 dT | F8Q740 | 03.1992-12.1995 |
| RENAULT | 21 (B48_) 1.7 (B48E) | F3N722 | 09.1989-06.1994 |
| RENAULT | 21 (B48_) 1.7 (B48E) | F3N723 | 09.1989-06.1994 |
| RENAULT | 21 (B48_) 1.7 (B48F) | F3N726 | 09.1989-10.1992 |
| RENAULT | 21 (B48_) 1.9 D (B48H, B48I) | F8Q710 | 09.1989-01.1994 |
| RENAULT | 21 Estate (K48_) 1.7 Cat (K48F) | F3N726 | 05.1988-06.1993 |
| RENAULT | 21 Estate (K48_) 1.7 (K48E) | F3N722 | 06.1986-12.1989 |
| RENAULT | 21 Estate (K48_) 1.7 (K48E) | F3N722 | 10.1989-12.1993 |
| RENAULT | 21 Estate (K48_) 1.7 (K48E) | F3N723 | 06.1986-12.1989 |
| RENAULT | 21 Estate (K48_) 1.7 (K48E) | F3N723 | 10.1989-12.1993 |
| RENAULT | 21 Estate (K48_) 1.7 (K48M) | F2N750 | 06.1986-12.1989 |
| RENAULT | 21 Estate (K48_) 1.7 (K48N) | F2N752 | 06.1987-04.1989 |
| RENAULT | 21 Estate (K48_) 1.7 (K/S481) | F2N712 | 06.1986-03.1993 |
| RENAULT | 21 Estate (K48_) 1.7 (K/S482) | F2N710 | 10.1986-12.1988 |
| RENAULT | 21 Estate (K48_) 1.9 D | F8Q710 | 03.1986-08.1994 |
| RENAULT | 21 Estate (K48_) 2.1 D (K/S486) | J8S704 | 10.1986-09.1990 |
| RENAULT | 21 Saloon (L48_) 1.7 (L481) | F2N712 | 03.1986-12.1987 |
| RENAULT | 21 Saloon (L48_) 1.7 (L482) | F2N710 | 03.1986-03.1993 |
| RENAULT | 21 Saloon (L48_) 1.7 (L48E) | F3N722 | 03.1986-02.1994 |
| RENAULT | 21 Saloon (L48_) 1.7 (L48E) | F3N722 | 09.1989-02.1994 |
| RENAULT | 21 Saloon (L48_) 1.7 (L48E) | F3N723 | 03.1986-02.1994 |
| RENAULT | 21 Saloon (L48_) 1.7 (L48E) | F3N723 | 09.1989-02.1994 |
| RENAULT | 21 Saloon (L48_) 1.7 (L48M, L48F) | F2N750 | 07.1986-02.1994 |
| RENAULT | 21 Saloon (L48_) 1.7 (L48M, L48F) | F3N726 | 07.1986-02.1994 |
| RENAULT | 21 Saloon (L48_) 1.7 (L48N) | F2N752 | 06.1987-04.1989 |
| RENAULT | 21 Saloon (L48_) 1.9 D (L48H, L48I) | F8Q710 | 08.1989-10.1993 |
| RENAULT | 25 (B29_) 2.0 12V (B294) | J7R726 | 06.1989-12.1992 |
| RENAULT | 9 (L42_) 1.6 D (L424) | F8M700 | 10.1982-12.1988 |
| RENAULT | 9 (L42_) 1.6 D (L424) | F8M720 | 10.1982-12.1988 |
| RENAULT | 9 (L42_) 1.6 D (L424) | F8M730 | 10.1982-12.1988 |
| RENAULT | 9 (L42_) 1.7 (L426) | F2N700 | 09.1984-12.1989 |
| RENAULT | 9 (L42_) 1.7 (L426) | F2N704 | 09.1984-12.1989 |
| RENAULT | 9 (L42_) 1.7 (L42E) | F3N708 | 06.1987-12.1988 |
| RENAULT | 9 (L42_) 1.7 (L42F) | F3N718 | 10.1986-12.1988 |
| RENAULT | 9 (L42_) 1.7 (L42L) | F2N730 | 10.1986-12.1988 |
| RENAULT | 9 (L42_) 1.7 (L42N) | F2N708 | 10.1986-12.1988 |
| RENAULT | 9 (L42_) 1.7 (L42N) | F2N710 | 10.1986-12.1988 |
| RENAULT | 9 (L42_) 1.7 (L42N) | F2N798 | 10.1986-12.1988 |
| RENAULT | CLIO I (B/C57_, 5/357_) 1.8 16V (C57D) | F7P722 | 01.1991-03.1996 |
| RENAULT | CLIO I (B/C57_, 5/357_) 1.9 D (B/C/S576, B/C/S57L) | F8Q730 | 01.1991-09.1998 |
| RENAULT | CLIO I (B/C57_, 5/357_) 1.9 D (B/C/S576, B/C/S57L) | F8Q732 | 01.1991-09.1998 |
| RENAULT | CLIO I (B/C57_, 5/357_) Williams (B/C57M) | F7R700 | 01.1994-09.1998 |
| RENAULT | CLIO I Hatchback Van (S57_) 1.9 D | F8Q730 | 01.1991-09.1998 |
| RENAULT | CLIO I Hatchback Van (S57_) 1.9 D | F8Q732 | 01.1991-09.1998 |
| RENAULT | R19 1.9 Diesel | [F8Q706] | 01.1988-12.2001 |
| RENAULT | R19 1.9 Diesel | [F8Q742] | 06.1990-12.2001 |
| RENAULT | R19 1.9 DT | [F8Q740] | 09.1990-12.1995 |
| RENAULT | R19 1.9 DT | [F8Q744] | 04.1992-12.1995 |
| RENAULT | R21 1.9 Diesel | [F8Q710] | 03.1986-08.1994 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40P, F40N, F40E) | F8Q646 | 09.1991-03.1998 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40P, F40N, F40E) | F8Q722 | 09.1991-03.1998 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40P, F40N, F40E) | F8Q724 | 09.1991-03.1998 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40P, F40N, F40E) | F8Q774 | 09.1991-03.1998 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40P, F40N, F40E) | F8Q776 | 09.1991-03.1998 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40R) | F8Q640 | 09.1994-03.1998 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40R) | F8Q648 | 09.1994-03.1998 |
| RENAULT | RAPID Box Body/MPV (F40_, G40_) 1.9 D (F40R) | F8Q682 | 09.1994-03.1998 |
| RENAULT | TRAFIC Bus (T_, P_, V_) 1.7 | F1N724 | 06.1986-04.1989 |
| RENAULT | TRAFIC Bus (T_, P_, V_) 1.7 | F1N724 | 08.1992-08.1994 |
| RENAULT | TRAFIC Platform/Chassis (T_, P_, V_) 1.7 | F1N722 | 05.1989-08.1994 |
| RENAULT | TRAFIC Van (T_, P_, V_) 1.7 | F1N720 | 08.1992-08.1994 |
| RENAULT | TRAFIC Van (T_, P_, V_) 1.7 | F1N724 | 06.1986-04.1989 |
| VOLVO | 340-360 (343, 345) 1.7 | B172K | 08.1985-07.1991 |
| VOLVO | 340-360 Saloon (344) 1.7 | B172K | 08.1985-07.1991 |
| VOLVO | 440 (445) 1.9 Turbo-Diesel | D19T | 07.1994-12.1996 |
| VOLVO | 460 (464) 1.9 Turbo-Diesel | D19T | 07.1994-07.1996 |
Reference Information
| 0986037311 | BOSCH |
| 11.0602 | LAUBER |
| 11.201.536 | ISKRA / LETRIKA |
| 113500 | CARGO |
| 2015164 | SANDO |
| 20179461BN | REAL |
| 210179 | ERA |
| 2147 | CEVAM |
| 22630R | WAI |
| 2541124 | VALEO |
| 28-2797 | ELSTOCK |
| 30602RI | KUHNER |
| 311231 | RHIAG |
| 32037311 | HERTH+BUSS |
| 4297 | CEVAM |
| 433460 | VALEO |
| 440674 | LOGISTIK |
| 541596 | RENAULT |
| 56125 | EAI |
| 66021576 | PRESTOLITE |
| 66021577 | PRESTOLITE |
| 7700784979 | RENAULT |
| 7700803325 | RENAULT |
| 7700805873 | RENAULT |
| 7701351759 | RENAULT |
| 7701351760 | RENAULT |
| 7701499438 | RENAULT |
| 7701499599 | RENAULT |
| 8111537 | VOLVO |
| 8982775029 | RENAULT |
| 8EL725884-001 | HELLA |
| 9033313 | VOLVO |
| 9037311 | FRIESEN |
| 9213333 | POWERMAX |
| A13N163 | VALEO |
| A13N164 | VALEO |
| AAK3595 | ISKRA / LETRIKA |
| AEA2273 | AUTOELECTRO |
| ALT0041 | ELECTROLOG |
| ALT14028 | WOODAUTO |
| ALT171640 | SIOM |
| ALT2367 | 3EFFE |
| ALT79117 | ELECTROLOG |
| ALTF440 | 3EFFE |
| ALTH019 | 3EFFE |
| ALTS918 | 3EFFE |
| ANM39531X | ANDEL |
| CA602IR | HC PARTS |
| CAL15164AS | CASCO |
| CGB-3282797 | AINDE |
| DRA7311 | DELCO |
| F032113500 | CARGO |
| IA0536 | ISKRA / LETRIKA |
| LRA01626 | LUCAS |
| LRA1626 | LUCAS |
| MG 589 | MAHLE |
| PRAF440 | 3EFFE |
| PRAS918 | 3EFFE |
| SA520 | SOVEREIGN |
| SA690 | SOVEREIGN |
| STA0305R | BOVEZ |
| STX100347 | STARDAX |
| STX100734 | STARDAX |
| STX101065 | STARDAX |
| STX101115 | STARDAX |
| VA345 | VALEO |
Video/Publications
A3003View your shopping basket or Browse other items in Alternators.
