Associated Numbers
LR1100-723 UD20719A A-7989 231004M800 13828N 90-25-1134N 90-25-1134 ALT32153Specifications

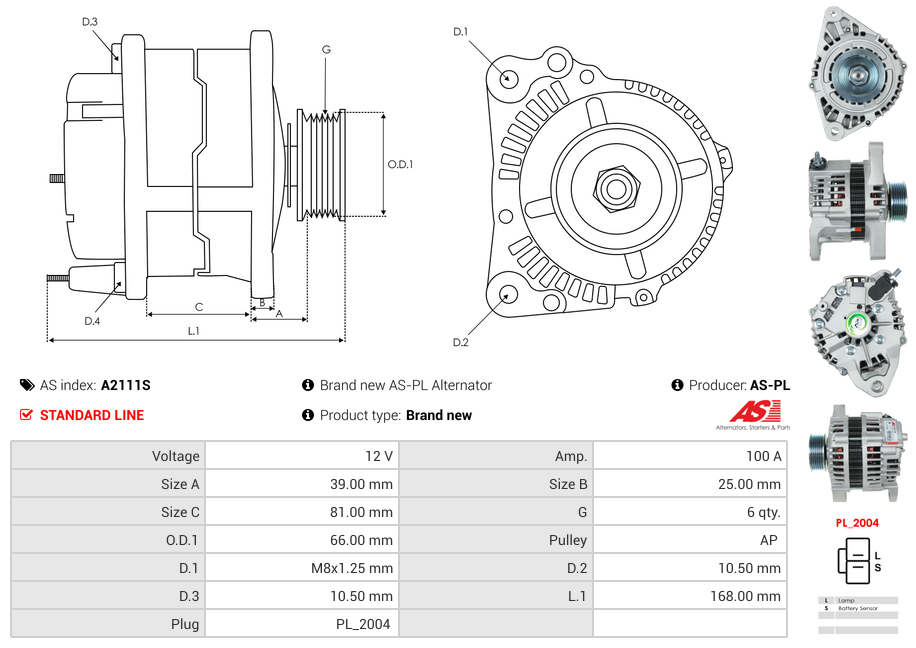

Amp | 100 A |
Bottom Mounting Foot Width (B) | 25 mm |
Diameter (D.1) | M8x1.25 mm |
Diameter (D.2) | 10.5 mm |
Diameter (D.3) | 10.5 mm |
Grooves | 6 qty |
Length (L.1) | 168 mm |
Mount Inside Length or Pad Mount C-C (C) | 81 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 66 mm |
Plug Code | PL_2004 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 39 mm |
Pulley Type | SOLID |
Unit Type | HITACHI |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
NISSAN | Sentra 2.0 | 01.2000-12.2000 | |
NISSAN | Sentra 2.0 | 01.2001-12.2001 |
Reference Information
ALT5280 ALT32153 90-25-1134 90-25-1134N 23100-4M800 A-7989 PRAF492 UD20719A 13828N ALTF492 LR1100-723 ALT7575 ALT5280AVideo/Publications
13828N 231004M800 90-25-1134 90-25-1134N A-7989 ALT32153 ALT5280 ALT5280A ALT7575 ALTF492 LR1100-723 PRAF492 UD20719AAdd Your Number
