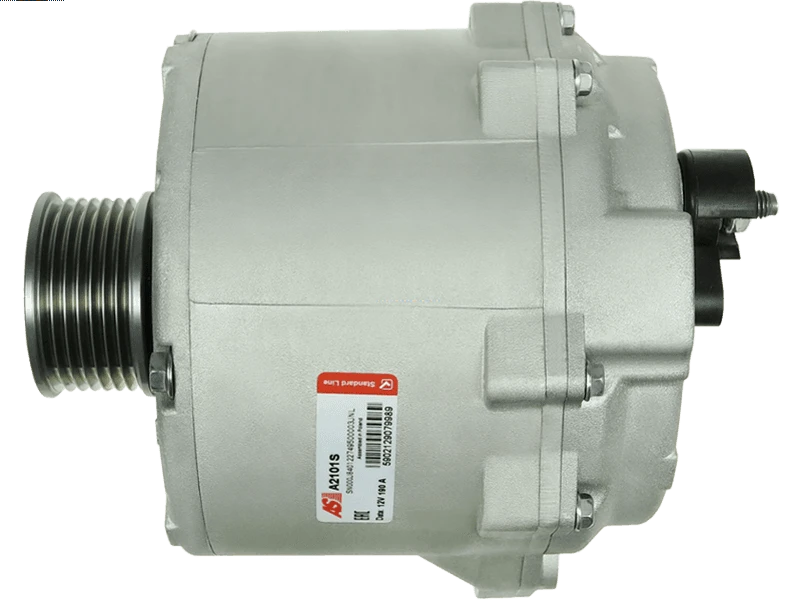

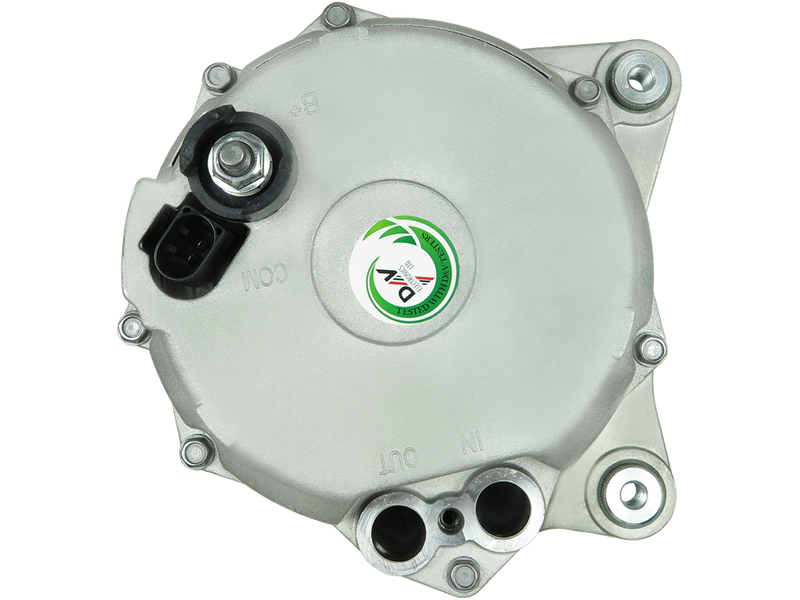

A2101S - Brand new AS-PL Alternator

Specifications

Amp	190 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	7 qty
Length (L.1)	203 mm
Mount Inside Length or Pad Mount C-C (C)	61 mm
OEM Product	No
Outside Diameter (O.D.1)	56.5 mm
Plug Code	PL_2303
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	31 mm
Pulley Type	SOLID
Unit Type	HITACHI
Voltage	12 V
Water Cooled	Yes

Vehicle Applications

Make	Model	Type	Year
AUDI	A8 3.7 Quattro	[BFL]	01.2002-12.2006
AUDI	A8 4.2 Quattro	[BFM]	01.2002-12.2006
AUDI	A8 6.0 W12 Quattro	[BHT]	01.2004-
AUDI	A8 6.0 W12 Quattro	[BTE]	01.2004-
VW	Phaeton 4.2 V8	[BGH]	01.2003-
VW	Phaeton 4.2 V8	[BGJ]	01.2003-

Reference Information

89215347 077903015Q A12HT0733A2 HAL1190901C AEK3017 LR1190-901B LR1190-901C LR1190-901 57264 2020229 LR1190-905B 553512RI 90-25-1201 LR1190-905C LR1190-905 LRA3017 ALT222290 CAL20229ES UD13157A CAL20229GS CAL20229AS 28-5629 HAL1190905C 4665 11246R A-80205 CAL20229OS 11246N ALH9090 CGB-85629 PRAE024 07C903021H 077903015QX CAL20229RS CAL20229 LRA03017 ALTE024HI DRA0630 DA1740 ALT32236 A2101S ALT3007 ALTE024 442601 A-80214 07C903021HX
