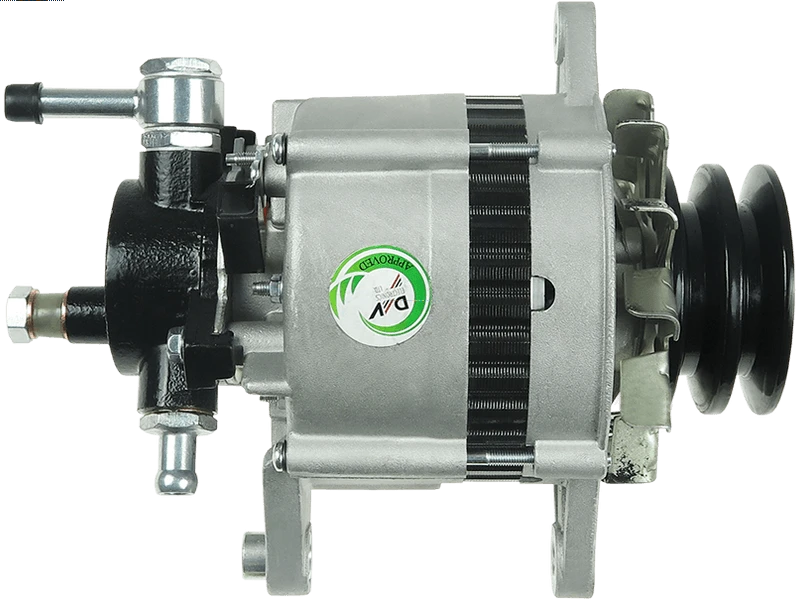

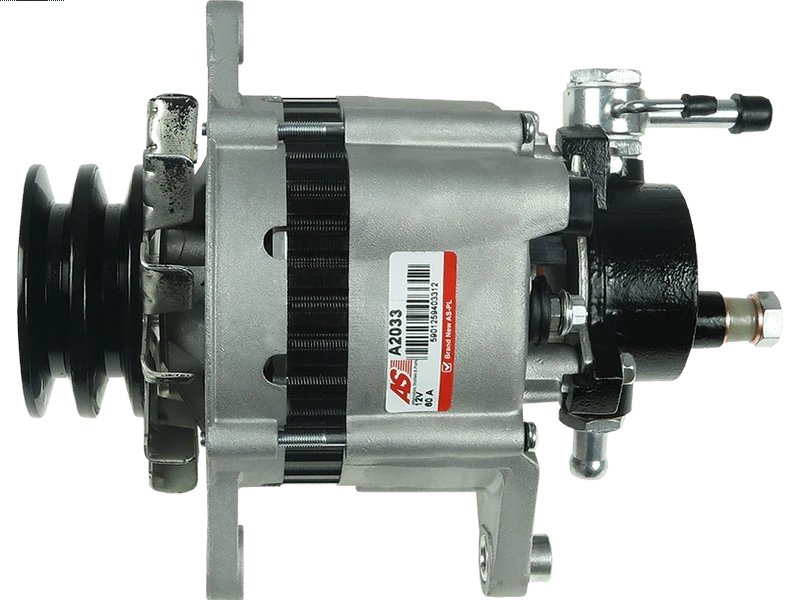

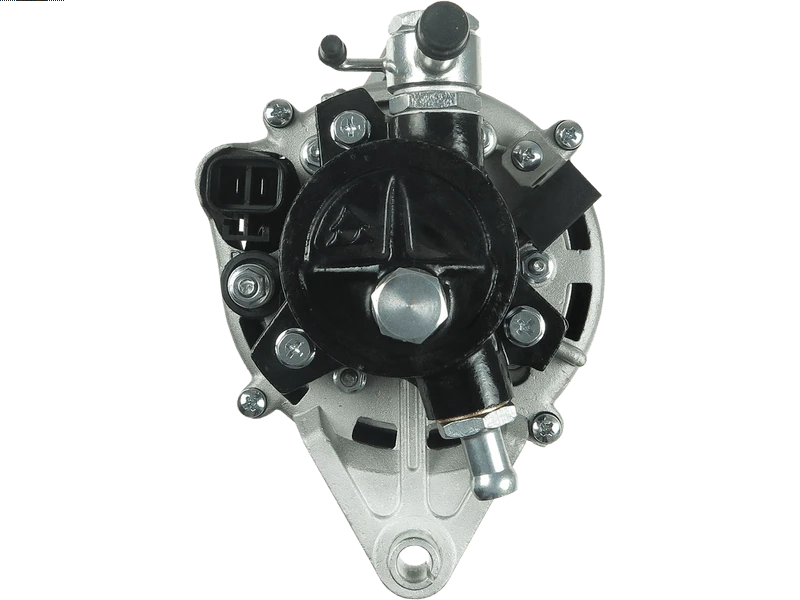

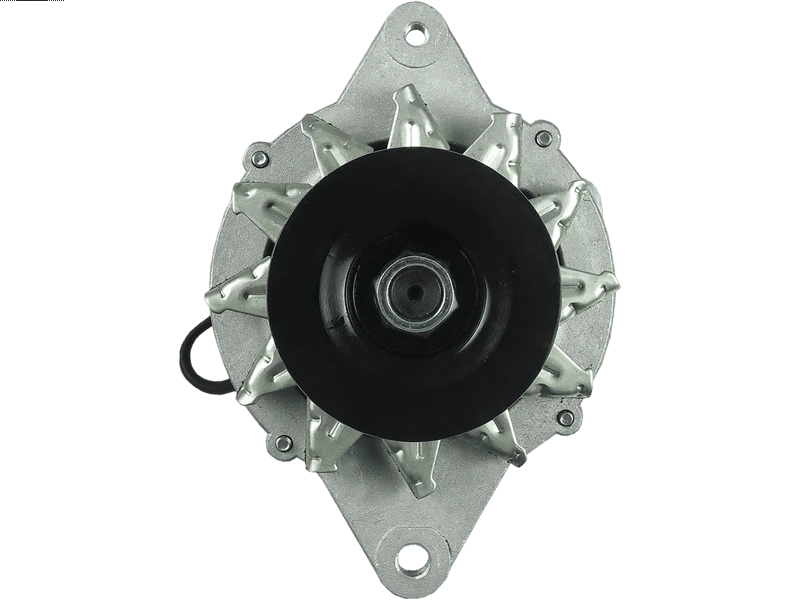

A2033 - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A2033
Price: 500.83 NZD
Availability: InStock

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

HITACHI

Price:

NZ$ 500.83 including GST

NZ$ 435.50 excluding GST

UOM:

each

Alternative Item:

A2014

Product Code:

A2033

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

0986038501 11.0780 111316 20110341 20130132 20145411BN 2020114 23100-02N13 23100-02N17 23100-02N21 23100-43G05 23100-43G07 23100-43G09 28-2519 40662RI 40780RI 437685 56423 8EL730114-001 9094 9212763 AEA3242 ALT32179 CAL20114AS DRA3206 DRA3206N EAA-221660 JA780IR LR160-426 LR160-426E LR160-426S LR160-426T LR160-427 LR160-427C LR160-427S LR160-427T LRA01479

Amp	60 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10 mm
Diameter (D.3)	10 mm
Grooves	2 qty
Groove Width (W.1)	12.5 mm
Length (L.1)	253 mm
Mount Inside Length or Pad Mount C-C (C)	81.5 mm
OEM Product	No
Outside Diameter (O.D.1)	58 mm
Outside Diameter (O.D.2)	84 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	43.5 mm
Pulley Type	SOLID
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Make	Model	Type	Year
NISSAN	Cabstar 2.3 Diesel	(F22)[TD23]	10.1986-06.1992
NISSAN	Cabstar 2.7 Diesel	(F22)[TD27]	10.1986-10.1988
NISSAN	Pick Up 2.5 Diesel	(D21)[TD25]	08.1987-02.1998
NISSAN	Pick Up 2.5 Diesel 4WD	(D21)[TD25]	03.1996-02.1998
NISSAN	Pick Up 2.7 Diesel 4WD	(D21)[TD27]	09.1987-08.1991
NISSAN	TeRano 2.7 TD	(R20)[TD27T]	02.1993-01.2002
NISSAN	TeRano 2.7 TD	(WD21)[TD27T]	02.1989-10.1993

111316 23100-02N21 LR160-427C 2310006J01 20110341 40662RI 986038501 JA780IR 2D392 LR160-426T 445829 LR160-426S PRAL311V 210104 ALT3173 9212763 ALTL311V 11.078 ALT5090 40780RI 20130132 2020114 56423 ALT122310 LRA1479 23100-43G05 ALTL311 23100-43G07 23100-43G09 LR160-427S LR160-427T 437685 CAL20114AS 20145411BN ANM35426X LR160437S 28-2519 ALD392 ALTL311RR ALT221140 002-D392 LR160-436 PRAL311 LR160-437 311942 A12HT1187A2 DRA3206N LR160437 DRA3206 23100-06J01 LR160-436S LR160-436T LRA01479 LR160436S AEA3242 9094 ALT32179 23100-02N13-EP LR160-426E 0986038501 8EL730114-001 LR160-426 LR160-427 A2033 2310002N13EP 210135 23100-02N17 LR160-437T EAA-221660 LR160-437S 23100-02N13

002-D392 0986038501 11.0780 111316 20110341 20130132 20145411BN 2020114 23100-02N13 23100-02N17 23100-02N21 23100-43G05 23100-43G07 23100-43G09 28-2519 2D392 311942 40662RI 40780RI 437685 56423 8EL730114-001 9094 9212763 A2033 AEA3242 ALD392 ALT122310 ALT221140 ALT32179 ALT5090 ALTL311 ALTL311RR ALTL311V CAL20114AS DRA3206 DRA3206N EAA-221660 JA780IR LR160-426 LR160-426E LR160-426S LR160-426T LR160-427 LR160-427C LR160-427S LR160-427T LRA01479 LRA1479 PRAL311 PRAL311V 210104 210135
