- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Add Your Number
Associated Numbers
0986038003 11.0661 11.3095 110697 14648N 20145921BN 2020129 28-0831 28-0893 40661RI 437860 56375 5812003161 5812003162 5812003163 8944017932 8944050440 8944050442 8EL726376-001 9213539 9309 94405044 A2028 ALT32110 CAL20129AS DRA3153 JA661IR LR150-136 LR150-136B LR150-136C LR150-136E LR150-201 LR150-201B LR150-205 LR150-205B LRA01241Specifications
Amp | 50 A |
Bottom Mounting Foot Width (B) | 13.5 mm |
Diameter (D.1) | M8x1.25 mm |
Diameter (D.2) | 10 mm |
Diameter (D.3) | 10 mm |
Grooves | 1 qty |
Groove Width (W.1) | 16 mm |
Length (L.1) | 240 mm |
Mount Inside Length or Pad Mount C-C (C) | 99 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 50 mm |
Outside Diameter (O.D.2) | 82 mm |

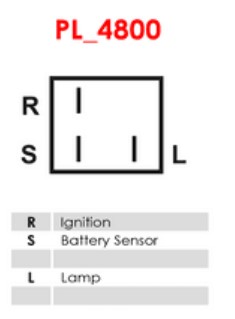

Plug Code | PL_4800 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 49 mm |
Pulley Type | SOLID |
Unit Type | HITACHI |
Vacuum Pump | Yes |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
ISUZU | Campo 2.2 Diesel | [C223] | 04.1986-12.1990 |
ISUZU | Campo 2.2 Diesel 4WD | [C223] | 04.1986-12.1990 |
ISUZU | Campo 2.5 Diesel | 01.1983-12.1991 | |
ISUZU | Campo 2.5 Diesel 4WD | [4JA1] | 01.1983-12.1990 |
ISUZU | Trooper 2.2 Diesel 4WD | [C223] | 11.1986-10.1988 |
ISUZU | Trooper 2.2 TD | [C223T] | 11.1986-10.1988 |
OPEL | Campo 2.2 Diesel | [C223] | 08.1987-08.1996 |
OPEL | Campo 2.2 Diesel 4x4 | [C223] | 08.1987-08.1996 |
VAUXHALL | Brava 2.2 Diesel | [C223] | 08.1991-09.1996 |
VAUXHALL | Brava 2.2 Diesel 4x4 | [C223] | 08.1991-09.1996 |
Reference Information
LR150-201 11.0661 8942469560 11.3095 8942469561 ALU310 JA661IR 2020129 LR150-155B 002-U310 56375 9120603 28-0831 LR150-205 0986038003 110697 PRAF728 ALTF728 20145921BN 91220575 2U310 LR150-155 LRA1241 ALT32110 LR15055B 9512321 DRA3153 8944050442 LR150-55 CGB-13153 8942384531 LR150-55B LR150155B 9309 ALT3021 LR150155 8942214514 8944050440 PRAF287 8944017932 894172-0940 8944017930 94401793 LRA01241 ANM35373X 894137-7240 ALTF287 94405044 40661RI 986038003 LR150146E LR150146C LR150146 LR150146B 28-0893 9213539 8EL726376-001 LR150-136 LR150-136C LR150-201B CAL20129AS LR150-136B 14648N LR150-205B 1204171 894169-9520 A2028 LR150-136E ALT221290 445710 8942416300 8942416301 LR15055 8944019730 5812003162 5812003163 437860 5812003161 R1030097Video/Publications
002-U310 0986038003 11.0661 11.3095 110697 14648N 20145921BN 2020129 28-0831 28-0893 2U310 40661RI 437860 56375 5812003161 5812003162 5812003163 8942469561 8944017932 8944050440 8944050442 8EL726376-001 9213539 9309 A2028 ALT221290 ALT32110 ALTF287 ALTF728 ALU310 CAL20129AS CGB-13153 DRA3153 JA661IR LR150-136 LR150-136B LR150-136C LR150-136E LR150-201 LR150-201B LR150-205 LR150-205B LRA01241 LRA1241 PRAF287 PRAF728Add Your Number
