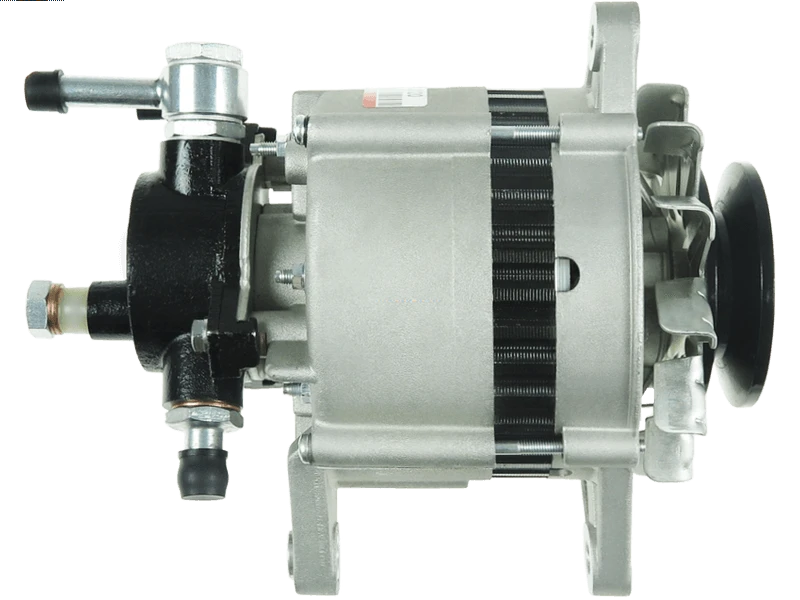

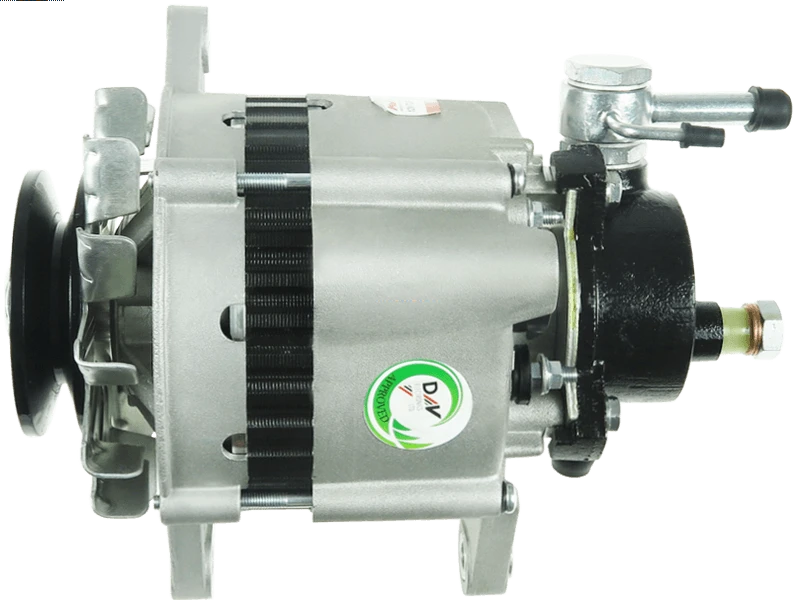

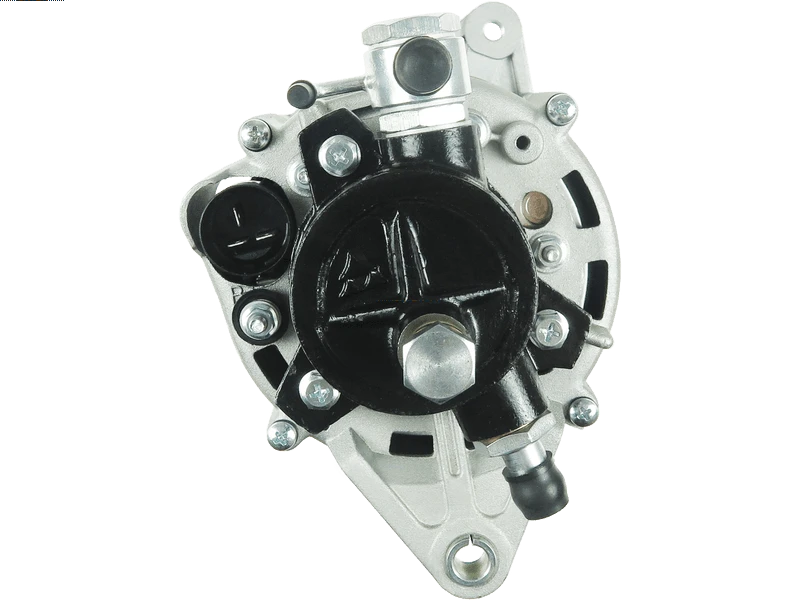

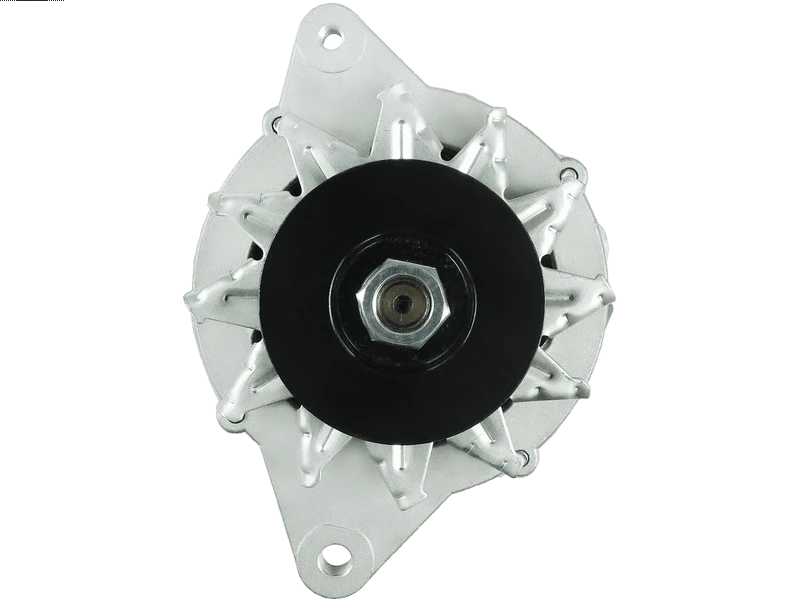

A2020 - Brand new AS-PL Alternator

Specifications

Amp	70 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10 mm
Diameter (D.3)	10 mm
Grooves	1 qty
Groove Width (W.1)	12.5 mm
Length (L.1)	241 mm
Mount Inside Length or Pad Mount C-C (C)	82 mm
OEM Product	No
Outside Diameter (O.D.1)	50 mm
Outside Diameter (O.D.2)	82 mm
Plug Code	PL_4500
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	42 mm
Pulley Type	SOLID
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Corsa A 1.5 Diesel	[15D(4EC1)]	06.1987-03.1993
OPEL	Corsa A 1.5 TD	[15DT(T4EC1)]	03.1988-03.1993
VAUXHALL	Nova 1.5 TD	[15DT(T4EC1)]	01.1990-02.1993
VAUXHALL	Nova A 1.5 Diesel	[15D]	08.1989-03.1993
VAUXHALL	Nova A 1.5 TD	[15DT(T4EC1)]	01.1990-03.1993
VAUXHALL	Novavan 1.5 Diesel	[15D(4EC1)]	01.1991-10.1994

Reference Information

CAL20117AS 6204058 90542406 A2020 ALT3130 549082 8970447790 986037811 LR170-411 PRAS968 89213118 SA631 56186 9512123 2020117 9350 97044779 DRA3275 CGB-13275 20145711BN ALT5440 11.0673M 20819N 11.0673 8944719961 R1030073 8944719960 1204062 8944719965 8944719963 8944719964 445722 LR170-411B 28-1589 LRA939 111187 210288 LR170-411C EAA-221671 LR170-411D 2U900 LR170-411E LR170-411F 9090003 LR170-411P 94471996 436724 002-U900 ALT32177 1204132 ANM35495X ALU900 JA673IR 0986037811 9163940 20100939 40673RI 56287 8-94471-996-5 8EL726388-001 AEA9139 ALTS968 LRA00939
