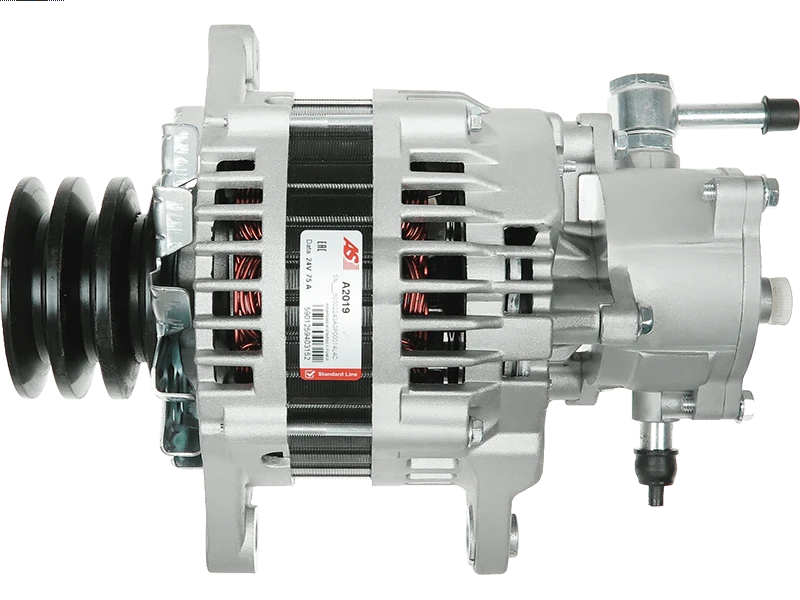

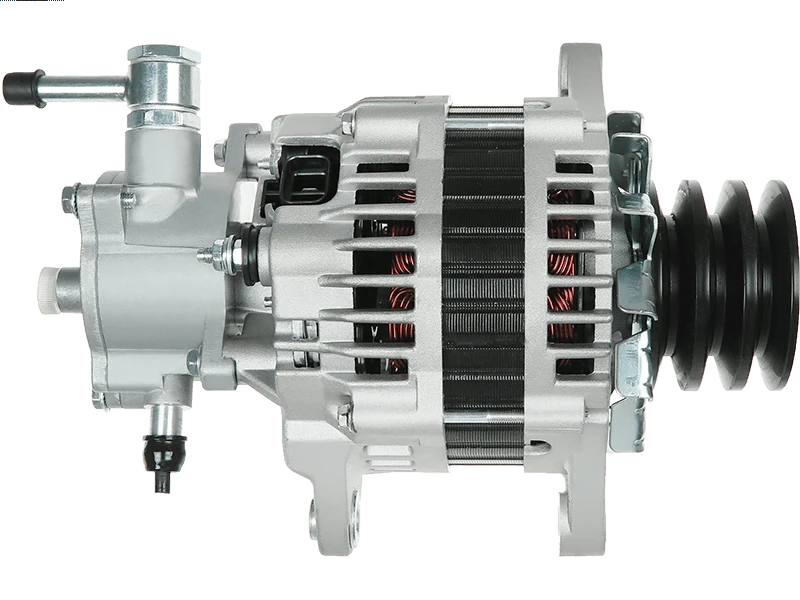

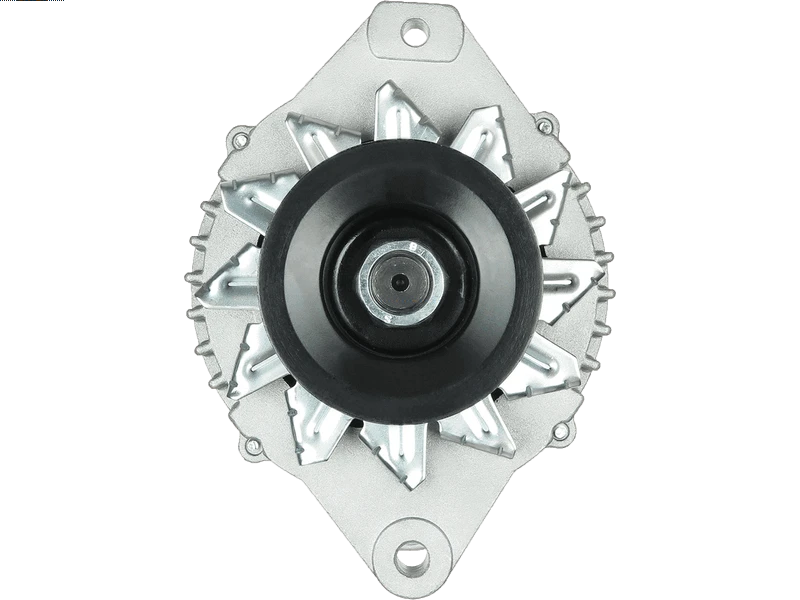

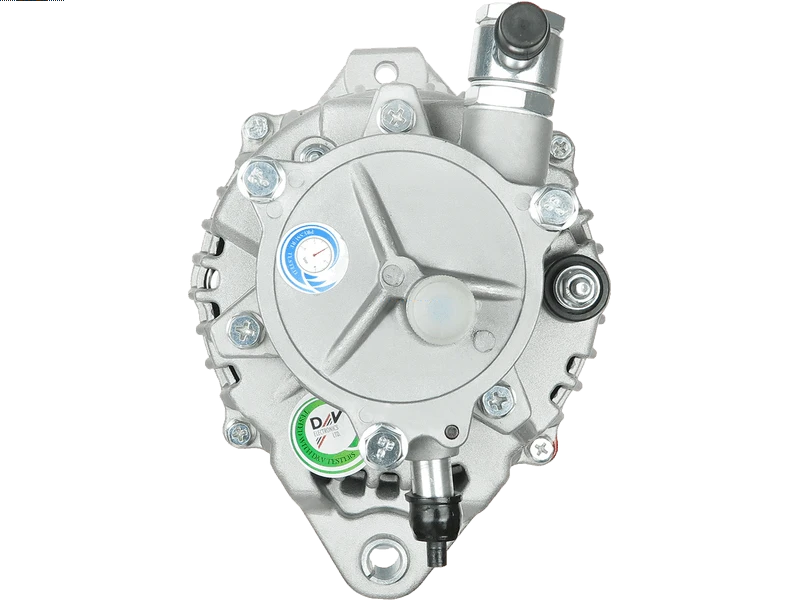

A2019 - Brand new AS-PL Alternator

Specifications

Amp	75 A
Bottom Mounting Foot Width (B)	17 mm
Diameter (D.1)	8 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Grooves	3 qty
Groove Width (W.1)	11.5 mm
Length (L.1)	277 mm
Mount Inside Length or Pad Mount C-C (C)	76.5 mm
OEM Product	No
Outside Diameter (O.D.1)	55 mm
Outside Diameter (O.D.2)	82 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	42.5 mm
Pulley Type	SOLID
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
ATAMAN	A-092 4.6D	[4HG1, 4HK1]	01.2012-
ATAMAN	A-092 4.6D	[4HG1,4HK1]	01.2012-
BOGDAN	A-092 4.6D	[4HE1, 4HF1, 4HG1, 4HK1]	01.2003-12.2012
BOGDAN	A-092 4.6D	[4HE1,4HF1,4HG1,4HK1]	01.2003-12.2012
ISUZU	NPR	[4HF1]
ISUZU	NPR	[4HG1]
ISUZU	NPR	[4HJ1]

Reference Information

CAL20612 8972416271 LR250513B 20145706OE HAL250517B 553291RIL 20145706BN A2019 CAL20612RS 8973515720 8973515721 8973324980 LR250517B CAL20607GS LR260-508 LR250510C CAL20607AS 8971701631 LR250510B LR260-512 8973003530 8971701632 8973515730 ALT226120 LR260511B CAL20612ES CAL20612AS LR250510 LR250511 LR250511B LR250512 8972119463 8971701602 HITLR260-512 LR260510 8973325012 LR250517 LR250514 LR250515 8972416280 LR260509 553291RI 2020612 CAL20612OS 8971443921 8971443922 CAL20612GS 2020607 8973324992 LR250516B 8971865511 HAL260512 LR250508B LR250508C 8973325000

Video/Publications

20145706BN 20145706OE 2020607 2020612 553291RI 553291RIL 8973515730 ALT226120 CAL20607AS CAL20607GS CAL20612 CAL20612AS CAL20612ES CAL20612GS CAL20612OS CAL20612RS HITLR260-512 A2019
