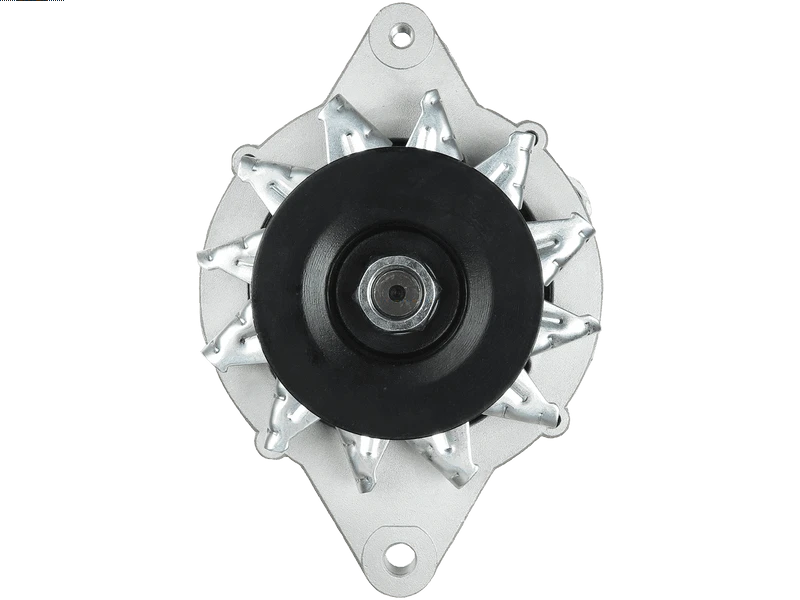

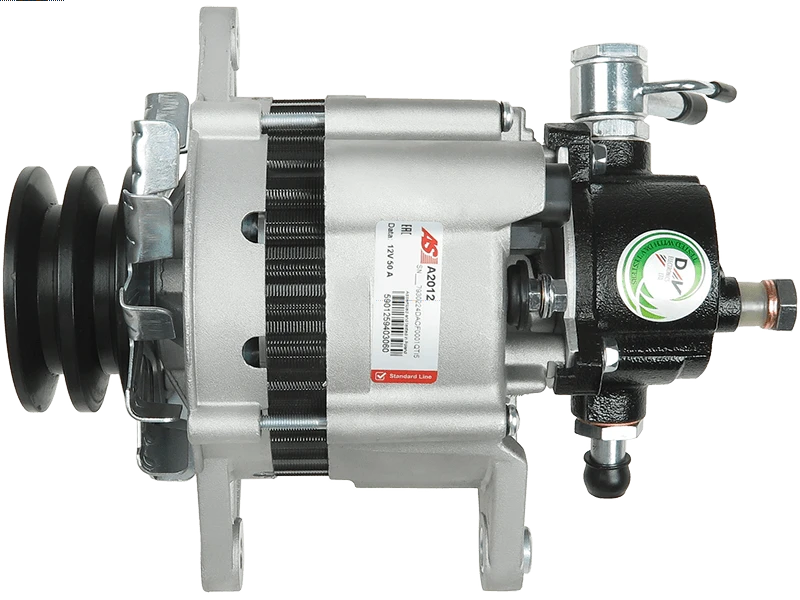

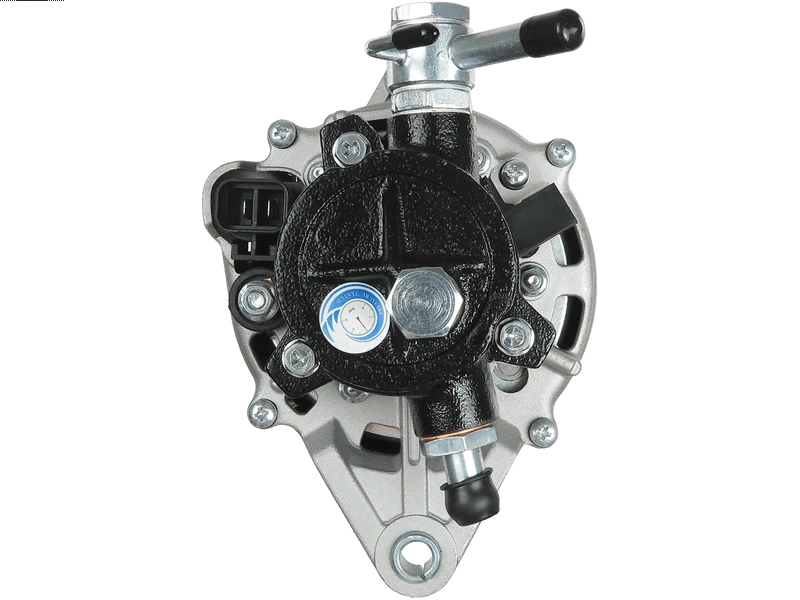

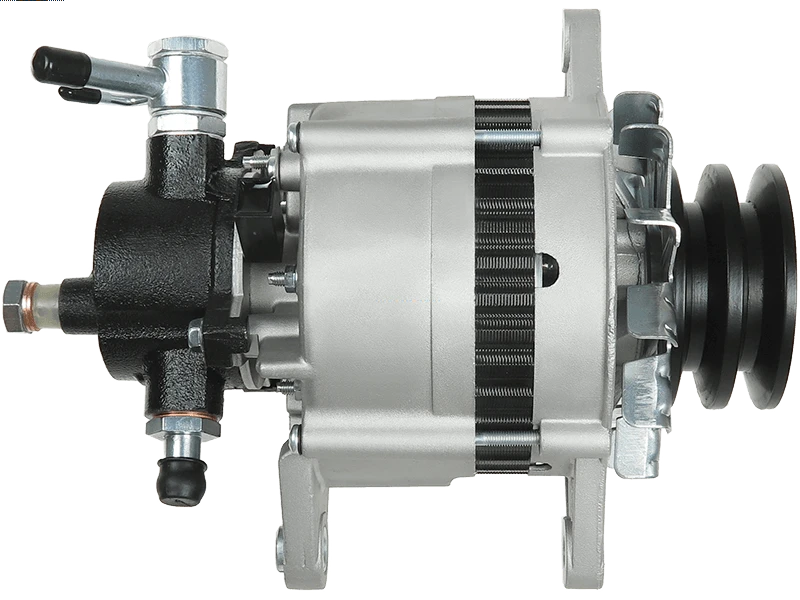

A2012 - Brand new AS-PL Alternator

Specifications

Amp	50 A
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10 mm
Diameter (D.3)	10 mm
Grooves	2 qty
Length (L.1)	263 mm
OEM Product	No
Outside Diameter (O.D.1)	58 mm
Pivot Foot Length (B)	13 mm
Pivot Inside Length (C)	81.5 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley Type	SOLID
Pulley to Mount Distance (A)	43 mm
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
NISSAN	King Cab 2.7 TD 4WD	(D21)[TD27]	08.1987-03.1995
NISSAN	Pick Up 2.5 Diesel 4WD	(D21)[TD25]	08.1987-03.1996
NISSAN	TeRano 2.7 TD	(WD21)[TD27T]	02.1989-10.1993

Reference Information

ALT32061 110700 ALTL044 ANM35428X ALT221120 LRA1295 SA565 SA443 A2012 20110256 ALH0660 20110341 DRA3208N 40660RI 311924 445709 2D392 210342 437777 23100-92G01 210104 CAL20103AS ALT5090 23100-43G04 40780RI 20130132 CGB-81570 22295N 20145301BN LRA01295 ALT122310 GA90511B-A 401117RI EAA-221126 SA995 986038930 LR150-428S 23100-43G06 ALTS903 LR150-428T 23100-43G08 28-1570 210115 437685 9212853 89212853 11.066 JA660IR LR150-428C 56230 ALD392 LR150-428E ALT221140 002-D392 2020103 40185RI LR150-443T ALTL044NE DRA3208 LR150-428 LR150-443S AEA3242 SA336 9092 CGB-18930 PRAL044 8EL726375-001 210135

Video/Publications

002-D392 0986038930 11.0660 110700 20110256 20110341 20130132 20145301BN 2020103 22295N 23100-43G04 23100-43G06 23100-43G08 23100-92G01 28-1570 2D392 311924 401117RI 40185RI 40660RI 40780RI 437685 437777 56230 89212853 8EL726375-001 9092 A2012 AEA3242 ALD392 ALH0660 ALT122310 ALT221120 ALT221140 ALT32061 ALT5090 ALTL044 ALTL044NE ALTS903 CAL20103AS CGB-18930 CGB-81570 DRA3208 DRA3208N EAA-221126 GA90511B-A JA660IR LR150-428 LR150-428C LR150-428E LR150-428S LR150-428T LR150-443S LR150-443T LRA01295 LRA1295 PRAL044 SA336 SA443 SA565 SA995 210104 210115 210135 210342
