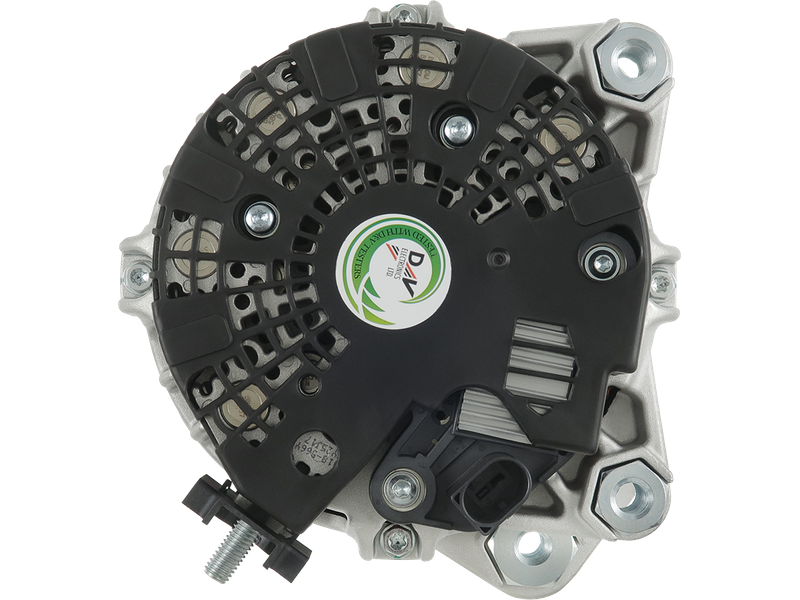

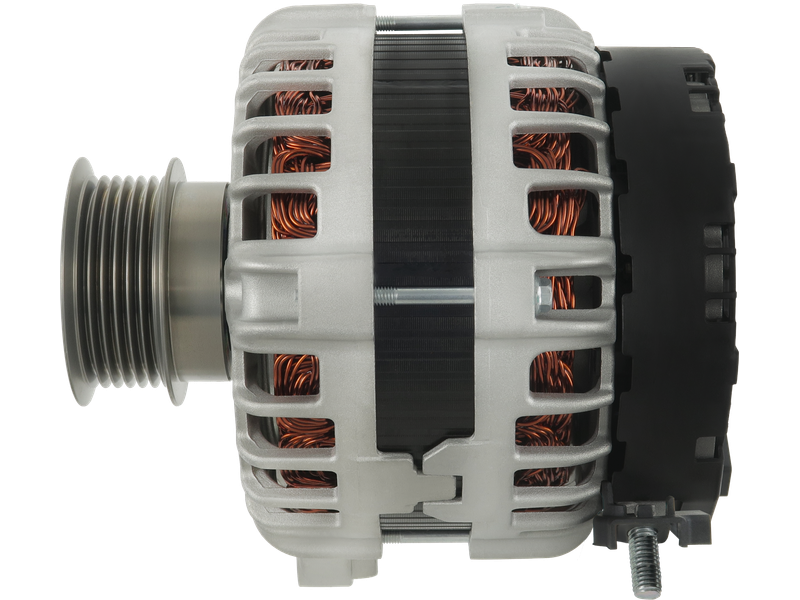

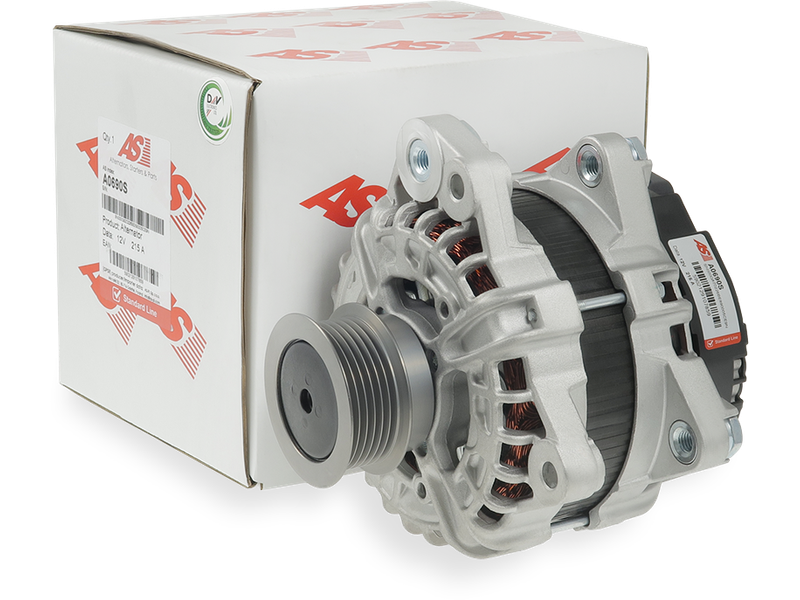

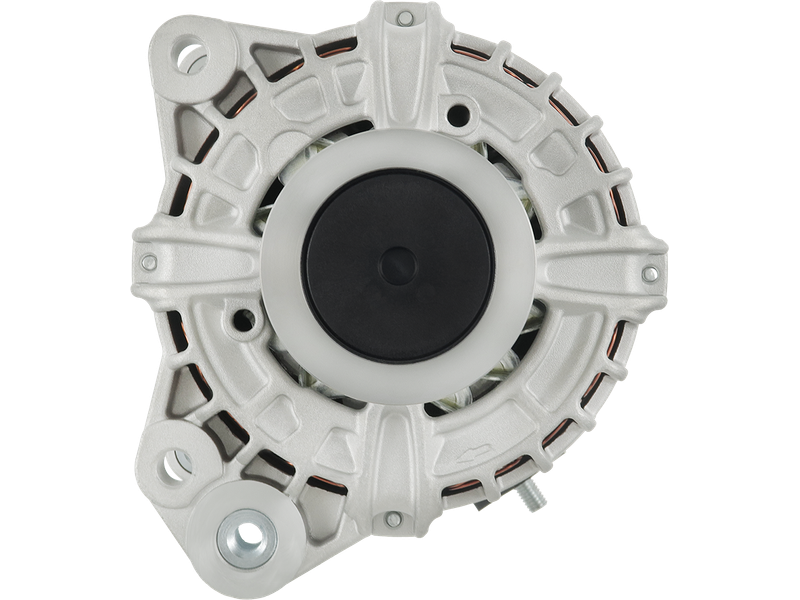

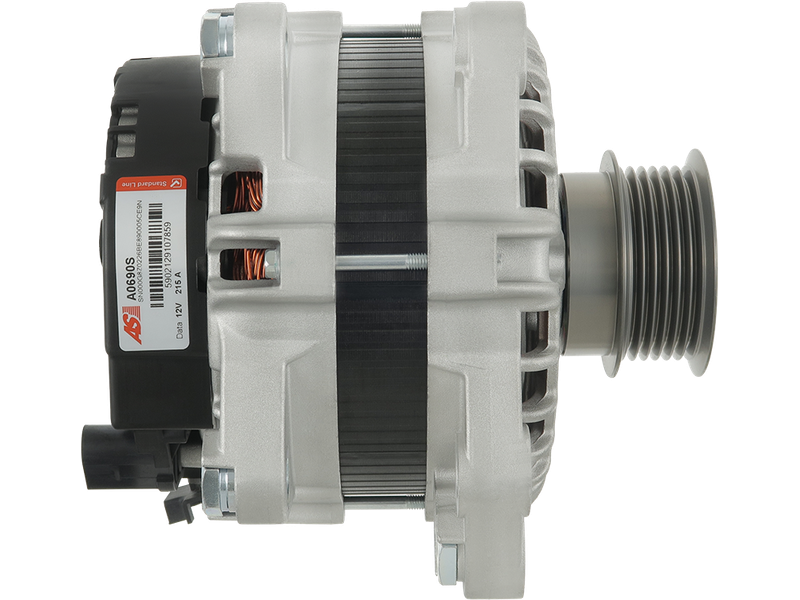

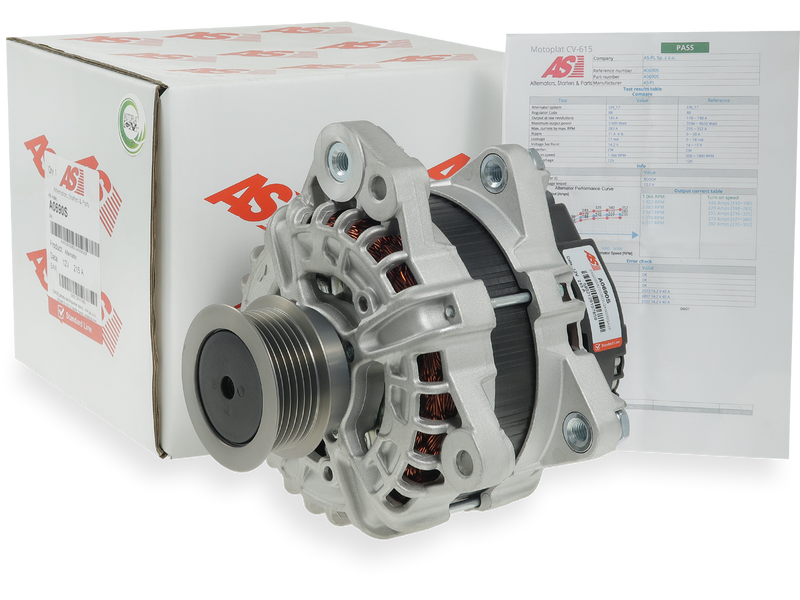

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 796.46 including GST
NZ$ 692.57 excluding GST
or four payments of $199.12
with
Learn More
UOM:
each
Alternative Item:
A0690(SEG),AGB-C6036
Product Code:
A0690S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0125812038Associated Numbers
|
0125812037 |
Bosch |
|---|---|
|
0125812038 |
Bosch |
|
0125812038RJ |
RNL |
|
0125812074 |
Bosch |
|
0125812075 |
Bosch |
|
0125812076 |
Bosch |
|
12090769 |
EuroTec |
|
12201406 |
AES |
|
1986A01377 |
Bosch |
|
2010A07 |
Sando |
|
209627 |
ERA |
|
21074N |
WAI |
|
21074OS |
WAI |
|
2381672152 |
DRI |
|
287596 |
Elstock |
|
30544945 |
Volvo |
|
30644945 |
Volvo |
|
31489212 |
Volvo |
|
36011427 |
Volvo |
|
36012360 |
Volvo |
|
443404 |
Valeo |
|
444284 |
Valeo |
|
554676RI |
DAS |
|
554676RIB |
DAS |
|
57620 |
EAI |
|
815541215 |
PSH |
|
8888470300 |
Other |
|
8888470300C |
Other |
|
8890653041 |
Other |
|
89216707 |
PowerMax |
|
9210 |
CEVAM |
|
931837 |
EDR |
|
A0690 |
AS-PL |
|
A0690S |
AS-PL |
|
A135080 |
Short code |
|
A147886 |
Short code |
|
A158667 |
Short code |
|
ABE1585 |
Everkraft |
|
ABO1466 |
Quasar |
|
AL03538 |
TMI |
|
AL1332 |
AMK |
|
ALT10890 |
Wood Auto |
|
BOS0125812038 |
Wood Auto |
|
CAL10A07 |
Casco |
|
CAL10A07AS |
Casco |
|
CAL10A07GS |
Casco |
|
DA2947 |
Delco Remy |
|
DRA1837 |
Delco Remy |
|
F00E100669 |
Bosch |
|
IR5323 |
Protech |
|
LRA03986 |
Lucas |
|
LRA3986 |
Lucas |
|
RNL812038 |
RNL |
|
S3260000 |
Herth Buss |
|
SEG0125812075 |
Wood Auto |
|
WOOALT10890 |
Wood Auto |
Specifications
| Amp | 215 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 47.50 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 61.50 mm |
| Pulley to Mount Distance (A) | 55 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.0 T4 | [B4204T19] | 01.2015- |
| VOLVO | S60 II (134) T3 | B4204T37 | 03.2015-05.2018 |
| VOLVO | S60 II (134) T4 | B4204T19 | 03.2015-05.2018 |
| VOLVO | S60 II (134) T5 | B4204T11 | 09.2013-12.2018 |
| VOLVO | S60 II (134) T5 AWD | B4204T11 | 07.2014-12.2018 |
| VOLVO | S60 II Cross Country (134) T5 AWD | B4204T11 | 06.2016-12.2018 |
| VOLVO | S60 II Cross Country (134) T5 Drive-E Polestar AWD | B4204T11 | 06.2016-05.2018 |
| VOLVO | S60 III (224) T4 | B4204T31 | 02.2019-12.2021 |
| VOLVO | S60 III (224) T4 | B4204T44 | 02.2019-12.2021 |
| VOLVO | S60 III (224) T4 Polestar | B4204T31P | 07.2019-12.2021 |
| VOLVO | S60 III (224) T5 | B4204T26 | 02.2019-12.2021 |
| VOLVO | S60 III (224) T5 AWD | B4204T20 | 05.2019-12.2021 |
| VOLVO | S60 III (224) T5 AWD | B4204T23 | 05.2019-12.2021 |
| VOLVO | S60 III (224) T5 AWD | B4204T26 | 02.2019- |
| VOLVO | S60 III (224) T5 Polestar | B4204T26P | 07.2019-12.2021 |
| VOLVO | S60 III (224) T6 AWD | B4204T29 | 05.2019-12.2021 |
| VOLVO | S80 2.0 T5 | [B4204T15] | 01.2015- |
| VOLVO | S80 II (124) 2.0 Drive- E | B4204T11 | 12.2014-12.2016 |
| VOLVO | S80 II (124) T5 | B4204T11 | 09.2013-05.2014 |
| VOLVO | S80 II (124) T5 | B4204T15 | 01.2014-12.2016 |
| VOLVO | S90 2.0 | [B4204T20] | 01.2016- |
| VOLVO | S90 2.0 | [B4204T26] | 01.2017- |
| VOLVO | S90 2.0 | [B4204T31] | 01.2017- |
| VOLVO | S90 2.0 T4 | [B4204T31] | 01.2017- |
| VOLVO | S90 2.0 T5 | [B4204T23] | 01.2016- |
| VOLVO | S90 2.0 T5 | [B4204T26] | 01.2017- |
| VOLVO | S90 II (234) 2.0 | B4204T20 | 03.2016-12.2021 |
| VOLVO | S90 II (234) D5 Polestar AWD | D4204T23 | 06.2019-12.2021 |
| VOLVO | S90 II (234) T4 | B4204T31 | 10.2017-12.2021 |
| VOLVO | S90 II (234) T4 | B4204T44 | 10.2017-12.2021 |
| VOLVO | S90 II (234) T4 Polestar | B4204T31 | 06.2019-12.2021 |
| VOLVO | S90 II (234) T5 | B4204T23 | 03.2016-12.2021 |
| VOLVO | S90 II (234) T5 | B4204T26 | 10.2017-12.2021 |
| VOLVO | S90 II (234) T5 Drive-E Polestar | B4204T23 | 03.2016-12.2021 |
| VOLVO | S90 II (234) T5 Drive-E Polestar | B4204T26 | 10.2017-12.2021 |
| VOLVO | V40 1.5 T2 | [B4154T5] | 01.2015- |
| VOLVO | V40 1.5 T3 | [B4151T4] | 01.2015- |
| VOLVO | V40 2.0 T2 | [B4204T38] | 01.2015- |
| VOLVO | V40 2.0 T3 | [B4204T37] | 01.2015- |
| VOLVO | V40 2.0 T4 | [B4204T19] | 01.2015- |
| VOLVO | V40 2.0 T4 AWD | [B4204T21] | 01.2014- |
| VOLVO | V40 Cross Country (526) T3 | B4154T2 | 04.2015-08.2019 |
| VOLVO | V40 Cross Country (526) T3 | B4154T4 | 04.2015-08.2019 |
| VOLVO | V40 Cross Country (526) T3 | B4204T37 | 02.2015-08.2019 |
| VOLVO | V40 Cross Country (526) T4 | B4204T19 | 08.2015-08.2019 |
| VOLVO | V40 Cross Country (526) T4 AWD | B4204T21 | 05.2014-08.2019 |
| VOLVO | V40 Cross Country (526) T5 AWD | B4204T11 | 05.2014-08.2019 |
| VOLVO | V40 Cross Country (526) T5 AWD | B4204T41 | 05.2014-08.2019 |
| VOLVO | V40 Cross Country (526) T5 Polestar AWD | B4204T11 | 01.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T2 | B4154T3 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T2 | B4154T5 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T2 | B4204T17 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T2 | B4204T38 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T3 | B4154T2 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T3 | B4154T4 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T3 | B4204T33 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T3 | B4204T37 | 02.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T4 | B4204T19 | 08.2015-08.2019 |
| VOLVO | V40 Hatchback (525) T5 | B4204T11 | 05.2014-08.2019 |
| VOLVO | V40 Hatchback (525) T5 | B4204T41 | 05.2014-08.2019 |
| VOLVO | V40 Hatchback (525) T5 Drive-E Polestar | B4204T11 | 05.2014-08.2019 |
| VOLVO | V60 2.0 | [B4204T26] | 01.2018- |
| VOLVO | V60 2.0 T4 | [B4204T19] | 01.2015- |
| VOLVO | V60 2.0 T5 | [B4204T11] | 01.2013- |
| VOLVO | V60 2.0 T5 AWD | [B4204T11] | 01.2014- |
| VOLVO | V60 I (155) T4 | B4204T19 | 03.2015-05.2018 |
| VOLVO | V60 I (155) T5 | B4204T11 | 10.2013-12.2018 |
| VOLVO | V60 I (155) T5 | B4204T15 | 01.2014-12.2017 |
| VOLVO | V60 I (155) T5 | B4204T41 | 10.2013-12.2018 |
| VOLVO | V60 I (155) T5 AWD | B4204T11 | 07.2014-05.2018 |
| VOLVO | V60 I Cross Country (157) T5 | B4204T11 | 03.2015-05.2018 |
| VOLVO | V60 I Cross Country (157) T5 AWD | B4204T11 | 06.2016-05.2018 |
| VOLVO | V60 I Cross Country (157) T5 Drive-E Polestar | B4204T11 | 03.2015-07.2018 |
| VOLVO | V60 I Cross Country (157) T5 Drive-E Polestar AWD | B4204T11 | 03.2015-07.2018 |
| VOLVO | V60 II (225) T4 | B4204T31 | 05.2019- |
| VOLVO | V60 II (225) T4 | B4204T44 | 05.2019- |
| VOLVO | V60 II (225) T4 Polestar | B4204T31P | 07.2019-12.2021 |
| VOLVO | V60 II (225) T5 | B4204T26 | 02.2018-12.2021 |
| VOLVO | V60 II (225) T5 AWD | B4204T26 | 09.2018-12.2021 |
| VOLVO | V60 II (225) T5 Polestar | B4204T11 | 07.2019-12.2021 |
| VOLVO | V60 II (225) T5 Polestar | B4204T26P | 07.2019-12.2021 |
| VOLVO | V60 II (225) T5 Polestar AWD | B4204T11 | 07.2019- |
| VOLVO | V60 II (225) T5 Polestar AWD | B4204T26P | 07.2019- |
| VOLVO | V60 II Cross Country (227) T5 AWD | B4204T26 | 12.2018-12.2021 |
| VOLVO | V60 II Cross Country (227) T5 Polestar AWD | B4204T11 | 07.2019- |
| VOLVO | V60 II Cross Country (227) T5 Polestar AWD | B4204T26P | 07.2019- |
| VOLVO | V70 2.0 D3 | [D4204T9] | 01.2015- |
| VOLVO | V70 2.0 T4 | [B4204T19] | 01.2015- |
| VOLVO | V70 III (135) T4 | B4204T19 | 03.2015-04.2016 |
| VOLVO | V70 III (135) T5 | B4204T11 | 10.2013-04.2016 |
| VOLVO | V90 2.0 | [B4204T23] | 01.2016- |
| VOLVO | V90 2.0 | [B4204T26] | 01.2017- |
| VOLVO | V90 2.0 | [B4204T31] | 01.2017- |
| VOLVO | V90 2.0 T5 AWD | [B4204T23] | 01.2016- |
| VOLVO | V90 2.0 T6 | [B4204T27] | 01.2016- |
| VOLVO | V90 2.0 T6 AWD | [B4204T27] | 01.2016- |
| VOLVO | V90 Cross Country 2.0 | [B4204T26] | 01.2017- |
| VOLVO | V90 II Cross Country (236) B6 Mild-Hybrid AWD | B4204T29 | 03.2020- |
| VOLVO | V90 II Cross Country (236) D5 Polestar AWD | D4204T23 | 10.2016- |
| VOLVO | V90 II Cross Country (236) T5 AWD | B4204T23 | 03.2016-12.2018 |
| VOLVO | V90 II Cross Country (236) T5 AWD | B4204T26 | 10.2017- |
| VOLVO | V90 II Cross Country (236) T5 Drive-E Polestar AWD | B4204T23 | 10.2016-12.2018 |
| VOLVO | V90 II Cross Country (236) T5 Polestar AWD | B4204T26 | 10.2017- |
| VOLVO | V90 II Cross Country (236) T6 AWD | B4204T27 | 10.2016- |
| VOLVO | V90 II Cross Country (236) T6 AWD | B4204T29 | 10.2017- |
| VOLVO | V90 II Cross Country (236) T6 Polestar AWD | B4204T29 | 10.2017- |
| VOLVO | V90 II Estate (235) T4 | B4204T31 | 10.2017-12.2021 |
| VOLVO | V90 II Estate (235) T4 Polestar | B4204T31 | 06.2019-12.2021 |
| VOLVO | V90 II Estate (235) T5 | B4204T23 | 03.2016-12.2018 |
| VOLVO | V90 II Estate (235) T5 | B4204T23 | 10.2017-12.2021 |
| VOLVO | V90 II Estate (235) T5 | B4204T26 | 10.2017-12.2021 |
| VOLVO | V90 II Estate (235) T5 Polestar | B4204T26 | 06.2019-12.2021 |
| VOLVO | V90 II Estate (235) T6 AWD | B4204T27 | 03.2016-12.2018 |
| VOLVO | V90 II Estate (235) T6 AWD | B4204T29 | 10.2017-12.2021 |
| VOLVO | XC40 2.0 | [B4204T14] | 01.2017- |
| VOLVO | XC40 2.0 | [B4204T47] | 01.2018- |
| VOLVO | XC40 (536) T4 | B4204T31 | 09.2018-12.2021 |
| VOLVO | XC40 (536) T4 | B4204T47 | 09.2018-12.2021 |
| VOLVO | XC40 (536) T4 AWD | B4204T31 | 09.2018- |
| VOLVO | XC40 (536) T4 AWD | B4204T47 | 09.2018- |
| VOLVO | XC40 (536) T5 AWD | B4204T14 | 10.2017-09.2021 |
| VOLVO | XC40 (536) T5 AWD | B4204T36 | 10.2017-12.2022 |
| VOLVO | XC40 (536) T5 Polestar AWD | B4204T20 | 10.2017-09.2019 |
| VOLVO | XC60 2.0 | [B4204T20] | 01.2017- |
| VOLVO | XC60 2.0 | [B4204T23] | 01.2017-12.2018 |
| VOLVO | XC60 2.0 | [B4204T26] | 01.2017- |
| VOLVO | XC60 2.0 D4 | [D4204T14] | 01.2017- |
| VOLVO | XC60 2.0 D4 AWD | [D4204T14] | 01.2017- |
| VOLVO | XC60 2.0 D4 Polestar AWD | [D4204T14] | 01.2019- |
| VOLVO | XC60 2.0 T5 | [B4204T23] | 01.2017-12.2018 |
| VOLVO | XC60 2.0 T5 AWD | [B4204T20] | 01.2017- |
| VOLVO | XC60 2.0 T5 AWD | [B4204T26] | 01.2017- |
| VOLVO | XC60 2.0 T6 AWD | [B4204T27] | 01.2017- |
| VOLVO | XC60 II (246) D4 | D4204T14 | 03.2017-12.2021 |
| VOLVO | XC60 II (246) D4 AWD | D4204T14 | 03.2017-12.2021 |
| VOLVO | XC60 II (246) D4 Polestar AWD | D4204T14 | 01.2019-12.2021 |
| VOLVO | XC60 II (246) D5 AWD | D4204T23 | 03.2017-12.2022 |
| VOLVO | XC60 II (246) D5 Polestar AWD | D4204T23 | 10.2018-12.2022 |
| VOLVO | XC60 II (246) T4 | B4204T31 | 09.2018-12.2021 |
| VOLVO | XC60 II (246) T4 Polestar | B4204T31P | 07.2019-12.2021 |
| VOLVO | XC60 II (246) T5 | B4204T23 | 03.2017- |
| VOLVO | XC60 II (246) T5 | B4204T26 | 10.2017-12.2020 |
| VOLVO | XC60 II (246) T5 AWD | B4204T20 | 10.2017-12.2021 |
| VOLVO | XC60 II (246) T5 AWD | B4204T23 | 03.2017-12.2021 |
| VOLVO | XC60 II (246) T5 AWD | B4204T26 | 10.2017-12.2020 |
| VOLVO | XC60 II (246) T5 Polestar | B4204T26P | 05.2019-12.2020 |
| VOLVO | XC60 II (246) T5 Polestar AWD | B4204T23 | 03.2017-12.2018 |
| VOLVO | XC60 II (246) T5 Polestar AWD | B4204T26P | 07.2019-12.2020 |
| VOLVO | XC60 II (246) T6 AWD | B4204T27 | 03.2017-12.2021 |
| VOLVO | XC60 II (246) T6 AWD | B4204T29 | 10.2017-12.2021 |
| VOLVO | XC60 II (246) T6 Polestar AWD | B4204T27 | 03.2017-12.2021 |
| VOLVO | XC60 II (246) T6 Polestar AWD | B4204T29P | 07.2019-12.2021 |
| VOLVO | XC60 I SUV (156) T5 | B4204T11 | 10.2013-02.2017 |
| VOLVO | XC60 I SUV (156) T5 | B4204T41 | 10.2013-02.2017 |
| VOLVO | XC60 I SUV (156) T5 AWD | B4204T11 | 10.2015-02.2017 |
| VOLVO | XC70 II (136) T5 | B4204T11 | 10.2013-12.2016 |
| VOLVO | XC90 2.0 | [B4204T26] | 01.2017- |
| VOLVO | XC90 2.0 T5 AWD | [B4204T23] | 01.2015- |
| VOLVO | XC90 2.0 T5 AWD | [B4204T26] | 01.2017- |
| VOLVO | XC90 II (256) D5 DRIVe Polestar AWD | D4204T23 | 03.2016-12.2021 |
| VOLVO | XC90 II (256) T5 AWD | B4204T23 | 02.2016-12.2018 |
| VOLVO | XC90 II (256) T5 AWD | B4204T23 | 06.2015-12.2021 |
| VOLVO | XC90 II (256) T5 AWD | B4204T26 | 10.2017-12.2020 |
| VOLVO | XC90 II (256) T5 Drive-E Polestar AWD | B4204T23 | 10.2017-12.2021 |
| VOLVO | XC90 II (256) T5 Drive-E Polestar AWD | B4204T26 | 10.2017-12.2020 |
| VOLVO | XC90 II (256) T5 Polestar AWD | B4204T26P | 07.2019-12.2020 |
| VOLVO | XC90 II (256) T6 Polestar AWD | B4204T29P | 10.2017-12.2021 |
Reference Information
| 0125812037 | BOSCH |
| 0125812038 | BOSCH |
| 0125812075 | BOSCH |
| 0125812076 | BOSCH |
| 0125812077 | BOSCH |
| 115110 | FARCOM |
| 116683 | CARGO |
| 12090769 | EUROTEC |
| 20010A07OV | ITAB AUTOMOTIVE |
| 2010170A | REAL |
| 2010A07 | SANDO |
| 21074N | WAI |
| 2381672152 | DRI |
| 28-7596 | ELSTOCK |
| 30544945 | VOLVO |
| 30644945 | VOLVO |
| 3125929 | HENKEL PARTS |
| 3125930 | HENKEL PARTS |
| 31489212 | VOLVO |
| 36011427 | VOLVO |
| 36012360 | VOLVO |
| 554676RI | KUHNER |
| 554676RIB | KUHNER |
| 57620 | EAI |
| 620ST75 | STARTCAR |
| 815.541.215.010 | WAI |
| 815.541.215.210 | WAI |
| 815.541.215.211 | WAI |
| 815.541.215.280 | WAI |
| 9210 | CEVAM |
| A0690S | AS-PL |
| A12BH1097 | SIDAT |
| A12BH1097AS | SIDAT |
| A135.080 | WAI |
| A147.886 | WAI |
| A-6720 | DIXIE |
| AL03538 | TMI |
| ALT10204 | ELECTROLOG |
| ALTJ471 | 3EFFE |
| AM-3321 | AUTO MAGNETO |
| BOS0125812038 | WOODAUTO |
| CAL10A07GS | CASCO |
| DA2947 | DELCO |
| DRA1837 | DELCO |
| F032116683 | CARGO |
| G100911 | BTS TURBO |
| G101190 | BTS TURBO |
| IR5323 | PROTECH |
| LRA03986 | LUCAS |
| LRA3986 | LUCAS |
| UD05943A | AS-PL |
| UD105115A | AS-PL |
| UD13000A | AS-PL |
| UD16500A | AS-PL |
| VO8047 | SNRA |
Video/Publications
A0690SView your shopping basket or Browse other items in Alternators.
