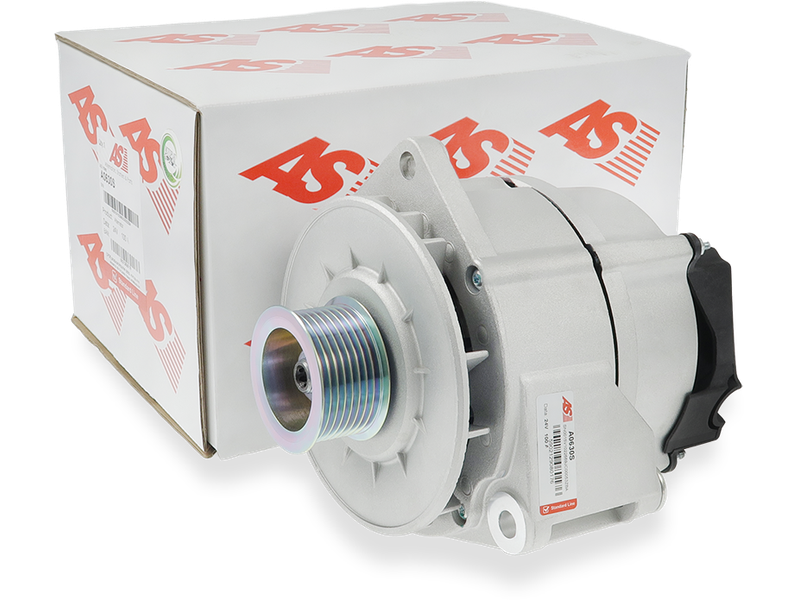

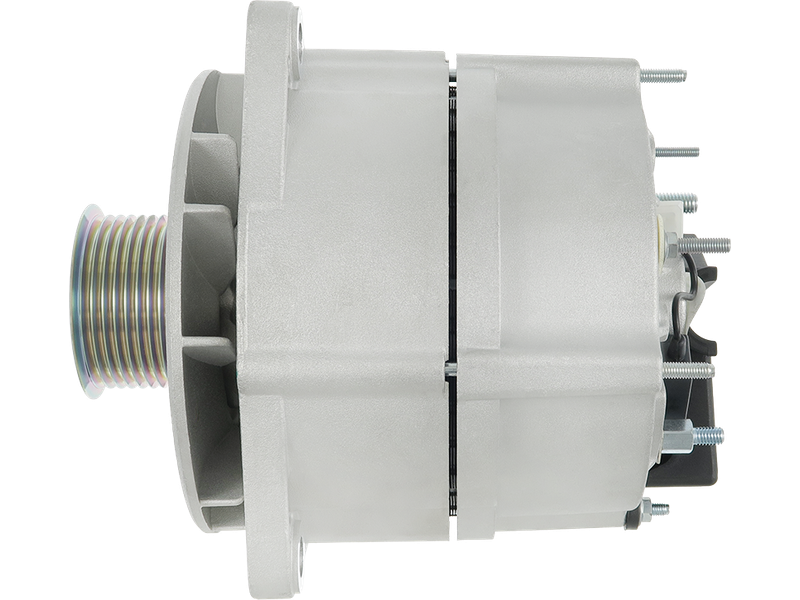

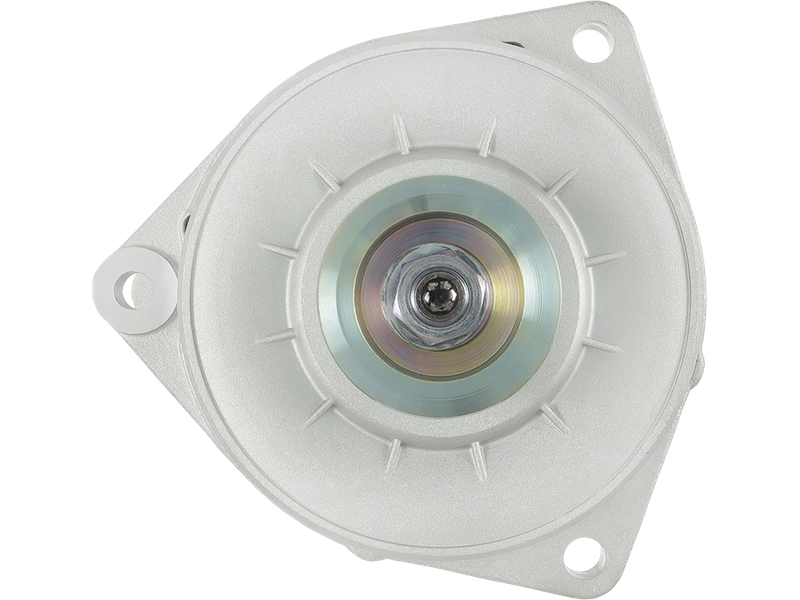

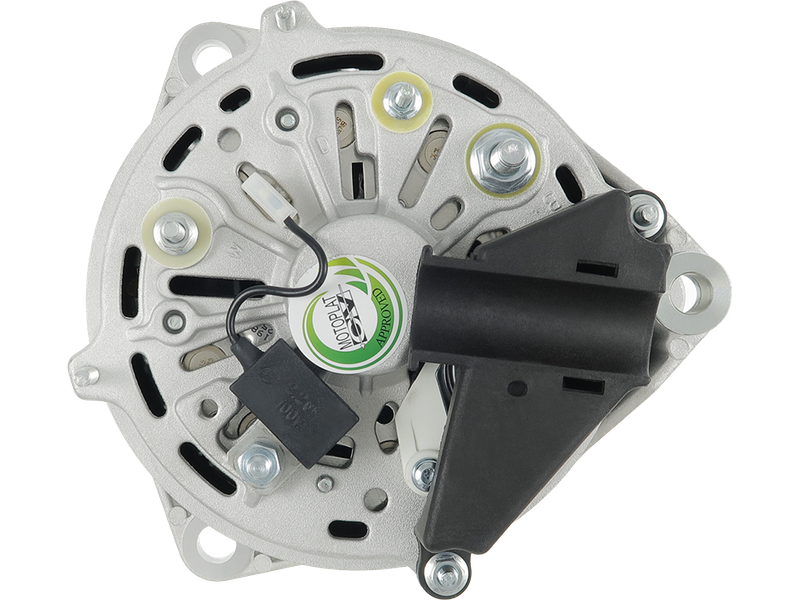

A0630S - Brand new AS-PL Alternator

Specifications

Amp	100 A
Bottom Mounting Foot Width (B)	80 mm
Diameter (D.1)	12 mm
Diameter (D.2)	11 mm
Diameter (D.3)	12 mm
Grooves	8 qty
Length (L.1)	212 mm
OEM Product	No
Outside Diameter (O.D.1)	58.5 mm
Plug Code	PL_9105
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	115 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
MERCEDES BENZ TRUCKS & BUSES	1024 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1024 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1026 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1026 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1029 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1029 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1224 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1224 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1226 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1226 7.2	[OM925.920]	10.2004-12.2014
MERCEDES BENZ TRUCKS & BUSES	1226 AF 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1226 F 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1226 L 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1226 L 7.2	[OM925.920]	10.2004-12.2014
MERCEDES BENZ TRUCKS & BUSES	1228 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1228 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1228 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1228 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1228 L 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1228 L 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 L 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 L 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1229 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1324 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1324 AK 6.4	[OM902.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1324 K 6.4	[OM902.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1324 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1324 LKO 6.4	[OM902.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 AF 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 F 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 L 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1326 LS 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 L 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 L 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 LS 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 LS 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1328 LS 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 AF 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 F 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 L 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 L 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 LS 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 LS 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1329 LS 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1524 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1524 AK 6.4	[OM902.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1524 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 AF 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 AK 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 K 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 L 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1526 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1528 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1528 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1528 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1528 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1528 L 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1528 L 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 AF 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 AK 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 F 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 K 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 L 6.4	[OM906.911]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 L 6.4	[OM906.916]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1529 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1926 L 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	1929 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2226 L 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2229 L 6.4	[OM902.918]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.921]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.945]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 7.2	[OM926.990]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 L 7.2	[OM926.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 L 7.2	[OM926.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 L 7.2	[OM926.921]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 L 7.2	[OM926.945]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2533 L 7.2	[OM926.990]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 7.2	[OM926.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 7.2	[OM926.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 7.2	[OM926.945]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 B 7.2	[OM926.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 B 7.2	[OM926.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 B 7.2	[OM926.945]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 K 7.2	[OM926.913]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 K 7.2	[OM926.919]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	2633 K 7.2	[OM926.945]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	824 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	826 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	829 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	924 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	926 AF 6.4	[OM902.917]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	926 L 7.2	[OM925.920]	10.2004-
MERCEDES BENZ TRUCKS & BUSES	929 L 7.2	[OM925.920]	10.2004-

Reference Information

LRA03968 A0101548902 A0111548902 A0630S 10018258 PRAL266L 440137 ALT126150A 160-68212 01986A01117 48-7578 A0091549902 A009154990280 986043890 301505RI V836659786 10154890280 A0101549202 ALT20033 DB5000 1516480R 20402404 860563 101548902 A0131547102 RAA24901 111548902 113448 89213874 CAL10615ES 101549202 DRA0532 301505RIP 301505RIM F063075 9943890 8EL737758-001 06033GB3010 8EL012584-191 PRAL266 301505RIK ALTL266HQ ALT126150 A010154890280 120469119 1986A01117 301505RIB 2010615.1 556.032.100 2010615.3 UD14721A 9154990280 A010154920280 209021 91549902 10154920280 ALTL266 CGB-11030R LRA3968 0120469119 ALT0127 101540002 90-15-6441 ALT1333 20101516EL 6033GB3010 20101516BN 6033GB3083 CAL10615GS 131547102 ALT297 CGB-83771 PRAL266HQ 20101516OE RNL4389 ALT126150EL CA1505IR 06033GB3083 116585 CGB-11030 1800111482 0986043890 19025111 310869 19025112 BOS6033GB3010 A0101540002 A24BH0036A2 DRB3890
