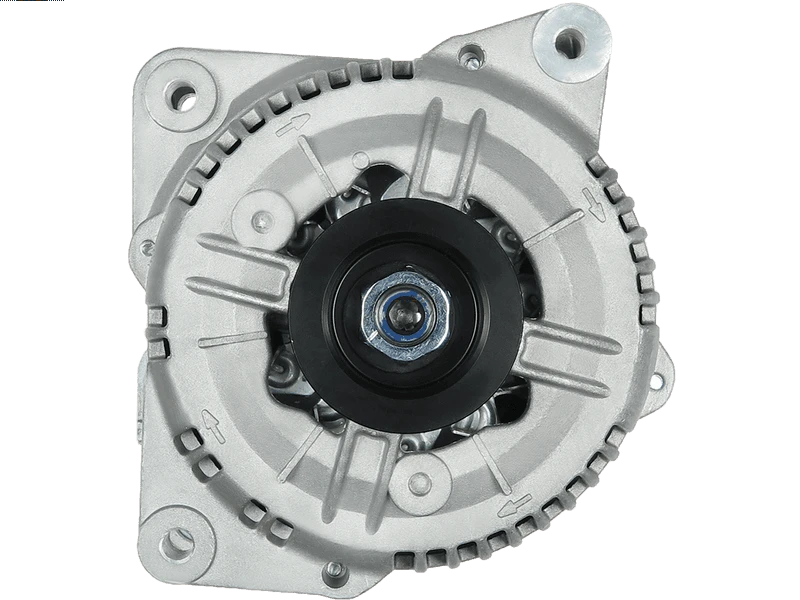

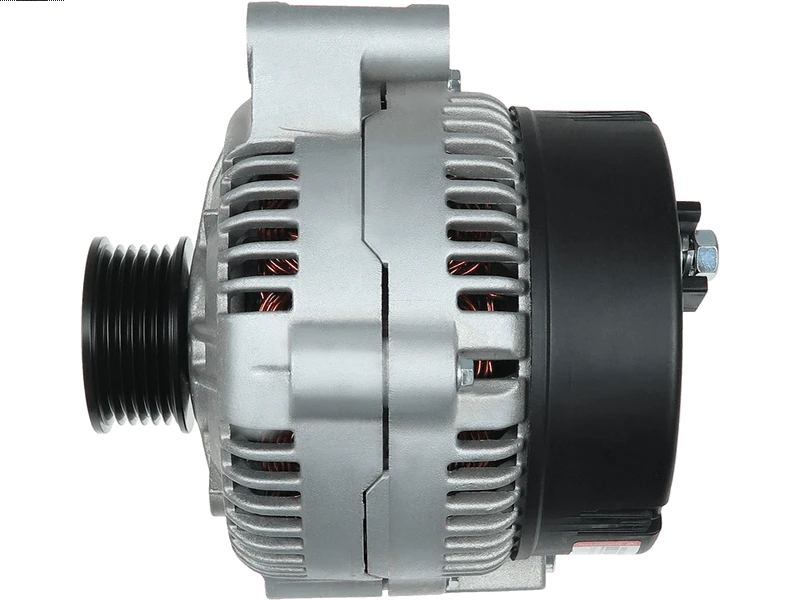

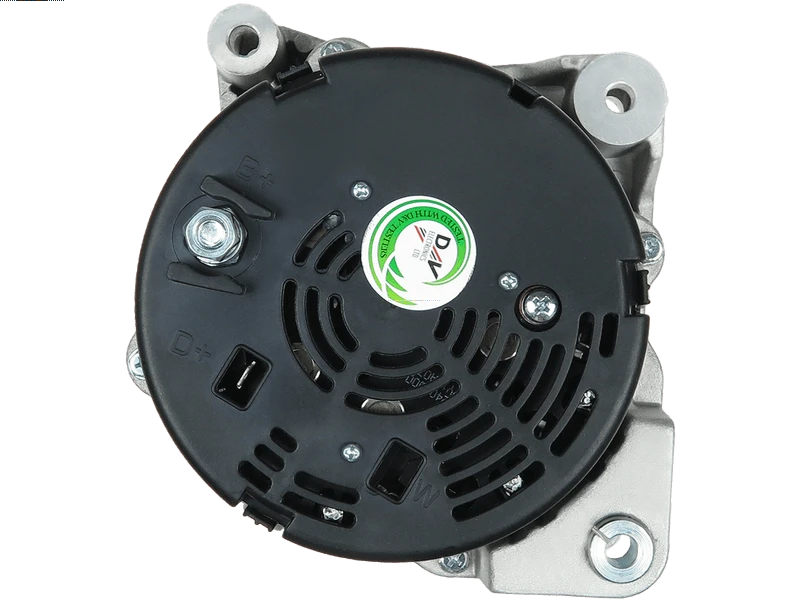

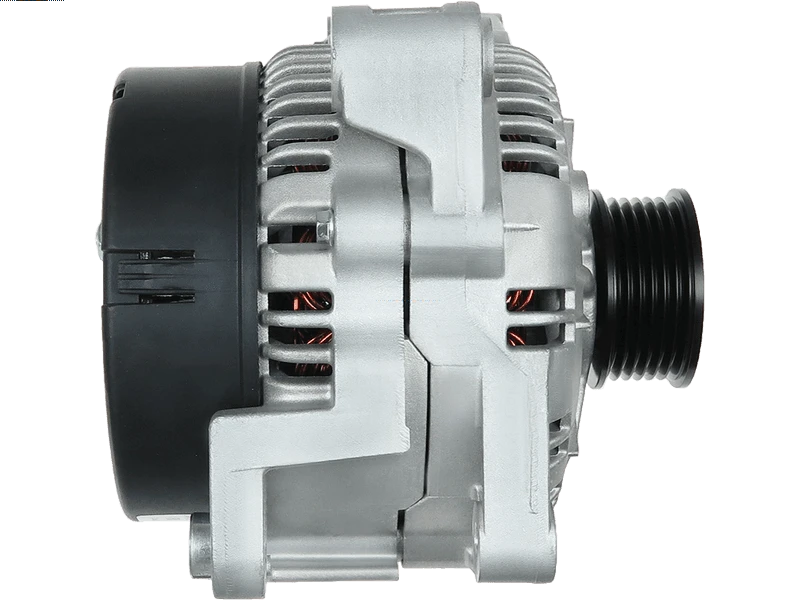

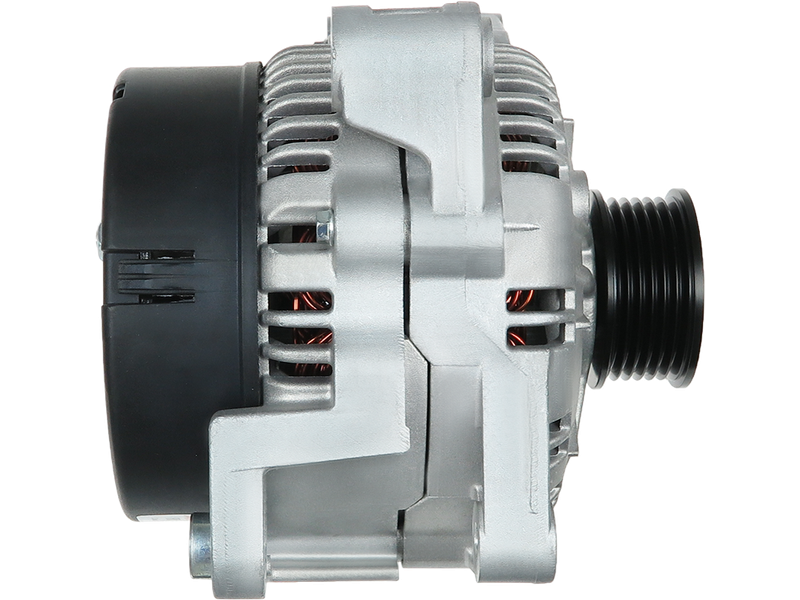

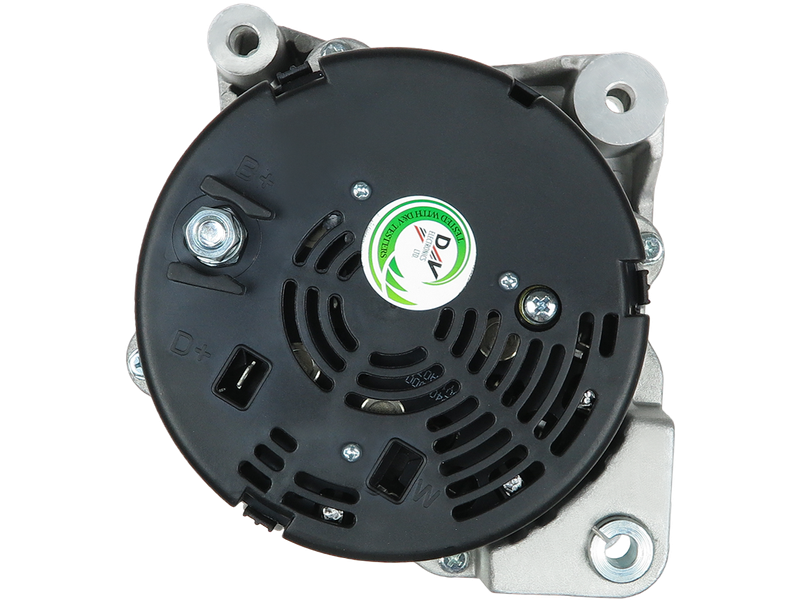

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 454.97 including GST
NZ$ 395.63 excluding GST
or four payments of $113.74
with
Learn More
UOM:
each
Product Code:
A0628S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120465006Associated Numbers
0120465006 0123510017 0123545003 063731088010 0986039170 112557 13541N 20110376 2015272.0 2015272.1 2015272.2 20179272 20179272BN 20179272OE 20179272RC 2541609 2541809 2541809A 2541879 2541879B 28-5792 301056RI 301056RIR 3523420 4934 5003971 56536 7701499612 89212964 8EL737006-001 90-15-6216 9130273 9148301 9164941 A-6446 A13VI118 A13VI151 ALB1056 ALT10553 ALT377 BOS0123510017 CA1056IR CAL15272AS CAL15272GS CAL15272RS EAA-241465 F042301074 LRA03180 UD20694A VA479Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Diameter (D.4) | 8.50 mm |
| Length (L.1) | 184 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 56 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | LAGUNA I (B56_, 556_) 2.0 16V (B56D, B56M) | N7Q700 | 06.1995-03.2001 |
| RENAULT | LAGUNA I (B56_, 556_) 2.0 16V (B56D, B56M) | N7Q704 | 06.1995-03.2001 |
| RENAULT | LAGUNA I Grandtour (K56_) 2.0 16V (A56A/B) | F4R780 | 09.1999-03.2001 |
| RENAULT | LAGUNA I Grandtour (K56_) 2.0 16V (K56D, K56M) | N7Q700 | 09.1995-03.2001 |
| RENAULT | LAGUNA I Grandtour (K56_) 2.0 16V (K56D, K56M) | N7Q704 | 09.1995-03.2001 |
| RENAULT | SAFRANE II (B54_) 2.0 16V (B54L) | N7Q710 | 07.1996-12.2000 |
| RENAULT | SAFRANE II (B54_) 2.0 16V (B54L) | N7Q711 | 07.1996-12.2000 |
| RENAULT | SAFRANE II (B54_) 2.5 20V (B54F) | N7U700 | 07.1996-12.2000 |
| RENAULT | SAFRANE II (B54_) 2.5 20V (B54F) | N7U701 | 07.1996-12.2000 |
| VOLVO | 850 (854) 2.0 | B5202S | 08.1994-12.1996 |
| VOLVO | 850 (854) 2.0 | B5204FS | 06.1991-12.1996 |
| VOLVO | 850 (854) 2.0 Turbo | B5204FT | 08.1993-12.1996 |
| VOLVO | 850 (854) 2.0 Turbo | B5204T | 08.1993-12.1996 |
| VOLVO | 850 (854) 2.3 Turbo R | B5234T5 | 09.1994-10.1997 |
| VOLVO | 850 (854) 2.4 | B5252 | 06.1991-07.1994 |
| VOLVO | 850 (854) 2.4 | B5252FS | 08.1994-12.1996 |
| VOLVO | 850 (854) 2.4 | B5254S | 08.1991-12.1996 |
| VOLVO | 850 (854) 2.4 GLE | B5254T | 09.1993-10.1997 |
| VOLVO | 850 (854) T5 | B5234FT | 08.1993-07.1996 |
| VOLVO | 850 (854) T5-R | B5234T4 | 08.1995-12.1996 |
| VOLVO | 850 Estate (855) 2.0 | B5202S | 08.1994-12.1996 |
| VOLVO | 850 Estate (855) 2.0 | B5204FS | 02.1993-12.1996 |
| VOLVO | 850 Estate (855) 2.0 Turbo | B5204FT | 02.1993-12.1996 |
| VOLVO | 850 Estate (855) 2.0 Turbo | B5204T | 02.1993-12.1996 |
| VOLVO | 850 Estate (855) 2.0 Turbo | B5204T2 | 09.1993-10.1997 |
| VOLVO | 850 Estate (855) 2.3 Turbo R | B5234T5 | 06.1995-10.1997 |
| VOLVO | 850 Estate (855) 2.3 Turbo R | B5234T5 | 09.1994-10.1997 |
| VOLVO | 850 Estate (855) 2.4 | B5252 | 08.1992-07.1994 |
| VOLVO | 850 Estate (855) 2.4 | B5252FS | 08.1994-12.1996 |
| VOLVO | 850 Estate (855) 2.4 | B5254S | 09.1992-12.1996 |
| VOLVO | 850 Estate (855) 2.4 AWD | B5254T | 04.1996-10.1997 |
| VOLVO | 850 Estate (855) 2.4 GLE | B5254T | 09.1993-10.1997 |
| VOLVO | 850 Estate (855) T5 | B5234FT | 02.1993-12.1996 |
| VOLVO | 850 Estate (855) T5-R | B5234T4 | 08.1995-12.1996 |
| VOLVO | 960 2.5 | [B6254S] | 07.1994-12.1996 |
| VOLVO | 960 2.5 | [B6304S] | 08.1994-12.1996 |
| VOLVO | 960 2.9 | [B6304F] | 08.1990-07.1994 |
| VOLVO | 960 2.9 | [B6304FS] | 08.1990-07.1994 |
| VOLVO | 960 2.9 | [B6304GS] | 08.1990-07.1994 |
| VOLVO | 960 2.9 | [B6304S] | 08.1990-07.1994 |
| VOLVO | 960 2.9 | [B6304S] | 09.1994-12.1996 |
| VOLVO | 960 (964) 2.9 | B6304F | 08.1990-07.1994 |
| VOLVO | 960 (964) 2.9 | B6304FS | 08.1990-07.1994 |
| VOLVO | 960 (964) 2.9 | B6304GS | 08.1990-07.1994 |
| VOLVO | 960 II (964) 2.5 | B6254S | 07.1994-12.1996 |
| VOLVO | 960 II (964) 2.9 | B6304S | 07.1994-12.1996 |
| VOLVO | 960 II Estate (965) 2.5 | B6254S | 08.1994-12.1996 |
| VOLVO | 960 II Estate (965) 2.9 | B6304S | 09.1994-12.1996 |
| VOLVO | 960 Kombi (965) 2.9 | B6304F | 08.1990-07.1994 |
| VOLVO | 960 Kombi (965) 2.9 | B6304S | 08.1990-07.1994 |
| VOLVO | C70 I Coupe (872) 2.0 | B5204T2 | 03.1997-09.2002 |
| VOLVO | C70 I Coupe (872) 2.0 T | B5204T3 | 03.1997-09.2002 |
| VOLVO | C70 I Coupe (872) 2.4 T | B5244T | 03.1997-09.2002 |
| VOLVO | C70 I Coupe (872) 2.4 T | B5254T | 03.1997-09.2002 |
| VOLVO | C70 I Coupe (872) T-5 | B5234T3 | 03.1997-09.2002 |
| VOLVO | S40 I (644) 1.6 | B4164S | 09.1995-08.1999 |
| VOLVO | S40 I (644) 1.6 | B4164S2 | 03.1999-12.2003 |
| VOLVO | S40 I (644) 1.8 | B4184S | 07.1995-08.1999 |
| VOLVO | S40 I (644) 1.8 | B4184S3 | 07.1995-08.1999 |
| VOLVO | S40 I (644) 1.8 LPG | B4184S9 | 03.1999-12.2004 |
| VOLVO | S40 I (644) 1.9 T4 | B4194T | 05.1997-07.2000 |
| VOLVO | S40 I (644) 1.9 T4 | B4194T2 | 05.1997-07.2000 |
| VOLVO | S40 I (644) 2.0 | B4204S | 07.1995-08.1999 |
| VOLVO | S40 I (644) 2.0 | B4204S | 07.1995-12.2003 |
| VOLVO | S40 I (644) 2.0 | B4204S2 | 07.1995-12.2003 |
| VOLVO | S70 (874) 2.0 | B5204T2 | 01.1997-11.2000 |
| VOLVO | S90 2.9 | [B6304GS] | 01.1997-05.1998 |
| VOLVO | S90 2.9 | [B6304S2] | 01.1997-05.1998 |
| VOLVO | S90 I (964) 2.5 | B6254FS | 11.1996-10.1998 |
| VOLVO | S90 I (964) 2.9 | B6304FS2 | 01.1997-05.1998 |
| VOLVO | S90 I (964) 2.9 | B6304GS | 01.1997-05.1998 |
| VOLVO | S90 I (964) 2.9 | B6304S2 | 01.1997-05.1998 |
| VOLVO | V40 Estate (645) 1.6 | B4164S | 12.1995-08.1999 |
| VOLVO | V40 Estate (645) 1.6 | B4164S2 | 03.1999-06.2004 |
| VOLVO | V40 Estate (645) 1.8 | B4184S | 07.1995-08.1999 |
| VOLVO | V40 Estate (645) 1.8 | B4184S3 | 07.1995-08.1999 |
| VOLVO | V40 Estate (645) 1.8 LPG | B4184S9 | 03.1999-06.2004 |
| VOLVO | V40 Estate (645) 1.9 T4 | B4194T | 05.1997-07.2000 |
| VOLVO | V40 Estate (645) 1.9 T4 | B4194T2 | 05.1997-07.2000 |
| VOLVO | V70 I (875, 876) 2.0 | B5204T2 | 11.1996-03.2000 |
| VOLVO | V70 I (875, 876) 2.0 Turbo AWD | B5204T3 | 11.1996-12.2000 |
| VOLVO | V70 I (875, 876) 2.4 | B5244S | 12.1995-05.2000 |
| VOLVO | V70 I (875, 876) 2.4 | B5252FS | 12.1995-03.2000 |
| VOLVO | V70 I (875, 876) 2.4 | B5254FS | 12.1995-05.2000 |
| VOLVO | V70 I (875, 876) 2.4 | B5254S | 06.1998-12.1999 |
| VOLVO | V70 I (875, 876) 2.4 | B5254S | 12.1995-05.2000 |
| VOLVO | V70 II (285) 2.4 | B5244S | 03.2000-08.2007 |
| VOLVO | V90 2.9 | [B6304FS] | 01.1997-12.1998 |
| VOLVO | V90 2.9 | [B6304GS] | 01.1997-12.1998 |
| VOLVO | V90 2.9 | [B6304S2] | 01.1997-12.1998 |
| VOLVO | V90 I Estate (965) 2.5 | B6254FS | 11.1996-10.1998 |
| VOLVO | V90 I Estate (965) 2.9 | B6304FS | 01.1997-12.1998 |
| VOLVO | V90 I Estate (965) 2.9 | B6304FS2 | 01.1997-12.1998 |
| VOLVO | V90 I Estate (965) 2.9 | B6304GS | 01.1997-12.1998 |
| VOLVO | V90 I Estate (965) 2.9 | B6304S2 | 01.1997-12.1998 |
Reference Information
| 0120465006 | BOSCH |
| 0123510017 | BOSCH |
| 0123545003 | BOSCH |
| 063731088010 | MAGNETI MARELLI |
| 0986039170 | BOSCH |
| 112557 | CARGO |
| 13541N | WAI |
| 20110376 | PRESTOLITE |
| 2015272.0 | SANDO |
| 2015272.1 | SANDO |
| 2015272.2 | SANDO |
| 20179272 | REAL |
| 20179272BN | REAL |
| 20179272OE | REAL |
| 20179272RC | REAL |
| 2541609 | VALEO |
| 2541809 | VALEO |
| 2541809A | VALEO |
| 2541879 | VALEO |
| 2541879B | VALEO |
| 28-5792 | ELSTOCK |
| 301056RI | KUHNER |
| 301056RIR | KUHNER |
| 310610 | RHIAG |
| 3523420 | VOLVO |
| 3523422 | VOLVO |
| 441203 | LOGISTIK |
| 4934 | CEVAM |
| 5003971 | VOLVO |
| 5003975 | VOLVO |
| 5003996 | VOLVO |
| 56536 | EAI |
| 6849755 | VOLVO |
| 7701042288 | RENAULT |
| 7701499612 | RENAULT |
| 8111634 | VOLVO |
| 8111887 | VOLVO |
| 8251639 | VOLVO |
| 8602082 | VOLVO |
| 8602138 | VOLVO |
| 89212964 | POWERMAX |
| 8EL737006-001 | HELLA |
| 90-15-6216 | WILSON |
| 9130002 | VOLVO |
| 9130003 | VOLVO |
| 9130217 | VOLVO |
| 9130273 | VOLVO |
| 9130274 | VOLVO |
| 9130485 | VOLVO |
| 9148301 | VOLVO |
| 9162423 | VOLVO |
| 9162424 | VOLVO |
| 9162683 | VOLVO |
| 9164941 | VOLVO |
| 9447863 | VOLVO |
| A13VI118 | VALEO |
| A13VI151 | VALEO |
| A-6446 | DIXIE |
| ALB1056 | KRAUF |
| ALT0016 | ELECTROLOG |
| ALT10553 | WOODAUTO |
| ALT122120 | SIOM |
| ALT377 | ROLLCO |
| ALT4580 | SIOM |
| ALTS709 | 3EFFE |
| BOS0123510017 | WOODAUTO |
| CA1056IR | HC PARTS |
| CAL15272AS | CASCO |
| CAL15272GS | CASCO |
| CAL15272RS | CASCO |
| CGB-82880 | AINDE |
| F032112557 | CARGO |
| F042301074 | BOSCH |
| LRA03180 | LUCAS |
| LRA3180 | LUCAS |
| STX100228 | STARDAX |
| STX100228R | STARDAX |
| STX100671 | STARDAX |
| STX100798 | STARDAX |
| UD20694A | AS-PL |
| VA479 | VALEO |
Video/Publications
A0628SView your shopping basket or Browse other items in Alternators.
