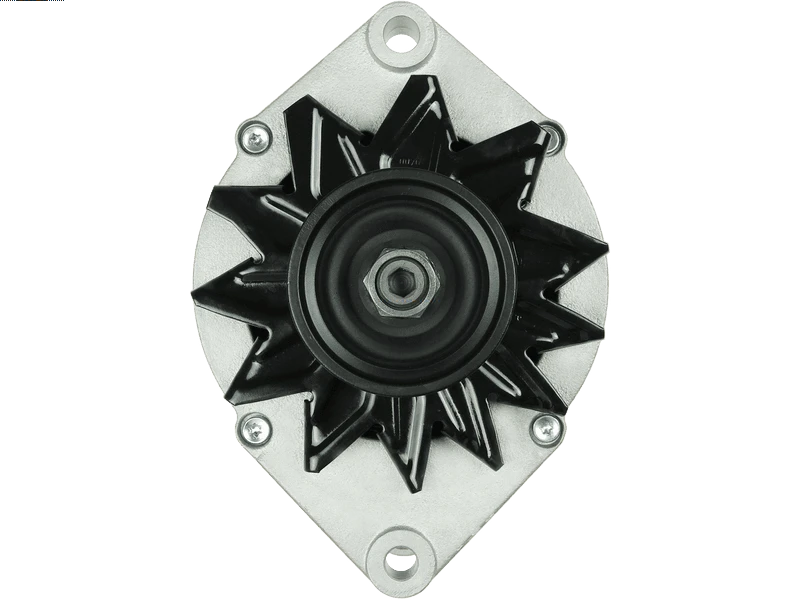

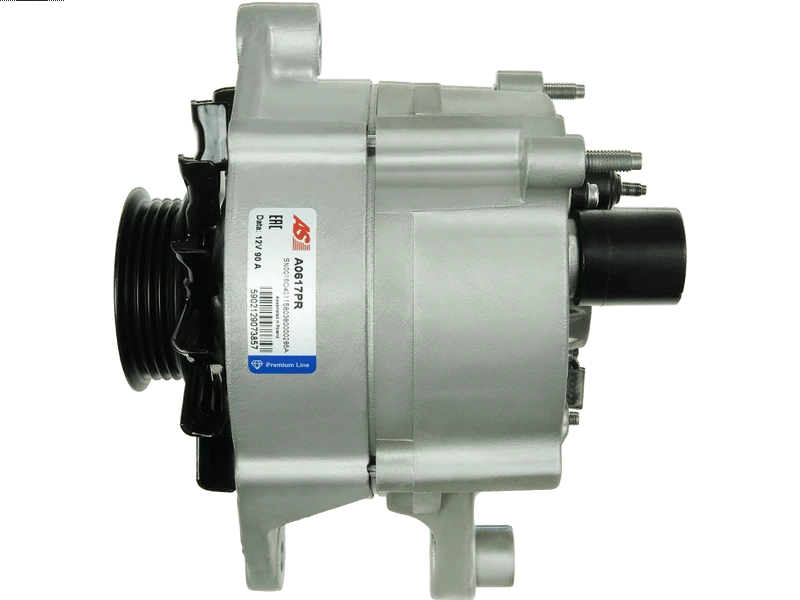

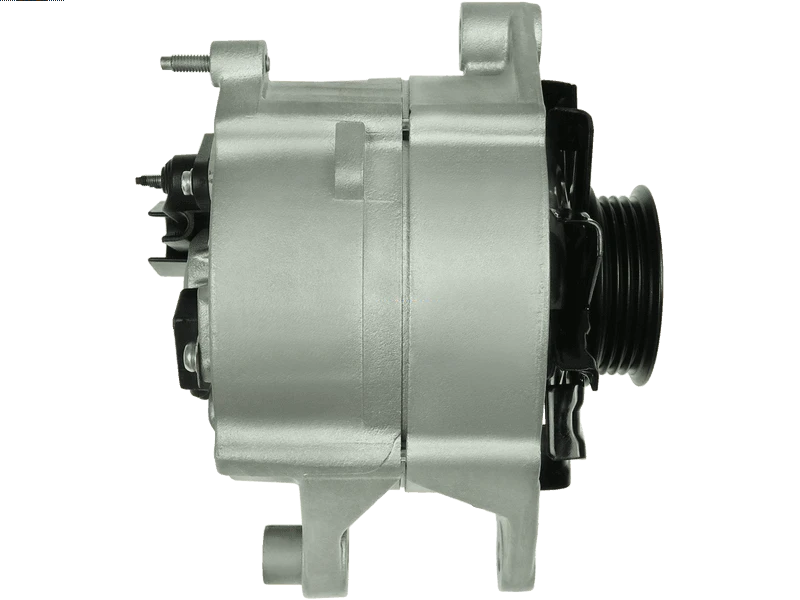

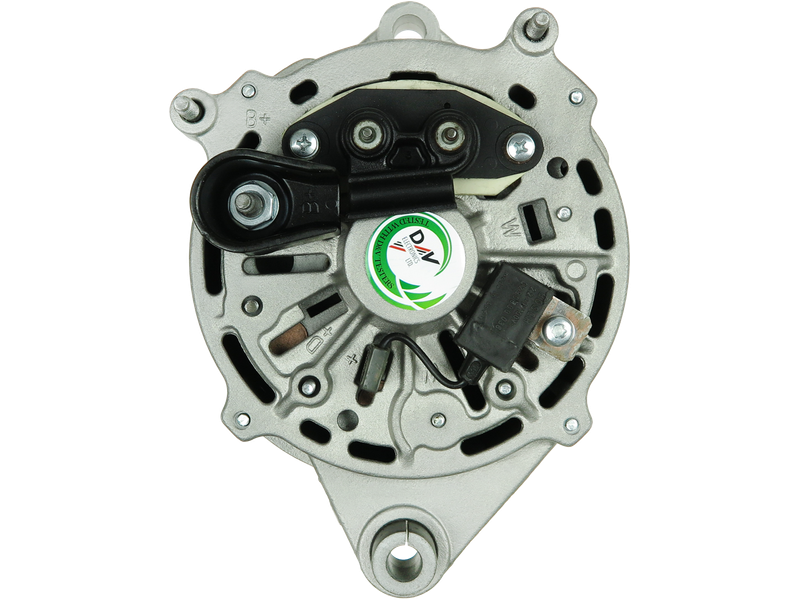

A0617PR - Remanufactured AS-PL Alternator

Specifications

Amp	90 A
Bottom Mounting Foot Width (B)	12 mm
Diameter (D.1)	11.5 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Length (L.1)	180 mm
Mount Inside Length or Pad Mount C-C (C)	54 mm
OEM Product	No
Plug Code	PL_9102
Product Line	Premium Line
Product Type	Remanufactured
Pulley Grooves	4 qty
Pulley Outside Diameter (O.D.1)	64 mm
Pulley to Mount Distance (A)	34 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CHRYSLER	Grand Voyager 3.3 i	[R00]	01.1995-03.2001
CHRYSLER	Grand Voyager 3.8 i AWD	[EGH]	01.1995-03.2001
CHRYSLER	Grand Voyager 3.8 i AWD	[L00]	01.1995-03.2001
CHRYSLER	LeBaron 2.2 i Turbo	[EDR]	09.1986-12.1990
CHRYSLER	LeBaron 2.2 i Turbo	[EDR]	09.1989-01.1991
CHRYSLER	LeBaron 2.5 i	[EDM	09.1986-12.1993
CHRYSLER	LeBaron 2.5 i	[EDM]	01.1989-12.1994
CHRYSLER	LeBaron 2.5 i Turbo	[EDT]	01.1989-12.1993
CHRYSLER	LeBaron 2.5 i Turbo	[EDT]	01.1989-12.1994
CHRYSLER	LeBaron 3.0 i V6	[6G72]	01.1990-12.1996
CHRYSLER	LeBaron 3.0 i V6	[EFA]	01.1990-12.1994
CHRYSLER	Saratoga 3.0	[6G72]	09.1989-12.1995
CHRYSLER	Voyager 2.5 i	[K]	08.1990-09.1995
CHRYSLER	Voyager 2.5 i	[K00]	01.1991-09.1995
CHRYSLER	Voyager 3.3 i	[EGA]	08.1990-09.1995
CHRYSLER	Voyager 3.3 i	[R00]	01.1995-03.2001
CHRYSLER	Voyager 3.3 i AWD	[EGA]	08.1990-09.1995
CHRYSLER	Voyager 3.3 i AWD	[R00]	08.1990-09.1995
CHRYSLER	Voyager 3.8 i AWD	[EGH]	01.1995-03.2001
CHRYSLER	Voyager 3.8 i AWD	[L00]	01.1995-03.2001

Reference Information

CAL10103ES 0120450024 CAL10103GS 4557301 312120 8EL737349-001 CAL10103AS ALTW280 5233472 5233474 5227100 CAL10103 5233418 2010103 56319 CAL10103OS 835.004.090.460 4339440 89213157 5226600 ALB1212 5226200 4557432 90-15-6159 DZ1246 04557431 PRAW280 835.004.090.608 DRZ0136 5234232 501212 5234231 4557431 835.004.090 ALT5860 UA1212 13315R 4039 A-6186 835.004.090.210 CAL10103RS 835.004.090.010
