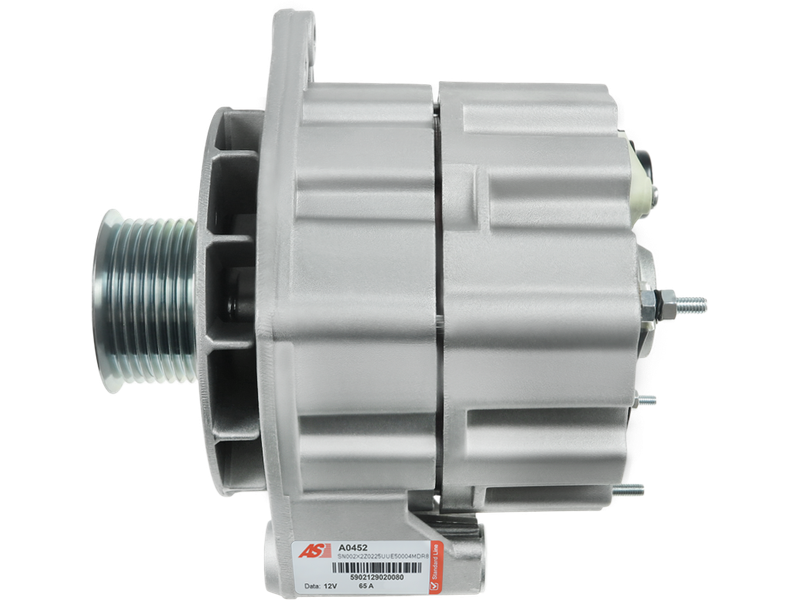

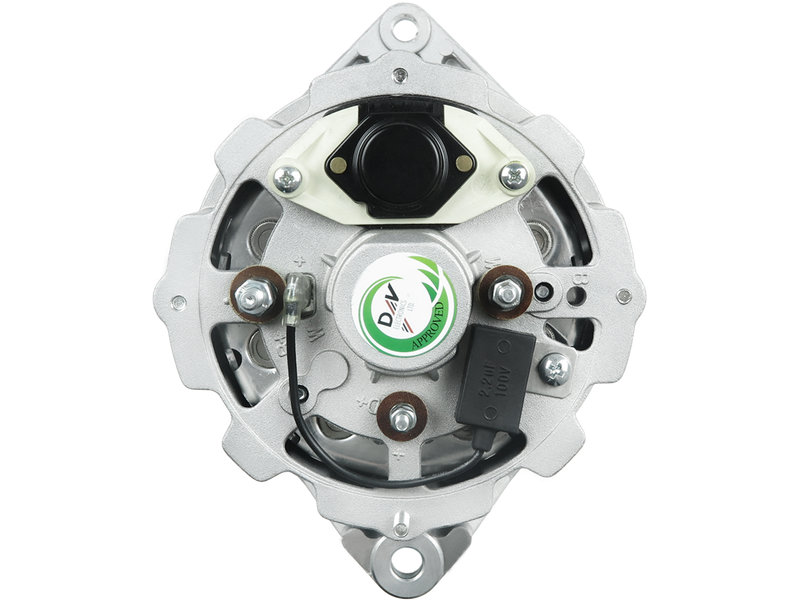

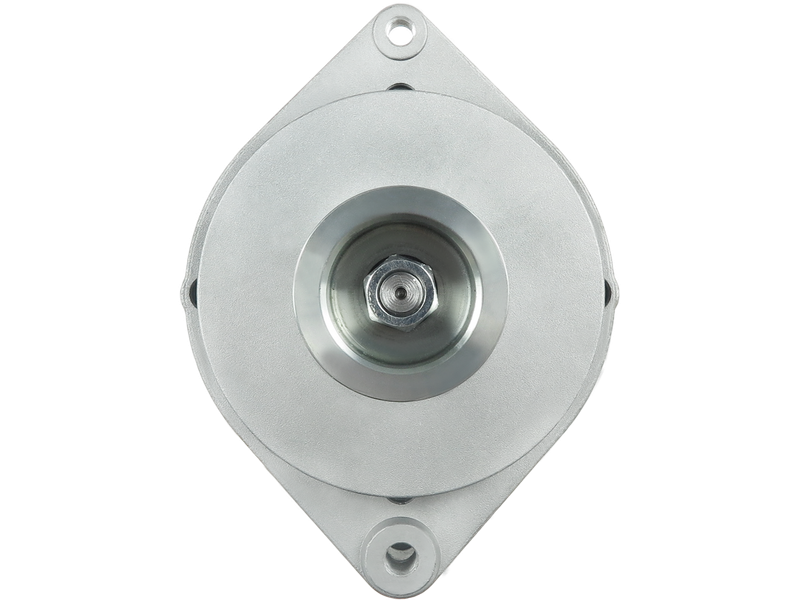

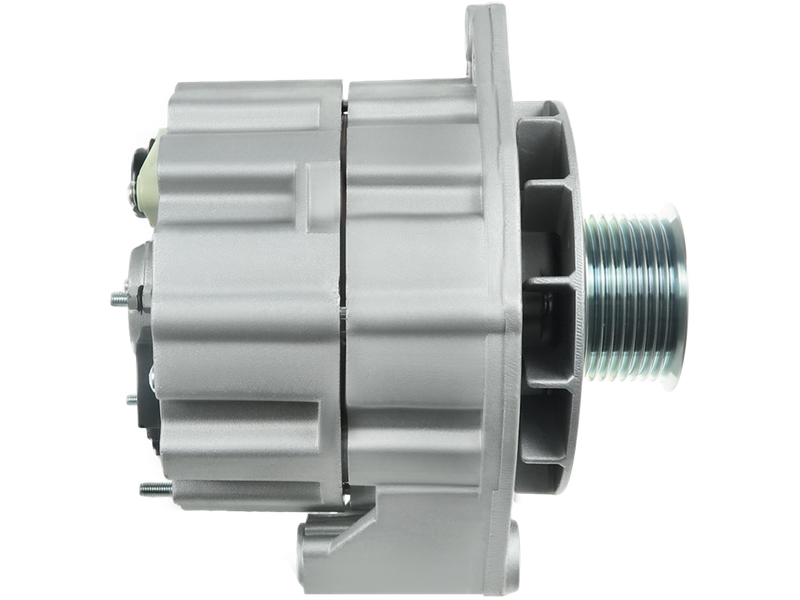

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 446.58 including GST
NZ$ 388.33 excluding GST
or four payments of $111.65
with
Learn More
each
A0452
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
105909 160-89137 9120080184 EAA-222002 TJG903015A UD12239ASpecifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 76 mm |
| Diameter (D.1) | M10x1.5 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 193 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 98.50 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Cargo C 2630 | [6CT44] | 01.1997-01.2002 |
| VW | 12.140 T 4.3 | [4.10T] | 01.1997-01.2000 |
| VW | 12.170 BT | [6BTAA] | 01.1997-01.2000 |
| VW | 12.180 6.5 | [6.10TCA] | 01.1999-01.2000 |
| VW | 13.150 4.3 | [4.10TCA] | 01.2000-01.2005 |
| VW | 13.170 5.9 | [6BTAA] | 01.2000-01.2001 |
| VW | 13.180 6.5 | [6.10TCA] | 01.2000-01.2005 |
| VW | 13.190 5.9 | [6BTAA] | 01.2001-01.2005 |
| VW | 14.150 14.9 | [6.10] | 01.1991-01.1995 |
| VW | 14.170 BT 5.9 | [6BTAA] | 01.1997-01.2000 |
| VW | 14.180 6.5 | [6.10TCA] | 01.1999-01.2000 |
| VW | 14.220 8.3 | [6CTAA] | 01.1991-01.2000 |
| VW | 15.170 5.9 | [6BTAA] | 01.2000-01.2001 |
| VW | 15.180 6.5 | [6.10TCA] | 01.2000-01.2005 |
| VW | 15.190 5.9 | [6BTAA] | 01.2001-01.2005 |
| VW | 16.170 BT | [6BTAATB] | 01.1993-01.1995 |
| VW | 16.200 | [6BTAATB] | 01.1997-01.2000 |
| VW | 16.210 8.3 | [6CTAA] | 01.1988-01.2000 |
| VW | 16.220 8.3 | [6CTAA] | 01.1991-01.2000 |
| VW | 16.300 8.3 | [6CTAA] | 01.1995-01.2000 |
| VW | 17.220 5.9 | [6BTAA] | 01.2000-01.2005 |
| VW | 17.220 6.5 | [6.10TCA] | 01.2000-01.2005 |
| VW | 17.220 8.3 | [6CTAA] | 01.2000-01.2006 |
| VW | 17.300 8.3 | [6CTAA] | 01.2000-01.2001 |
| VW | 17.310 8.3 | [6CTAA] | 01.2001-01.2005 |
| VW | 23.210 5.9 | [6BTAA] | 01.2001-01.2005 |
| VW | 23.220 8.3 | [6CTAA] | 01.2001-01.2005 |
| VW | 23.310 8.3 | [6CTAA] | 01.2001-01.2005 |
| VW | 24.220 8.3 | [6CTAA] | 01.1991-01.2006 |
| VW | 24.250 8.3 | [6CTAA] | 01.1992-01.2002 |
| VW | 26.220 8.3 | [6CTAA] | 01.2001-01.2006 |
| VW | 26.260 8.3 | [6CTAA] | 01.2002-01.2005 |
| VW | 26.300 8.3 | [6CTAA] | 01.2000-01.2001 |
| VW | 26.310 8.3 | [6CTAA] | 01.2001-01.2005 |
| VW | 31.260 8.3 | [6CTAA] | 01.2005- |
| VW | 31.310 8.3 | [6CTAA] | 01.2005-01.2006 |
| VW | 35.300 8.3 | [6CTAA] | 01.1991-01.2000 |
| VW | 40.300 8.3 | [6CTAA] | 01.1999-01.2001 |
| VW | 7.100 4.3 | [4.10] | 01.1994-01.2002 |
| VW | 7.100 4.3 | [4.10T] | 01.2002-01.2005 |
| VW | 7.120 4.3 | [4.10TCA] | 01.2002-01.2005 |
| VW | 8.100 4.3 | [4.10] | 01.1997-01.2000 |
| VW | 8.120 4.3 | [4.10TCA] | 01.2000-01.2005 |
| VW | 8.140 4.3 | [4.10T] | 01.1994-01.2000 |
| VW | 8.140 CO/CE 4.3 | [4.10T] | 01.1994-01.2001 |
| VW | 8.150 4.3 | [4.10TCA] | 01.2000-01.2005 |
| VW | 8.150 OD 4.3 | [4.10TCA] | 01.2000-01.2005 |
| VW | 9.150 OD 4.3 | [4.10TCA] | 01.2000- |
| VW | 9.150 OD 4.3 | [4.10TCA] | 01.2000-01.2005 |
| VW | Worker 13.180 6.5 | [6.10TCA] | 01.2006- |
| VW | Worker 15.180 6.5 | [6.10CTA] | 01.2006- |
| VW | Worker 17.180 6.5 | [6.10TCA] | 01.2006- |
| VW | Worker 17.220 8.3 | [6CTAA] | 01.2006- |
| VW | Worker 24.220 8.3 | [6CTAA] | 01.2006- |
| VW | Worker 26-220 8.3 | 01.2005- | |
| VW | Worker 26.220 8.3 | [6CTAA] | 01.2006- |
Reference Information
| 105909 | VW |
| 160-89137 | DIXIE |
| 20258 | LESTER |
| 90.101.04 | ZM |
| 905710100037 | MWM |
| 9120080184 | BOSCH |
| 9129080184 | BOSCH |
| A0452 | AS-PL |
| ALB8184 | KRAUF |
| ALTE901 | 3EFFE |
| F000LD0106 | BOSCH |
| PRAE901 | 3EFFE |
| TJG903015A | VW |
| UD12239A | AS-PL |
| XC45-10300-DA | FORD |
| ZM90.101.04 | ZM |
