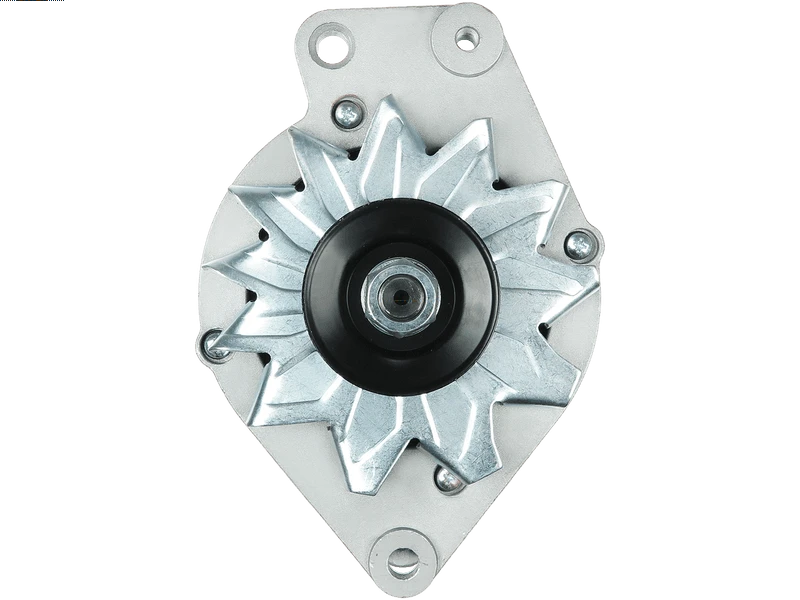

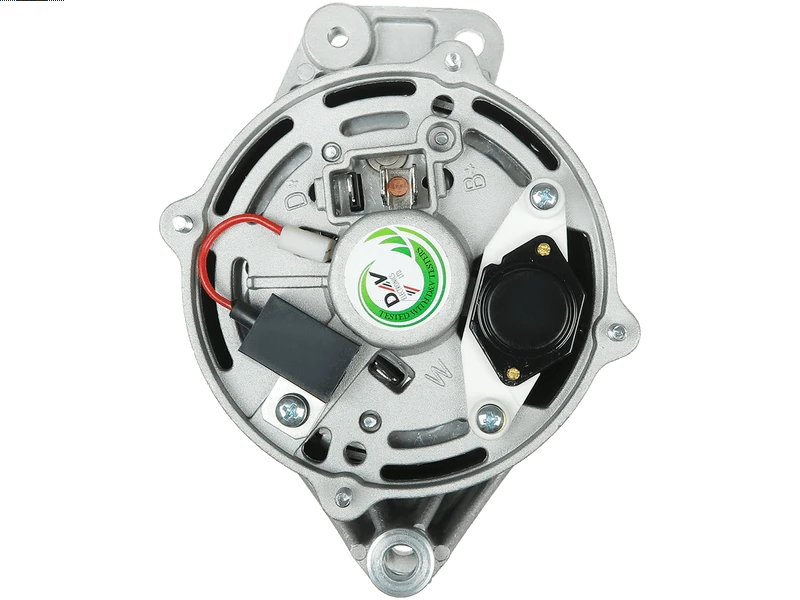

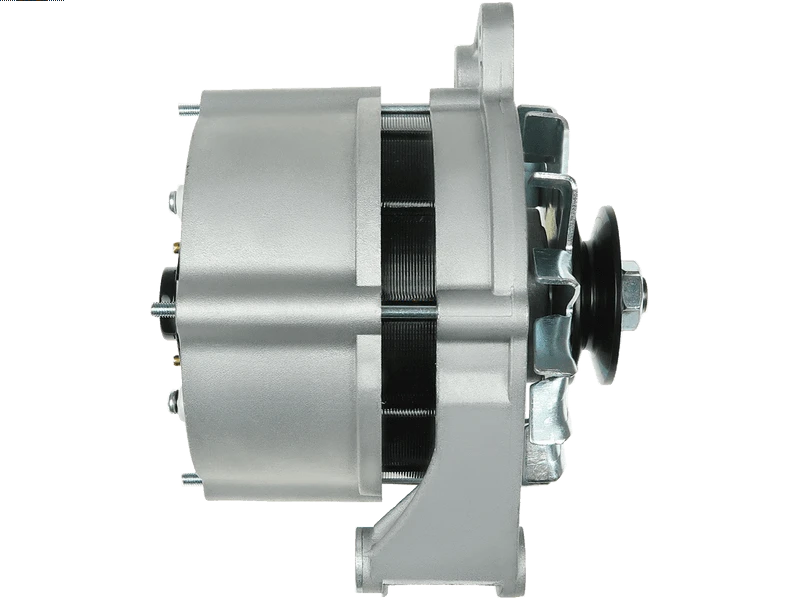

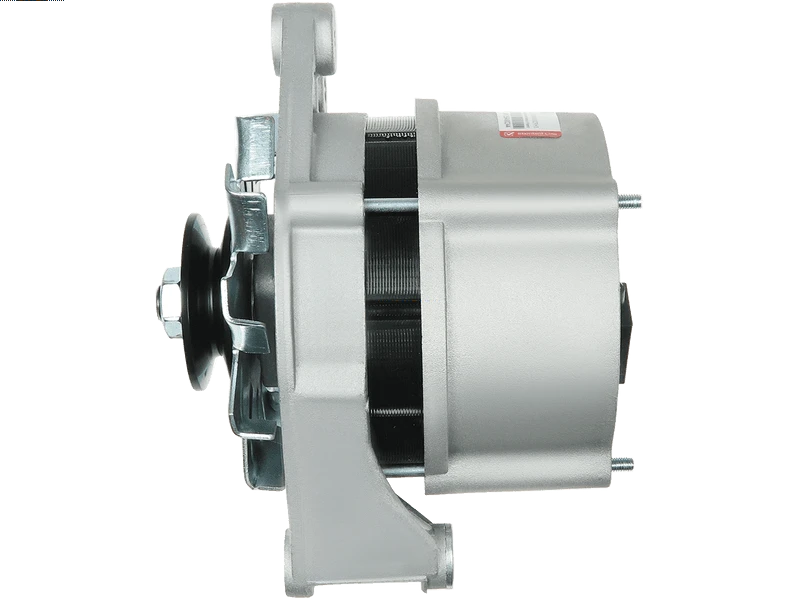

A0371 - Brand new AS-PL Alternator

Specifications

Amp	65 A
Bottom Mounting Foot Width (B)	56 mm
Diameter (D.1)	10.5 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	M8x1.25 mm
Grooves	1 qty
Groove Width (W.1)	10 mm
Length (L.1)	160 mm
OEM Product	No
Outside Diameter (O.D.1)	39 mm
Outside Diameter (O.D.2)	62.5 mm
Plug Code	PL_9105
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	76 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VW	Golf II 1.0	[GN]	11.1983-08.1985
VW	Golf II 1.3	[GT]	08.1983-10.1986
VW	Golf II 1.3	[HK]	08.1983-06.1987
VW	Golf II 1.6	[ME]	01.1985-01.1986
VW	Golf II 1.6 Diesel	[JP]	08.1983-10.1991
VW	Golf II 1.6 TD	[JR]	08.1983-10.1991
VW	Jetta 1.3	[GT]	01.1984-10.1986
VW	Jetta 1.3	[HK]	01.1984-06.1987
VW	Jetta 1.6 Deluxe	[ME]	01.1985-01.1986
VW	Jetta 1.6 Diesel	[JP]	01.1984-10.1991
VW	Jetta 1.6 Diesel	[ME]	01.1984-10.1991
VW	Jetta 1.6 TD	[JR]	01.1984-10.1991
VW	Jetta 1.6 TD	[MF]	01.1984-10.1991
VW	Jetta 1.6 Turbo	[MF]	01.1985-01.1988
VW	Jetta 1.6 Turbo Deluxe	[MF]	01.1985-01.1985

Reference Information

4370 069903023S 28-0936 9AR2973 068903027M 9033260 9AR2974 120498202 120498203 LRA743 068903023R UD02222A CAL10188AS 036903017E 036903023TX ALT10133 SA470 AEA7143 CA276IR 89213077 2010188 20100743 11.0276 036903017EX 120489202 LRA00743 068903017TV 440423 14969R 9AR5084L 0120489202 068903027B 068903017JX ALT121880 56001 ALT1286 20101881BN 068903017J 9AR2973G 036903023T 068903017H ALTF578 0120498203 036903023R 0120498202

Video/Publications

0120498202 0120498203 036903017E 036903017EX 036903023R 036903023T 036903023TX 068903023R 068903027B 11.0276 14969R 20100743 2010188 20101881BN 28-0936 4370 56001 89213077 9033260 9AR2973 9AR2973G 9AR2974 9AR5084L AEA7143 ALT10133 ALT121880 ALTF578 CA276IR CAL10188AS LRA00743 LRA743 SA470 UD02222A
