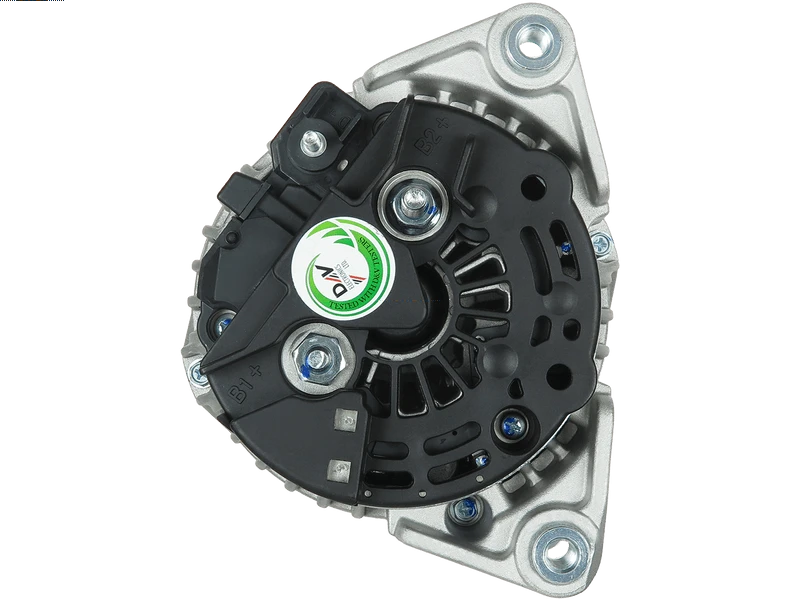

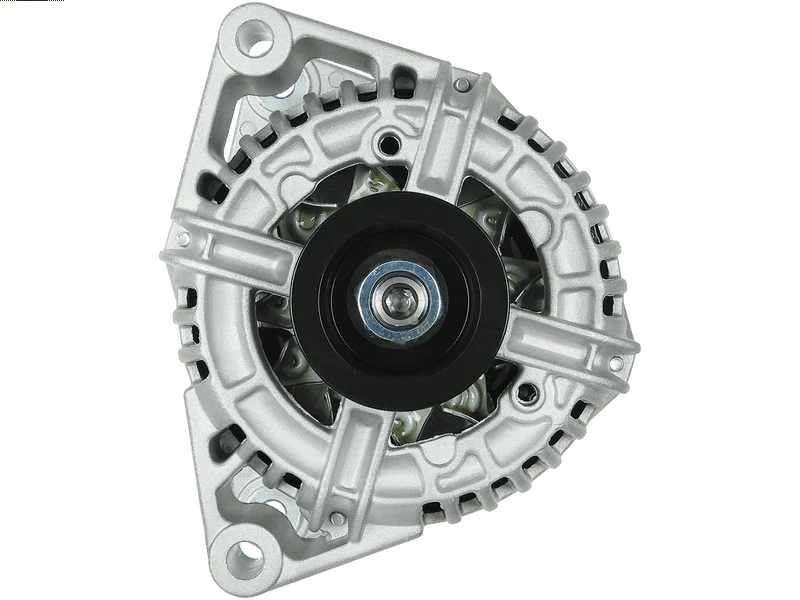

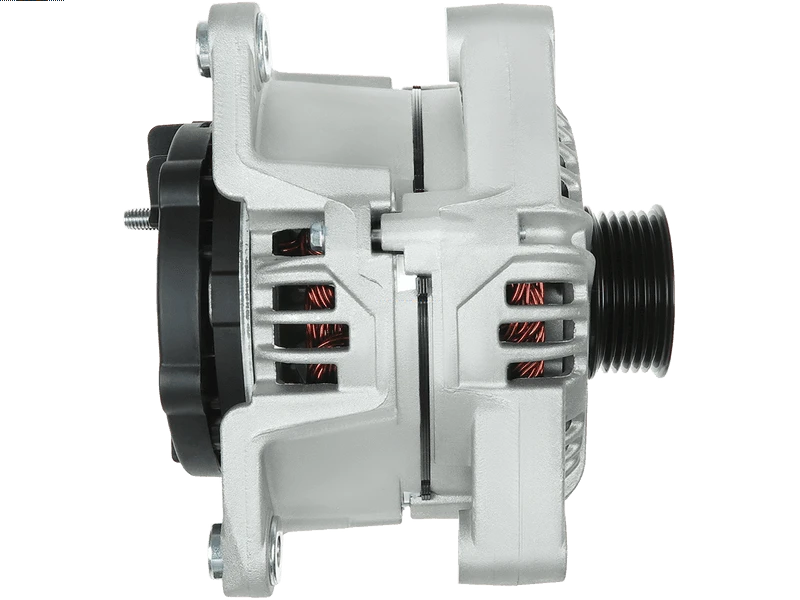

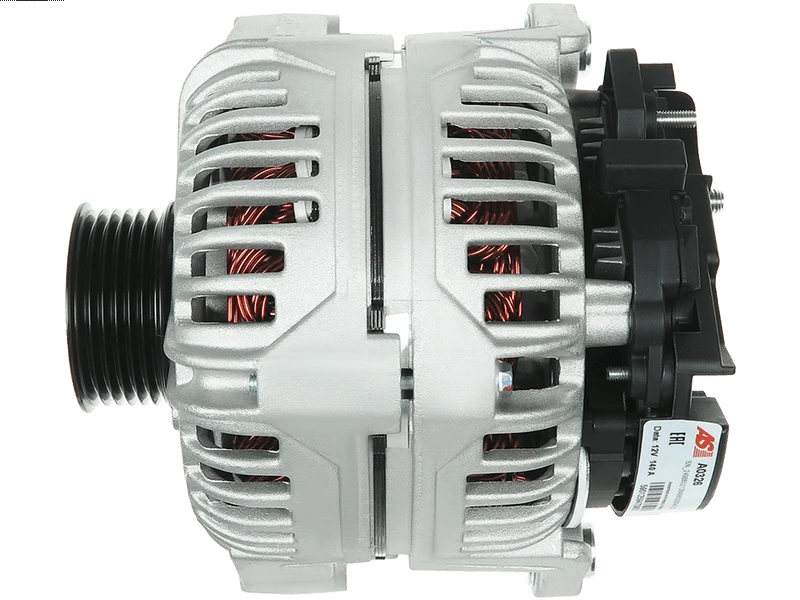

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 421.31 including GST
NZ$ 366.36 excluding GST
or four payments of $105.33
with
Learn More
UOM:
each
Product Code:
A0326
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124525012Associated Numbers
0124525012 0124525022 11.1730 113264 135.522.140 20101654OE 2010456 24256224 24436553 28-4722 301730RIB 57261 6204107 6204148 6204185 8EL738067001 9044430 9201039 9345 AEC1730 CA1730IR CAL10456GS LRA02245 SA808 UD10855ASpecifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 33.50 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 58 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 57 mm |
| Pulley to Mount Distance (A) | 50 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Signum 3.2 V6 | [Z32SE] | 05.2003- |
| OPEL | SIGNUM Hatchback (Z03) 3.2 V6 (F48) | Z32SE | 05.2003-07.2005 |
| OPEL | Vectra B 2.6 i V6 | [Y26SE] | 09.2000-04.2002 |
| OPEL | Vectra B 2.6 i V6 | [Y26SE] | 09.2000-07.2003 |
| OPEL | VECTRA B Estate (J96) 2.6 i V6 (F35) | Y26SE | 09.2000-07.2003 |
| OPEL | VECTRA B Hatchback (J96) 2.5 i V6 (F68) | X25XE | 10.1995-09.2000 |
| OPEL | VECTRA B Hatchback (J96) 2.6 i V6 (F68) | Y26SE | 09.2000-07.2003 |
| OPEL | VECTRA B (J96) 2.6 i V6 (F19) | Y26SE | 09.2000-04.2002 |
| OPEL | Vectra C 3.2 i V6 | [Z32SE] | 08.2002- |
| OPEL | Vectra C 3.2 i V6 | [Z32SE] | 10.2003- |
| OPEL | Vectra C 3.2 i V6 GTS | [Z32SE] | 08.2002- |
| OPEL | VECTRA C Estate (Z02) 3.2 V6 (F35) | Z32SE | 10.2003-07.2005 |
| OPEL | VECTRA C GTS (Z02) 3.2 V6 (F68) | Z32SE | 08.2002-07.2006 |
| OPEL | VECTRA C (Z02) 3.2 V6 (F69) | Z32SE | 08.2002-07.2006 |
| VAUXHALL | Signum 3.2 V6 | [Z32SE] | 05.2003-05.2008 |
| VAUXHALL | Signum 3.2 V6 | Z32SE | 05.2003-05.2008 |
| VAUXHALL | Vectra 2.6 i V6 | [Y26SE] | 09.2000- |
| VAUXHALL | Vectra 2.6 i V6 | [Y26SE] | 09.2000-07.2003 |
| VAUXHALL | Vectra 2.6 i V6 | Y26SE | 09.2000- |
| VAUXHALL | Vectra 2.6 i V6 | Y26SE | 09.2000-07.2003 |
| VAUXHALL | Vectra 3.2 i V6 GTS | [Z32SE] | 08.2002- |
| VAUXHALL | Vectra 3.2 i V6 GTS | Z32SE | 08.2002- |
| VAUXHALL | Vectra 3.2 V6 | [Z32SE] | 06.2003- |
| VAUXHALL | Vectra 3.2 V6 | [Z32SE] | 10.2003- |
| VAUXHALL | Vectra 3.2 V6 | Z32SE | 10.2003- |
| VAUXHALL | VECTRA Mk II (C) (Z02) 3.2 V6 | Z32SE | 06.2003-07.2008 |
Reference Information
| 0124525012 | BOSCH |
| 0124525022 | BOSCH |
| 11.1730 | LAUBER |
| 113264 | CARGO |
| 135.522.140 | WAI |
| 135.522.140.460 | WAI |
| 20101654OE | REAL |
| 2010456 | SANDO |
| 23245R | WAI |
| 24256224 | OPEL |
| 24436553 | OPEL |
| 24456224 | OPEL |
| 28-4722 | ELSTOCK |
| 301730RIB | KUHNER |
| 441877 | LOGISTIK |
| 57261 | EAI |
| 6204107 | OPEL |
| 6204120 | OPEL |
| 6204148 | OPEL |
| 6204185 | OPEL |
| 8EL738067001 | HELLA |
| 9044430 | FRIESEN |
| 9201039 | OPEL |
| 93172270 | OPEL |
| 93172270 | VAUXHALL |
| 93175812 | OPEL |
| 9345 | CEVAM |
| A129.838 | WAI |
| A12BH0635A2 | SIDAT |
| AEC1730 | AUTOELECTRO |
| ALT124560 | SIOM |
| ALT1398 | ELECTROLOG |
| ALTL578 | 3EFFE |
| ALTL578B | 3EFFE |
| ALTL578V | 3EFFE |
| CA1730IR | HC PARTS |
| CAL10456GS | CASCO |
| F032113264 | CARGO |
| LRA02245 | LUCAS |
| LRA2245 | LUCAS |
| PRAL578 | 3EFFE |
| SA808 | SOVEREIGN |
| STX101583 | STARDAX |
| UD10855A | AS-PL |
Video/Publications
A0326View your shopping basket or Browse other items in Alternators.
