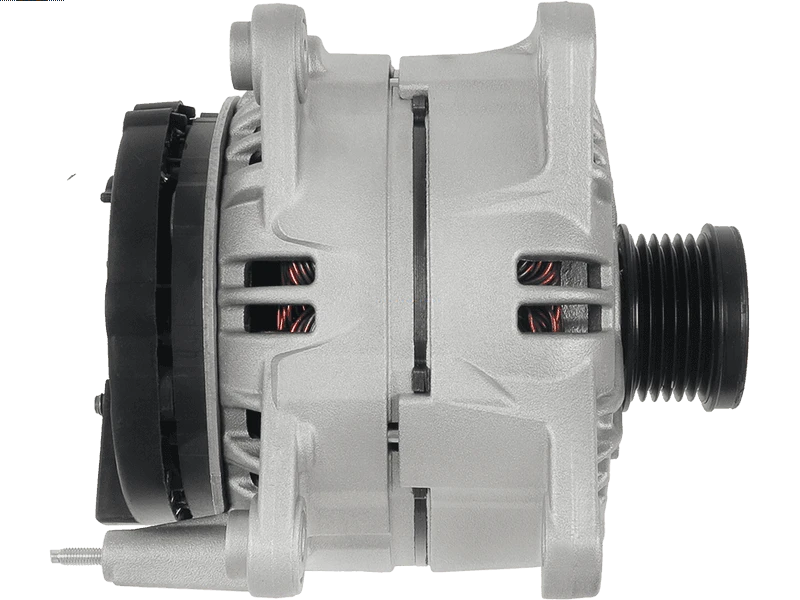

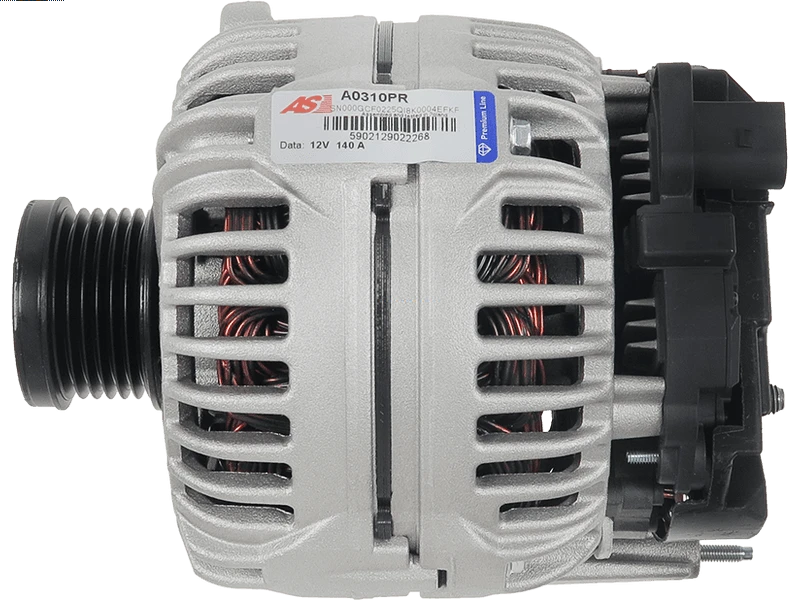

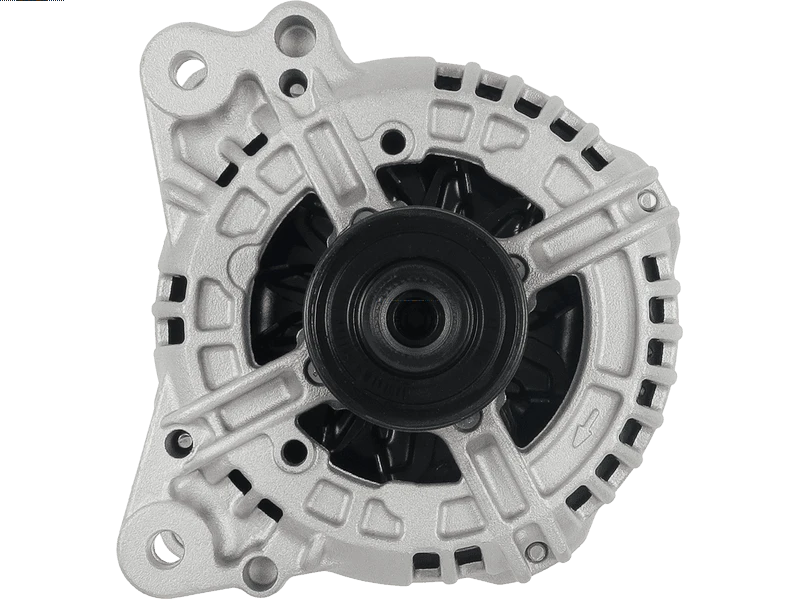

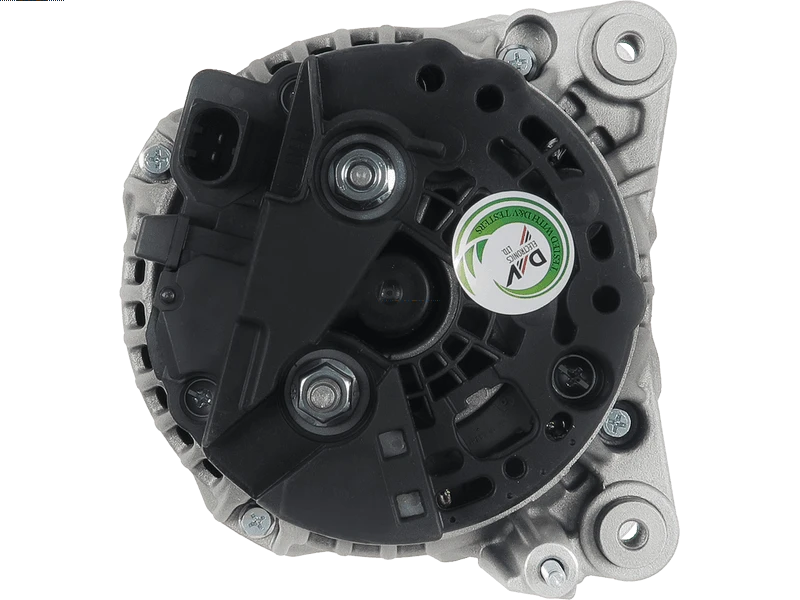

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 503.30 including GST
NZ$ 437.65 excluding GST
or four payments of $125.83
with
Learn More
each
A0310PR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124525200 0124525544 03C903025F 03D903025M 28-6539 553837RI 553837RIB 553981RIV AEK3427 DRA0574 LRA03427 TG14C039Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14.30 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.20 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 1.2 TFSi | [CBZA] | 01.2010- |
| AUDI | A3 1.2 TFSi | [CBZB] | 01.2010- |
| SEAT | Altea 1.2 TSi | [CBZB] | 01.2010- |
| SEAT | Ibiza 1.2 TSi | [CBZB] | 01.2010- |
| SEAT | Leon 1.2 TSi | [CBZB] | 01.2010- |
| SKODA | Fabia 1.2 | [CGPA] | 01.2011- |
| SKODA | Fabia 1.2 | [CGPB] | 01.2011- |
| SKODA | Fabia 1.2 TSi | [CBZA] | 01.2010- |
| SKODA | Fabia 1.2 TSi | [CBZB] | 01.2010- |
| SKODA | Roomster 1.2 | [CGPA] | 01.2011- |
| SKODA | Roomster 1.2 | [CGPB] | 01.2011- |
| SKODA | Roomster 1.2 TSi | [CBZA] | 01.2011- |
| SKODA | Roomster 1.2 TSi | [CBZB] | 01.2011- |
| VW | Caddy 1.2 TSi | [CBZB] | 01.2010- |
| VW | Caddy 1.4 | [BCA] | 01.2010- |
| VW | Caddy 1.4 | [BUD] | 01.2010- |
| VW | Golf VI 1.2 TSi | [CBZA] | 01.2009- |
| VW | Golf VI 1.2 TSi | [CBZB] | 01.2009- |
| VW | Jetta 1.2 TSi | [CBZB] | 01.2010- |
| VW | Polo 1.2 TSi | [CBZB] | 01.2009- |
| VW | Polo 1.2 TSi | [CBZC] | 01.2009- |
| VW | Touran 1.2 TSi | [CBZB] | 01.2010- |
Reference Information
| 0124525200 | BOSCH |
| 0124525220 | BOSCH |
| 0124525223 | BOSCH |
| 0124525544 | BOSCH |
| 03C903025F | VW |
| 03C903025FX | VW |
| 03C903025J | VW |
| 03C903025JX | VW |
| 03D903025M | VW |
| 03E903023A | VW |
| 0986082250 | BOSCH |
| 115767 | CARGO |
| 20101805OE | REAL |
| 2010508.1 | SANDO |
| 20148N | WAI / TRANSPO |
| 20148R | WAI / TRANSPO |
| 2015016.1 | SANDO |
| 20179610OE | REAL |
| 2611257A | VALEO |
| 28-6539 | ELSTOCK |
| 305.908.140 | PSH |
| 305.908.140.014 | PSH |
| 305.908.140.460 | PSH |
| 439768 | VALEO |
| 440359 | VALEO |
| 441854 | LOGISTIK |
| 5510589 | MEAT & DORIA |
| 55151224 | MEAT & DORIA |
| 553837RI | KUHNER |
| 553837RIB | KUHNER |
| 57416 | EAI |
| 89215550 | POWERMAX |
| 9197 | CEVAM |
| A12BH0533A2 | SIDAT |
| A12BH0533AS | SIDAT |
| A12VA0885AS | SIDAT |
| AG1517 | GHIBAUDI |
| ALB5544 | KRAUF |
| ALT00528 | ELECTROLOG |
| ALT10728 | WOODAUTO |
| ALT125080 | SIOM |
| ALTL576 | 3EFFE |
| ALTL576B | 3EFFE |
| ALTL679 | 3EFFE |
| ANM32794X | ANDEL |
| BOS0124525544 | WOODAUTO |
| CAL10508GS | CASCO |
| CAL15016GS | CASCO |
| CGB-86539 | AINDE |
| DRA0574 | DELCO |
| F032115767 | CARGO |
| LRA03427 | LUCAS |
| LRA3427 | LUCAS |
| PRAL576 | 3EFFE |
| RNL525200 | RNL |
| RNL525544 | RNL |
| STX102039 | STARDAX |
| STX110280 | STARDAX |
| STX110280R | STARDAX |
| TG14C039 | VALEO |
| VAL439768 | WOODAUTO |
Video/Publications
