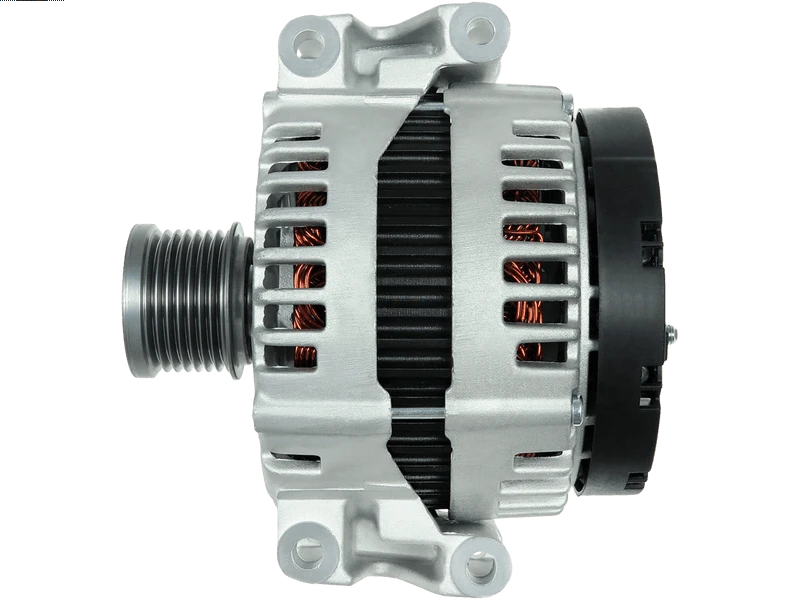

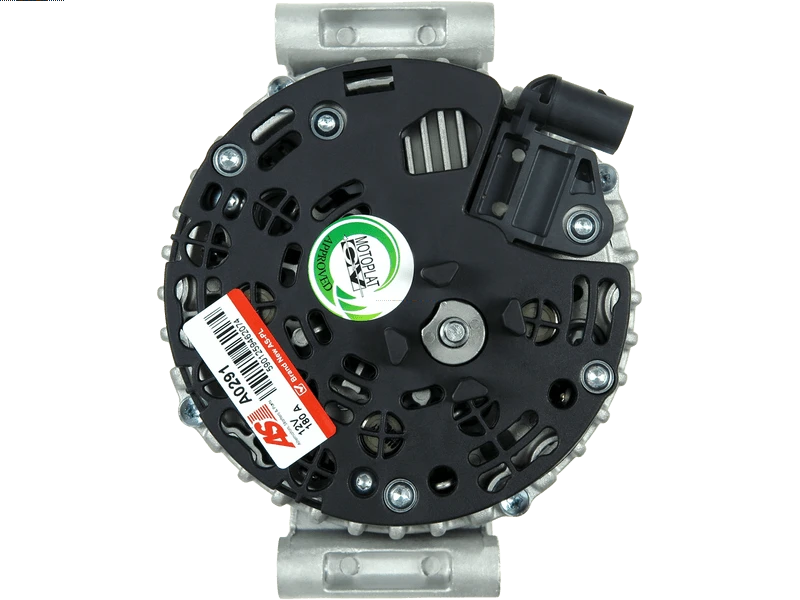

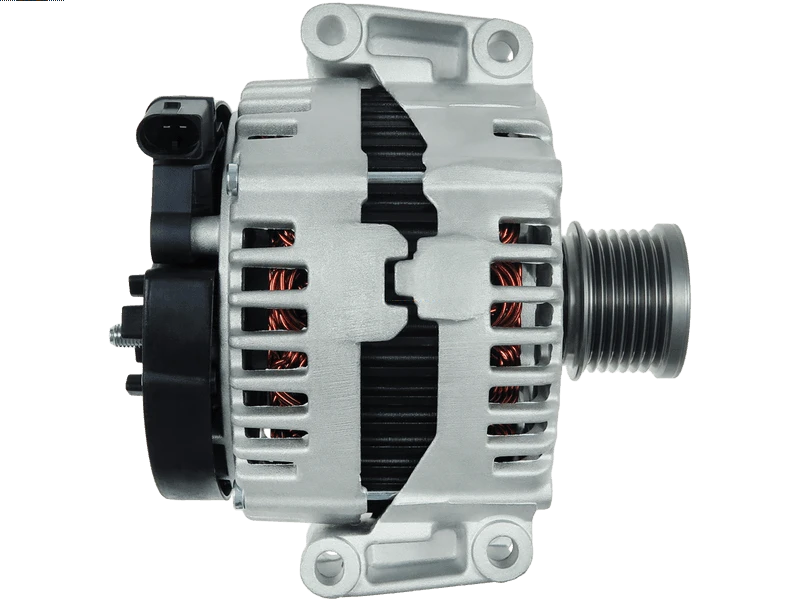

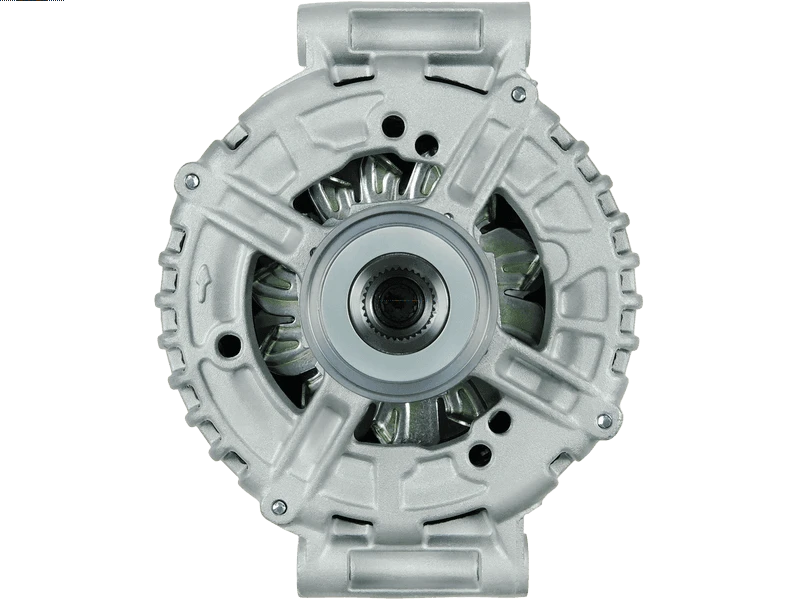

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 633.94 including GST
NZ$ 551.25 excluding GST
or four payments of $158.49
with
Learn More
each
AAM-C7221
A0291
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0121715015Associated Numbers
0121715011 0121715015 0121715115 0131546402 0131547002 0986047690 11307N 114380 116060 20101673BN 20101673RC 2010376 220-30151 28-5754 554012RI 554012RIB 555.554.180 57476 89215533 90-15-6583 9386 A-6569 A0131546402 A0131547002 AEK3142 AG1546 ALT10658 BOS0121715115 CAL10376 CAL10376AS CAL10376ES CAL10376GS CAL10376OS CAL10376RS EAA-222991 LRA03142 STB7408Specifications
| Amp | 180 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 9.50 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | CLS 320 3.0 CDi | (219)[OM642.920] | 01.2005-12.2009 |
| MERCEDES BENZ | E 280 3.0 CDi | (211)[OM642.920] | 01.2005- |
| MERCEDES BENZ | E 280 3.0 CDi 4-Matic | (211)[OM642.921] | 01.2005- |
| MERCEDES BENZ | E 300 3.0 | (211)[OM642.920] | 01.2007- |
| MERCEDES BENZ | E 300 3.0 BlueTec | (211)[OM642.920] | 01.2007- |
| MERCEDES BENZ | E 320 3.0 CDi | (211)[OM642.920] | 01.2005-12.2009 |
| MERCEDES BENZ | E 320 3.0 CDi 4-Matic | (211)[OM642.921] | 01.2005-12.2009 |
Reference Information
| 000906270080 | MERCEDES |
| 000906270083 | MERCEDES |
| 0121715011 | BOSCH |
| 0121715015 | BOSCH |
| 0121715115 | BOSCH |
| 0131546402 | MERCEDES |
| 013154640280 | MERCEDES |
| 0131547002 | MERCEDES |
| 013154700280 | MERCEDES |
| 0986047690 | BOSCH |
| 11307N | WAI / TRANSPO |
| 114380 | CARGO |
| 116060 | CARGO |
| 20101673BN | REAL |
| 20101673RC | REAL |
| 2010376 | SANDO |
| 210960 | ERA |
| 220-30151 | ROBERT'S |
| 28-5754 | ELSTOCK |
| 442205 | LOGISTIK |
| 554012RI | KUHNER |
| 554012RIB | KUHNER |
| 555.554.180 | PSH |
| 555.554.180.014 | PSH |
| 555.554.180.460 | PSH |
| 57476 | EAI |
| 642154020280 | MERCEDES |
| 642154040280 | MERCEDES |
| 642154040283 | MERCEDES |
| 89215533 | POWERMAX |
| 90-15-6583 | WILSON |
| 9386 | CEVAM |
| A000906270080 | MERCEDES |
| A000906270083 | MERCEDES |
| A0131546402 | MERCEDES |
| A013154640280 | MERCEDES |
| A0131547002 | MERCEDES |
| A013154700280 | MERCEDES |
| A0291 | AS-PL |
| A12BH0560A2 | SIDAT |
| A12BH0560AS | SIDAT |
| A133.940 | PSH |
| A147.545 | PSH |
| A642154020280 | MERCEDES |
| A642154040280 | MERCEDES |
| A642154040283 | MERCEDES |
| A-6569 | DIXIE |
| AEK3142 | AUTOELECTRO |
| AG1546 | GHIBAUDI |
| AI-90191 | AINDE |
| ALB3015 | KRAUF |
| ALT10658 | WOODAUTO |
| ALT123760 | SIOM |
| ALT123760A | SIOM |
| ALT123760R | SIOM |
| ALT1445 | ELECTROLOG |
| ALTS928 | 3EFFE |
| ALTS928B | 3EFFE |
| BOS0121715115 | WOODAUTO |
| CAL10376 | CASCO |
| CAL10376AS | CASCO |
| CAL10376ES | CASCO |
| CAL10376GS | CASCO |
| CAL10376OS | CASCO |
| CAL10376RS | CASCO |
| F032114380 | CARGO |
| F032116060 | CARGO |
| LRA03142 | LUCAS |
| LRA3142 | LUCAS |
| PRAS928 | 3EFFE |
| PRAS928B | 3EFFE |
Video/Publications
