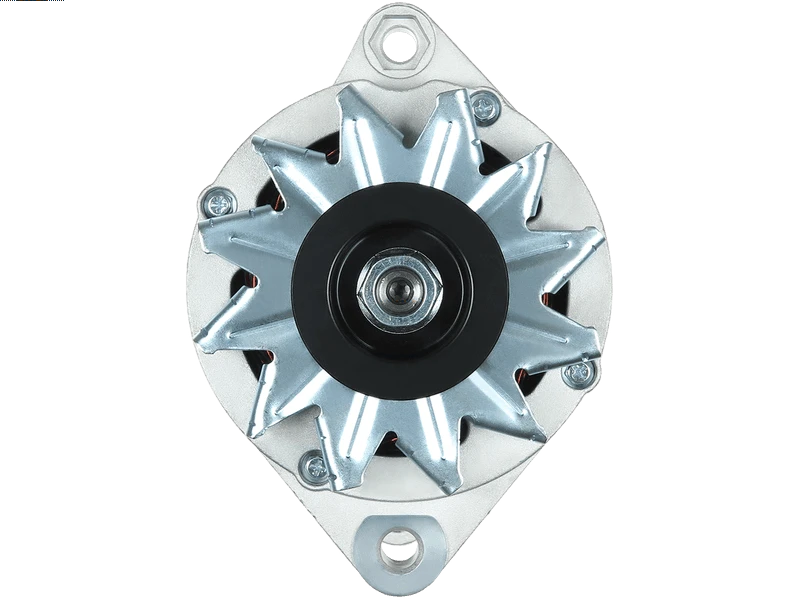

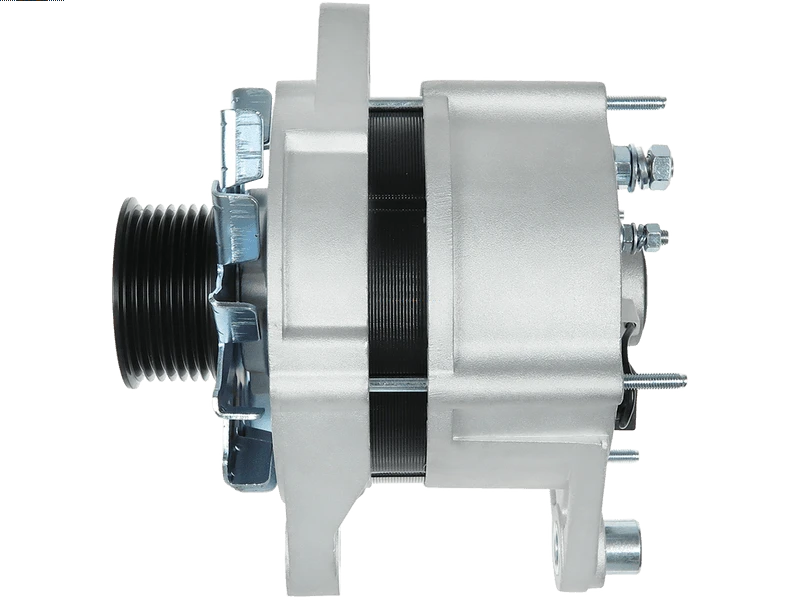

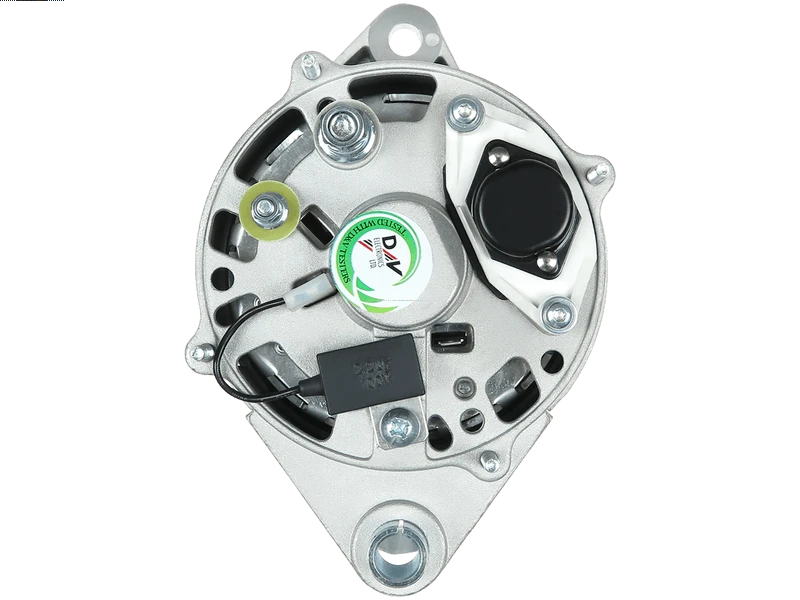

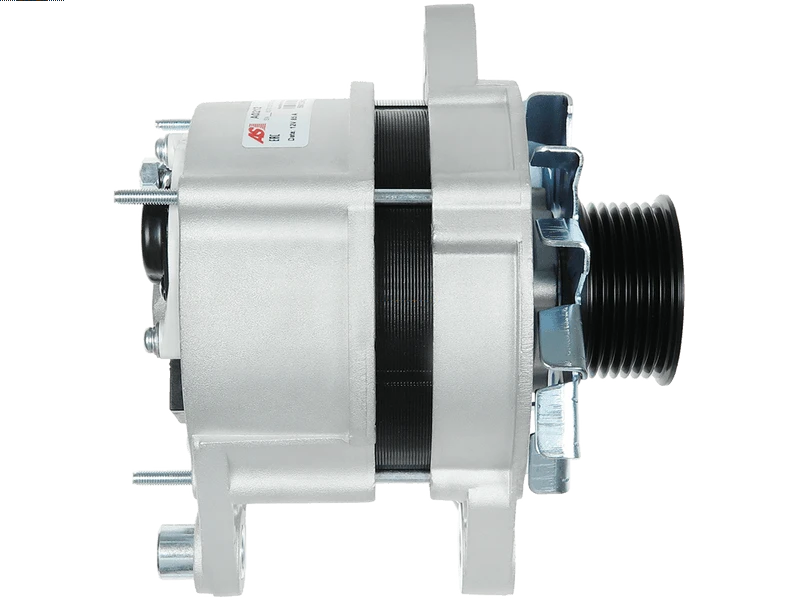

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 431.58 including GST
NZ$ 375.29 excluding GST
or four payments of $107.90
with
Learn More
each
A0212
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120484009Associated Numbers
0120484009 11.3187 11.3230 113187 20101772BN 20101772OE 2010277 2353 28-1721 553702RI 60513576 ALT12000 CAL10277AS CAL10277GS EAA-221380 LRA01345Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 176 mm |
| Mount Inside Length or Pad Mount C-C (C) | 71 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C25 1.9 TD | [M705] | 04.1992-02.1994 |
| FERRARI | 200 Series 2.0 Turbo GTB/GTS | [F106D..] | 01.1986-10.1989 |
| FERRARI | 40 Series 3.0 | [F120A] | 04.1988-06.1992 |
| FIAT | Croma 1.6 | [154A.048] | 12.1985-06.1990 |
| FIAT | Croma 1.9 TD | [154C6.000] | 05.1989-10.1992 |
| FIAT | Croma 2.0 2000 CHT | [154A1.000] | 12.1985-02.1989 |
| FIAT | Croma 2.0 i.e. 2000 | [154C3.000] | 03.1987-09.1990 |
| FIAT | Croma 2.0 i.e. 2000 | [154C3.046] | 10.1987-09.1990 |
| FIAT | Croma 2.0 i.e. 2000 | [834B.000] | 03.1987-09.1990 |
| FIAT | Croma 2.0 i.e. 2000 | [834B.048] | 03.1986-09.1990 |
| FIAT | Croma 2.0 i.e. 2000 | [834B.146] | 10.1987-09.1990 |
| FIAT | Ducato 1.9 TD | [280A1.000] | 01.1990-01.1994 |
| FIAT | Ducato 1.9 TD Panorama | [280A1.000] | 01.1990-03.1994 |
| FIAT | Marengo 1.9 Diesel | [160A7.000] | 10.1990-12.1996 |
| FIAT | Tempra 1.8 i.e. | [159A4.000] | 06.1990-07.1991 |
| FIAT | Tempra 1.9 Diesel | [160A7.000] | 07.1991-01.1996 |
| FIAT | Tempra 1.9 TD | [160A6.000] | 05.1990-01.1996 |
| FIAT | Tempra 1.9 TD | [160A7.000] | 07.1991-01.1996 |
| FIAT | Tempra 1.9 TD | [160B6.046] | 03.1992-01.1996 |
| FIAT | Tempra 1.9 TD | [160D1.000] | 05.1990-01.1996 |
| FIAT | Tipo 1.6 i.e. | [149C2.046] | 02.1988-06.1990 |
| FIAT | Tipo 1.8 i.e. 16V | [160A5.000] | 11.1989-01.1991 |
| LANCIA | Prisma 1.9 Diesel | [831D.000] | 06.1984-12.1989 |
| LANCIA | Prisma 1.9 TD | [831D1.000] | 05.1985-12.1989 |
Reference Information
| 0120484009 | BOSCH |
| 038522073A | CHRYSLER |
| 113187 | CARGO |
| 11.3187 | LAUBER |
| 11.3230 | LAUBER |
| 20101772BN | REAL |
| 20101772OE | REAL |
| 2010277 | SANDO |
| 2353 | CEVAM |
| 28-1721 | ELSTOCK |
| 29439590 | SAME |
| 38522073A | CHRYSLER |
| 442026 | LOGISTIK |
| 553702RI | KUHNER |
| 60513576 | FIAT |
| A0212 | AS-PL |
| ALT12000 | WOODAUTO |
| ALT1221 | ELECTROLOG |
| ALT122770 | SIOM |
| ALT122770A | SIOM |
| ALTE896 | 3EFFE |
| ALTL279 | 3EFFE |
| ALTL279LU | 3EFFE |
| ALTL279NE | 3EFFE |
| ALTS655 | 3EFFE |
| CAL10277AS | CASCO |
| CAL10277GS | CASCO |
| CGB-13095 | AINDE |
| CGB-81721 | AINDE |
| F032113187 | CARGO |
| LRA01345 | LUCAS |
| LRA1345 | LUCAS |
| PRAE896 | 3EFFE |
| PRAS655 | 3EFFE |
| RNL484009 | RNL |
Video/Publications
A0212View your shopping basket or Browse other items in Alternators.
