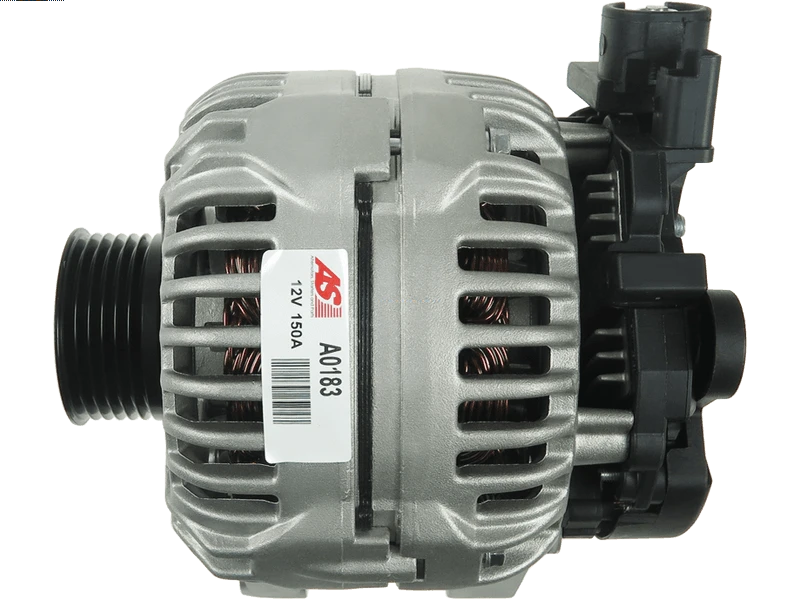

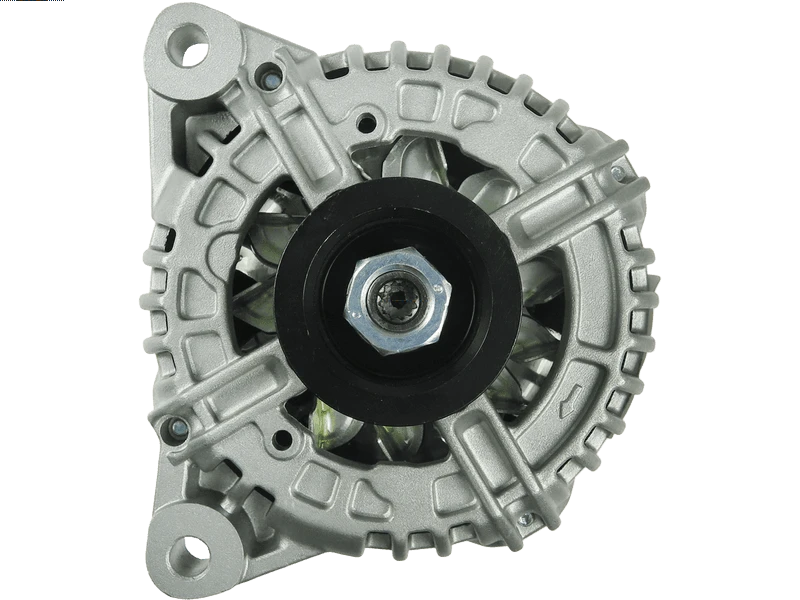

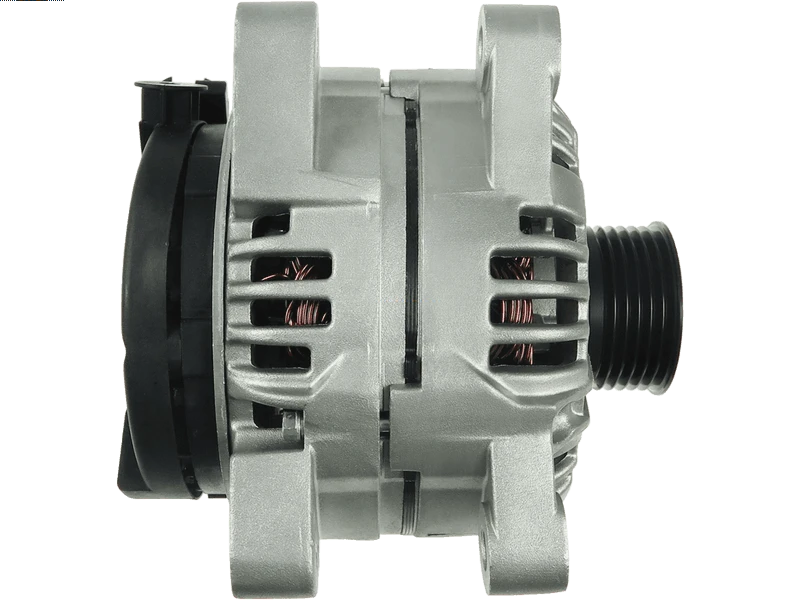

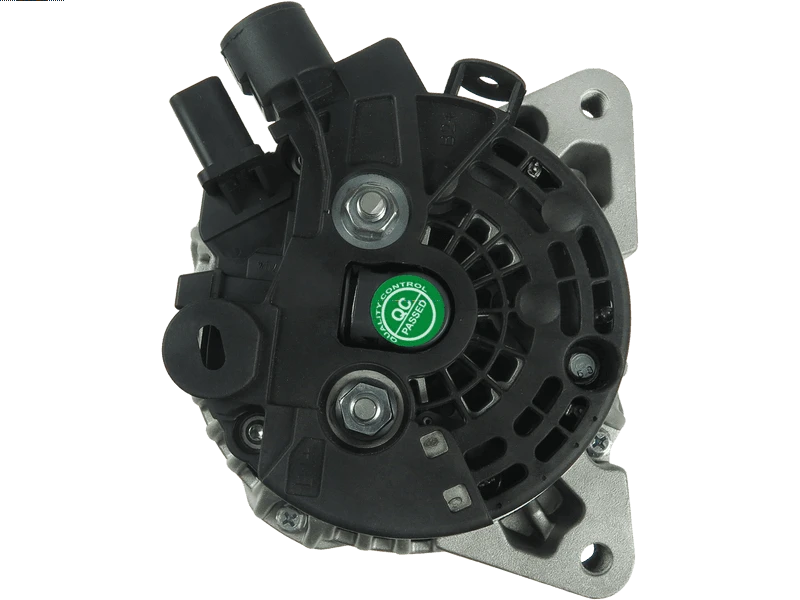

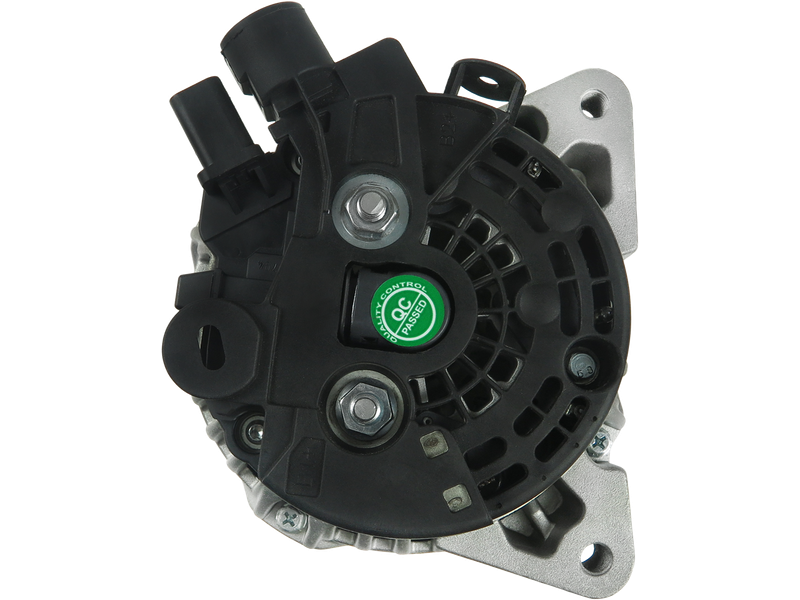

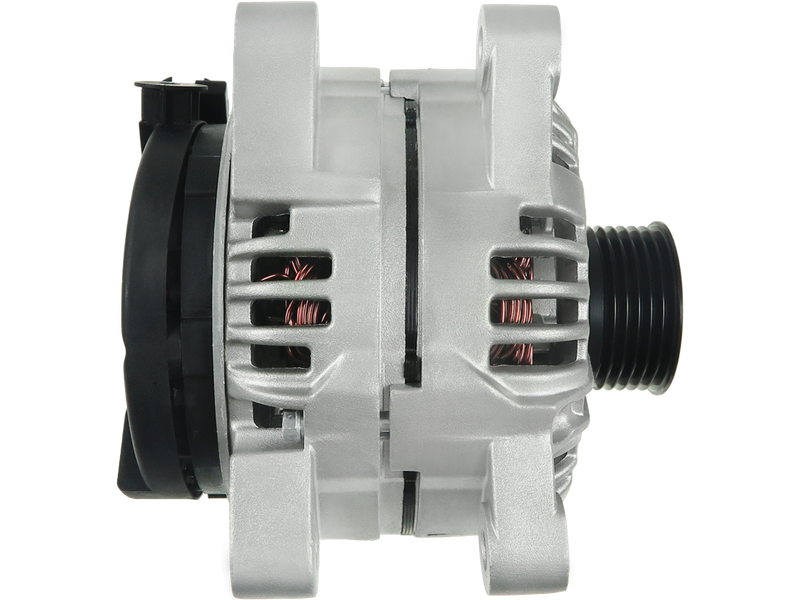

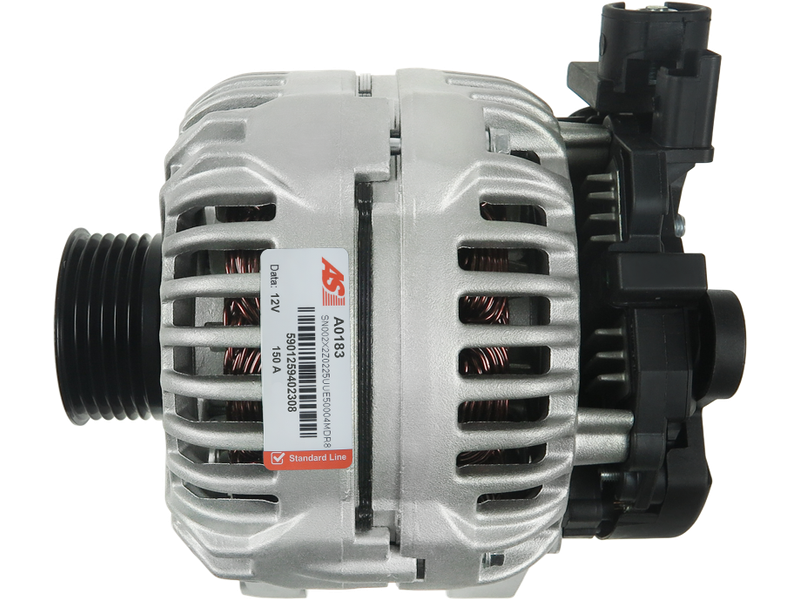

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 579.83 including GST
NZ$ 504.20 excluding GST
or four payments of $144.96
with
Learn More
each
AAM-S6107
A0183
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0124525063Associated Numbers
0124525063 20101963OE 2010369 301914RIB 4703 5702E9 5702F9 5705CA 5705EK 57316 9090482 9649846780 ALT10534 CA1914IR CAL10369GS EAA-221852Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.75 mm |
| Diameter (D.4) | M10x1.75 mm |
| Length (L.1) | 175 mm |
| Mount Inside Length or Pad Mount C-C (C) | 45.50 mm |
| OEM Product | No |
| Plug Code | PL_2403 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 42.50 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C4 1.8 16V Picasso | [6FY(EW7A)] | 02.2007- |
| CITROEN | C4 1.8 i 16V Grand Picasso | [6FY(EW7A)] | 02.2007- |
| CITROEN | C4 2.0 16V | [RFJ(EW10A)] | 11.2004- |
| CITROEN | C4 2.0 16V Picasso | [RFJ(EW10A)] | 02.2007- |
| CITROEN | C4 2.0 i 16V Grand Picasso | [RFJ(EW10A)] | 02.2007- |
| CITROEN | C5 1.8 16V | [6FY(EW7A)] | 09.2005- |
| CITROEN | C5 2.0 16V | [RFJ(EW10A)] | 09.2004- |
| CITROEN | C8 2.0 16V | [EW10A] | 09.2005- |
| CITROEN | Jumpy 2.0 i | [EW10A] | 01.2007- |
| CITROEN | Jumpy 2.0 i | [RFJ(EW10A)] | 01.2007- |
| PEUGEOT | 407 1.8 16V | [6FY(EW7A)] | 09.2005- |
| PEUGEOT | 407 2.0 16V | [RFJ(EW10A)] | 09.2005- |
| PEUGEOT | 407 2.2 16V | [3FY(EW12J4)] | 09.2005- |
| PEUGEOT | 607 2.2 16V | [3FY(EW12J4)] | 09.2005- |
| PEUGEOT | 807 2.0 16V | [RFJ(EW10A)] | 09.2005- |
| PEUGEOT | Expert 2.0 16V | [EW10A] | 01.2007- |
Reference Information
| 0124525063 | BOSCH |
| 063731914010 | MAGNETI MARELLI |
| 0986048360 | BOSCH |
| 115541 | CARGO |
| 20005N | WAI / TRANSPO |
| 20101963OE | REAL |
| 2010369 | SANDO |
| 2010369.1 | SANDO |
| 209099 | ERA |
| 225.536.150.014 | PSH |
| 28-5812 | ELSTOCK |
| 301914RI | KUHNER |
| 301914RIB | KUHNER |
| 311119 | RHIAG |
| 32048360 | HERTH+BUSS |
| 441849 | LOGISTIK |
| 4703 | CEVAM |
| 5702E9 | PEUGEOT |
| 5702F9 | PEUGEOT |
| 5705CA | PEUGEOT |
| 5705EK | PEUGEOT |
| 57316 | EAI |
| 8EL011712-521 | HELLA |
| 8EL738212-751 | HELLA |
| 9090482 | FRIESEN |
| 9646452480 | PEUGEOT |
| 9649846780 | PEUGEOT |
| A12BH0808AS | SIDAT |
| A131.959 | PSH |
| AEC1914 | AUTOELECTRO |
| ALT10534 | WOODAUTO |
| ALT123690 | SIOM |
| ALT1709 | ELECTROLOG |
| ALTL564 | 3EFFE |
| ALTL564RR | 3EFFE |
| CA1914IR | HC PARTS |
| CAL10369GS | CASCO |
| CGB-85812 | AINDE |
| DA1417 | DELCO |
| DRA0307 | DELCO |
| F032115541 | CARGO |
| LRA03200 | LUCAS |
| LRA3200 | LUCAS |
| PRAL564 | 3EFFE |
| STX101628 | STARDAX |
Video/Publications
A0183Related Items
