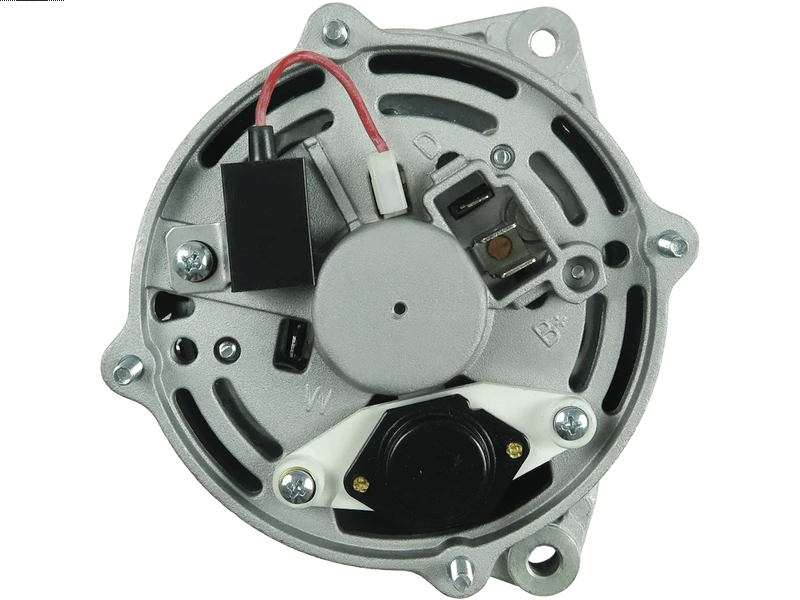

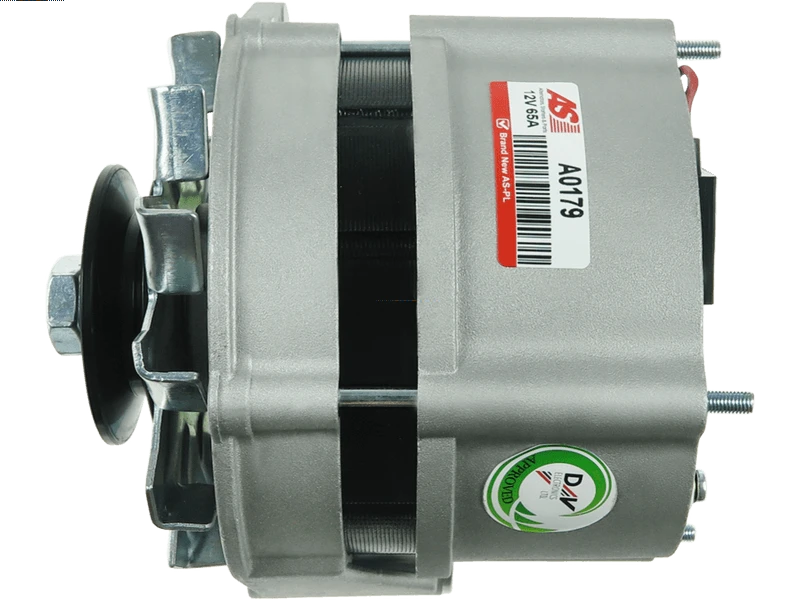

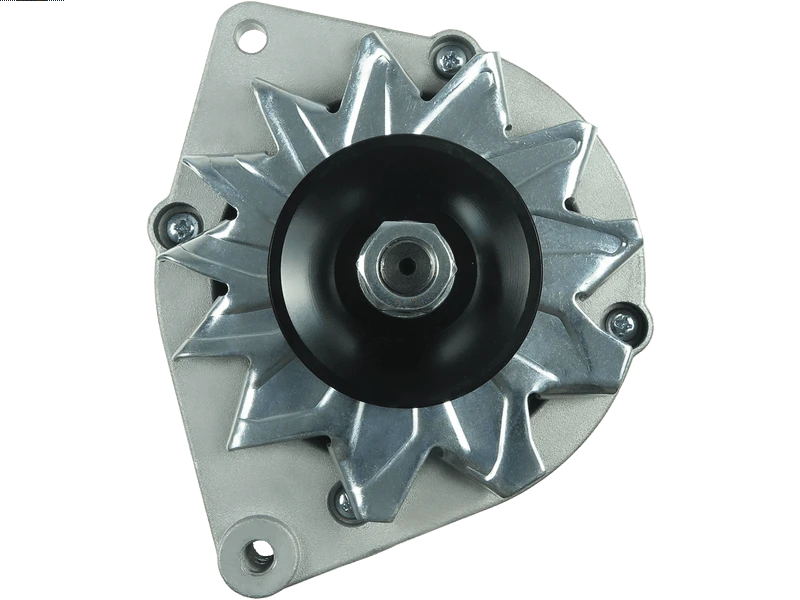

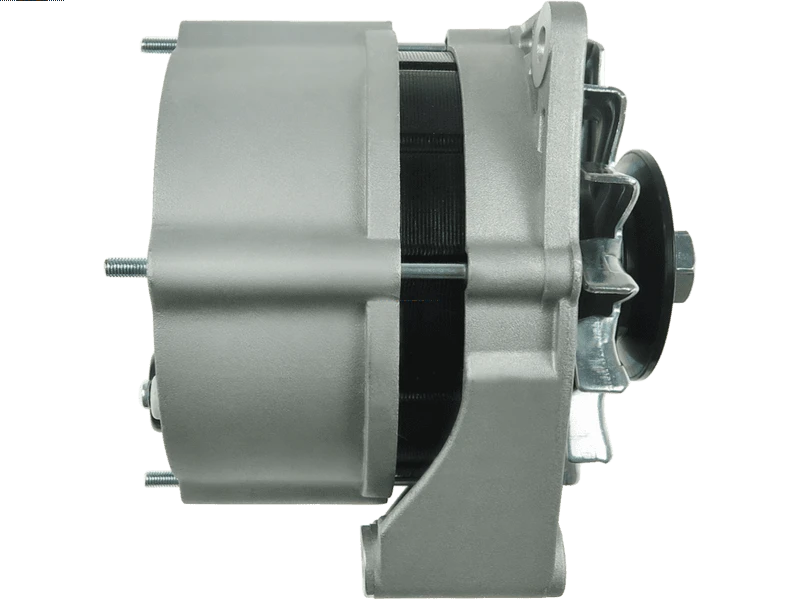

A0179 - Brand new AS-PL Alternator

Associated Numbers

0120488118 0120488119 0986036520 105.002.065 11.0593 112745 20101671RC 2010176 28-1766 30379RI 30593RI 4323 436556 56254 8EL725876-001 9036520 943356646 ALT10144 CA593IR CAL10176RS DRA6520 LRA01365 UNIT BOM 220-451B

Specifications

Amp	65 A
Bottom Mounting Foot Width (B)	56 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Length (L.1)	161 mm
OEM Product	No
Plug Code	PL_3200
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	10 mm
Pulley Outside Diameter (O.D.1)	43 mm
Pulley Outside Diameter (O.D.2)	67 mm
Pulley to Mount Distance (A)	77.5 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
ALFA ROMEO	33 1.2	[AR30743]	01.1990-08.1991
ALFA ROMEO	33 1.3	[AR30586]	04.1988-12.1989
ALFA ROMEO	33 1.3	[AR30587]	04.1988-12.1989
ALFA ROMEO	33 1.3	[AR30732]	02.1990-10.1994
ALFA ROMEO	33 1.4	[AR30586]	04.1988-12.1989
ALFA ROMEO	33 1.4	[AR30755]	06.1991-09.1994
ALFA ROMEO	33 1.4 i.e.	[AR30753]	09.1991-10.1994
ALFA ROMEO	33 1.4 i.e.	[AR30755]	09.1991-12.1991
ALFA ROMEO	33 1.4 i.e. 4x4	[AR30587]	06.1991-09.1994
ALFA ROMEO	33 1.4 i.e. 4x4	[AR30755]	06.1991-09.1994
ALFA ROMEO	33 1.5	[AR30146]	12.1986-12.1989
ALFA ROMEO	33 1.5	[AR30182]	09.1986-12.1993
ALFA ROMEO	33 1.5	[AR30508]	03.1988-12.1989
ALFA ROMEO	33 1.5	[AR30588]	07.1986-12.1989
ALFA ROMEO	33 1.5	[AR30751]	01.1990-09.1994
ALFA ROMEO	33 1.5	[AR30751]	09.1986-12.1987
ALFA ROMEO	33 1.5 4x4	[AR30146]	09.1986-12.1989
ALFA ROMEO	33 1.5 4x4	[AR30182]	09.1986-12.1987
ALFA ROMEO	33 1.5 4x4	[AR30508]	03.1988-12.1989
ALFA ROMEO	33 1.5 4x4	[AR30514]	01.1984-12.1989
ALFA ROMEO	33 1.5 4x4	[AR30520]	09.1984-12.1986
ALFA ROMEO	33 1.5 4x4	[AR30588]	09.1986-12.1989
ALFA ROMEO	33 1.5 4x4	[AR30588]	12.1986-12.1989
ALFA ROMEO	33 1.5 i.e.	[AR30750]	07.1990-08.1991
ALFA ROMEO	33 1.5 i.e.	[AR30751]	01.1990-09.1994
ALFA ROMEO	33 1.5 QV	[AR30146]	09.1986-12.1989
ALFA ROMEO	33 1.5 QV	[AR30508]	03.1988-12.1989
ALFA ROMEO	33 1.5 QV	[AR30588]	07.1987-12.1989
ALFA ROMEO	33 1.7	[AR30550]	03.1988-12.1989
ALFA ROMEO	33 1.7 16V	[AR30746]	01.1990-03.1992
ALFA ROMEO	33 1.7 16V	[AR30747]	01.1990-10.1994
ALFA ROMEO	33 1.7 16V 4x4	[AR30746]	01.1990-03.1992
ALFA ROMEO	33 1.7 i.e.	[AR30558]	09.1988-12.1989
ALFA ROMEO	33 1.7 i.e.	[AR30736]	01.1990-03.1992
ALFA ROMEO	33 1.7 i.e.	[AR30737]	01.1990-09.1994
ALFA ROMEO	33 1.7 i.e.	[AR30737A]	04.1992-09.1994
ALFA ROMEO	33 1.7 i.e. 4x4	[AR30558]	10.1987-12.1989
ALFA ROMEO	33 1.7 i.e. 4x4	[AR30736]	01.1990-03.1992
ALFA ROMEO	33 1.7 i.e. 4x4	[AR30737]	01.1990-03.1992
ALFA ROMEO	Alfasud 1.7 i.e. Sprint	[AR30558]	10.1987-12.1989
FERRARI	40 WDT 1.6 Diesel	[LDW1503]	04.1991-

Reference Information

112745 ALT121760R CGB-81766 30593RI 220-451B ALTL384L 60875900 LRA01365 ALT10312 0120488119 0120488118 STX100726 311226 56254 28-1766 4323 8EL725876-001 ANM38740X CAL10176RS 210106 11.0593 PRAS383 30379RI BOM 547949 0986036520 UNIT 542399 60504419 CA593IR 9036520 20101671RC 105.002.065 LRA1365 ALT10144 ALTS383 ALT121760 549399 DRA6520 440271 60537889 2010176 436556 605044190 ALT121760A 943356646

Video/Publications

A0179
