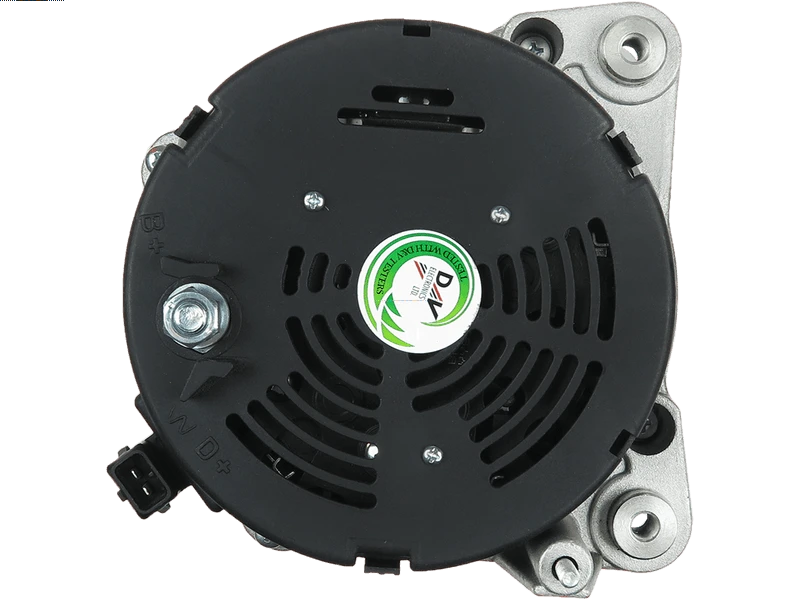

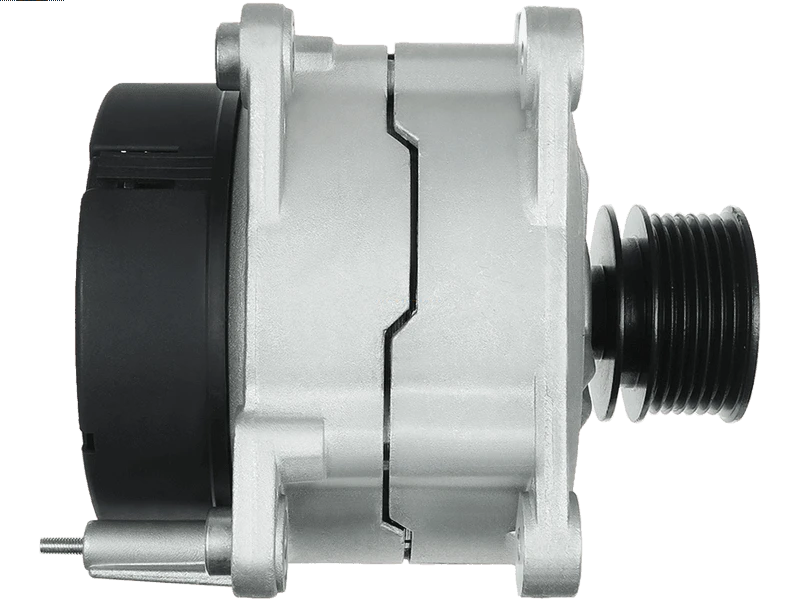

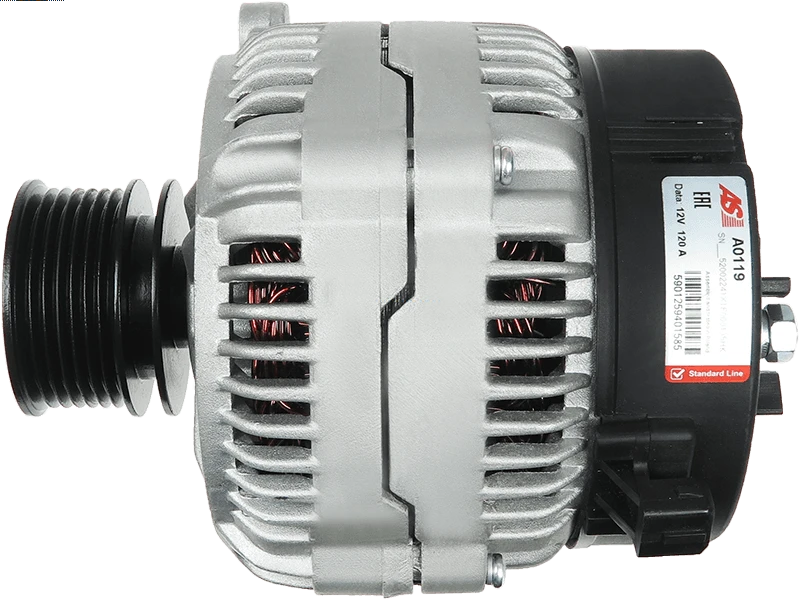

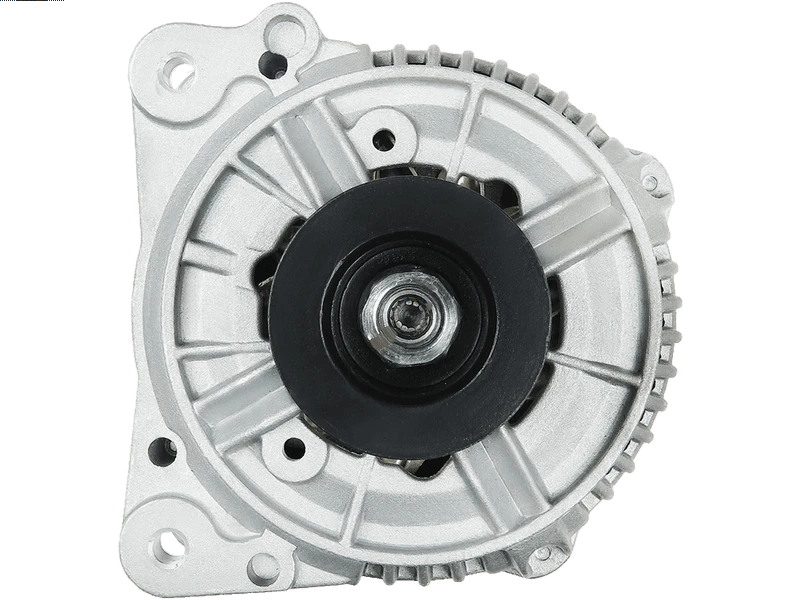

A0119 - Brand new AS-PL Alternator

Specifications

Amp	120 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	7 qty
Length (L.1)	196 mm
Mount Inside Length or Pad Mount C-C (C)	60 mm
OEM Product	No
Outside Diameter (O.D.1)	56.5 mm
Plug Code	PL_2100
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	42 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VW	CoRado 2.9 VR6		01.1992-12.1995
VW	Golf III 2.8 VR6		01.1992-12.1994
VW	Golf III 2.9 VR6 Syncro		01.1994-12.1995
VW	Passat 2.8 VR6		01.1991-12.1994
VW	Passat 2.9 VR6 Syncro		01.1991-12.1994
VW	Vento 2.8 VR6		01.1992-12.1995

Reference Information

AEA1275 8EL737601-001 111991 120465021 441546 0120465021 DRA8950 SA089 ALT10551 021903025B ALT1156 021903025BX SA767 301399RI 11.1399 20101905BN LRA02707 11.3147 35214995 13382R CA1399IR 0986039210 SA634 2010509 DRA9210 441059 AI-90093 209062 89212698 95VW10300KA 56678 986039210 0123510005 123505010 32038950 ALT125090A ALT0163 ALT6780 9039210 CGB-82720 021903023L ALT125090 PRAS243 EAA-221308 ALTS243 20130115 CAL10509AS 28-2720 0123505010 95VW-10300-KA LRA2707 123510005

Video/Publications

0120465021 0123505010 0123510005 021903025B 021903025BX 0986039210 11.1399 11.3147 111991 13382R 20130115 28-2720 301399RI 32038950 35214995 56678 89212698 8EL737601-001 9039210 AEA1275 AI-90093 ALT0163 ALT10551 ALT125090 ALT125090A ALT6780 ALTS243 CA1399IR CGB-82720 DRA8950 DRA9210 EAA-221308 LRA02707 LRA2707 PRAS243 SA089 SA634 SA767 209062
