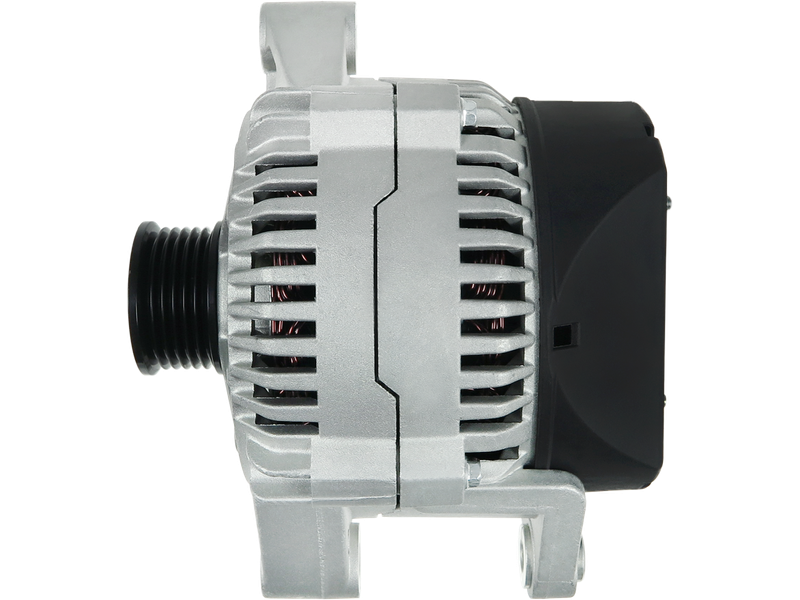

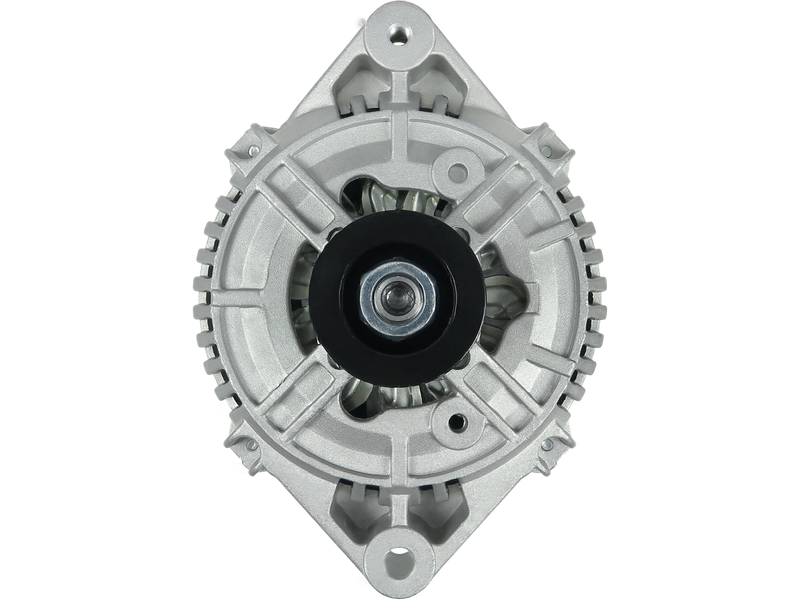

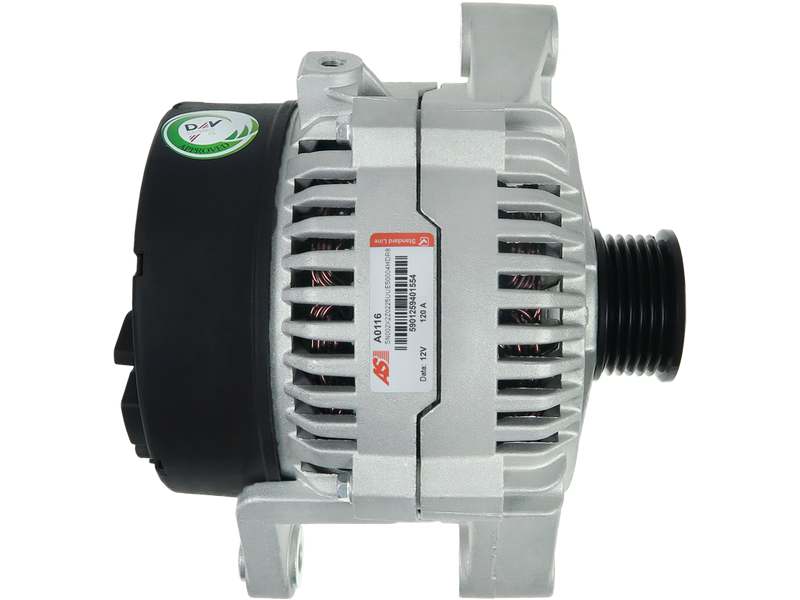

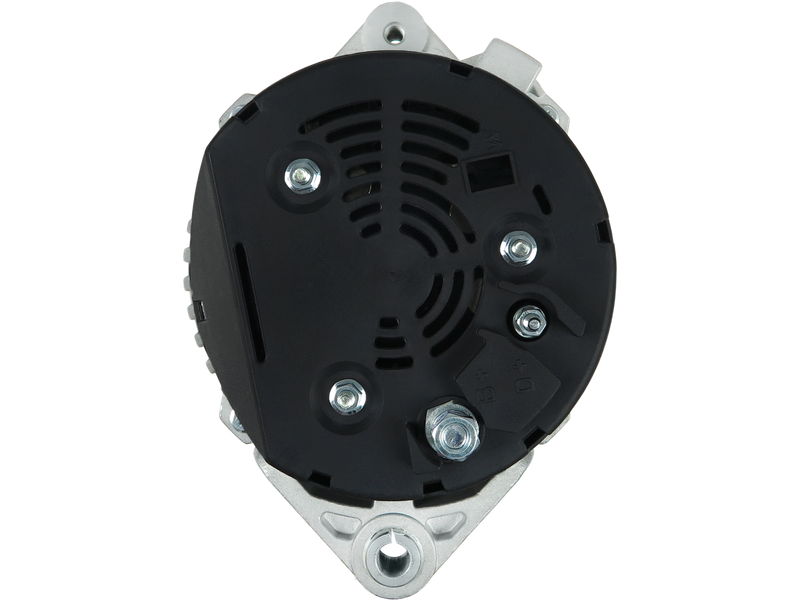

A0116 - Brand new AS-PL Alternator

Specifications

Amp	120 A
Bottom Mounting Foot Width (B)	33 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Grooves	6 qty
Length (L.1)	182 mm
Mount Inside Length or Pad Mount C-C (C)	55 mm
OEM Product	No
Outside Diameter (O.D.1)	49 mm
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	52 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Astra F 1.4 i	[C14NZ]	09.1992-01.1998
OPEL	Astra F 1.4 i 16V	[X14XE]	04.1996-02.1998
OPEL	Astra F 1.6	[16LZ2]	09.1995-01.1998
OPEL	Astra F 1.6	[16LZ2]	09.1995-09.1998
OPEL	Astra F 1.6 i	[16LZ2]	09.1994-01.1998
OPEL	Astra F 1.6 i	[16NZR]	09.1995-01.1998
OPEL	Astra F 1.6 i	[C16NZ][C16SE][X16SZ][X16SZR]	08.1992-01.1998
OPEL	Astra F 1.8 i	[C18NZ]	09.1991-02.1998
OPEL	Astra F 1.8 i 16V	[C18XE]	06.1993-01.1998
OPEL	Astra F 1.8 i 16V	[C18XE]	09.1993-01.1998
OPEL	Astra F 1.8 i 16V	[C18XEL]	07.1994-01.1998
OPEL	Astra F 1.8 i 16V	[C18XEL]	09.1994-02.1998
OPEL	Astra F 1.8 i 16V	[X18XE]	09.1995-08.1998
OPEL	Astra F 2.0 GSi 16V	[C20XE]	09.1991-02.1998
OPEL	Astra F 2.0 i	[C20NE]	09.1991-02.1998
OPEL	Astra F 2.0 i 16V	[C20XE]	09.1991-02.1998
OPEL	Astra F 2.0 i 16V	[X20XEV]	01.1995-01.1998
OPEL	Calibra A 2.0 i	[C20NE]	09.1992-07.1997
OPEL	Calibra A 2.0 i 16V	[C20XE]	09.1992-07.1997
OPEL	Calibra A 2.0 i 16V	[X20XEV]	11.1993-03.1997
OPEL	Calibra A 2.0 i 16V 4x4	[C20XE]	09.1992-07.1997
OPEL	Calibra A 2.0 i 16V 4x4	[X20XEV]	11.1993-03.1997
OPEL	Calibra A 2.0 i 4x4	[C20NE]	09.1992-07.1997
OPEL	Calibra A 2.0 i Turbo 4x4	[C20LET]	09.1992-03.1997
OPEL	Combo 1.4	[C14NZ]	07.1994-03.1996
OPEL	Combo 1.4	[X14SZ]	07.1994-03.1996
OPEL	Combo 1.4 i	[C14SE]	07.1994-10.2001
OPEL	Corsa B 1.4 i	[C14NZ]	03.1993-03.1996
OPEL	Corsa B 1.4 i	[C14NZ]	03.1993-09.2000
OPEL	Corsa B 1.4 i	[X14SZ]	09.1996-09.2000
OPEL	Corsa B 1.4 i 16V	[X14XE]	09.1994-08.1999
OPEL	Corsa B 1.4 Si	[C14SE]	03.1993-09.2000
OPEL	Corsa B 1.4 Si	[C14SE]	09.1993-09.2000
OPEL	Corsa B 1.6 GSi 16V	[C16XE]	03.1993-09.2000
OPEL	Corsa B 1.6 i 16V	[X16XE]	03.1993-09.2000
OPEL	Frontera A 2.0 i Sport	[X20SE]	02.1995-10.1998
OPEL	Frontera A 2.2 i	[X22XE]	03.1995-10.1998
OPEL	Frontera B 2.2 i	[X22SE]	09.1998-12.2000
OPEL	Frontera B 2.2 i	[Y22SE]	09.2000-09.2004
OPEL	Omega B 2.0 i	[20SE]	03.1994-12.2000
OPEL	Omega B 2.0 i	[X20SE]	03.1994-12.2000
OPEL	Omega B 2.0 i 16V	[X20XEV]	09.1993-09.1999
OPEL	Omega B 2.2 i 16V	[Y22XE]	09.1999-
OPEL	Omega B 2.2 i 16V	[Z22XE]	09.2000-09.2003
OPEL	Tigra 1.6 i 16V	[C16SEL]	08.1997-
OPEL	Vectra A 1.6	[16SV]	09.1991-08.1995
OPEL	Vectra A 1.6 i	[16LZ2]	09.1993-11.1995
OPEL	Vectra A 1.6 i	[C16NZ]	09.1991-08.1995
OPEL	Vectra A 1.6 i	[C16NZ2]	09.1993-08.1995
OPEL	Vectra A 1.6 i	[E16NZ]	09.1991-08.1995
OPEL	Vectra A 1.6 S	[16SV]	09.1991-08.1995
OPEL	Vectra A 1.8 i	[18SV]	09.1991-08.1995
OPEL	Vectra A 1.8 i	[C18NZ]	09.1991-08.1995
OPEL	Vectra A 2.0 16V 2000 GT	[C20XE]	09.1991-08.1995
OPEL	Vectra A 2.0 16V 2000 GT	[C20XE]	09.1992-08.1995
OPEL	Vectra A 2.0 16V 2000 GT 4x4	[C20XE]	09.1991-08.1995
OPEL	Vectra A 2.0 16V 2000 GT 4x4	[C20XE]	09.1992-08.1995
OPEL	Vectra A 2.0 GTi	[20SEH]	09.1991-08.1995
OPEL	Vectra A 2.0 GTi	[20SEH]	09.1992-08.1995
OPEL	Vectra A 2.0 i	[20NE]	09.1991-08.1995
OPEL	Vectra A 2.0 i	[20NE]	09.1992-08.1995
OPEL	Vectra A 2.0 i	[20SEH]	09.1991-08.1995
OPEL	Vectra A 2.0 i	[20SEH]	09.1992-08.1995
OPEL	Vectra A 2.0 i	[C20NE]	09.1991-08.1995
OPEL	Vectra A 2.0 i	[C20NE]	09.1992-08.1995
OPEL	Vectra A 2.0 i 16V	[C20XE]	09.1991-08.1995
OPEL	Vectra A 2.0 i 16V	[C20XE]	09.1992-08.1995
OPEL	Vectra A 2.0 i 16V	[X20XEV]	06.1994-11.1995
OPEL	Vectra A 2.0 i 16V 2000 GT	[20XEJ]	09.1991-06.1994
OPEL	Vectra A 2.0 i 16V 2000 GT	[20XEJ]	09.1992-06.1994
OPEL	Vectra A 2.0 i 16V 4x4	[X20XEV]	06.1994-11.1995
OPEL	Vectra A 2.0 i 4x4	[20NE]	09.1991-08.1995
OPEL	Vectra A 2.0 i 4x4	[20NE]	09.1992-08.1995
OPEL	Vectra A 2.0 i 4x4	[20SEH]	09.1991-08.1995
OPEL	Vectra A 2.0 i 4x4	[20SEH]	09.1992-08.1995
OPEL	Vectra A 2.0 i 4x4	[C20NE]	09.1991-08.1995
OPEL	Vectra A 2.0 i 4x4	[C20NE]	09.1992-08.1995
OPEL	Vectra A 2.0 i Turbo 4x4	[C20LET]	09.1992-08.1995
OPEL	Vectra B 1.6 i 16V	[X16XEL]	09.1995-07.2002
OPEL	Vectra B 1.6 i 16V	[Y16XE]	09.1995-09.2002
OPEL	Vectra B 1.8 i 16V	[X18XE]	09.1995-09.2000
OPEL	Vectra B 1.8 i 16V	[X18XE]	10.1995-09.2000
OPEL	Vectra B 1.8 i 16V	[X18XE1]	06.1998-09.2000
OPEL	Vectra B 1.8 i 16V	[Z18XE]	09.2000-09.2002
OPEL	Vectra B 2.0 i	[20NEJ]	09.1995-02.2002
OPEL	Vectra B 2.0 i 16V	[C20SEL]	05.1997-09.2002
OPEL	Vectra B 2.0 i 16V	[X20XEV]	09.1995-09.2002
VAUXHALL	Astra F 1.4 S	[14NV]	09.1991-02.1998
VAUXHALL	Astra F 1.6 i	[C16SE]	03.1992-02.1998
VAUXHALL	Astra F 1.6 i	[X16SZ]	07.1994-02.1998
VAUXHALL	Astra F 1.6 i	[X16SZR]	09.1995-08.1997
VAUXHALL	Astra F 1.6 i 16V	[X16XEL]	01.1994-02.1998
VAUXHALL	Astra F 1.8 16V	[C18XEL]	11.1994-03.2001
VAUXHALL	Astra F 1.8 16V	[X18XE]	03.1996-03.2001
VAUXHALL	Astra F 1.8 i	[C18NZ]	03.1992-09.1998
VAUXHALL	Astra F 1.8 i 16V	[C18XE]	09.1994-02.1998
VAUXHALL	Astra F 1.8 i 16V	[C18XEL]	09.1994-02.1998
VAUXHALL	Astra F 2.0 i	[C20NE]	09.1991-02.1998
VAUXHALL	Astra F 2.0 i	[C20NE]	09.1992-02.1998
VAUXHALL	Astra F 2.0 i 16V	[C20XE]	09.1991-02.1998
VAUXHALL	Astra F 2.0 i 16V	[X20XEV]	02.1995-09.1998
VAUXHALL	Astra MK II 2.0 i	[C20NE]	09.1992-08.1993
VAUXHALL	Astra MK III 1.8 i 16V	[C18XEL]	09.1994-12.1996
VAUXHALL	Astra MK III 2.0 i 16V	[X20XEV]	01.1994-02.1998
VAUXHALL	Calibra A 2.0 i 16V	[X20XEV]	06.1990-07.1997
VAUXHALL	Calibra A 2.0 i 16V 4x4	[X20XEV]	02.1994-07.1997
VAUXHALL	Calibra A 2.0 i Turbo 4x4	[C20LET]	03.1992-07.1997
VAUXHALL	Cavalier 2.0 i 16V	[X20XEV]	09.1993-11.1995
VAUXHALL	Cavalier 2.0 i 4x4	[20NE]	09.1988-08.1995
VAUXHALL	Cavalier MK 2.0 i Turbo 4x4	[C20LET]	09.1992-08.1995
VAUXHALL	Combo 1.4	[C14NZ]	07.1994-10.2001
VAUXHALL	Combo 1.4	[C14NZ][C14SE]	07.1994-10.2001
VAUXHALL	Corsa 1.4 i 16V	[X14XE]	09.1994-08.1999
VAUXHALL	Corsa B 1.4 i	[C14NZ]	09.1994-09.2000
VAUXHALL	Corsa B 1.4 i	[C14SE]	04.1994-08.2000
VAUXHALL	Corsa B 1.4 i 16V	[X14XE]	09.1994-09.2000
VAUXHALL	Corsa B 1.6 GSi 16V	[C16XE]	09.1994-09.2000
VAUXHALL	Corsa B 1.6 i 16V	[X16XE]	09.1994-08.1999
VAUXHALL	Corsavan 1.4 i	[C14NZ]	01.1994-09.2000
VAUXHALL	Frontera A 2.0 i 4x4 Sport	[C20NE]	02.1995-10.1998
VAUXHALL	Frontera A 2.0 i 4x4 Sport	[C20NE]	08.1995-10.1998
VAUXHALL	Frontera A 2.0 i 4x4 Sport	[X20SE]	02.1995-08.1998
VAUXHALL	Frontera A 2.2 i 4x4 Long	[X22XE]	03.1995-10.1998
VAUXHALL	Frontera B 2.2 i	[X22SE]	02.1995-
VAUXHALL	Frontera B 2.2 i	[Y22SE]	02.1995-
VAUXHALL	Frontera B 2.2 i	[Y22SE]	09.1998-12.2000
VAUXHALL	Omega 2.0	[X20SE]	04.1994-12.2000
VAUXHALL	Omega 2.0 16V	[X20XEV]	09.1993-08.1999
VAUXHALL	Omega 2.0 i	[20SE]	03.1994-12.2000
VAUXHALL	Omega 2.0 i	[X20SE]	03.1994-12.2000
VAUXHALL	Omega 2.2 i 16V	[Y22XE]	09.1999-09.2004
VAUXHALL	Omega 2.2 i 16V	[Z22XE]	09.1999-09.2004
VAUXHALL	Vectra 1.8 i 16V	[Z18XE]	09.2000-08.2001
VAUXHALL	Vectra B 1.6 i	[X16SZR]	10.1995-
VAUXHALL	Vectra B 1.6 i 16V	[X16XEL]	10.1995-
VAUXHALL	Vectra B 1.6 i 16V	[Y16XE]	10.1995-
VAUXHALL	Vectra B 1.6 i 16V	[Z16XE]	10.1995-
VAUXHALL	Vectra B 1.8 i 16V	[X18XE]	10.1995-09.2000
VAUXHALL	Vectra B 1.8 i 16V	[X18XE1]	11.1996-
VAUXHALL	Vectra B 2.0 i 16V	[X20XEV]	10.1995-09.2000
VAUXHALL	Vectra B 2.2 i	[C22SEL]	10.1999-08.2001

Reference Information

STA0463R 56330 DRA9240 A0116 93175807 441192 437213 ALT5430 ALT122160 93175964 R1530053 0123505001 11.1045 123510063 210165 90540890 6204103 0123510063 6204145 MAV121790 ALT121980 6204063 123505002 123505001 28-1977 310604 ALTS109 93175956 ALT4150 90365665 R1030075 90356897 111732 9039240 90542981 ANM31460X LRB00166 10480123 9512793 1204145 1204146 6204110 92059410 4629 6204152 32039240 ALT1138 20110166 301045RI 24439411 CA1045IR PRAS109 ALT2060 8239R CAL10216AS AEA1266 90356665 9201491 90443931 LRB166 SA578 90566565 9512501 ALT122160A 6204001 986039240 20101612BN 1516405R 10457160 6204041 2010216 3493848 89213181 93175816 R1530045 0986039240 90443929

Video/Publications

0123505001 0123510063 0986039240 11.1045 111732 20101612BN 2010216 20110166 28-1977 301045RI 310604 32039240 437213 4629 56330 6204063 8239R 89213181 90356665 90365665 9039240 90443931 90542981 A0116 AEA1266 ALT121980 ALT122160 ALT122160A ALT2060 ALT4150 ALT5430 ALTS109 CA1045IR CAL10216AS DRA9240 LRB00166 LRB166 MAV121790 PRAS109 SA578 210165
