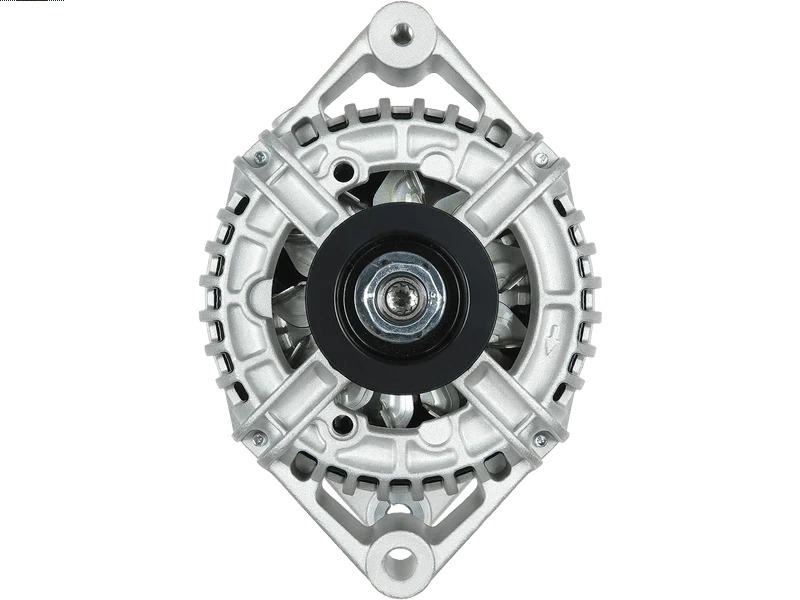

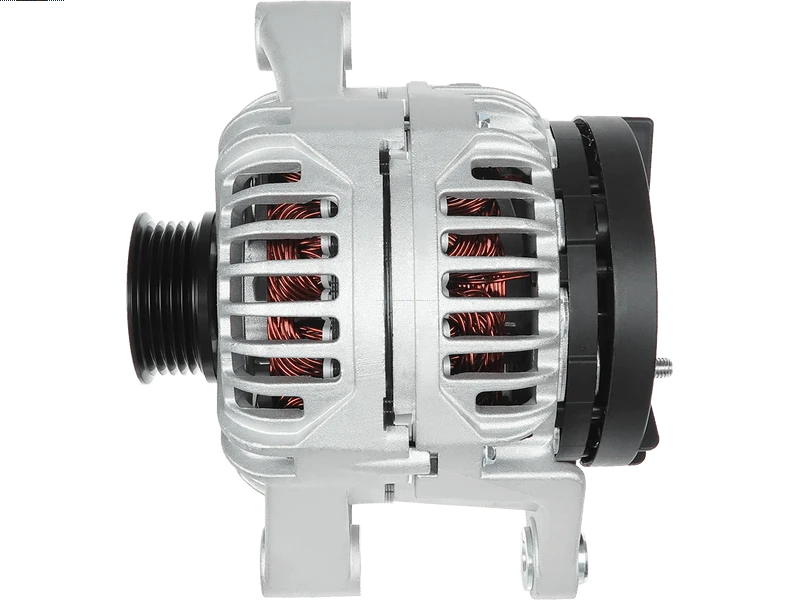

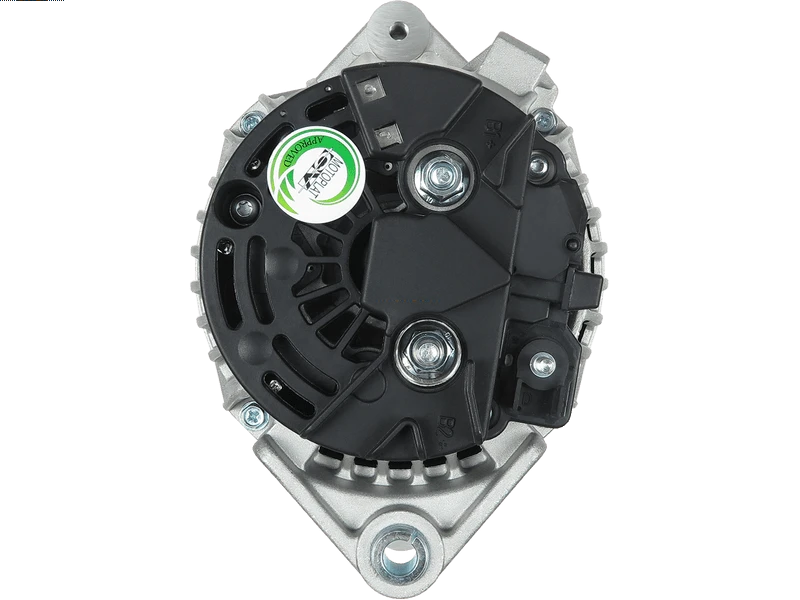

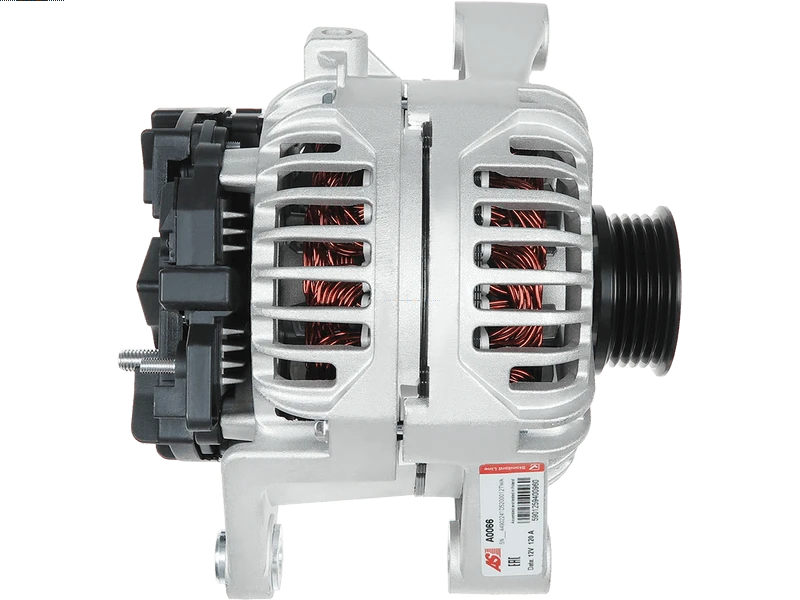

A0066 - Brand new AS-PL Alternator

Specifications

Amp	120 A
Bottom Mounting Foot Width (B)	33.5 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	11 mm
Diameter (D.3)	10.5 mm
Grooves	5 qty
Length (L.1)	186 mm
Mount Inside Length or Pad Mount C-C (C)	57 mm
OEM Product	No
Outside Diameter (O.D.1)	54 mm
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	54 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HOLDEN	Astra 2.0 Turbo	[Z20LET]	06.2002-
HOLDEN	Vectra 2.2	[Z22SE]	04.2002-
OPEL	Astra F 1.4 i 16V	[X14XE]	01.1996-03.2001
OPEL	Astra F 1.4 i 16V	[X14XE]	02.1996-01.1998
OPEL	Astra G 1.4 i 16V	[X14XE]	06.1998-07.2004
OPEL	Astra G 1.4 i 16V	[X14XE]	09.1998-01.2005
OPEL	Astra G 1.6	[Z16YNG]	03.2003-07.2004
OPEL	Astra G 1.6 i	(F70)[Z16SE]	09.2000-04.2005
OPEL	Astra G 1.6 i	[X16SZR]	01.1999-09.2000
OPEL	Astra G 1.6 i	[X16SZR]	09.1998-09.2000
OPEL	Astra G 1.6 i 16V	[Z16XE]	09.2000-07.2004
OPEL	Astra G 1.8 16V	[X18XE1]	02.1998-09.2000
OPEL	Astra G 1.8 i 16V	[X18XE1]	03.2000-10.2000
OPEL	Astra G 1.8 i 16V	[X18XE1]	09.1998-09.2000
OPEL	Astra G 1.8 i 16V	[Z18XE]	03.2001-10.2005
OPEL	Astra G 1.8 i 16V	[Z18XE]	06.2000-01.2005
OPEL	Astra G 1.8 i 16V	[Z18XE]	09.2000-01.2005
OPEL	Astra G 1.8 i 16V	[Z18XE]	09.2000-05.2005
OPEL	Astra G 1.8 i 16V	[Z18XE]	09.2000-07.2004
OPEL	Astra G 2.0	[Z20LER]	11.2002-01.2005
OPEL	Astra G 2.0	[Z20LET]	11.2002-01.2005
OPEL	Astra G 2.0	[Z20LET]	11.2002-07.2004
OPEL	Astra G 2.0 16V	[X20XEV]	02.1998-01.2005
OPEL	Astra G 2.0 16V	[X20XEV]	02.1998-07.2004
OPEL	Astra G 2.0 i 16V	[X20XER]	11.1999-09.2002
OPEL	Astra G 2.0 i 16V	[X20XEV]	09.1998-01.2005
OPEL	Astra G 2.0 OPC	[Z20LET]	09.2002-01.2005
OPEL	Astra G 2.0 OPC	[Z20LET]	09.2002-07.2004
OPEL	Astra H 1.6 CNG	[Z16YNG]	11.2005-
OPEL	Astra H 1.8	[Z18XE]	03.2004-
OPEL	Astra H 1.8	[Z18XE]	08.2004-
OPEL	Astra H 1.8	[Z18XE]	09.2005-
OPEL	Astra H 1.8 i GTC	[Z18XE]	03.2005-
OPEL	Combo 1.6 16V	[Z16YNG]	06.2006-
OPEL	Combo 1.6 16V Tour	[Z16YNG]	06.2006-
OPEL	Combo 1.6 CNG	[Z16YNG]	04.2005-
OPEL	Meriva A 1.6	[Z16SE]	05.2003-
OPEL	Meriva A 1.6 16V	[Z16XE]	05.2003-01.2006
OPEL	Meriva A 1.8	[Z18XE]	05.2003-
OPEL	Signum 1.8	[Z18XE]	05.2003-
OPEL	Tigra 1.8 i	[Z18XE]	06.2004-
OPEL	Vectra C 1.6 16V	[Z16XE]	06.2004-
OPEL	Vectra C 1.8 16V GTS	[Z18XEL]	08.2002-12.2006
OPEL	Vectra C 1.8 i	[Z18XE]	10.2003-
OPEL	Vectra C 1.8 i 16V	[Z18XE]	04.2002-
OPEL	Vectra C 1.8 i 16V	[Z18XEL]	04.2002-
OPEL	Vectra C 1.8 i 16V GTS	[Z18XE]	08.2002-
OPEL	Vectra C 1.8 i 16V GTS	[Z18XEL]	08.2002-
OPEL	Zafira A 1.6 16V	[X16XEL]	04.1999-06.2005
OPEL	Zafira A 1.6 16V	[Z16XE]	09.2000-06.2005
OPEL	Zafira A 1.6 i	[Z16YNG]	09.2001-06.2005
OPEL	Zafira A 1.8 16V	[X18XE1]	04.1999-09.2000
OPEL	Zafira A 1.8 16V	[Z18XE]	09.2000-06.2005
OPEL	Zafira A 2.0	[Z20LET]	09.2001-06.2005
OPEL	Zafira A 2.0 OPC	[Z20LER]	11.2002-06.2005
OPEL	Zafira A 2.0 OPC	[Z20LET]	11.2002-06.2005
OPEL	Zafira B 1.6	[Z16YNG]	01.2006-
OPEL	Zafria A 1.8	[Z18XEL]	02.2003-06.2005
SAAB	9-3 1.8 i	[Z18XE]	01.2004-
SAAB	9-3 1.8 i	[Z18XE]	03.2005-
VAUXHALL	Astra 2.0 Turbo SRi	[Z20LET]	07.2002-05.2005
VAUXHALL	Astra G 1.4 16V	[X14XE]	09.1998-05.2005
VAUXHALL	Astra G 1.4 16V	[Z14XE]	09.1998-05.2005
VAUXHALL	Astra G 1.6	[X16SZR]	09.1998-09.2000
VAUXHALL	Astra G 1.6 16V	[C16SEL]	09.1998-05.2005
VAUXHALL	Astra G 1.6 16V	[X16XEL]	09.1998-05.2005
VAUXHALL	Astra G 1.6 16V	[Z16XEP]	09.1998-05.2005
VAUXHALL	Astra G 1.8 16V	[X18XE1]	02.1998-09.2000
VAUXHALL	Astra G 1.8 16V	[X18XE1]	03.2000-10.2000
VAUXHALL	Astra G 1.8 16V	[X18XE1]	09.1998-09.2000
VAUXHALL	Astra G 2.0 16V	[X20XEV]	02.1998-05.2005
VAUXHALL	Astra G 2.0 16V	[X20XEV]	09.1998-05.2005
VAUXHALL	Astra Mk 4 1.6 Dualfuel Dualfuel	[X16XEL]	09.1999-08.2004
VAUXHALL	Astra Mk 4 1.6 Dualfuel Dualfuel	[Z16XE]	09.1999-08.2004
VAUXHALL	Astra MK IV 1.4 Dualfuel	[X14XE]	09.1999-06.2003
VAUXHALL	Astra MK IV 1.4 Dualfuel	[Z14XE]	09.1999-06.2003
VAUXHALL	Astra MK IV 1.6	[Z16SE]	09.2000-
VAUXHALL	Astra MK IV 1.6 16V	[Z16XE]	03.2001-10.2005
VAUXHALL	Astra MK IV 1.6 Dualfuel	[X16SZR]	02.1998-12.2000
VAUXHALL	Astra MK IV 1.6 Dualfuel		02.1998-12.2000
VAUXHALL	Astra MK IV 1.8 16V	[Z18XE]	03.2001-10.2005
VAUXHALL	Astra MK IV 1.8 16V	[Z18XE]	09.2000-
VAUXHALL	Astra MK IV 1.8 16V	[Z18XE]	09.2000-05.2005
VAUXHALL	Astra MK IV 1.8 16V	[Z18XE]	09.2000-08.2005
VAUXHALL	Astra MK IV 1.8 Dualfuel	[Z18XE]	07.2002-08.2004
VAUXHALL	Astra MK IV 1.8 Dualfuel	[Z18XE]	07.2002-12.2003
VAUXHALL	Astra MK IV 1.8 Dualfuel		07.2002-12.2003
VAUXHALL	Astra MK IV 1.8 Dualfuel 16V	[Z18XE]	09.2002-
VAUXHALL	Astra MK IV 1.8 Dualfuel 16V	[Z18XE]	09.2002-05.2005
VAUXHALL	Astra MK IV 1.8 Dualfuel 16V	[Z18XE]	09.2002-08.2005
VAUXHALL	Astra MK IV 2.0 16V	[X20XER]	10.1999-05.2005
VAUXHALL	Astra MK V 1.8	[Z18XE]	02.2005-11.2010
VAUXHALL	Astra MK V 1.8	[Z18XE]	10.2004-
VAUXHALL	Astravan MK IV 1.6 Dualfuel	[X16SZR]	02.1998-12.2000
VAUXHALL	Astravan MK IV 1.6 Dualfuel	[Z16SE]	09.2000-10.2004
VAUXHALL	Astravan MK IV 1.6 Dualfuel Dualfuel	[Z16XE]	07.2000-08.2005
VAUXHALL	Combo 1.6 16V CNG	[Z16YNG]	06.2006-
VAUXHALL	Combo Tour Mk II 1.6 CNG	[Z16YNG]	04.2005-02.2012
VAUXHALL	Combo Tour Mk II 1.6 CNG	[Z16YNG]	06.2006-09.2010
VAUXHALL	Signum 1.8	[Z18XE]	06.2003-07.2005
VAUXHALL	Vectra 1.6 16V	[Z16XE]	06.2004-
VAUXHALL	Vectra 1.6 16V GTS	[Z16XE]	06.2004-
VAUXHALL	Vectra 1.8	[Z18XEL]	04.2002-
VAUXHALL	Vectra 1.8 Dualfuel 16V	[Z18XE]	04.2002-
VAUXHALL	Vectra 1.8 Dualfuel 16V GTS	[Z18XE]	04.2002-
VAUXHALL	Vectra MK II 1.8	[Z18XEL]	04.2002-07.2008
VAUXHALL	Zafira 1.6 16V	[X16XEL]	04.1999-
VAUXHALL	Zafira 1.8 16V	[X18XE1]	04.1999-09.2000
VAUXHALL	Zafira 1.8 16V	[Z18XE]	09.2000-
VAUXHALL	Zafira Mki 1.6 Dualfuel	[X16XEL]	11.1998-08.2005
VAUXHALL	Zafira Mki 1.6 Dualfuel	[Z16XE]	11.1998-08.2005
VAUXHALL	Zafira MK I 1.8 Dualfuel Dualfuel	[Z18XE]	09.2000-08.2005

Alternatives >>>

A0066PR - Remanufactured version

A0154(P)R Remanufactured version with clutch pulley

A0154(P) Brand new AS NZ Alternator with clutch pulley

A0066 Brand New AS NZ Alternator

Reference Information

20101333OE CAL10333GS ALTS221NE ALB1765 CGB-12800 CGB-84777 13156050 13156054 13125229 9.44391E+11 32046150 UA 6204178 CA1765IR ALT1956 0124425006 6204095 6204172 0986046150 PRAS221B 93175808 RNL4615 0124425009 CAL10333OS 437611 STA0411R 210584 301909RI ALT123330 20101333BN AG1344 93180414 ALT193 9212765 9173572 LRA2295 PRAS221 93180419 A0066 ALTS221 ALB765WA ALT1400 90561972 9047320 95520879 124425009 93175957 23295N CAL10333 986046150 11.1765 23295R 301765RI 9195336 124425006 115619 ALT10054 4079 CAL10333ES R1530025 135.519.120 CAL10333AS 93117508 6204158 9512794 ALT4850A LRA02295 EAA-221158 28-4777 0124425027 311029 8EL738160-001 ALT123330A ALB1765AN 93175989 ALTS221B WX 89212765 441912 0124515004 56887 9117936 13147093 A12BH0456A2 ALB1765WA ALT4850 CAL10333RS 6204080 SB029 124515004 124425027 93177834 AEC1765 2010333

Video/Publications

0124425006 0124425009 0124425027 0124515004 0986046150 11.1765 115619 13147093 135.519.120 20101333BN 20101333OE 2010333 210584 23295N 23295R 28-4777 301765RI 301909RI 311029 32046150 4079 437611 56887 6204080 6204178 89212765 8EL738160-001 9047320 90561972 9117936 9195336 93177834 944390901590 A0066 AEC1765 AG1344 ALB1765 ALB1765AN ALB1765WA ALB765WA ALT10054 ALT123330 ALT123330A ALT4850 ALT4850A ALTS221 ALTS221B ALTS221NE CA1765IR CAL10333 CAL10333AS CAL10333ES CAL10333GS CAL10333OS CAL10333RS CGB-12800 CGB-84777 EAA-221158 LRA02295 LRA2295 PRAS221 PRAS221B RNL4615 SB029
