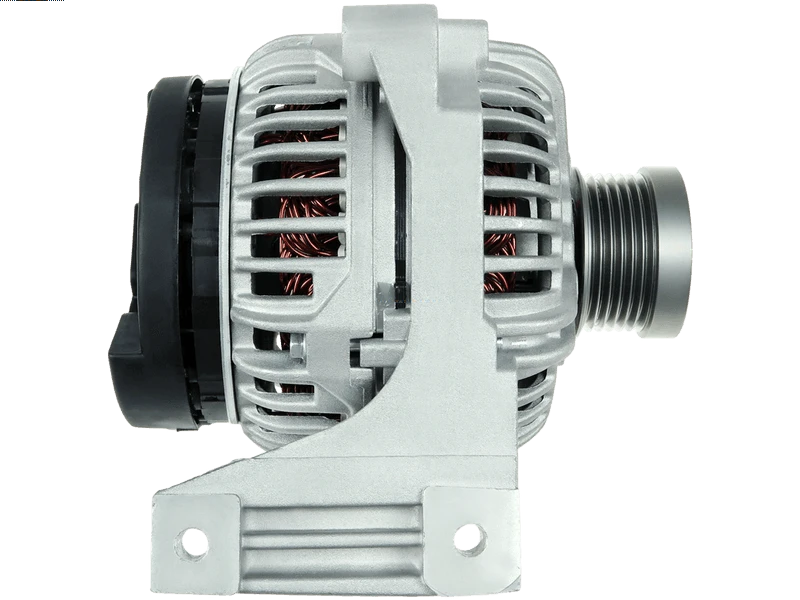

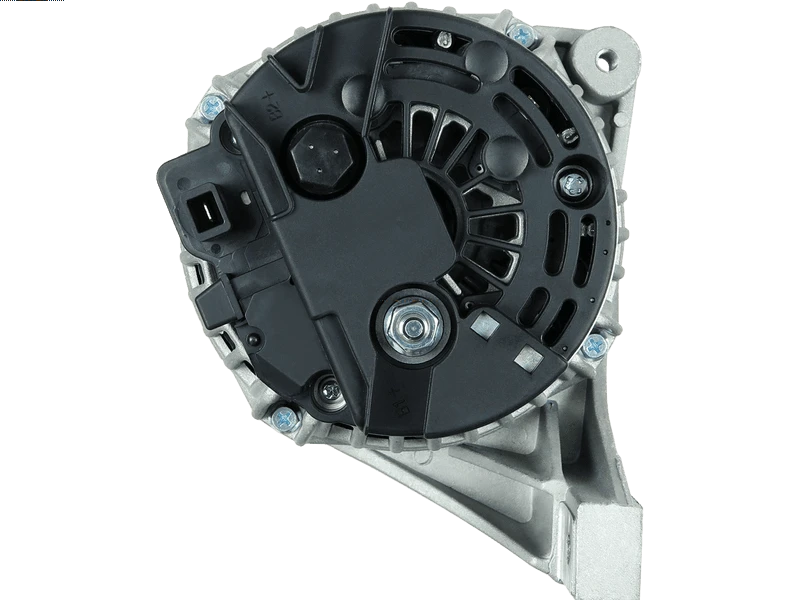

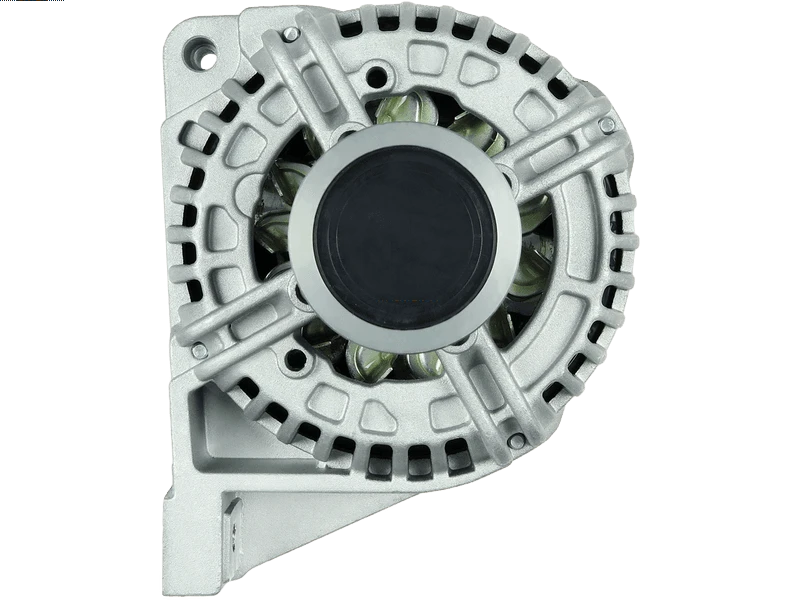

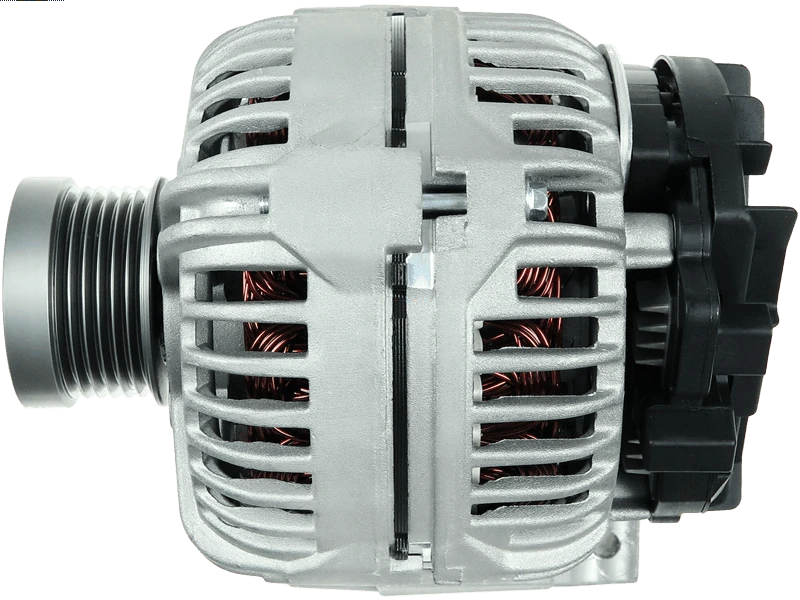

A0049S - Brand new AS-PL Alternator

Specifications

Amp	140 A
Bottom Mounting Foot Width (B)	20 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	9 mm
Diameter (D.3)	9 mm
Grooves	6 qty
Length (L.1)	194 mm
Mount Inside Length or Pad Mount C-C (C)	82.5 mm
OEM Product	No
Outside Diameter (O.D.1)	56 mm
Plug Code	PL_9104
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	46 mm
Pulley Type	CLUTCH
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	S40 1.6	[B4164S2]	03.1999-12.2003
VOLVO	S40 1.9 T4	[B4194T2]	05.1997-07.2000
VOLVO	S40 2.0 16V	[B4204S2]	07.1995-12.2003
VOLVO	S40 2.0 Turbo	[B4204T]	10.1997-07.2000
VOLVO	S40 2.0 Turbo	[B4204T2]	07.2000-06.2001
VOLVO	S40 2.0 Turbo	[B4204T3]	06.2001-12.2003
VOLVO	S40 2.0 Turbo	[B4204T3]	07.2000-06.2001
VOLVO	S40 2.0 Turbo T4	[B4204T5]	07.2000-12.2003
VOLVO	S60 2.0 Turbo	[B5204T5]	09.2001-
VOLVO	S60 2.3 T5	[B5234T3]	11.2000-
VOLVO	S60 2.3 T5	[B5234T7]	07.2000-09.2002
VOLVO	S60 2.4	[B5244S]	11.2000-
VOLVO	S60 2.4	[B5244S2]	11.2000-
VOLVO	S60 2.4	[B5244T4]	01.2005-10.2006
VOLVO	S 60 2.4 AWD	[B5244T5]	02.2004-
VOLVO	S60 2.4 BiFuel	[B5244SG]	06.2002-
VOLVO	S60 2.4 D	[D5244T]	07.2001-
VOLVO	S60 2.4 D	[D5244T2]	12.2001-
VOLVO	S60 2.4 T5	[B5244T5]	04.2004-
VOLVO	S60 2.4 Turbo	[B5244T]	01.2001-04.2010
VOLVO	S60 2.4 Turbo	[B5244T3]	11.2000-
VOLVO	S60 2.4 Turbo AWD	[B5244T3]	11.2001-
VOLVO	S60 2.5 AWD	[B5254T4]	09.2003-04.2010
VOLVO	S60 2.5 Turbo	[B5254T2]	02.2004-
VOLVO	S60 R 2.5 Turbo AWD	[B5254T4]	03.2003-
VOLVO	S70 2.5 TDi	[D5252T]	01.1997-11.2000
VOLVO	S80 2.0	[B5204T4]	06.1998-07.2006
VOLVO	S80 2.0 Turbo	[B5204T3]	06.1998-07.2006
VOLVO	S80 2.0 Turbo	[B5204T5]	12.1999-07.2006
VOLVO	S80 2.4	[B5244S]	01.1999-07.2006
VOLVO	S80 2.4	[B5244S2]	01.1999-07.2006
VOLVO	S80 2.4 BiFuel	[B5244SG2]	09.2001-07.2006
VOLVO	S80 2.4 D	[D5244T2]	10.2001-07.2006
VOLVO	S80 2.4 D D5	[D5244T]	08.2001-07.2006
VOLVO	S80 2.4 LPG	[B5244SG]	09.2001-07.2006
VOLVO	S80 2.4 LTP	[B5244T4]	06.2004-07.2006
VOLVO	S80 2.4 T5 AWD	[B5244T3]	04.2000-09.2003
VOLVO	S80 2.4 Turbo	[B5244T3]	06.2000-07.2006
VOLVO	S80 2.5 TDi	[D5252T]	01.1999-07.2006
VOLVO	S80 2.5 Turbo	[B5254T2]	03.2003-07.2006
VOLVO	S80 2.5 Turbo AWD	[B5254T2]	07.2003-07.2006
VOLVO	S80 2.8 T6	[B6284T]	05.1998-07.2006
VOLVO	S80 2.9 24V	[B6304S3]	05.1998-07.2006
VOLVO	S80 3.0	[B6294S2]	06.2001-07.2006
VOLVO	S80 3.0 T6	[B6294T]	06.2001-07.2006
VOLVO	V40 2.0 16V	[B4204S]	07.1995-06.2004
VOLVO	V40 2.0 16V	[B4204S2]	07.1995-06.2004
VOLVO	V40 2.0 Turbo	[B4204T2]	07.2000-06.2004
VOLVO	V40 2.0 Turbo	[B4204T3]	06.2001-06.2004
VOLVO	V40 2.0 Turbo 16V	[B4204T]	10.1997-07.2000
VOLVO	V40 2.0 Turbo T4	[B4204T5]	07.2000-06.2004
VOLVO	V70 2.0 Turbo	[B5204T]	01.1997-03.2000
VOLVO	V70 2.0 Turbo	[B5204T5]	07.2001-
VOLVO	V70 2.3 T5	[B5234T3]	03.2000-08.2004
VOLVO	V70 2.4	[B5244S]	03.2000-
VOLVO	V70 2.4	[B5244S2]	03.2000-
VOLVO	V70 2.4		03.2000-09.2003
VOLVO	V70 2.4 BiFuel	[B5244SG]	08.1999-03.2000
VOLVO	V70 2.4 BiFuel	[B5244SG2]	09.2001-
VOLVO	V70 2.4 D	[D5244T2]	12.2001-
VOLVO	V70 2.4 D D5	[D5244T]	08.2001-
VOLVO	V70 2.4 D D5	[D5244T5]	08.2001-
VOLVO	V70 2.4 D D5 AWD	[D5244T]	03.2003-
VOLVO	V70 2.4 D D5 AWD	[D5244T2]	03.2003-
VOLVO	V70 2.4 D D5 AWD	[D5244T4]	12.2005-
VOLVO	V70 2.4 D D5 AWD	[D5244T5]	03.2003-
VOLVO	V70 2.4 Turbo	[B5244T3]	03.2000-08.2003
VOLVO	V70 2.4 Turbo AWD	[B5244T3]	09.2001-08.2002
VOLVO	V70 2.4 Turbo T5	[B5244T5]	04.2004-
VOLVO	V70 2.5 AWD	[B5254T2]	09.2002-12.2004
VOLVO	V70 2.5 R Sport	[B5254T4]	12.2002-
VOLVO	V70 2.5 TDi	[D5252T]	01.1997-05.2000
VOLVO	V70 2.5 TDi	[D5252T]	03.2000-
VOLVO	V70 2.5 Turbo	[B5254T2]	04.2004-
VOLVO	V70 2.5 Turbo AWD	[B5254T2]	09.2002-
VOLVO	V70 2.5 Turbo R AWD	[B5254T4]	03.2003-
VOLVO	XC70 2.4 D AWD	[D5244T]	09.2002-
VOLVO	XC70 2.4 D D5 AWD	[D5244T4]	12.2005-
VOLVO	XC70 2.4 Turbo AWD	[B5244T3]	03.2000-09.2002
VOLVO	XC70 2.5 Turbo AWD	[B5254T2]	09.2002-
VOLVO	XC90 2.4 D	[D5244T]	10.2002-
VOLVO	XC90 2.4 D	[D5244T5]	10.2002-
VOLVO	XC90 2.5 Turbo	[B5254T2]	10.2002-
VOLVO	XC90 3.0 Turbo	[B6294T]	10.2002-

Reference Information

ALTL085 LRA2182 86027125 441820 86027120 124525029 986042840 9489312 437610 AEC1673 CA1673IR 8676489 CAL10350GS 0124525529 ALT10381 UD14225A 815.512.140.010 3803645 8602712 301673RIK 815.512.140.210 CGB-84641 8602710 30667892 8622186 124525014 8622786 8EL738001-001 8602275 90-15-6515 36050262 63731673010 LRA02182 56860 ALT1243 EAA-221489 2010350 0124525014 DB3950 36050264 28-4641 CAL10350AS 8602629 200168 8602343 86027100 9.4439E+11 210528 DRB2840N 32042840 124525529 ALT122940 13998R RAA23951 13998N AI-90311 30658084 301673RI 8EL011711-591 MRA42840 2010350.1 0124525029 443181 20101053BN 89212727 DRB2840X 86023430 8637848 A12BH0202 8637847 A-6425 360502620 8676498 A12BH0202A2 86027109 8676496 PRAL085 DRB2840 13998 20101053OE 0986042840 113272 MQA1673 815.512.140.280 4836

Video/Publications

UD14225A ALTL085 PRAL085 AI-90311 CGB-84641 AEC1673 0124525014 0124525029 0124525529 0986042840 113272 CAL10350AS CAL10350GS 4836 DB3950 DRB2840 DRB2840N DRB2840X RAA23951 13998 A-6425 EAA-221489 56860 28-4641 210528 CA1673IR 8EL011711-591 8EL738001-001 32042840 301673RI 301673RIK LRA02182 LRA2182 063731673010 944390428400 MQA1673 MRA42840 89212727 815.512.140.010 815.512.140.210 815.512.140.280 20101053BN 20101053OE 2010350.0 2010350.1 ALT122940 200168 437610 443181 36050262 3803645 8602343 8602629 8602710 8622786 8637848 8676496 8676498 13998N 13998R 90-15-6515 ALT10381
