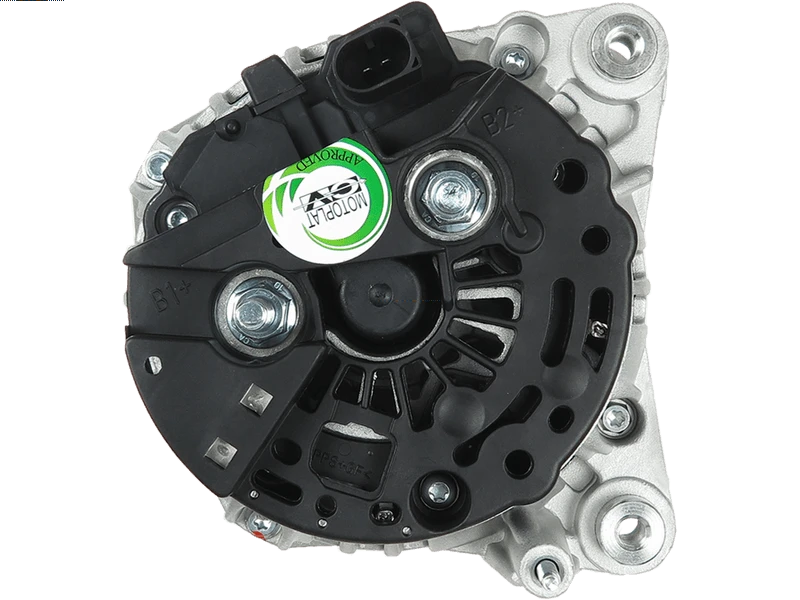

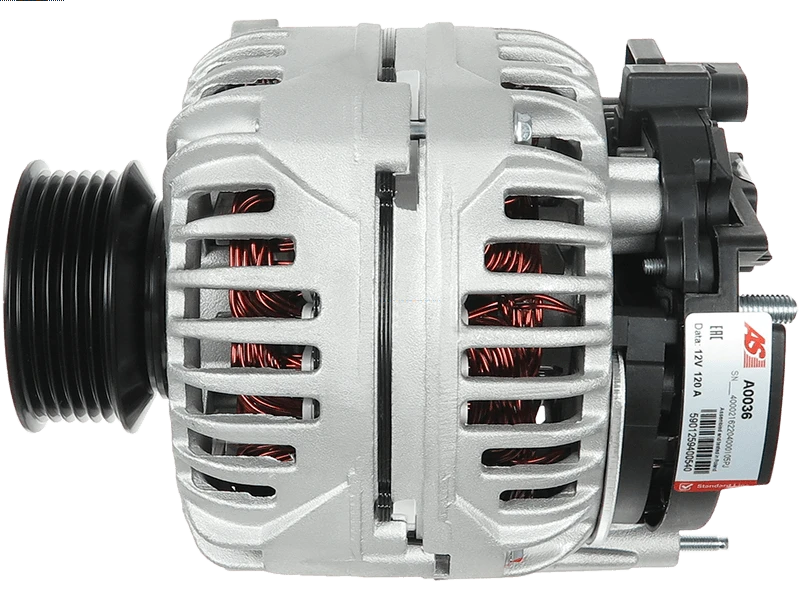

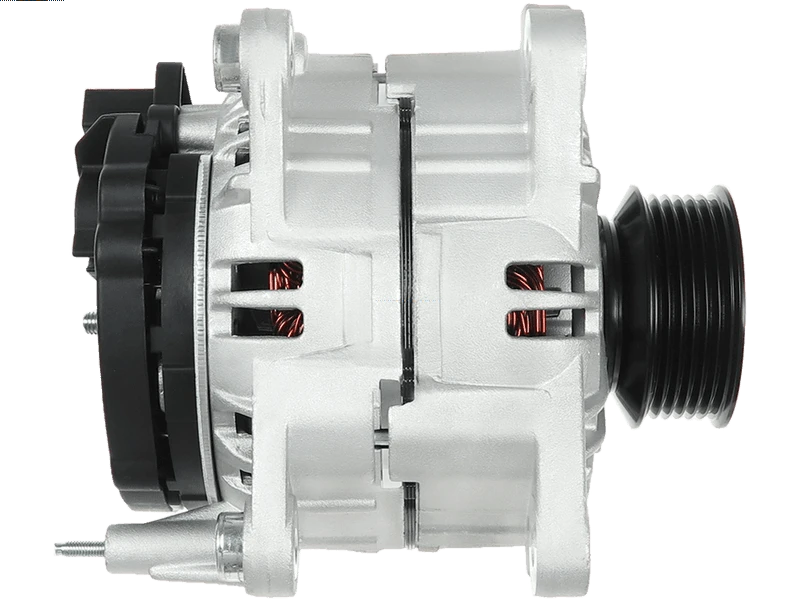

A0036 - Brand new AS-PL Alternator

Associated Numbers

0124515013 0124515020 0124515021 0124515038 0124515068 074903025J 074903025Q 074903025R 0986041140 0986041890 11.1445 11.1445M 113754 20101362BN 20101362OE 2010263 20130246 28-3630 28-3842 301445RI 301644RI 301644RIB 301644RIV 32041890 4060 437596 437661 56801 8111119 8111122 89212262 8EL737643-001 9041890 9442130 9459093 A0036 AEC1445 ALT10365 B120516076 CA1445IR CAL10263AS CAL10263GS DRB1890 EAA-221072 LRA01812 LRA01948 Bosch show 0124515013RR RNL 0124515209 Volkswagen ruil 0986041891 Cargo 12201139 AES 283842 Elstock 305523120 PSH Valeo 746153 8602322 Volvo Wood Auto HC-Parts Remy HCA1445IR Lucas LRA1948 MAR5641 Magneti Marelli OAN11402 Optimum RNL4189 RNL4189T WOOALT10365 22812 283630 440821 815510120 ALT10865 ALTH154 Unipoint BOS0124515021 CA2146IR F042A0H154 LRA1812 WOOALT10865 6517103 anb5010 anv011gq 0-124-515-013 IAT A22948 Lester 22948 PIC 220-5355 SEG Automotive 0124.515.209 Group HC CARGO Industry Voltux V2-22948 LESTER ROBERT BOSCH VOLKSWAGON Other original no. View less 0124515013SEL +line Exchange 119795 FARC 12041890 EuroTec 2113011202 DRI 2205355 DAS Herth Buss CEVAM 441592 Logistik EAI 5748 Spidan 8EL737643001 Hella Frisians 9041890F 941890 EDR AS-PL A0036PR A132268 Short code A149568 A157190 AA5261 Charge ABE1098 Everkraft Electro AL288 SAS Parts IR6546 Protech L41140 ATL L41890 RE73611N The New Line SP5748 VLN901445 ADI WSD24723 Stabeco

Specifications

Amp	120 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8 mm
Diameter (D.2)	8 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Length (L.1)	192 mm
Mount Inside Length or Pad Mount C-C (C)	61.50 mm
OEM Product	No
Plug Code	PL_2300
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	67.50 mm
Pulley to Mount Distance (A)	40 mm
Pulley Type	Solid
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	S60 2.4 D	[D5244T2]	01.2001-12.2010
VOLVO	S60 2.4 D5	[D5244T]	01.2001-12.2010
VOLVO	S70 2.5 TDi	[D5252T]	01.1997-12.2000
VOLVO	S70 2.5 TDi AWD	[D5252T]	01.1999-12.2000
VOLVO	S80 2.4 D	[D5244T2]	01.2001-12.2006
VOLVO	S80 2.5 TDi	[D5252T]	01.1999-12.2006
VOLVO	V70 2.4 D	[D5244T2]	01.2001-12.2007
VOLVO	V70 2.4 D5	[D5244T]	01.2001-12.2008
VOLVO	V70 2.4 D5	[D5244T2]	01.2001-12.2008
VOLVO	V70 2.4 D5	[D5244T5]	01.2001-12.2008
VOLVO	V70 2.4 D5 AWD	[D5244T]	01.2002-12.2007
VOLVO	V70 2.4 D5 AWD	[D5244T2]	01.2002-12.2007
VOLVO	V70 2.4 D5 AWD	[D5244T5]	01.2002-12.2007
VOLVO	V70 2.5 TDi	[D5252T]	01.1995-12.2000
VOLVO	V70 2.5 TDi	[D5252T]	01.1999-12.2007
VOLVO	V70 2.5 TDi AWD	[D5252T]	01.1996-12.2000
VOLVO	XC70 Cross Country 2.4 D5 XC AWD	[D5244T]	01.2002-12.2007
VOLVO	XC90 D5 AWD	[D5244T]	01.2002-12.2006
VOLVO	XC90 D5 AWD	[D5244T5]	01.2002-12.2006
VW	LT 28-35 2.5 SDI	[AGX]	01.1996-12.2006
VW	LT 28-35 2.5 TDi	[AHD]	01.1996-12.1999
VW	LT 28-35 2.5 TDi	[ANJ]	01.1999-12.2006
VW	LT 28-35 2.5 TDi	[APA]	01.1999-12.2006
VW	LT 28-35 2.5 TDi	[AVR]	01.1999-12.2006
VW	LT 28-35 2.5 TDi	[BBE]	01.2001-12.2006
VW	LT 28-35 2.5 TDi	[BBF]	01.2001-12.2006
VW	LT 28-46 2.5 SDI	[AGX]	01.1996-12.2006
VW	LT 28-46 2.5 TDi	[AHD]	01.1996-12.1999
VW	LT 28-46 2.5 TDi	[ANJ]	01.1999-12.2006
VW	LT 28-46 2.5 TDi	[APA]	01.1999-12.2006
VW	LT 28-46 2.5 TDi	[AVR]	01.1999-12.2006
VW	LT 28-46 2.5 TDi	[BBE]	01.2001-12.2006
VW	LT 28-46 2.5 TDi	[BBF]	01.2001-12.2006
VW	Transporter 2.5	[AAF]	01.1990-12.2003
VW	Transporter 2.5	[ACU]	01.1990-12.2003
VW	Transporter 2.5	[AEN]	01.1990-12.2003
VW	Transporter 2.5	[AET]	01.1996-12.2003
VW	Transporter 2.5	[AEU]	01.1990-12.2003
VW	Transporter 2.5	[APL]	01.1996-12.2003
VW	Transporter 2.5	[AVT]	01.1996-12.2003
VW	Transporter 2.5 Syncro	[AAF]	01.1992-12.2001
VW	Transporter 2.5 Syncro	[AAF]	01.1992-12.2003
VW	Transporter 2.5 Syncro	[AAF]	01.1996-12.2001
VW	Transporter 2.5 Syncro	[ACU]	01.1992-12.2001
VW	Transporter 2.5 Syncro	[ACU]	01.1992-12.2003
VW	Transporter 2.5 Syncro	[ACU]	01.1996-12.2001
VW	Transporter 2.5 Syncro	[AEN]	01.1992-12.2001
VW	Transporter 2.5 Syncro	[AEN]	01.1992-12.2003
VW	Transporter 2.5 Syncro	[AEN]	01.1996-12.2001
VW	Transporter 2.5 Syncro	[AET]	01.1996-12.2003
VW	Transporter 2.5 Syncro	[AEU]	01.1992-12.2001
VW	Transporter 2.5 Syncro	[AEU]	01.1992-12.2003
VW	Transporter 2.5 Syncro	[AEU]	01.1996-12.2001
VW	Transporter 2.5 Syncro	[APL]	01.1996-12.2003
VW	Transporter 2.5 Syncro	[AVT]	01.1996-12.2003
VW	Transporter 2.5 TDi	[ACV]	01.1995-12.2003
VW	Transporter 2.5 TDi	[AHY]	01.1998-12.2003
VW	Transporter 2.5 TDi	[AHY]	01.2000-12.2003
VW	Transporter 2.5 TDi	[AJT]	01.1998-12.2003
VW	Transporter 2.5 TDi	[AUF]	01.1995-12.2003
VW	Transporter 2.5 TDi	[AXG]	01.1998-12.2003
VW	Transporter 2.5 TDi	[AXG]	01.2000-12.2003
VW	Transporter 2.5 TDi	[AYC]	01.1995-12.2003
VW	Transporter 2.5 TDi	[AYY]	01.1998-12.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	01.1995-12.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	01.1996-12.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	01.1998-12.2003
VW	Transporter 2.5 TDi Syncro	[AXL]	01.1995-12.2003
VW	Transporter 2.5 TDi Syncro	[AXL]	01.1996-12.2003
VW	Transporter 2.5 TDi Syncro	[AXL]	01.1998-12.2003

Reference Information

0124515013	BOSCH
038903018B	VW
038903018BX	VW
063731445010	MAGNETI MARELLI
074903025J	VW
074903025N	VW
074903025Q	VW
074903025R	VW
0986041890	BOSCH
113754	CARGO
1516471R	DAF
200038	VALEO
20101362BN	REAL
20101362OE	REAL
2010263.0	SANDO
2010263.1	SANDO
20130246	PRESTOLITE
210605	ERA
22812R	WAI / TRANSPO
28-3842	ELSTOCK
301445RI	KUHNER
305.523.120.010	PSH
310825	RHIAG
32041890	HERTH+BUSS
4060	CEVAM
437661	VALEO
441592	LOGISTIK
4G0048	RIDEX
5510021	MEAT & DORIA
56801	EAI
74903025J	VW
74903025R	VW
8111119	VOLVO
8111122	VOLVO
8602322	VOLVO
89212262	POWERMAX
8EL012427-541	HELLA
8EL737643-001	HELLA
9442130	VOLVO
944390418900	MAGNETI MARELLI
9459093	VOLVO
A0036	AS-PL
A12BH0186	SIDAT
A12BH0186A2	SIDAT
AEC1445	AUTOELECTRO
AI-90045	AINDE
ALB1445	KRAUF
ALT10365	WOODAUTO
ALT1472	ELECTROLOG
ALT6810	SIOM
ALTL219	3EFFE
ANM44110X	ANDEL
CA1445IR	HC PARTS
CAL10263AS	CASCO
CAL10263GS	CASCO
CGB-83842	AINDE
DB3000	DELCO
DRB1890	DELCO
DRB1890X	DELCO
F032113754	CARGO
LRA01948	LUCAS
LRA1948	LUCAS
MQA1445	MAGNETI MARELLI
MRA41890	MAGNETI MARELLI
PRAL219	3EFFE
RAA22901	DELCO
STA0431R	BOVEZ
STX100010	STARDAX
STX100058	STARDAX
STX100058R	STARDAX
STX100154	STARDAX
STX100154R	STARDAX
STX100602	STARDAX
STX100602R	STARDAX
