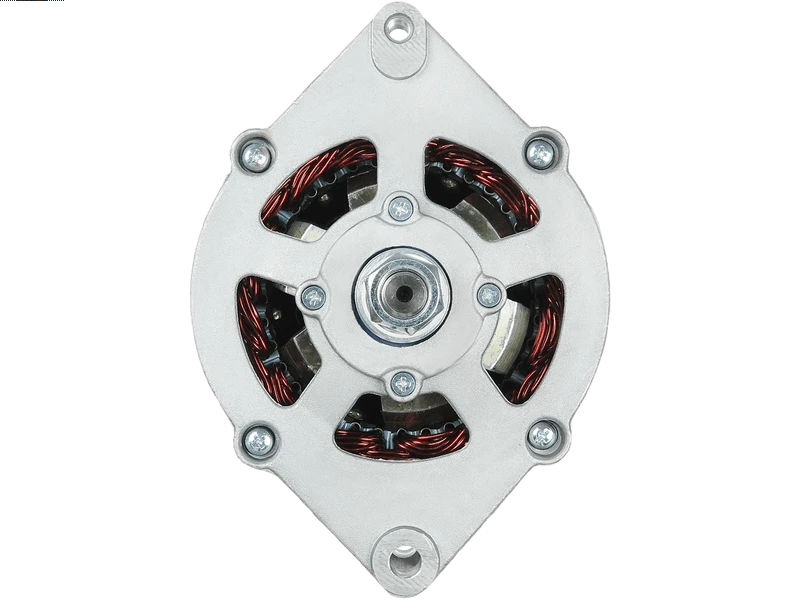

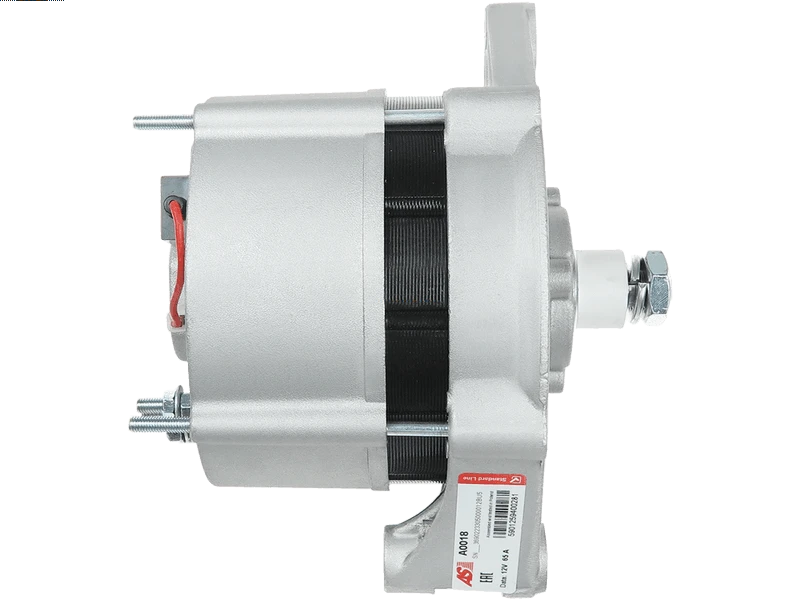

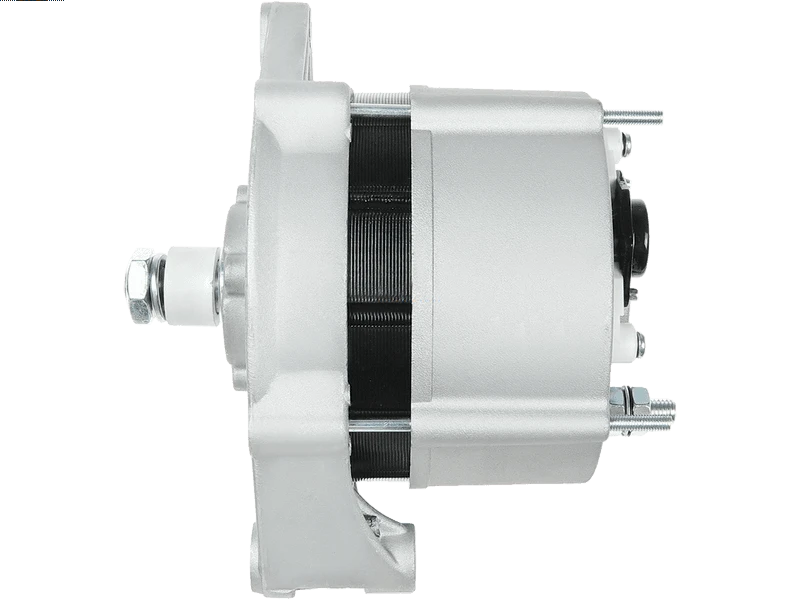

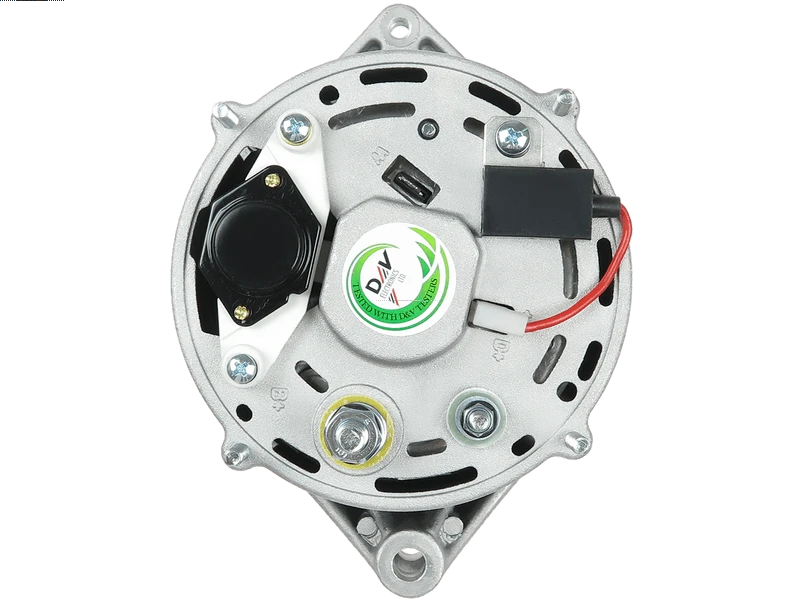

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 341.49 including GST
NZ$ 296.95 excluding GST
or four payments of $85.37
with
Learn More
UOM:
each
Product Code:
A0018
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120488205Associated Numbers
0120488205 0120488293 0120489475 0986040290 11.1197 11.201.595 11.201.935 111888 12161N 20101832BN 2010238 20110305 2077 28-2574 301197RI 301197RIM 3920679 3E7285 75869 89213596 8EL737217-001 9213596 9515170 9940290 A187873 AAK1363 AAK3330 AEA3205 ALT10105 CA1197IR CAL10238 CAL10238AS CAL10238ES CAL10238GS CAL10238OS CAL10238RS DRB0290 EAA-221301 F005A00023 IA0595 LRB00305Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 51 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 173 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | No Pulley |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BELL | 310SG | 4045 | 01.2000- |
| BELL | 315SG | 4045 | 01.2000- |
| BELL | 770CH | 01.1997- | |
| BOMAG | 11RH 3.9 | - | |
| CASE | 110 | [Cummins6BT] | 05.1997- |
| CASE | 1150 | 01.1989-12.1994 | |
| CASE | 1150 E | 01.1989-12.1994 | |
| CASE | 1155 E | 01.1989-12.1994 | |
| CASE | 120 | [Cummins6BT] | 05.1997- |
| CASE | 135 | [Cummins6BT] | 05.1997- |
| CASE | 1550 | 01.1989-12.1994 | |
| CASE | 450 C | 01.1989-12.1994 | |
| CASE | 455 | 01.1989-12.1994 | |
| CASE | 480 CK | 01.1989-12.1994 | |
| CASE | 5120 Maxxum | [6T-590] | 01.1990- |
| CASE | 5130 Maxxum | [6T-590] | 01.1990- |
| CASE | 5140 Maxxum | [6T-590] | 01.1990- |
| CASE | 580 | 01.1989-12.1994 | |
| CASE | 850 D | 01.1989-12.1994 | |
| CASE | 885 D | 01.1989-12.1994 | |
| CASE IH | 100 C | 4-244D | 01.1998-01.1999 |
| CASE IH | 110 | Cummins6BT | 05.1997- |
| CASE IH | 110 5.9 | 05.1997- | |
| CASE IH | 1150 | 01.1989-12.1994 | |
| CASE IH | 1150 E | 01.1987-12.1996 | |
| CASE IH | 1150 H | 6-590D | 01.1999-12.2006 |
| CASE IH | 1155 E | 01.1987-12.1994 | |
| CASE IH | 120 | Cummins6BT | 05.1997- |
| CASE IH | 120 5.9 | 05.1997- | |
| CASE IH | 135 | Cummins6BT | 05.1997- |
| CASE IH | 1500 C | - | |
| CASE IH | 1550 | 01.1985-12.1996 | |
| CASE IH | 170 C | 01.1988-12.1994 | |
| CASE IH | 1818 | 01.1987-03.2003 | |
| CASE IH | 1825 | 01.1987-12.1997 | |
| CASE IH | 1835 B | 01.1987-12.1992 | |
| CASE IH | 1835 C | 01.1992-01.1998 | |
| CASE IH | 1840 | 01.1990-01.1999 | |
| CASE IH | 1845 C | 4-390 | 01.1987-12.1999 |
| CASE IH | 1845 C | 01.1985- | |
| CASE IH | 1845 C | 01.1993-01.1999 | |
| CASE IH | 1896 | 6-359 | 01.1984-12.1989 |
| CASE IH | 2096 | 6-359 | 01.1984-12.1990 |
| CASE IH | 220 B | 01.1989-12.1994 | |
| CASE IH | 360 | 01.1988-01.1998 | |
| CASE IH | 4000 | 01.1986-12.1992 | |
| CASE IH | 40XT | - | |
| CASE IH | 450 C | 4-390 | 01.1989-01.1994 |
| CASE IH | 450 C | 01.1989-12.1994 | |
| CASE IH | 455 | 01.1989-12.1994 | |
| CASE IH | 455 C | 01.1990-01.1994 | |
| CASE IH | 480 CK | 4-390 | 01.1989-01.1994 |
| CASE IH | 480 CK | 01.1989-12.1994 | |
| CASE IH | 480 E | 4-390 | 01.1989-12.1994 |
| CASE IH | 480 F | 4-390 | 01.1989-12.1994 |
| CASE IH | 5000 | 01.1986-12.1992 | |
| CASE IH | 5120 | 01.1989-01.1999 | |
| CASE IH | 5120 3.9 | 4-239 | 01.1990-01.1991 |
| CASE IH | 5120 Maxxum | 6T-590 | 01.1990- |
| CASE IH | 5130 | 6-359 | 01.1990-01.1991 |
| CASE IH | 5130 | 01.1988-01.1994 | |
| CASE IH | 5130 Maxxum | 6T-590 | 01.1990- |
| CASE IH | 5140 | 6-359 | 01.1990-01.1991 |
| CASE IH | 5140 | 01.1988-01.1994 | |
| CASE IH | 5140 Maxxum | 6T-590 | 01.1990- |
| CASE IH | 5150 | 01.1988-01.1994 | |
| CASE IH | 5220 | 4-239 | 01.1992-01.1997 |
| CASE IH | 5230 | 6-359 | 01.1992-01.1997 |
| CASE IH | 5240 | 6-359 | 01.1992-01.1997 |
| CASE IH | 5250 | 6-359 | 01.1992-01.1997 |
| CASE IH | 5420 | 01.1988-01.1994 | |
| CASE IH | 548 E | 01.1989-12.1992 | |
| CASE IH | 550 | 4-290 | 01.1989-01.1991 |
| CASE IH | 550 | 4-390 | 01.1989-01.1991 |
| CASE IH | 550 E | 4-390 | 01.1992-12.1995 |
| CASE IH | 550 G | 4-290 | 01.1992-01.2000 |
| CASE IH | 550 G | 4-390 | 01.1992-01.2000 |
| CASE IH | 550 H | 4-390 | 01.1999-12.2000 |
| CASE IH | 560 | 01.1998-01.2001 | |
| CASE IH | 570 LXT | 4-390 | 01.1995-12.1999 |
| CASE IH | 580 | 01.1982-12.1994 | |
| CASE IH | 580 CK | 01.1989-01.1994 | |
| CASE IH | 580 CX | 01.1992- | |
| CASE IH | 580 E | 4-390 | 01.1984-12.1994 |
| CASE IH | 580 K | 4-390 | 01.1986-12.1994 |
| CASE IH | 580 M | 445/M2 | - |
| CASE IH | 580 SK | - | |
| CASE IH | 580 Super L | 4-390 | 01.1996-07.2007 |
| CASE IH | 584 | D-206 | 01.1984-12.1990 |
| CASE IH | 584 E | 4-390 | 01.1987-12.1999 |
| CASE IH | 584 G | 4-390 | 01.1999-12.2000 |
| CASE IH | 585 E | 4-390 | 01.1987-12.1999 |
| CASE IH | 585 G | 4-390 | 01.1999-01.2000 |
| CASE IH | 586 E | 4-390 | 01.1987-12.1999 |
| CASE IH | 586 G | 01.1999-01.2000 | |
| CASE IH | 588 G | 01.1999- | |
| CASE IH | 590 L | 01.1992- | |
| CASE IH | 6030 | 01.1997-12.2000 | |
| CASE IH | 60XT | - | |
| CASE IH | 621 | 01.1989-01.1994 | |
| CASE IH | 650 | 4-390 | 01.1989-12.1991 |
| CASE IH | 650 E | 01.1992-12.1995 | |
| CASE IH | 650 G | 4-390 | 01.1995-12.1999 |
| CASE IH | 650 H | 4-390 | 01.1999-12.2003 |
| CASE IH | 650 K | 4T-390 | 01.2003- |
| CASE IH | 650 K 4.5 | 4-390 | 01.2005-01.2007 |
| CASE IH | 660 | 01.1992-01.2001 | |
| CASE IH | 680 CX | 6-590D | 01.1988-01.1994 |
| CASE IH | 686 G | 4-390 | 01.1998-01.2007 |
| CASE IH | 686 G | 4T-390 | 01.1998-01.2007 |
| CASE IH | 70XT | - | |
| CASE IH | 721 | 01.1989-01.1994 | |
| CASE IH | 750 H | 4-290 | 01.1999-12.2003 |
| CASE IH | 750 H | 4-390 | 01.1999-12.2003 |
| CASE IH | 750 K | 4T-390 | 01.2000- |
| CASE IH | 75XT | 01.1998-12.2001 | |
| CASE IH | 760 | 01.1993-01.1997 | |
| CASE IH | 780 D | 6T-590 | 01.1988-01.1992 |
| CASE IH | 80XT | 01.1997- | |
| CASE IH | 821 | 01.1989-01.1994 | |
| CASE IH | 850 D | 01.1987-12.1994 | |
| CASE IH | 850 H | 6T-590 | 01.1999-12.2003 |
| CASE IH | 850 K | 6T-590 | 01.2002-01.2007 |
| CASE IH | 850 XL | 01.1989-12.1994 | |
| CASE IH | 855 D | 01.1987-01.1994 | |
| CASE IH | 85XT | 01.1997-12.2001 | |
| CASE IH | 860 | 01.1993-12.2001 | |
| CASE IH | 880 XL | 01.1989-12.1994 | |
| CASE IH | 8830 | 01.1983-01.1997 | |
| CASE IH | 8840 | 01.1987-01.1993 | |
| CASE IH | 885 D | 01.1989-12.1994 | |
| CASE IH | 90XT | 01.1998-01.2001 | |
| CASE IH | 921 | 01.1989-01.1994 | |
| CASE IH | 95XT | 01.1998-12.2001 | |
| CASE IH | 9840 | 01.1987-12.1993 | |
| CASE IH | DH4B | 01.1988-01.1991 | |
| CASE IH | M968A | 01.1998- | |
| CASE IH | MX100 | 6-359D | 01.1997-01.1999 |
| CASE IH | MX110 | 6-359D | 01.1997-01.1999 |
| CASE IH | MX120 | 6-359D | 01.1997-01.1999 |
| CASE IH | MX135 | 6-359D | 01.1997-01.1999 |
| CASE IH | TF300 | 01.1988- | |
| CASE IH | W11 | 4-390 | 01.1987-12.1994 |
| CASE IH | W1102 D | - | |
| CASE IH | W11 B | 4-390 | 01.1987-12.1994 |
| CASE IH | W11C | 4-390 | 01.1987-12.1994 |
| CASE IH | W14 C | 01.1989-12.1994 | |
| CASE IH | W602 D | - | |
| CATERPILLAR | 416 | 4-236 | 01.1985-12.1993 |
| CATERPILLAR | 426B | 3054 | 01.1992-12.1996 |
| CATERPILLAR | 428 | 4-236 | 01.1986-12.1992 |
| CATERPILLAR | 436 | 4-236 | 01.1986-12.1992 |
| CATERPILLAR | T40E | - | |
| CATERPILLAR | T50E | - | |
| CATERPILLAR | TC60E | - | |
| DAEWOO | D20S | - | |
| DAEWOO | D25S | - | |
| DAEWOO | D30S | - | |
| DAEWOO | D35S | - | |
| DAEWOO | D40S | - | |
| DAEWOO | D45S | - | |
| DAEWOO | G20 | - | |
| DAEWOO | G20S | - | |
| DAEWOO | G25 | - | |
| DAEWOO | G30S | - | |
| DAEWOO | G35S | - | |
| DAEWOO | G40S | - | |
| DAEWOO | GC20 | - | |
| DAEWOO | GC25 | - | |
| DAEWOO | GC30S | - | |
| HARLO | HC5600 3.9 | 4B3.9C | - |
| HARLO | HC8000 | - | |
| HARLO | HC8000 3.9 | 4B3.9C | - |
| INGERSOLL RAND | 125 CFM | 01.1972- | |
| INGERSOLL RAND | 375 5.9 | 01.1996-12.1997 | |
| INGERSOLL RAND | 70KVA Prime Generator | - | |
| INGERSOLL RAND | G115 | - | |
| INGERSOLL RAND | G375 | - | |
| INGERSOLL RAND | G50 | 01.2000- | |
| INGERSOLL RAND | G70 | - | |
| INGERSOLL RAND | G80 | - | |
| INGERSOLL RAND | G90 | - | |
| INGERSOLL RAND | P 185 Neptune | - | |
| INGERSOLL RAND | P 185 Platinium | - | |
| INGERSOLL RAND | P 250 Neptune | - | |
| INGERSOLL RAND | VR 1044 | 01.1999- | |
| INGERSOLL RAND | VR-1056 | 01.1999- | |
| INGERSOLL RAND | VR-636 3.9 | 4BT3.9 | 01.1998- |
| INGERSOLL RAND | VR-642 3.9 | 4BT3.9 | 01.1998- |
| INGERSOLL RAND | VR-843 | 01.1992- | |
| INTERNATIONAL HARV. | Maxxum 5110 A | 4-390 | 01.1988- |
| INTERNATIONAL HARV. | Maxxum 5120 A | 4TA-390 | 01.1990-12.1997 |
| INTERNATIONAL HARV. | Maxxum 5130 A | 01.1990-12.1997 | |
| INTERNATIONAL HARV. | Maxxum 5140 A | 01.1990-12.1997 | |
| INTERNATIONAL HARV. | Maxxum 5150 A | 01.1992-12.1997 | |
| JOHN DEERE | Series 3000 3200A, 3200 AX | 4039DRT35 | 01.1995-12.1998 |
| LIEBHERR | L514 Stereo 4.5 | 4045HF288 | - |
| NEW HOLLAND | D75 4.5 | 01.2006- | |
| NEW HOLLAND | D85 4.5 | 01.2006- | |
| NEW HOLLAND | D95 | 01.2006- | |
| NEW HOLLAND | DC75 | 01.2004- | |
| NEW HOLLAND | DC85 | 01.2004- | |
| NEW HOLLAND | DC95 | 01.2004- | |
| NEW HOLLAND | TM72 | - | |
| RAPTOR | 1000 Pro | 01.2003- | |
| RAPTOR | 1200 Pro | 01.2003- | |
| RAPTOR | 850 | 01.2003- | |
| SULLAIR | 185 4.0 | 4045 | 01.1997- |
| SULLAIR | 250 4.0 | 4045 | 01.1997- |
| THERMO KING | 30 TC Multi | 01.1993- | |
| TIMBERJACK | 360D | 01.1999- | |
| TIMBERJACK | 460D | 01.1992- | |
| TIMBERJACK | 460TC | 01.2000- | |
| VERMEER | P185 Renegade | 01.1997- | |
| VERMEER | V4150 | F3L1011F | 01.1995- |
| VERMEER | V4150A | F3L1011F | 01.1997- |
Reference Information
| 011308 | DA SILVA |
| 0120488205 | BOSCH |
| 0120488293 | BOSCH |
| 0120489475 | BOSCH |
| 0986040290 | BOSCH |
| 0986040297 | BOSCH |
| 10442090 | ALANKO |
| 11.1197 | LAUBER |
| 111888 | CARGO |
| 11.201.595 | ISKRA / LETRIKA |
| 11.201.935 | ISKRA / LETRIKA |
| 11442090 | ALANKO |
| 12040290 | EUROTEC |
| 12161N | WAI |
| 20101832BN | REAL |
| 2010238.0 | SANDO |
| 20110305 | PRESTOLITE |
| 2077 | CEVAM |
| 210321 | ERA |
| 28-2574 | ELSTOCK |
| 301197RI | KUHNER |
| 301197RIM | KUHNER |
| 3604448RX | CUMMINS |
| 3911248 | CUMMINS |
| 3920679 | CUMMINS |
| 39206791 | CUMMINS |
| 39206791 | SCANIA |
| 3E7285 | CATERPILLAR |
| 441220 | LOGISTIK |
| 441344 | LOGISTIK |
| 47977898 | CASE |
| 585104652 | DRI |
| 635.005.065.010 | WAI |
| 635.005.065.090 | WAI |
| 635.005.065.311 | WAI |
| 635.005.065.440 | WAI |
| 635.005.065.555 | WAI |
| 75869 | EAI |
| 89213596 | POWERMAX |
| 8EL737217-001 | HELLA |
| 9213596 | POWERMAX |
| 9515170 | MAGNETON |
| 9940290 | FRIESEN |
| A0018 | AS-PL |
| A12BH0311A2 | SIDAT |
| A181873 | CASE |
| A186125 | CASE |
| A187873 | CASE |
| AAK1363 | ISKRA / LETRIKA |
| AAK3330 | ISKRA / LETRIKA |
| ABO238A | AUTOTEAM |
| AEA3205 | AUTOELECTRO |
| ALB1197 | KRAUF |
| ALT10105 | WOODAUTO |
| ALT122380 | SIOM |
| ALT122380A | SIOM |
| ALT1443 | ELECTROLOG |
| ALTL425 | 3EFFE |
| ANM42510X | ANDEL |
| AT173624 | JOHN DEERE |
| CA1197IR | HC PARTS |
| CAL10238AS | CASCO |
| CGB-10290 | AINDE |
| DRB0290 | DELCO |
| F005A00023 | BOSCH |
| F032111888 | CARGO |
| IA0595 | ISKRA / LETRIKA |
| L40290 | ATL AUTOTECHNIK |
| L610801 | BTS TURBO |
| LRB00305 | LUCAS |
| LRB305 | LUCAS |
| MG 279 | MAHLE |
| PRAL425 | 3EFFE |
| RE509106 | JOHN DEERE |
| RE533516 | JOHN DEERE |
| SE501387 | JOHN DEERE |
| STX100383 | STARDAX |
Video/Publications
A0018View your shopping basket or Browse other items in Alternators.
