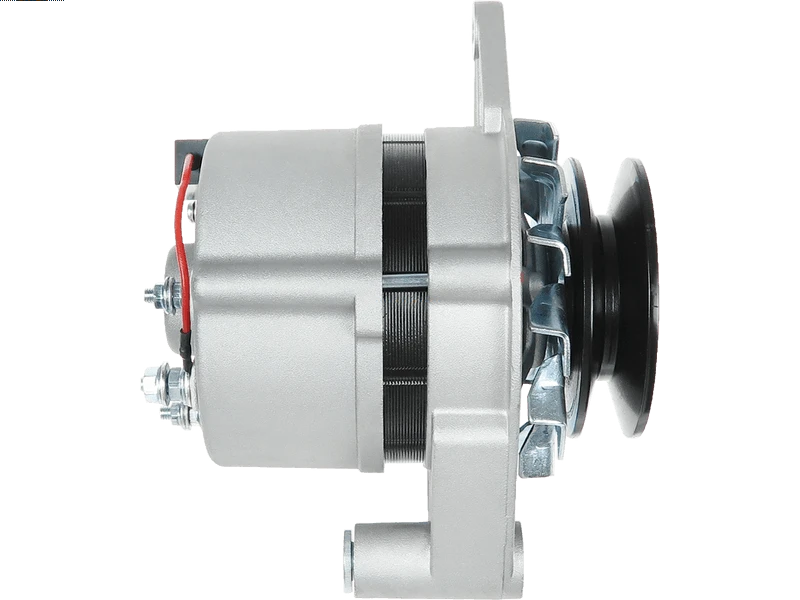

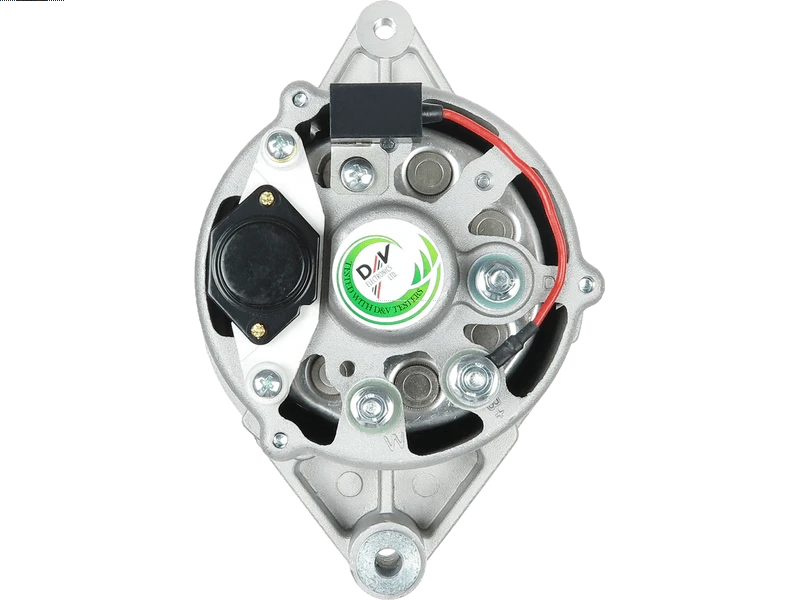

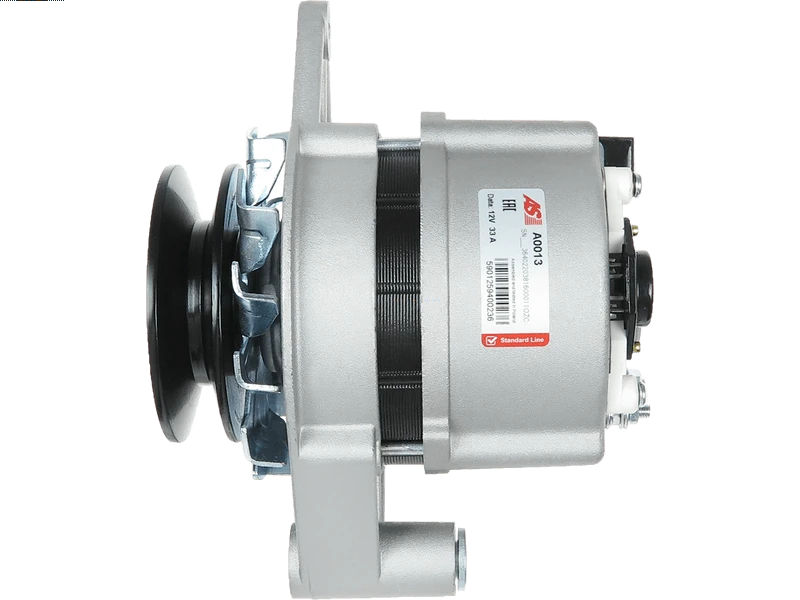

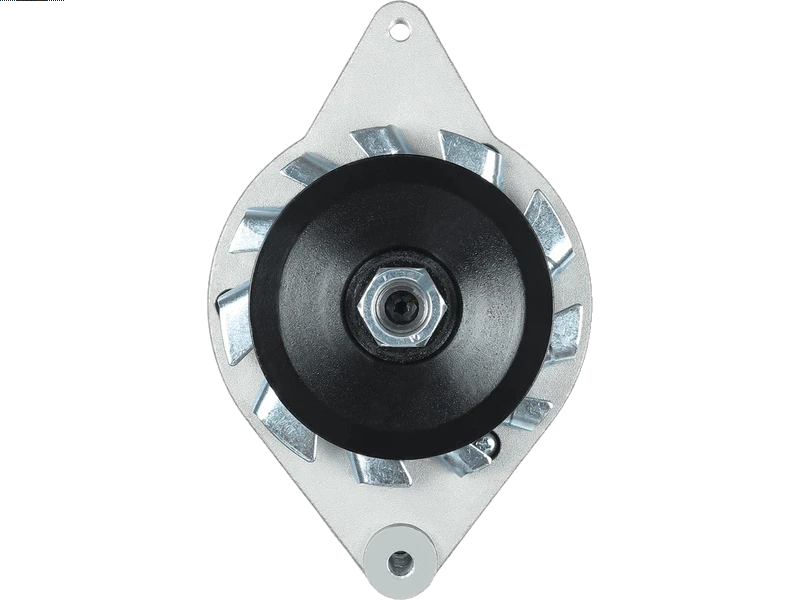

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 230.23 including GST
NZ$ 200.20 excluding GST
or four payments of $57.56
with
Learn More
UOM:
each
Alternative Item:
A9235S
Product Code:
A0013
Quantity In Stock Nationally
1 in stock nationally
Associated Numbers
0061542902 0120300517 0120300562 0120339511 0120339512 0120339513 0120339543 0120339544 0120339545 0120400775 0986030110 11.0734 11.201.784 111649 13193N 13194N 160-39102 2010159 20101951BN 20110293 2384 27-0730 30522RI 30734RI 30734RIM 40099300 436267 555.001.033 6005706662 72735437 75642 7901820 8EL730032-001 9930110 A-6107 A0013 A0061542902 AAG1343 AG0011 AL62401 ALT20029 AR62401 AZ23575 CA734IR CAL10159 CAL10159AS CAL10159ES CAL10159GS CAL10159OS CAL10159RS DRA0110 EAA-221016 EAA-221623 GA339512-A IA0784 LRA01199 LRB00136 MAHMG438 MG438 UD12251A 0031546702 Mercedes-Benz 006154290280 0120143003 Bosch 0120300512 0120300516 show 0120300518 0120300524 0120300527 0120300535 0120300549 0120300584 0120300589 0120339513SEL +line 0120339532 0120339541 0120400618 0120400662 0120400697 0120400698 022310 Steinbock ruil 0986030114 0986030117 0986UR0812 11040709 EuroTec Cargo 111948 11201119 Mahle 11201453 11201784 11201784SEL 12030110 12031440 12090721 13100 Lester 13194 200016282 DRI 200116332 220350 PIC 22310 CEVAM 241959 Volvo 2435 270556 Elstock 270730 280730 294390300 Same 294390500 294390700 294391700 35544 Agria 36099 Sparex Hatz 432994 Valeo 433052 436268 440052649 YALE 4434755 50152151 Jungheinrich 50185642 5135SP Spidan 51750 5220SP 555001033 PSH 605710100103 MWM 61542902 727549 O K 75641 EAI 75822 Claas 8EL730032001 Hella 90156071 Wilson 90156166 90158007 Hako 9120143003 9120143021 930110 EDR 9930110F Friesen 9AL2969F 9AR2862K Motorola 9AR2944K 9AR2968K 9AR5040K A006154290280 AAG1316 AL36100 John Deere AL902X (USA) AL904X ALF1213 Femsa ALT1953sa Electrolog CA522IR HC DRA0090 Remy F00E100098 HCA522IR HCA734IR IA0119 L30110 ATL L31440 L33320 LRA01046 Lucas LRB136 NA079 SE501344 TY25948 TY6605 0986030090 11209641 18200784 AES Sando 6204754 O&K 8384 AAG1364 Ghibaudi AGN1095 ADI AGN1784E AGN1784RS Wood Auto C00090001018 Agco EVEABE1176 Dapex LETIA0784 LRA1199 RNL11201784 RNL RNL11201784MD RNL11201784OER WOOALT20029Specifications
| Amp | 33 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.50 mm |
| Length (L.1) | 160 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 16 mm |
| Pulley Outside Diameter (O.D.1) | 92 mm |
| Pulley Outside Diameter (O.D.2) | 55 mm |
| Pulley to Mount Distance (A) | 85 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOSCH | DDOD 17 | Z108N | 04.1982-06.1985 |
| BOSCH | DDOD 27 | D108N | 04.1982-06.1985 |
| BOSCH | DDOD 28 | Z108N | 04.1982-06.1985 |
| BOSCH | DDOD 36 | V108N | 04.1982-06.1985 |
| BOSCH | DDOD 42 | D108N | 04.1982-06.1985 |
| BOSCH | DSFA 5 | E780 | 04.1982-12.1985 |
| BOSCH | DSFA 7.5 | E785 | 04.1982-12.1985 |
| BOSCH | DSOA 5 | E780 | 01.1986- |
| BOSCH | DSOA 8.5 | ES786 | 01.1986- |
| BOSCH | DSOD 5 | E780 | 04.1982- |
| CASE IH | Dominator 66 5.8 | 6.354.4 | 12.1983-10.1985 |
| CLAAS | 66 5.8 | [6.354] | 12.1983-10.1985 |
| CLAAS | 66 5.8 | 6.354 | 12.1983-10.1985 |
| EICHER | 3022 AS 3.9 | EDL6-3 | 01.1986-07.1983 |
| EICHER | 3026 5.9 | EDL6-1 | 01.1983- |
| EICHER | 3026 5.9 D | EDL6-1 | 03.1982- |
| EICHER | 3026 5.9 Diesel | [EDL6-1] | 03.1982- |
| EICHER | 3026 5.9 Diesel | EDL6-1 | 03.1982- |
| EICHER | 3028 5.9 Diesel | [EDL6-5] | 09.1983- |
| EICHER | 3028 5.9 Diesel | EDL6-5 | 09.1983- |
| EICHER | 3030 5.9 Diesel | [EDL6-6] | 09.1983- |
| EICHER | 3030 5.9 Diesel | EDL6-6 | 09.1983- |
| EICHER | 3085 3.9 | EDK4-12T | 07.1979-12.1980 |
| EICHER | 3105 A 5.9 | EDK6-4 | 01.1977-12.1980 |
| EICHER | 3133 A 5.9 | EDK6-7 | 10.1976-12.1980 |
| EICHER | 3257 S 3.0 D | EDL3-7 | 03.1982-12.1987 |
| EICHER | 3257, S 3.0 Diesel | [EDL3-7] | 03.1982-12.1987 |
| EICHER | 3257, S 3.0 Diesel | EDL3-7 | 03.1982-12.1987 |
| EICHER | 3258 A 3.0 | EDL3-7 | 01.1983-12.1987 |
| EICHER | 3258 A 3.0 D | EDL3-7 | 03.1982-12.1987 |
| EICHER | 3258 A, AS 3.0 Diesel | [EDL3-7] | 03.1982-12.1987 |
| EICHER | 3258 A, AS 3.0 Diesel | EDL3-7 | 03.1982-12.1987 |
| EICHER | 3258 AS 3.0 | EDL3-7 | 01.1983-12.1987 |
| EICHER | 3259 AS 3.0 D | EDL3-7 | 03.1982-12.1987 |
| EICHER | 330 2.0 | EDK2-9 | 10.1977-12.1980 |
| EICHER | 330 2.0 D | EDK2-9 | 10.1977-12.1980 |
| EICHER | 330 2.0 Diesel | [EDK2-9] | 10.1977-12.1980 |
| EICHER | 330 2.0 Diesel | EDK2-9 | 10.1977-12.1980 |
| EICHER | 3357 3.0 | EDL3-8 | 01.1983-12.1987 |
| EICHER | 3357 3.0 D | EDL3-8 | 03.1982-12.1987 |
| EICHER | 3357 3.0 Diesel | [EDL3-8] | 03.1982-12.1987 |
| EICHER | 3357 3.0 Diesel | EDL3-8 | 03.1982-12.1987 |
| EICHER | 3358 3.0 D | EDL3-8 | 03.1982-12.1987 |
| EICHER | 3358 3.0 Diesel | [EDL3-8] | 03.1982-12.1987 |
| EICHER | 3358 3.0 Diesel | EDL3-8 | 03.1982-12.1987 |
| EICHER | 3457 3.0 | EDL3-9 | 01.1983-12.1987 |
| EICHER | 3457 3.0 D | EDL3-9 | 03.1982-12.1987 |
| EICHER | 3457 3.0 Diesel | [EDL3-9] | 03.1982-12.1987 |
| EICHER | 3457 3.0 Diesel | EDL3-9 | 03.1982-12.1987 |
| EICHER | 3458 3.0 D | EDL3-9 | 03.1982-12.1987 |
| EICHER | 3458 3.0 Diesel | [EDL3-9] | 03.1982-12.1987 |
| EICHER | 3458 3.0 Diesel | EDL3-9 | 03.1982-12.1987 |
| EICHER | 3557 S 3.9 | EDL4-1 | 01.1983-07.1984 |
| EICHER | 3558 AS 3.9 | EDL4-1 | 01.1983-07.1984 |
| EICHER | 3559 3.9 | EDL4-4 | 01.1984- |
| EICHER | 3559 3.9 D | EDL4-4 | 01.1984- |
| EICHER | 3559 3.9 Diesel | [EDL4-4] | 01.1984- |
| EICHER | 3559 3.9 Diesel | EDL4-4 | 01.1984- |
| EICHER | 3560 3.9 | EDL4-4 | 01.1984- |
| EICHER | 3560 3.9 D | EDL4-4 | 01.1984- |
| EICHER | 3560 3.9 Diesel | [EDL4-4] | 01.1984- |
| EICHER | 3560 3.9 Diesel | EDL4-4 | 01.1984- |
| EICHER | 3657 S 3.9 | EDL4-2 | 01.1983-07.1984 |
| EICHER | 3658 AS 3.9 | EDL4-2 | 01.1983-07.1984 |
| EICHER | 3659 3.9 | EDL4-5 | 01.1984- |
| EICHER | 3659 3.9 Diesel | [EDL4-5] | 01.1984- |
| EICHER | 3659 3.9 Diesel | EDL4-5 | 01.1984- |
| EICHER | 3660 3.9 | EDL4-6 | 01.1984- |
| EICHER | 3660 3.9 D | EDL4-6 | 01.1984- |
| EICHER | 3660 3.9 Diesel | [EDL4-6] | 01.1984- |
| EICHER | 3660 3.9 Diesel | EDL4-6 | 01.1984- |
| EICHER | 3719 K 2.0 | EDL2-1 | 01.1983-07.1985 |
| EICHER | 3719 L 2.0 | EDL2-2 | 01.1983-07.1985 |
| EICHER | 3720 KA 2.0 | EDL2-1 | 01.1983-12.1984 |
| EICHER | 3720 LA 2.0 | EDL2-2 | 01.1983-12.1984 |
| EICHER | 3721 L 3.0 | EDL3-6 | 01.1983-12.1984 |
| EICHER | 3722 LA 3.0 | EDL3-6 | 01.1983-12.1984 |
| EICHER | 3723 K 3.0 | EDL3-3 | 01.1983-12.1984 |
| EICHER | 3724 KA 3.0 | EDL3-3 | 01.1983-12.1984 |
| EICHER | 3725 P 3.0 | EDL3-2 | 01.1983-12.1984 |
| EICHER | 3725 P 3.0 | EDL3-4 | 01.1983-12.1984 |
| EICHER | 3725 S 3.0 | EDL3-1 | 01.1983-12.1984 |
| EICHER | 3725 S 3.0 | EDL3-5 | 01.1983-12.1984 |
| EICHER | 3726 PA 3.0 | EDL3-2 | 01.1983-12.1984 |
| EICHER | 3726 PA 3.0 | EDL3-4 | 01.1983-12.1984 |
| EICHER | 3726 SA 3.0 | EDL3-1 | 01.1983-12.1984 |
| EICHER | 3726 SA 3.0 | EDL3-5 | 01.1983-12.1984 |
| EICHER | 3727 3.9 | EDL4-3 | 01.1983-12.1984 |
| EICHER | 3728 A 3.9 | EDL4-3 | 01.1983-12.1984 |
| EICHER | 534 AS 2.0 | EDK2-11 | 06.1980-12.1980 |
| EICHER | 542 AS 2.9 | EDK3-9 | 09.1980-12.1980 |
| EICHER | 542 ASK 2.9 | EDK3-8 | 09.1980-12.1980 |
| EICHER | 542 SK 2.9 | EDK3-8 | 09.1980-12.1980 |
| EICHER | 550 P 2.9 | EDK3-10 | 05.1980-12.1980 |
| EICHER | 550 PA 2.9 | EDK3-10 | 05.1980-12.1980 |
| EICHER | 565 AS 2.9 | EDK4-11 | 05.1980-12.1980 |
| EICHER | 635 K 1.9 | EDL2-2 | 01.1986- |
| EICHER | 635 K 1.9 D | EDL2-2 | 01.1986- |
| EICHER | 635 KA 1.9 | EDL2-2 | 01.1986- |
| EICHER | 635 KA 1.9 D | EDL2-2 | 01.1986- |
| EICHER | 635 K, KA 1.9 Diesel | [EDL2-2] | 01.1986- |
| EICHER | 635 K, KA 1.9 Diesel | EDL2-2 | 01.1986- |
| EICHER | 642 K 1.9 | EDL2-4 | 01.1986- |
| EICHER | 642 K 1.9 D | EDL2-4 | 01.1986- |
| EICHER | 642 KA 1.9 | EDL2-4 | 01.1986- |
| EICHER | 642 K, KA 1.9 Diesel | [EDL2-4] | 01.1986- |
| EICHER | 642 K, KA 1.9 Diesel | EDL2-4 | 01.1986- |
| EICHER | 643 KA 1.9 D | EDL2-4 | 01.1986- |
| EICHER | 645 K 2.9 D | EDL3-6 | 01.1986- |
| EICHER | 645 KA 2.9 D | EDL3-6 | 01.1986- |
| EICHER | 645 K, KA 2.9 Diesel | [EDL3-6] | 01.1986- |
| EICHER | 645 K, KA 2.9 Diesel | EDL3-6 | 01.1986- |
| EICHER | 648 V 2.9 | EDL3-7.2 | 01.1978- |
| EICHER | 648 V 2.9 D | EDL3-7.2 | 01.1987- |
| EICHER | 648 VA 2.9 | EDL3-7.2 | 01.1978- |
| EICHER | 648 V, VA 2.9 Diesel | [EDL3-7.2] | 01.1987- |
| EICHER | 648 V, VA 2.9 Diesel | EDL3-7.2 | 01.1987- |
| EICHER | 649 VA 2.9 D | EDL3-7.2 | 01.1987- |
| EICHER | 649 VA2.9 D | EDL3-7.2 | 01.1987- |
| EICHER | 656 P 2.9 | EDL3-8.1 | 01.1978-11.1987 |
| EICHER | 656 PA 2.9 | EDL3-8.1 | 01.1978-11.1987 |
| EICHER | 656 V 2.9 | EDL3-8.1 | 01.1986-11.1987 |
| EICHER | 656 VA 2.9 | EDL3-8.1 | 01.1986-11.1987 |
| EICHER | 666 P 2.9 | EDL3-9.1 | 01.1987- |
| EICHER | 666 P 2.9 D | EDL3-9.1 | 01.1987- |
| EICHER | 666 PA 2.9 D | EDL3-9.1 | 01.1987- |
| EICHER | 666 P,PA 2.9 Diesel | [EDL3-9.1] | 01.1987- |
| EICHER | 666 P,PA 2.9 Diesel | EDL3-9.1 | 01.1987- |
| EICHER | 666 V 2.9 | EDL3-9.1 | 01.1986- |
| EICHER | 666 V 2.9 D | EDL3-9.1 | 01.1986- |
| EICHER | 666 VA 2.9 | EDL3-9.1 | 01.1986- |
| EICHER | 666 VA 2.9 D | EDL3-9.1 | 01.1986- |
| EICHER | 666 V, VA 2.9 Diesel | [EDL3-9.1] | 01.1986- |
| EICHER | 666 V, VA 2.9 Diesel | EDL3-9.1 | 01.1986- |
| EICHER | 667 PA 2.9 | EDL3-9.1 | 01.1987- |
| EICHER | 680 P 3.9 D | EDL4-5.1 | 01.1987- |
| EICHER | 680 PA 3.9 | EDL4-5.1 | 01.1987- |
| EICHER | 680 PA 3.9 D | EDL4-5.1 | 01.1987- |
| EICHER | 680 P, PA 3.9 Diesel | [EDL4-5.1] | 01.1987- |
| EICHER | 680 P, PA 3.9 Diesel | EDL4-5.1 | 01.1987- |
| EICHER | 681 P 3.9 | EDL4-5.1 | 01.1987- |
| JOHN DEERE | Series 2050 2150 | 01.1983- | |
| JOHN DEERE | Series 2050 2150 | 01.1983- | |
| JOHN DEERE | Series 2050 2255 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2350 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2350 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2550 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2550 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2750 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2750 | 01.1983-12.1986 | |
| JOHN DEERE | Series 2050 2950 | 01.1983-12.1986 | |
| LAMBORGHINI | 235 S 1.8 | 01.1983-09.1990 | |
| LAMBORGHINI | 362 1.8 | 04.1981-01.1985 | |
| LAMBORGHINI | 453 2.7 | 04.1981-01.1984 | |
| LAMBORGHINI | 483 2.7 | 05.1982-01.1985 | |
| LAMBORGHINI | 513 DT 2.7 | 03.1983- | |
| LAMBORGHINI | 533 2.7 | 04.1981-01.1984 | |
| LAMBORGHINI | R 235 F 1.8 Diesel | 10.1990-12.1999 | |
| LAMBORGHINI | R 235 S 1.8 Diesel | 01.1983-09.1990 | |
| LAMBORGHINI | R 513 2.7 Diesel | [983L] | 03.1983-12.1995 |
| LAMBORGHINI | R 513 2.7 Diesel | 983L | 03.1983-12.1995 |
| PALMIERI | 1500 GN 15 1.8 | 982LP | 06.1974-01.1982 |
| PALMIERI | 1500 GN 15 2.1 | 1052LP | 06.1974-12.1985 |
| PALMIERI | 1800 GN 18 1.8 | 982L | 06.1974-01.1982 |
| PALMIERI | 1800 GN 24 2.1 | 1052L | 06.1974-01.1987 |
| SAME | 105 2.1 | 2LP | 03.1973-06.1983 |
| SAME | 982 LP 1.8 | 03.1970-06.1983 | |
| SAME | Aurora 45 2.7 | 983L | 03.1973-02.1982 |
| SAME | Condor C 2.7 | 983L | 06.1980-04.1986 |
| SAME | Delfino 35 1.8 | 982L | 01.1972-08.1985 |
| SAME | Falcon 2.7 | 983L | 07.1975-10.1987 |
| SAME | Fox 35 1.8 | 982L | 01.1981-04.1986 |
| SAME | Fox 45 2.7 | 983L | 01.1981-04.1986 |
| SAME | Fox 55 1.8 | 983L | 01.1981-04.1986 |
| SAME | Ranger 45 2.7 | 983L | 02.1982-08.1997 |
| SAME | Sirenetta 1.8 | 982L | 01.1972-10.1981 |
| SAME | Vigneron 35 1.8 | 982L | 03.1978-08.1985 |
| SAME | Vigneron 45 2.7 | 983L | 03.1978-01.1982 |
| SAME | Vigneron 50 2.7 | 03.1978-01.1982 | |
| SAME | Vigneron 60 3.1 | 105.3P | 03.1978-02.1988 |
| VOLVO | SD110B | - |
Reference Information
| 0061542902 | MERCEDES |
| 006154290280 | MERCEDES |
| 0120143003 | BOSCH |
| 0120300512 | BOSCH |
| 0120300516 | BOSCH |
| 0120300517 | BOSCH |
| 0120300535 | BOSCH |
| 0120300562 | BOSCH |
| 0120339511 | BOSCH |
| 0120339512 | BOSCH |
| 0120339513 | BOSCH |
| 0120339532 | BOSCH |
| 0120339543 | BOSCH |
| 0120339544 | BOSCH |
| 0120339545 | BOSCH |
| 0120400775 | BOSCH |
| 0986030110 | BOSCH |
| 10441956 | ALANKO |
| 111649 | CARGO |
| 11.201.119 | ISKRA / LETRIKA |
| 11.201.784 | ISKRA / LETRIKA |
| 11.209.641 | ISKRA / LETRIKA |
| 13194N | WAI |
| 160-39102 | DIXIE |
| 19093094 | DELCO |
| 2010159.0 | SANDO |
| 20101951BN | REAL |
| 220-10143 | ROBERT'S |
| 2384 | CEVAM |
| 28-0730 | ELSTOCK |
| 294390300 | SAME |
| 294390700 | SAME |
| 294391700 | SAME |
| 30734RI | KUHNER |
| 30734RIM | KUHNER |
| 3165252M1 | MASSEY FERGUSON |
| 432994 | VALEO |
| 436268 | VALEO |
| 440881 | LOGISTIK |
| 51750 | AGRIA |
| 5548957 | MEAT & DORIA |
| 555.001.033.010 | WAI |
| 555.001.033.098 | WAI |
| 555.001.033.099 | WAI |
| 555.001.033.311 | WAI |
| 6005706662 | CLAAS |
| 605710100103 | MWM |
| 6204754 | VOLVO |
| 72520553 | ISKRA / LETRIKA |
| 72735437 | MAHLE |
| 727549 | O&K |
| 75642 | EAI |
| 7901820 | CLAAS |
| 9AL2969F | VALEO |
| 9AR2862K | VALEO |
| 9AR2968 | VALEO |
| 9AR2968K | VALEO |
| A0013 | AS-PL |
| A0061542902 | MERCEDES |
| A006154290280 | MERCEDES |
| A12BH0056A2 | SIDAT |
| A133.134 | WAI |
| A146.984 | WAI |
| A-6107 | DIXIE |
| AAG1316 | ISKRA / LETRIKA |
| AAG1343 | ISKRA / LETRIKA |
| AAG1364 | ISKRA / LETRIKA |
| AL28516 | JOHN DEERE |
| AL32141 | JOHN DEERE |
| AL35998 | JOHN DEERE |
| AL36100 | JOHN DEERE |
| AL62401 | JOHN DEERE |
| ALB0734 | KRAUF |
| ALT1953 | ELECTROLOG |
| ALT20029 | WOODAUTO |
| ALT79187 | ELECTROLOG |
| ALTL269 | 3EFFE |
| AM-3933 | AUTO MAGNETO |
| ANM32330X | ANDEL |
| AR62401 | JOHN DEERE |
| AZ23314 | JOHN DEERE |
| AZ23575 | JOHN DEERE |
| AZ26910 | JOHN DEERE |
| C00090001018 | AGCO |
| C000900010180 | AGCO |
| CA734IR | HC PARTS |
| CAL10159AS | CASCO |
| CGB-10560 | AINDE |
| CT6005706662 | CLAAS |
| DA1220 | DELCO |
| DRA0110 | DELCO |
| E019083A | CASE |
| F032111649 | CARGO |
| IA0784 | ISKRA / LETRIKA |
| LRA01199 | LUCAS |
| LRA1199 | LUCAS |
| MAHMG438 | WOODAUTO |
| MG438 | MAHLE |
| PRAL269 | 3EFFE |
| RNL11201784 | RNL |
| STX100959 | STARDAX |
| STX101193 | STARDAX |
| TY6605 | JOHN DEERE |
| UD12251A | AS-PL |
Video/Publications
A0013View your shopping basket or Browse other items in Alternators.
