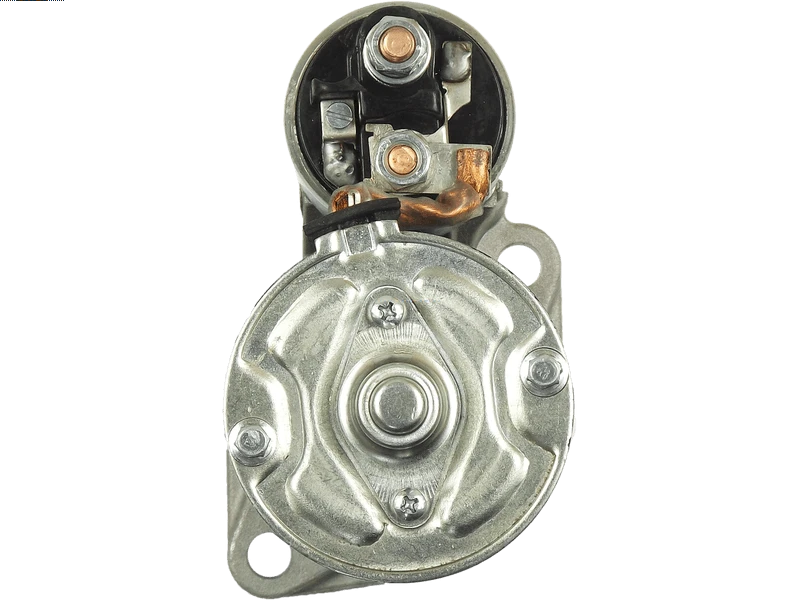

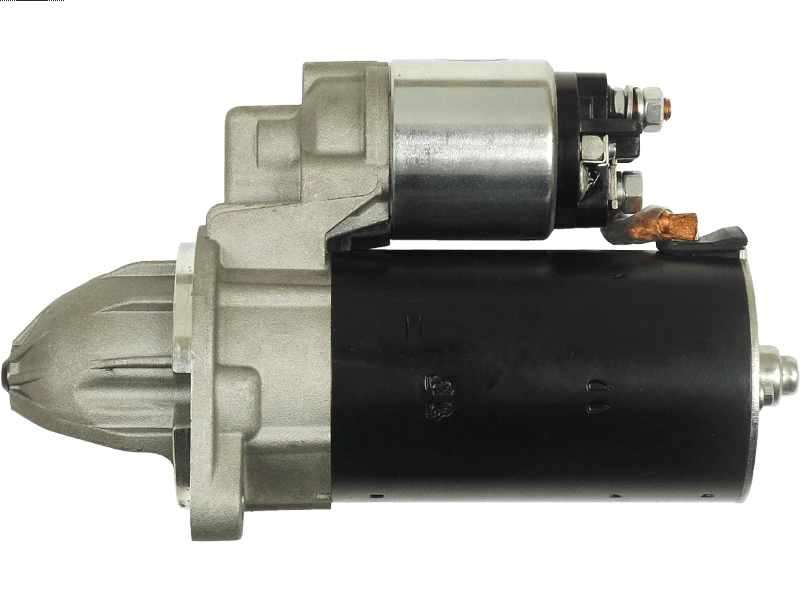

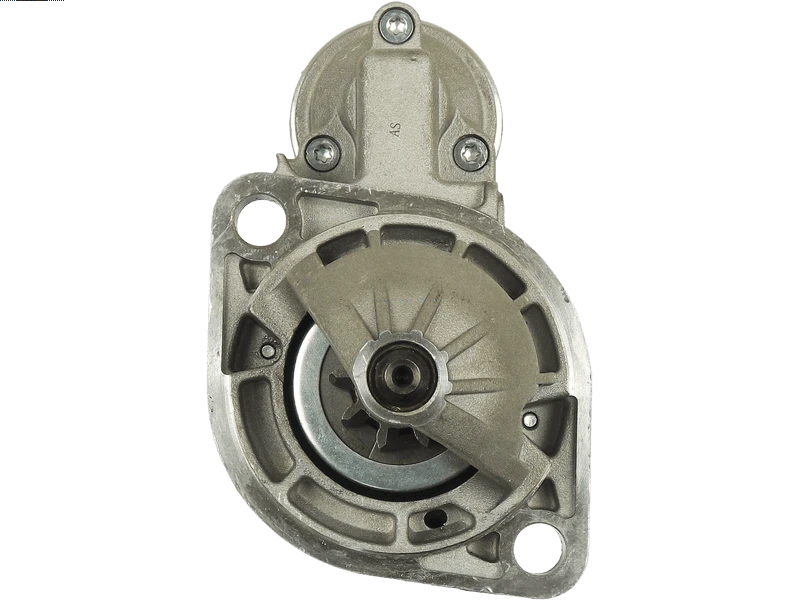

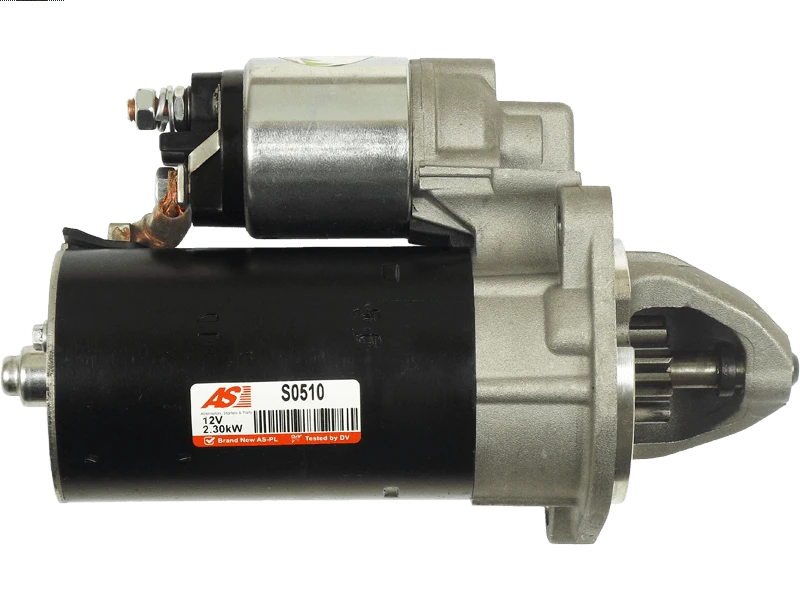

S0510 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 328.12 including GST

NZ$ 285.32 excluding GST
each
SGB-C9002
S0510
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:


0001109359 0001109360 0001362017 0001362018 0001362040 0001362076 115344 20401494OE 254007 254007B 254744 254744B 520.504.092 58402610 58402680 6010494 CST10166AS CST10494GS S0510 STR50642 UD30046S ASPLList ASPL BOSCHList 0001354012 Bosch 0001354027 0001354052 0001354055 0001354082 0001354091 0001358038 0001362098 0001366004 0001366015 0986017310 ruil 0986017311 11011010 EuroTec 11017310 11130432 Mahle 11130612 120495A PIC 1303920 Ford 1303970 16562 Lester 182164 19024267 Remy 2130090013 Steyr 251415 Elstock 33415 EAI 33442 33558 33560 35532830F VM (STABILIMENTI MEC 520003092 PSH 58400670 Lombardini 8812460F Friesen 91156898 Wilson 913319 EDR 943252275 Magneti Marelli A17310 ATL A71130 AZJ0101 AZJ3123 AZJ3192 AZJ3551 DEM132 ADI DRS0840 DRS3319 DRS7310 EJD1812R42 EJD1812R99 F139900060 Fendt IS0432 IS0612 LRS00956 Lucas LRS01007 LRS567 MRF1217 Femsa MS313 MT71GB MTL1221 MTL126 STR1300sa Electrolog STR7924sa 01331431 Andre Niermann 16008N WAI 16562N 540505092 58400960 9000331418 9000331431 CARGO CASCO KUHNER LOMBARDINI REAL SANDO WOODAUTO 11090284 Cargo 520504092 IMI Hi Torque IMI122042 References: Arrowhead SBO0323 16008 Substitutes: J N 41024230 B0001109359 J&amp SBO0137 Atlantic Quality Parts 22000101 0001366022 Delco DRS0940 16564 MAHLE 11.130.008 11.130.247 11.130.432 11.130.612 MS190 Picture ID 120495 120495B 120495C 182198 Motors 11130008 11130247 Valeo VS342 91156847 91156897 91236515 702718 50-098 50098

70-2718

sgb-c9002

Kilowatt2.3 kW
Length (L.1)246 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Diameter (C.1)12 mm
Mount Hole Diameter (C.2)12 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)21 mm
RotationCW
Spigot Diameter (A)82 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
LOMBARDINI Engine
220912 1109360 5010370 58400670 A0021519501 1362017 1362018 CST10166AS 254007 254744 6010494 115344 12153841 S12BH0186 STR1809 520.504.092 1362076 6.0572E+11 0001109359 S0510 S12BH0186A2 UD30046S 254744B 1109359 20401494OE CST10494GS 0001362040 331847 1362040 254007B 58402680 58402610 X830100008 21519501 0001362018 STR50642 0001362017 0001109360 STRL791 STRL059 0001362076 MAV2300
0001109359 0001109360 0001362017 0001362018 0001362040 0001362076 115344 20401494OE 254007 254007B 254744 254744B 520.504.092 58402610 58402680 6010494 CST10166AS CST10494GS MAV2300 S0510 STR50642 STRL059 STRL791 UD30046S 220912
