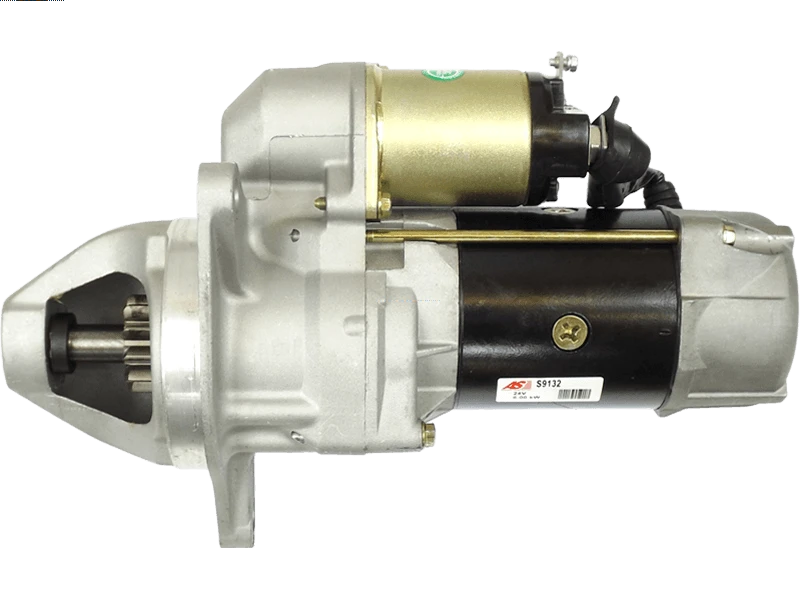

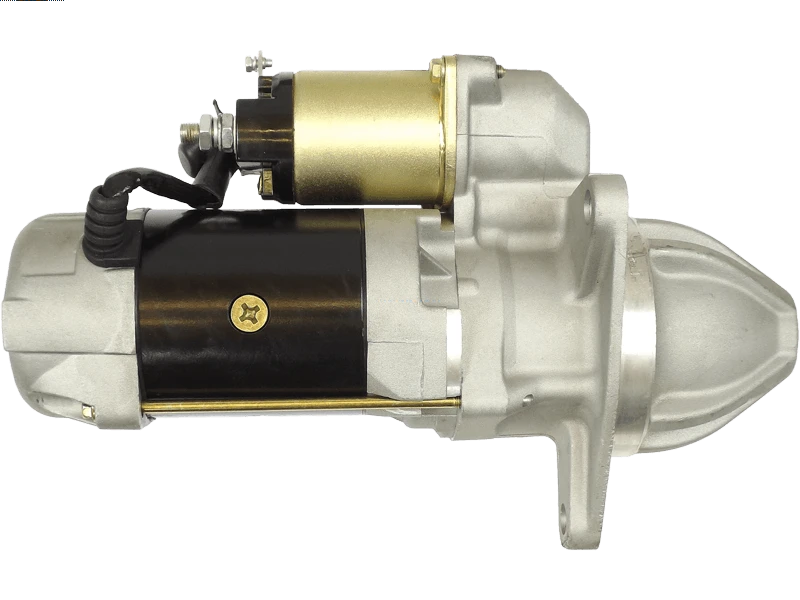

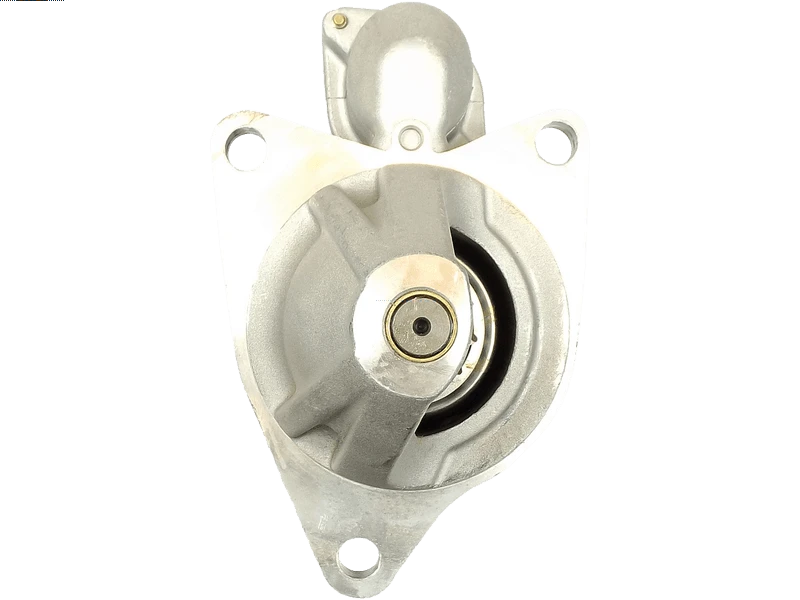

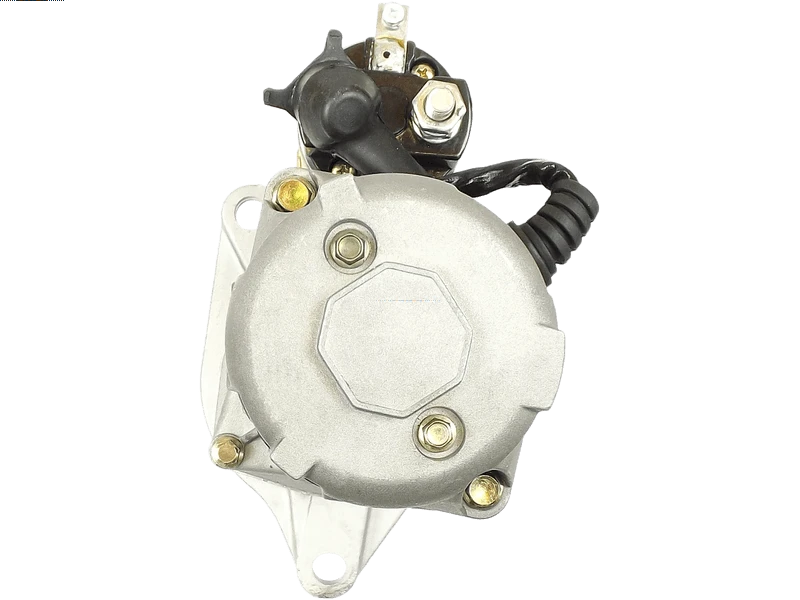

S9132 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 950.92 including GST

NZ$ 826.89 excluding GST
each
S9132
1
Purchase Qty:
each


03506020114 28100-1990 UD02169S

SXS702 SXS9802 708760 SNJ143
UD02169S ASPL
281001990 HINO
03506020114 SAWAFUJI

281001784 281002181 281002196 281001770 03506020030 03506020035 03506020036 03506020110 0350602011 FOR HINO EM
FOR DENSO 28100021716
FOR DENSO 281001472
FOR DENSO 281001472D
FOR DENSO 281001520
FOR DENSO 281001780
FOR HINO 281001520
FOR HINO 281001520A
FOR HINO 281001520B
FOR HINO 281001520C
FOR HINO 281001520D
FOR HINO 281001740A
FOR HINO 281001780
FOR HINO 281001780A
FOR HINO 281001781
FOR HINO 281001782

Kilowatt6 kW
Length (L.1)387 mm
Mount Hole Center - Center (O.1)178 mm
Mount Hole Center - Center (O.2)164 mm
Mount Hole Center - Center (O.3)119 mm
Mount Hole Diameter (C.1)15.5 mm
Mount Hole Diameter (C.2)15.5 mm
Mount Hole Diameter (C.3)15.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)42 mm
RotationCW
Spigot Diameter (A)121 mm
Unit TypeSAWAFUJI
Voltage24 V
HINO Engine [EK200] 01.1981-12.1995
HINO Engine [EM100] 01.1984-12.1994
HINO Engine [EP100] 01.1984-12.1994
HINO Engine [EX300] 01.1988-12.1991
HINO UH07-5 [EL100] 01.1987-12.1995
HINO UH09-7 [EM100] 01.1987-12.1995

S9125 - Confirm space for solenoid, the solenoid orentation is different

03506020114 28100-1990 UD02169S

Check the orientation of the solenoid, its possible that S9125 will fit
