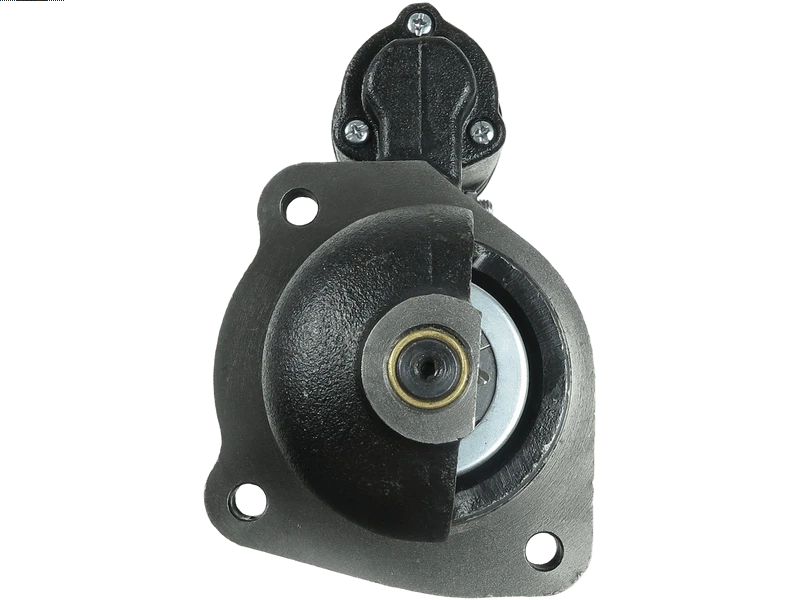

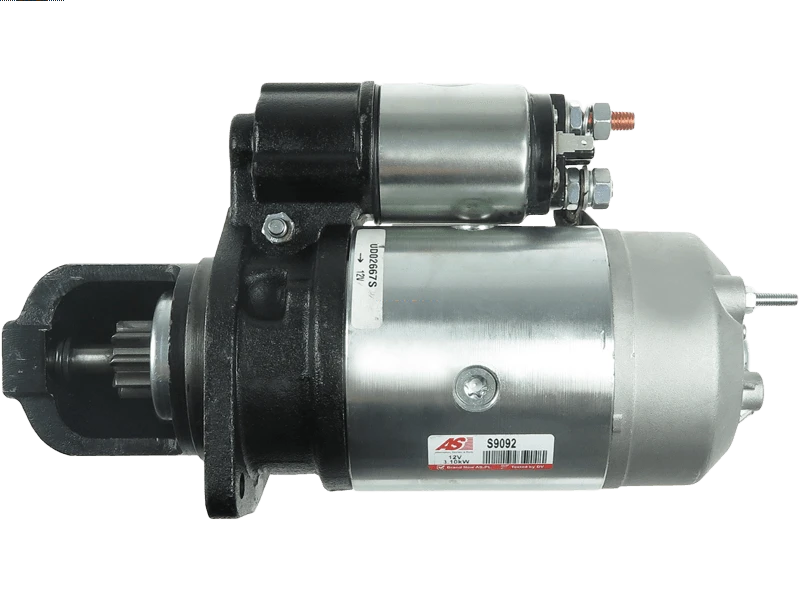

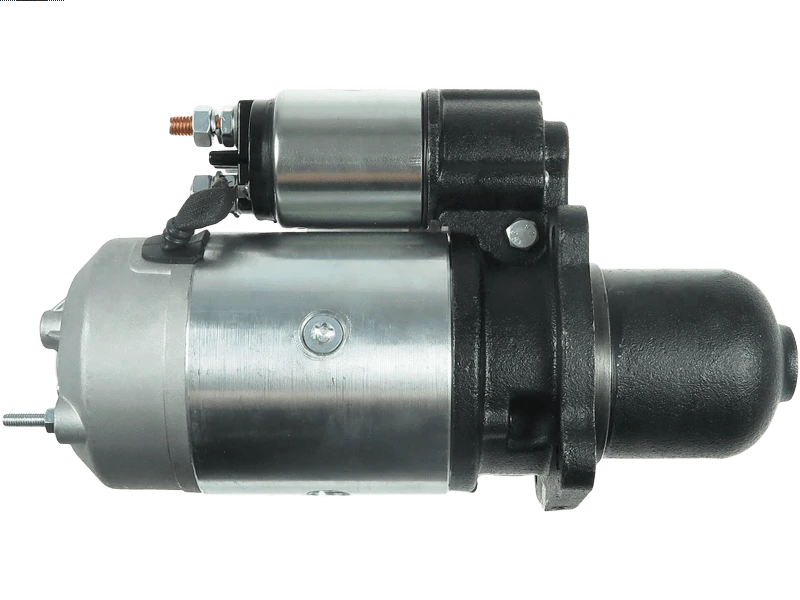

S9092 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 684.97 including GST

NZ$ 595.63 excluding GST
each
S9092
1
Purchase Qty:
each

11.130.863 182-30264 20419621OE 443115144763 6021126 78350925 8526 9144763 AZJ3301 CST21126 CST21126AS CST21126ES CST21126GS CST21126OS CST21126RS IS0863 JB123708509 MAHMS281 MN16.359.124 MS281 S9092 STR31004 UD02667S


S9092 ASPLList
UD02667S ASPL
CST21126 CASCO
CST21126GS CASCO
8526 CEVAM
11130863 ISKRA / LETRIKAList
AZJ3301 ISKRA / LETRIKAList
IS0863 ISKRA / LETRIKA
JB123708509 JUBANA
443115144763 MAGNETONList
9144763 MAGNETONList
MS281 MAHLEList
20419621OE REAL
18230264 ROBERT'S
6021126 SANDO
MAHMS281 WOODAUTO
STR31004 WOODAUTO
78350925 ZETOR
MN16359124 ZETOR
702671
11130863 Mahle
18481 Lester
18481N WAI
75207540 ZETOR
78350925 ZETOR
820001093 PSH
85208540
91369501
9142763 Magneton
9144763 Magneton
AZJ3301 Mahle
DEM501 ADI
IS0863 Mahle
LRS01450 Lucas
MS281 Mahle
MSL76300
Arrowhead IS0863
Lester 18481
Magneton 443115144763, 9144763
MAHLE IS0863
Wilson 91369501

Kilowatt3.1 kW
Length (L.1)323 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)127 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
Pinion at Rest (B)47 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeISKRA / LETRIKA
Voltage12 V
URSUS Various Models
VALMET 8150 [620DS] 01.1996-
ZETOR 10520 4.2
ZETOR 10540 4.2
ZETOR 10641 4.2
ZETOR 7520
ZETOR 7540
ZETOR 8540 4.2 [1201]
ZETOR 8641 4.2 [Z1203]
ZETOR 9520 [1001]
ZETOR 9540 [Z1003]
ZETOR 9641 4.2

S9092(LETRIKA) - OEM Version

11.130.863 182-30264 20419621OE 443115144763 6021126 78350925 8526 9142763 9144763 AZJ3301 CST21126 CST21126AS CST21126ES CST21126GS CST21126OS CST21126RS IS0863 JB123708509 MAHMS281 MN16.359.124 MS 281 S9092 STR31004 UD02667S
