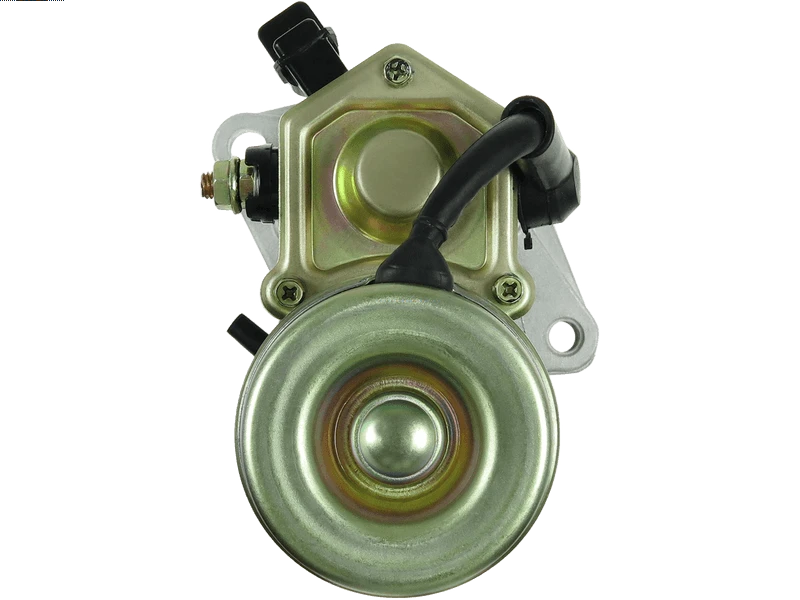

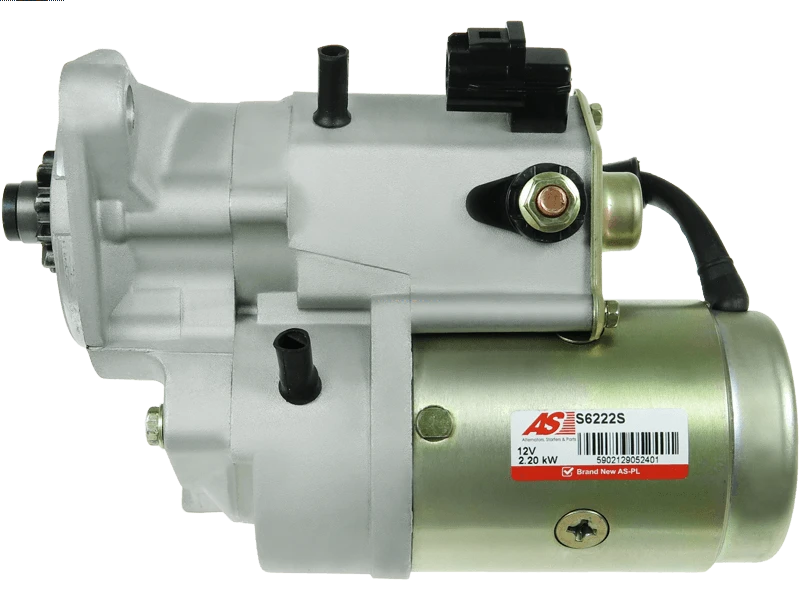

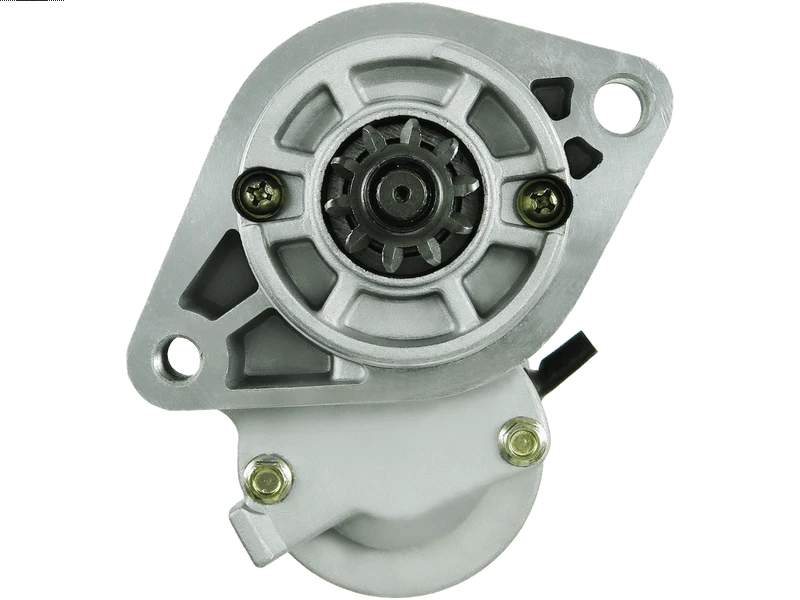

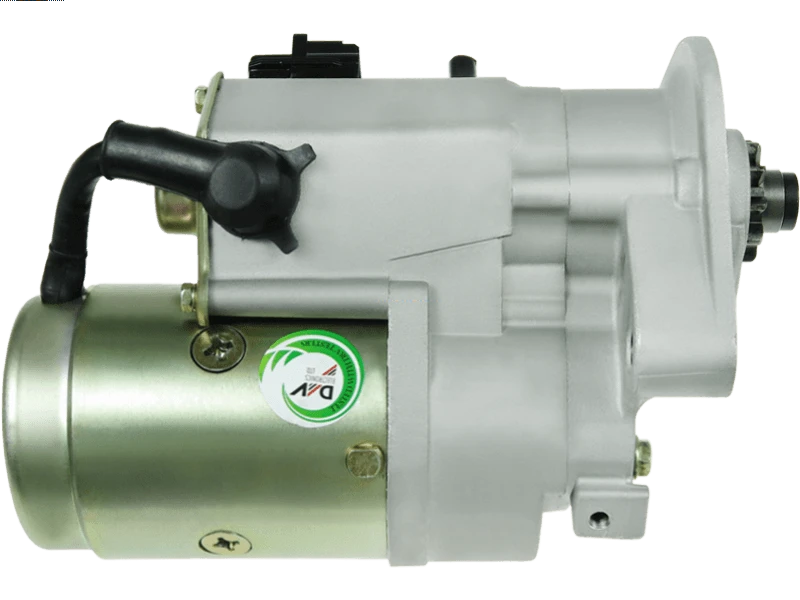

S6222S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 457.51 including GST

NZ$ 397.84 excluding GST
each
S6011
S6222S
No NZ stock
No NZ stock

063721154010 0986020601 12215 190-20359 190.931.102 201154 201154D 220361 228000-1780 228000-5020 228000-5021 228000-5022 228000-5023 228000-5024 228000-5025 246-20108 25-2311 28100-0L040 28100-0L041 28100-0L042 28100-0l080 28100-30060 28100-67030 28100-67050 28100-67051 28100-67052 32414N 32414R 428000-0260 428000-2311 6040103 88213089 944280206010 9725 CST40103 CST40103AS CST40103ES CST40103GS CST40103OS CST40103RS DRS3855 EAA-121029 LRS01414 SG0227 STN1154 STR70015 UD00710S

16343


UD00710S ASPL
0986020601 BOSCH
CST40103 CASCO
9725 CEVAM
DRS3855 DELCO
2280001780 DENSOList
2280005020 DENSOList
2280005021 DENSOList
2280005022 DENSOList
2280005023 DENSOList
2280005024 DENSO
2280005025 DENSO
4280000260 DENSOList
4280002311 DENSO
24620108 DIXIE
EAA121029 EAA
12215 EAI
252311 ELSTOCK
220361 ERA
SG0227 GHIBAUDI
LRS01414 LUCAS
063721154010 MAGNETI MARELLI
944280206010 MAGNETI MARELLI
88213089 POWERMAX
190.931.102 PSH
19020359 ROBERT'S
6040103 SANDO
281000L040 TOYOTA
281000L041 TOYOTA
281000L042 TOYOTA
281000l080 TOYOTA
2810030060 TOYOTA
2810067030 TOYOTA
2810067050 TOYOTAList
2810067051 TOYOTA
2810067052 TOYOTA
STN1154 VOLTAG
32414N WAI / TRANSPO
32414R WAI / TRANSPO
STR70015 WOODAUTO
708591 7085782 snj208
11040633 EuroTec
190589102 PSH
2810030040 Toyota
2810030060 Toyota
32415R WAI
4280000250 Denso
4280000260 Denso

dxs575
CS1484 HC
DSN1001 Denso
LRS01497 Lucas

Kilowatt2.2 kW
Length (L.1)235 mm
Mount Hole Center - Center (O.1)129 mm
Mount Hole Diameter (C.1)12.5 mm
Mount Hole Diameter (C.2)M12x1.25 mm
No./Mount holes2 qty
No./Mount holes with thread1 qty
No./Teeth10 qty
Pinion at Rest (B)17 mm
RotationCW
Spigot Diameter (A)82.5 mm
Unit TypeDENSO
Voltage12 V
TOYOTA 4 Runner 3.0 TD [1KZ-T] 11.1995-
TOYOTA 4 Runner 3.0 TD 4WD [1KZ-T] 10.1993-03.1996
TOYOTA 4 Runner 3.0 TDi 4x4 09.2000-07.2002
TOYOTA Hiace 2.5 D-4D [2KD-FTV] 09.2006-
TOYOTA Hiace 2.5 D-4D 4WD [2KD-FTV] 11.2001-
TOYOTA Land Cruiser 3.0 D-4D [1KD-FTV] 08.2004-
TOYOTA Land Cruiser 3.0 D-4D 150 [1KD-FTV] 01.2010-
TOYOTA Land Cruiser 3.0 TD [1KZ-T] 05.1993-05.1996
TOYOTA Land Cruiser 3.0 TD 4WD [1KZ-TE] 04.1996-
TOYOTA Land Cruiser 3.0 TD GX 90 4WD [1KZ-T] 01.1990-09.1991

S6021 - Large 2.7kW version with large exciter terminal

S6060 - 2.2Kw Version with large exciter terminal facing away from pinion

S6011 - 2.2 kW Version with large exciter terminal

S0326 - 1.7kW BOSCH Style, With small exciter terminal    ** USE only for D4D engine - Not for older 1KZ-TE**

003-T909 063721154010 0986020601 113757 12215 190-20359 190.931.102 201154 201154D 220361 228000-1780 228000-5020 228000-5021 228000-5022 228000-5023 228000-5024 228000-5025 246-20108 25-2311 28100-0L040 28100-0L041 28100-0L042 28100-0l080 28100-30060 28100-67030 28100-67050 28100-67051 28100-67052 32414N 32414R 3T909 428000-0260 428000-2311 6040103 88213089 944280206010 9725 CGB-91780 CST40103 CST40103AS CST40103ES CST40103GS CST40103OS CST40103RS DRS3855 DSN1211 EAA-121029 JS1154 LRS01414 LRS1414 MAV5950 MTT909 SG0227 STN1154 STR70015 UD00710S S6222S
