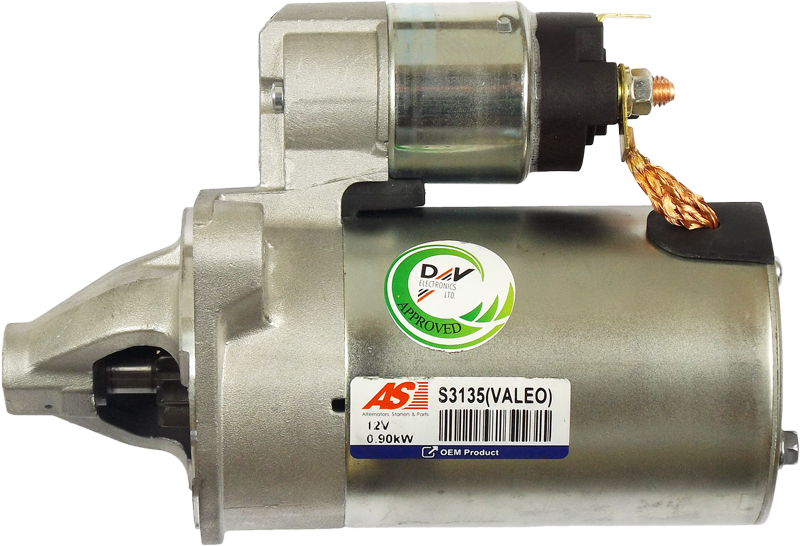

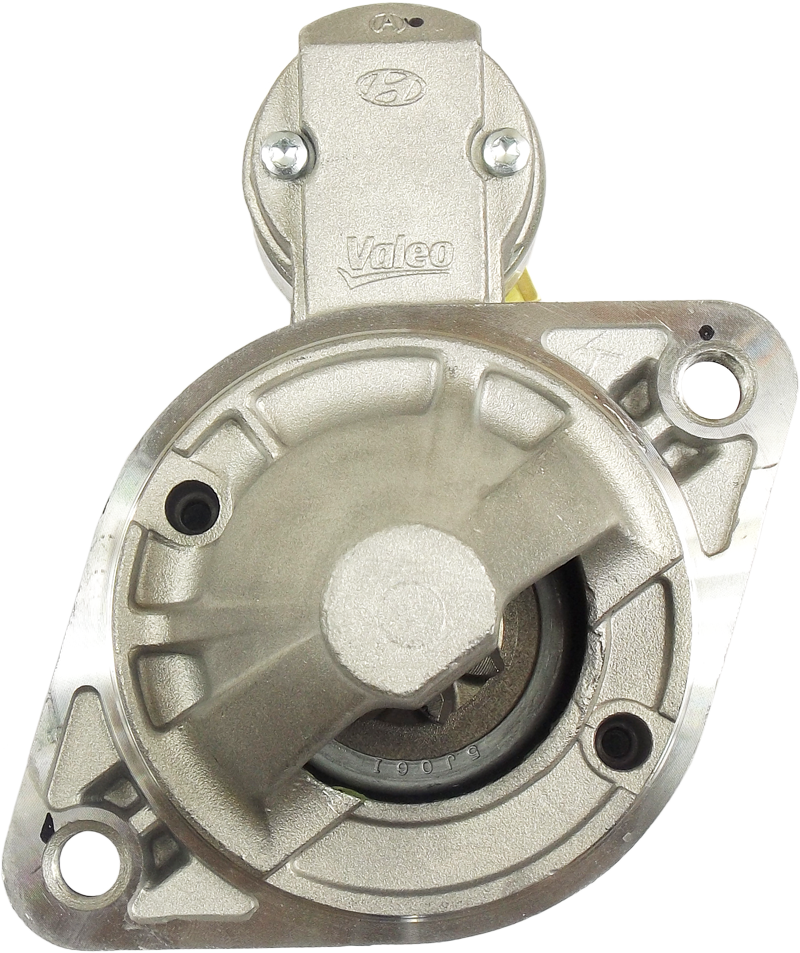

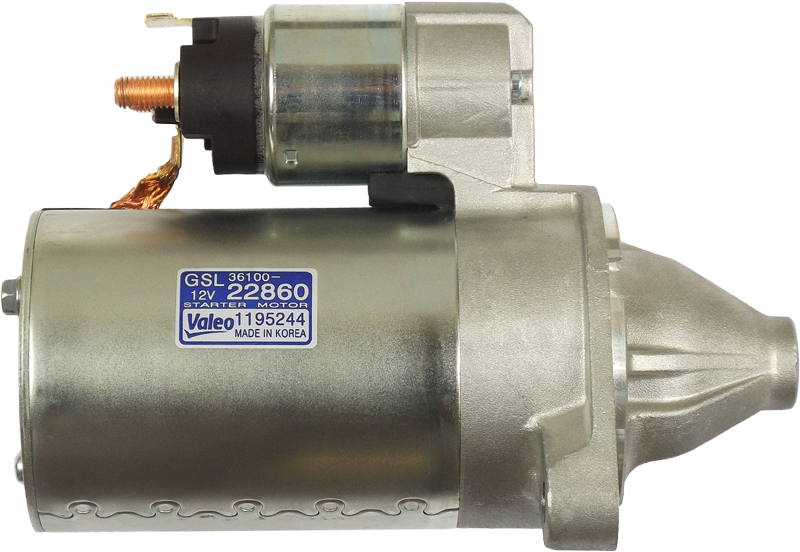

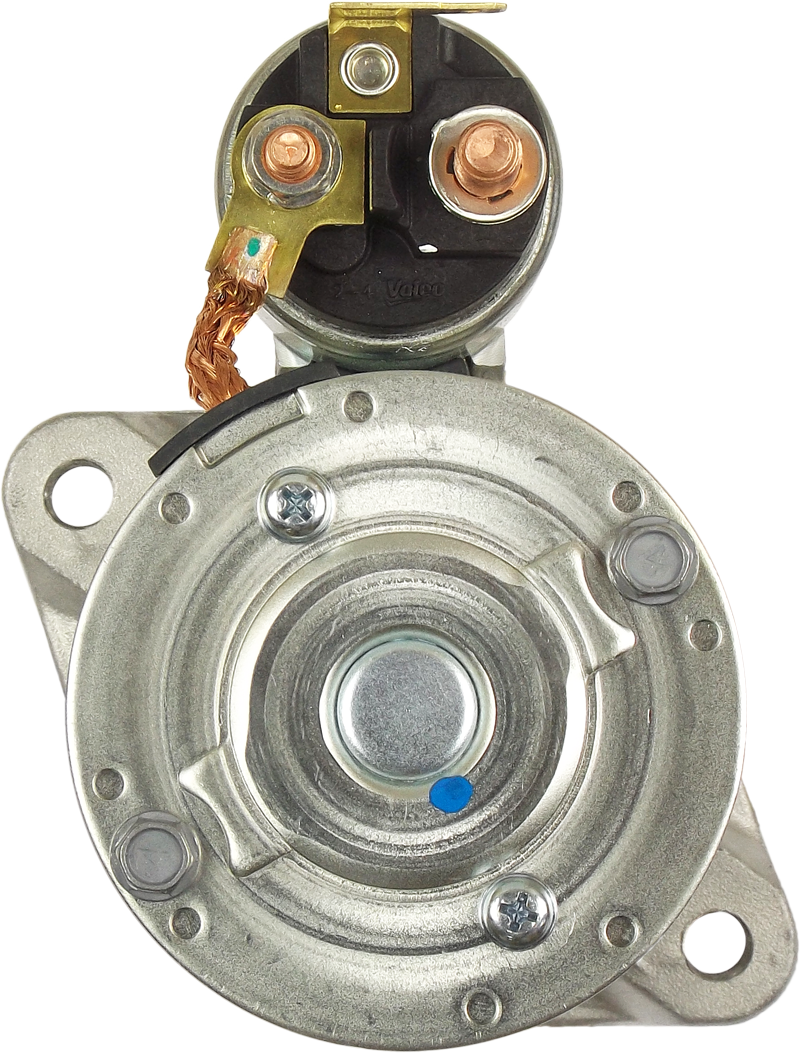

Brand new OEM VALEO Starter motor
PREMIUM LINE
Valeo
VALEO
Price:
NZ$ 470.47 including GST
NZ$ 409.10 excluding GST
or four payments of $117.62
with
Learn More
each
S3135(VALEO)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986UR1647 10885N 1195244 17342 36100-22860 99734 UD02612S
UD02612S AS-PL
0986UR1647 BOSCH
17342 DELCO
99734 DELCO
36100-22860 HYUNDAI / KIAList
1195244 VALEOList
10885N WAI / TRANSPO
SNJ521GQ 706240 mxs361
10885N WAI
150903082 PSH
195244 Valeo
3610022860 Hyundai
S0001195244 Valeo
Specifications
| Kilowatt | 0.90 kW |
| Length (L.1) | 185.00 mm |
| Mount Hole Center - Center (O.1) | 104.50 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 10.00 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77.00 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Accent 1.4 GL | [G4EE] | 01.2005-12.2010 |
| HYUNDAI | Accent 1.6 GLS | [G4ED] | 01.2005-12.2010 |
| HYUNDAI | Getz 1.4 i | [G4EE] | 01.2005-12.2009 |
| HYUNDAI | Getz 1.6 | 01.2005-12.2009 | |
| HYUNDAI | Getz Prime 1.4 i | 01.2005-12.2009 | |
| HYUNDAI | Getz Prime 1.6 | 01.2005-12.2009 | |
| HYUNDAI | Lavita 1.6 | 01.2001-12.2010 | |
| HYUNDAI | Matrix 1.6 | 01.2001-12.2010 | |
| HYUNDAI | TB 1.4 i | 01.2005-12.2009 | |
| HYUNDAI | TB 1.6 | 01.2005-12.2009 | |
| HYUNDAI | Verna 1.4 GL | 01.2005-12.2010 | |
| HYUNDAI | Verna 1.6 GLS | 01.2005-12.2010 |
Reference Information
| 0986UR1647 | BOSCH |
| 10885N | WAI / TRANSPO |
| 110958 | CARGO |
| 1195244 | VALEO |
| 150.552.082 | PSH |
| 150.552.082.461 | PSH |
| 150.552.082.786 | PSH |
| 150.903.082.500 | PSH |
| 17342 | DELCO |
| 201312 | KUHNER |
| 20493221 | REAL |
| 220504 | ERA |
| 220504A | ERA |
| 25-3304 | ELSTOCK |
| 336035 | LOGISTIK |
| 36100-21770 | HYUNDAI / KIA |
| 36100-22850 | HYUNDAI / KIA |
| 36100-22855 | HYUNDAI / KIA |
| 36100-22860 | HYUNDAI / KIA |
| 36100-22875 | HYUNDAI / KIA |
| 5015290 | MEAT & DORIA |
| 6032122 | SANDO |
| 63280902 | MAGNETI MARELLI |
| 88212847 | POWERMAX |
| 8EA012527-521 | HELLA |
| 9504 | CEVAM |
| 986023630 | BOSCH |
| 99734 | DELCO |
| ANM12227X | ANDEL |
| CGB-22850 | AINDE |
| CST32122 | CASCO |
| CST32122AS | CASCO |
| CST32122ES | CASCO |
| CST32122GS | CASCO |
| CST32122OS | CASCO |
| CST32122RS | CASCO |
| DRS0007 | DELCO |
| F032110958 | CARGO |
| JM000A04601 | VALEO |
| JS643 | HC PARTS |
| LRS01743 | LUCAS |
| LRS1743 | LUCAS |
| M002T48081 | MITSUBISHI |
| M003T42781 | MITSUBISHI |
| M003T42781ZC | MITSUBISHI |
| M003T43481 | MITSUBISHI |
| M0A01901 | MITSUBISHI |
| M2T48081 | MITSUBISHI |
| M3T42781 | MITSUBISHI |
| M3T42781ZC | MITSUBISHI |
| M3T43481 | MITSUBISHI |
| MD162838 | MITSUBISHI |
| MD180239 | MITSUBISHI |
| MD192228 | MITSUBISHI |
| MD667539 | MITSUBISHI |
| S0001195244 | VALEO |
| S1119M | PRESTOLITE |
| S12VA0554 | SIDAT |
| S12VA0554A2 | SIDAT |
| S130.068 | PSH |
| S143.960 | PSH |
| S150.912 | PSH |
| STR00120 | ELECTROLOG |
| STR0110 | ELECTROLOG |
| STRW370 | 3EFFE |
| STX200349 | STARDAX |
| STX200349R | STARDAX |
| TM000A27601 | VALEO |
| TM000A37301 | VALEO |
| UD02612S | AS-PL |
| VAL600206 | WOODAUTO |
