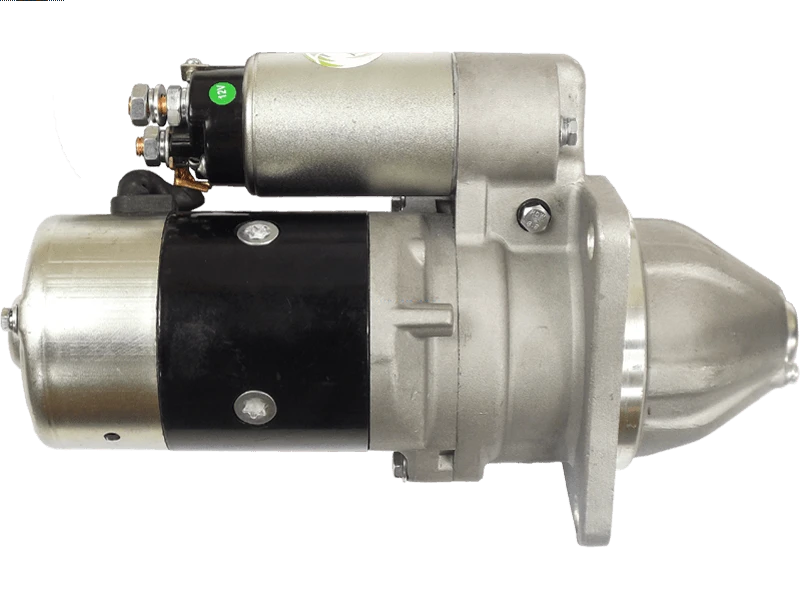

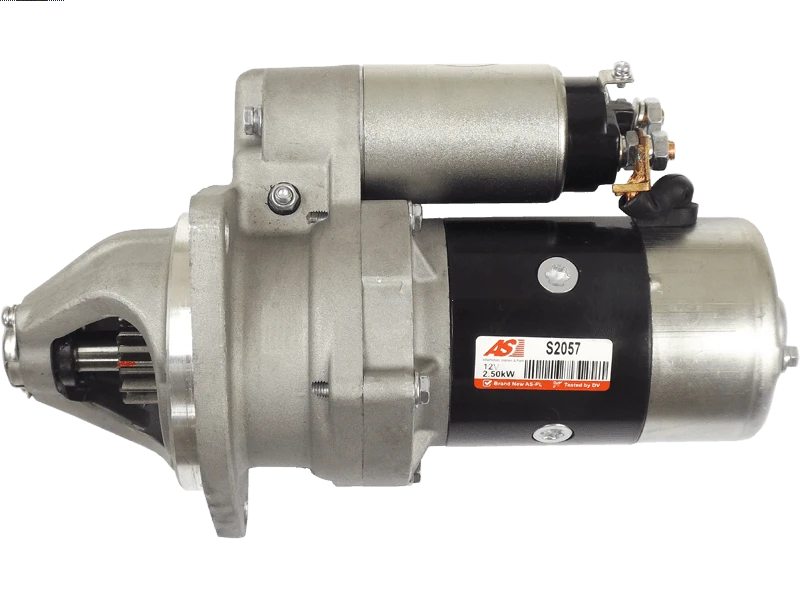

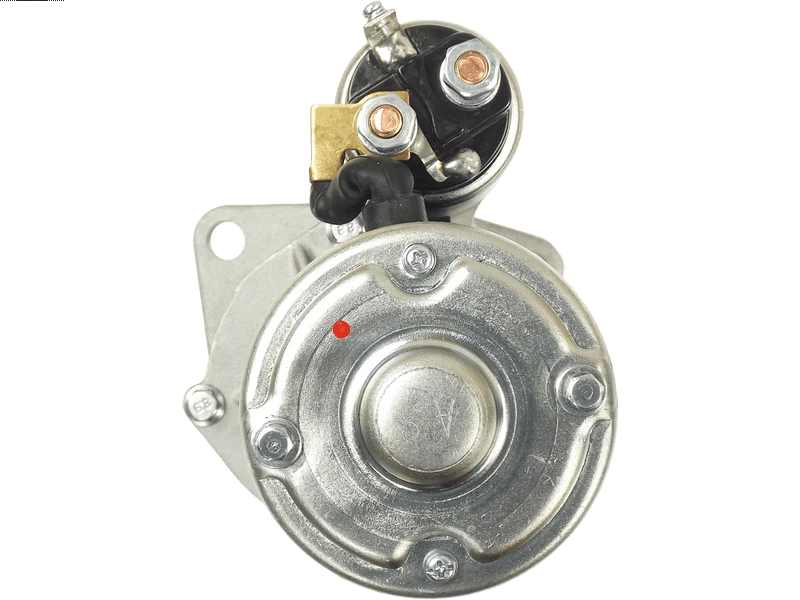

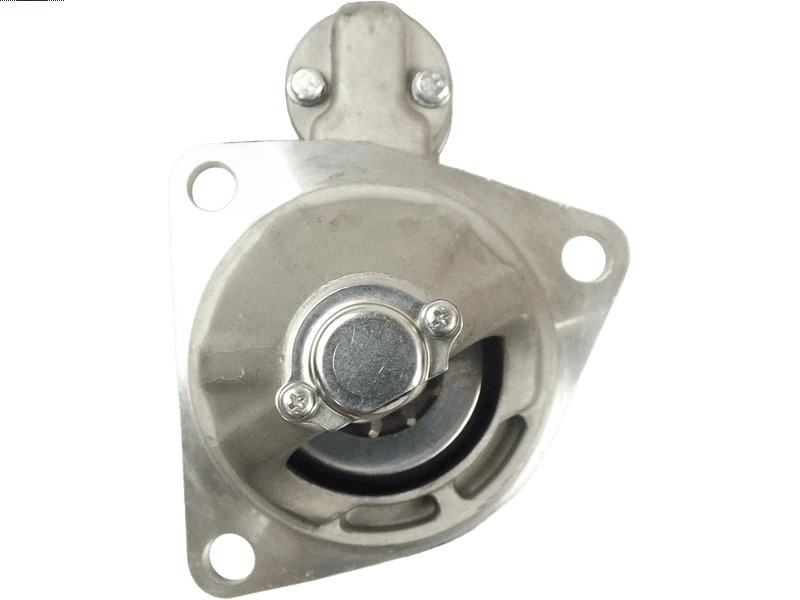

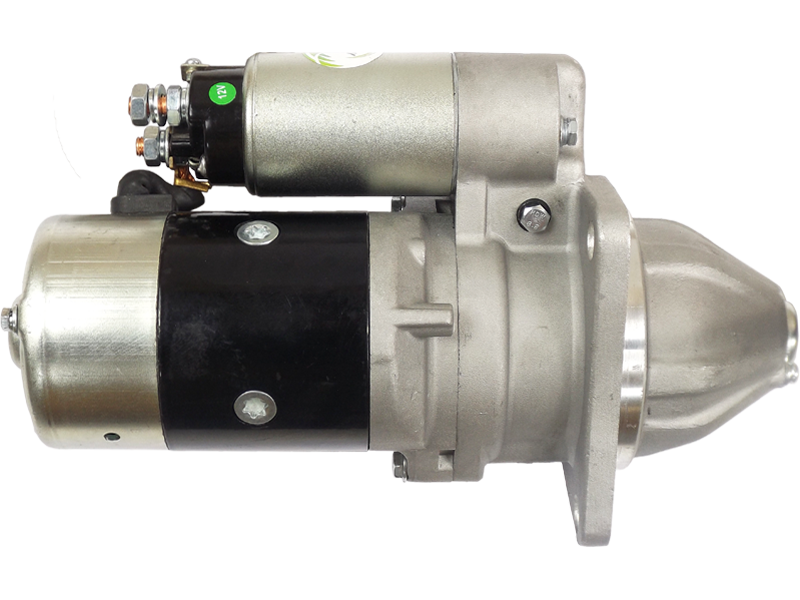

S2057 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 490.81 including GST

NZ$ 426.79 excluding GST
each
S2057
2
Purchase Qty:

115981 124610-77010 20445161BN 20445161OE 20500514 25-2219 254017 6020161 980.511.113 CST20161AS CST20161GS LRS01372 S13-68 S13-68A S13-68C S2057 STR23022 UD11153S Hitachi S1368 IMI Hi Torque IMI45102002 Wilson 91251156 References: Arrowhead SHI0083 SND0586 S1368A S1368C S1368CR S1386 Lester 18326 Navistar 70441530 Yanmar 12350077010 12461077010 12461077019 42264077010 42461077010 J N 41044080 J& Superseded From: Substitutes: ASPLList ASPL CARGO CASCO 252219 ELSTOCK HITACHIList LUCAS PRESTOLITE PSH REAL SANDO WOODAUTO YANMAR 011368 Andre Niermann Cargo 18326N WAI Elstock 33828 EAI 980511113 snj428 rxs046 703446 12461077011 Prestolite AYS121 ATK Lucas LRS1372 RNLS1368 RNL show S1368B S13759C S8548R Dixie Wood Auto WOOSTR23022
Kilowatt2.5 kW
Length (L.1)304 mm
Mount Hole Center - Center (O.1)136 mm
Mount Hole Center - Center (O.2)110 mm
Mount Hole Center - Center (O.3)112 mm
Mount Hole Diameter (C.1)13.5 mm
Mount Hole Diameter (C.2)13.5 mm
Mount Hole Diameter (C.3)13.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
Pinion at Rest (B)33.5 mm
RotationCW
Spigot Diameter (A)105 mm
Unit TypeHITACHI
Voltage12 V
Make Model Type Year
YANMAR Engine [3T95-L] 01.1981-
YANMAR Engine [4T95-L] 01.1981-
YANMAR Engine [4TN100E-ACG]
YANMAR Engine [6T95-L] 01.1981-
20445161OE CST20161GS S13-68A UD11153S S1368B 25-2219 20445161BN CST20161AS STR23022 HST1368C S13-68C 20500514 124610-77010 115981 S13759C 336371 124610-77019 S2057 STR3249 123500-77010 6020161 LRS1372 12461077019 980.511.113 S12HT0765A2 254017 LRS01372 S13-68 S13-86
115981 124610-77010 20445161BN 20445161OE 20500514 25-2219 254017 6020161 980.511.113 CST20161AS CST20161GS LRS01372 LRS1372 S13-68 S13-68A S13-68C S2057 STR23022 UD11153S
