S0571 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0571
Price: 434.51 NZD
Availability: InStock

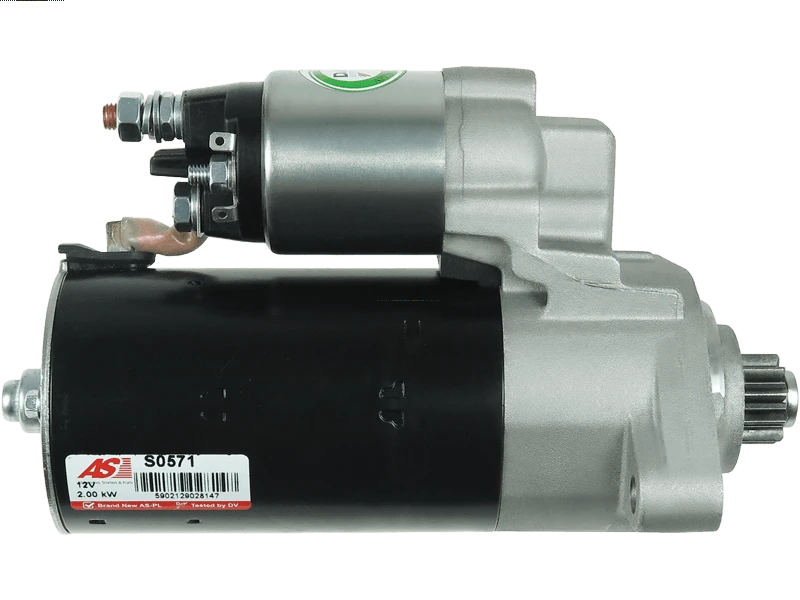

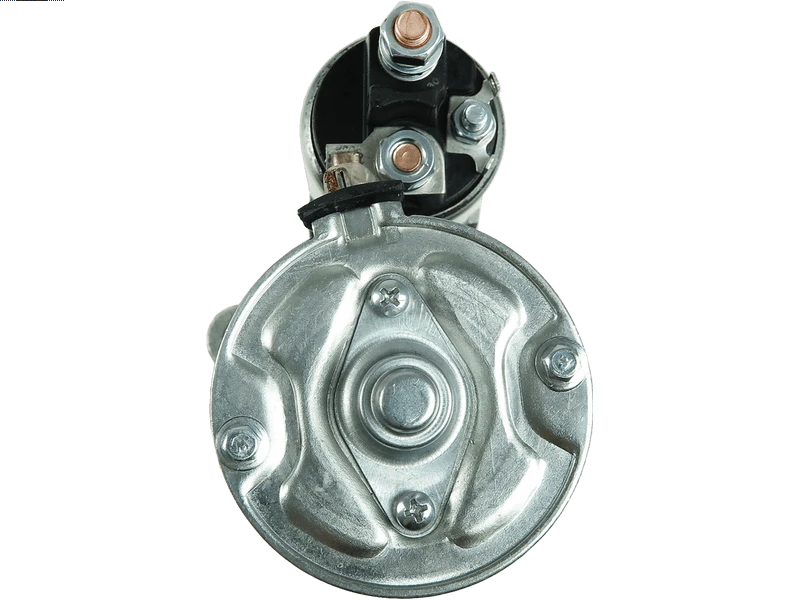

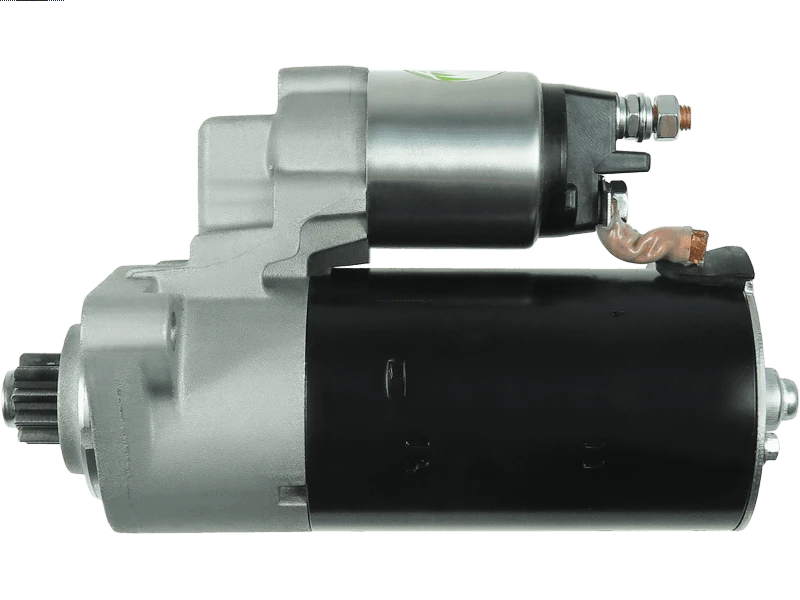

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 434.51 including GST

NZ$ 377.84 excluding GST

UOM:

each

Product Code:

S0571

Quantity In Stock:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

0001125057 0001125058 17550 19118N 20401974OE 25-4353 254651 254651B 254716 254716B 480.512.102 6010479 91-15-7285 94860420600 AEY2681 BOS0001125057 CST10479 CST10479AS CST10479ES CST10479GS CST10479OS CST10479RS DRS0437 EAA-141316 LRS02681 S-6292 UD12951S

References:
Arrowhead SBO0221
Bosch 0001125057
Lester 19118
PIC Picture ID 1205139
Porsche 94860420600
Remy Light Duty 17550
Youtech/PartRef 422927
Wilson 91157285
References:
Arrowhead B0001125057, SBO0221
J&N 41024271
Lester 19118
Wilson 91157285
7010583
0001125057 Bosch
0001125058 Bosch
11090334 EuroTec
19118N WAI
480512102 PSH
94860420600 Porsche
LRS02681 Lucas

UD12951S ASPL
AEY2681 AUTOELECTRO
0001125057 BOSCHList
0001125058 BOSCHList
CST10479 CASCO
CST10479GS CASCO
17550 DELCO
DRS0437 DELCO
S6292 DIXIE
EAA141316 EAA
254353 ELSTOCK
LRS02681 LUCAS
94860420600 PORSCHE
480.512.102 PSH
20401974OE REAL
6010479 SANDO
19118N WAI / TRANSPO
91157285 WILSON
BOS0001125057 WOODAUTO

Kilowatt	2 kW
Length (L.1)	234.5 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	29 mm
Rotation	CW
Spigot Diameter (A)	60 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
PORSCHE	Cayenne 4.8 GTS	[M48.01]	10.2007-09.2010
PORSCHE	Cayenne 4.8 S	[M48.01]	02.2007-09.2010
PORSCHE	Cayenne 4.8 S Turbo	[M48.51]	02.2007-09.2010

AEY2681 1125057 CST10479 116568 19118N CST10479RS 1125058 332191 CST10479ES S0571 25-4353 CST10479AS 6010479 BOS0001125057 5010444 CST10479GS 17550 254716B UD12951S CST10479OS 91-15-7285 EAA-141316 480.512.102 STRS323 LRS02681 S12BH0460A2 94860420600 20401974OE LRS2681 S-6292 254716

0001125057 0001125058 17550 19118N 20401974OE 25-4353 254716 254716B 480.512.102 6010479 91-15-7285 94860420600 AEY2681 BOS0001125057 CST10479 CST10479AS CST10479ES CST10479GS CST10479OS CST10479RS EAA-141316 LRS02681 LRS2681 S-6292 S0571 STRS323 UD12951S
