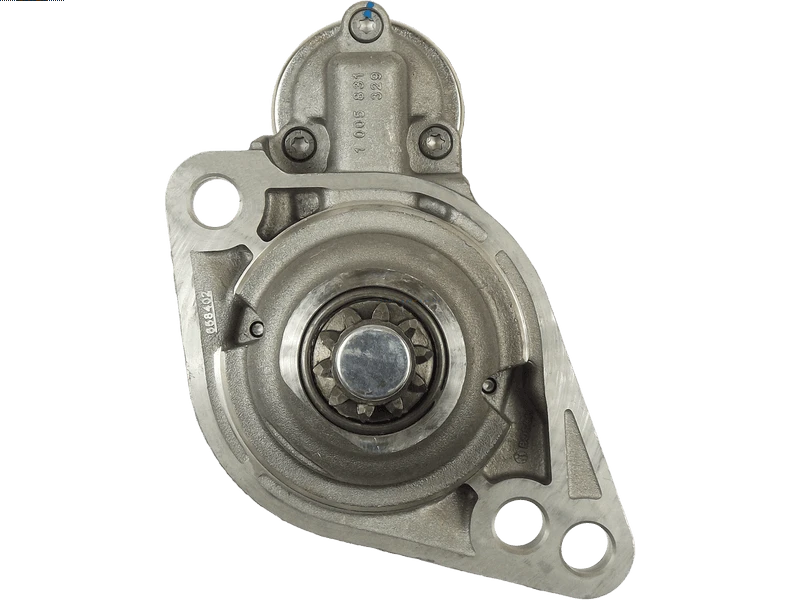

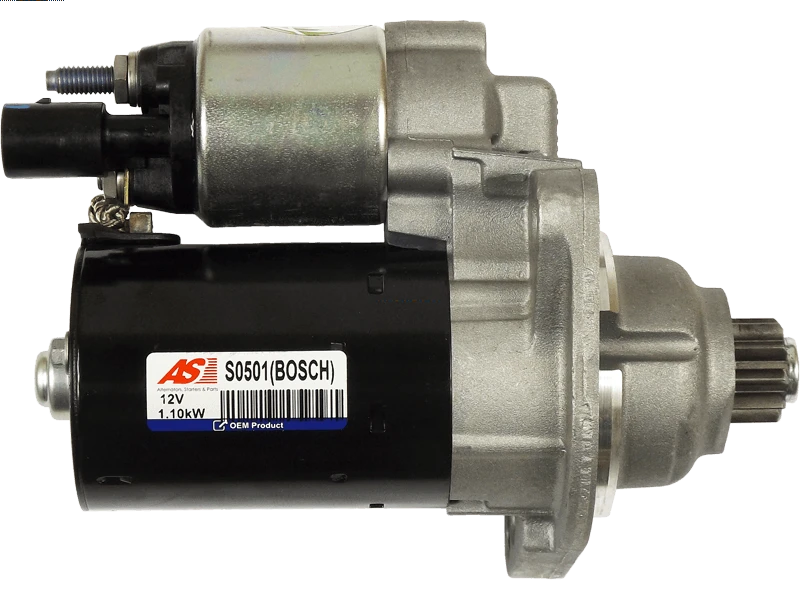

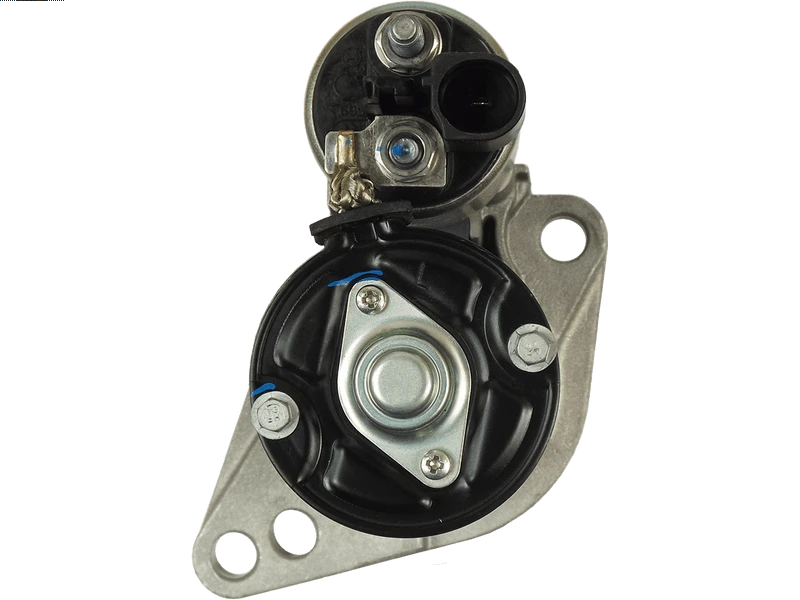

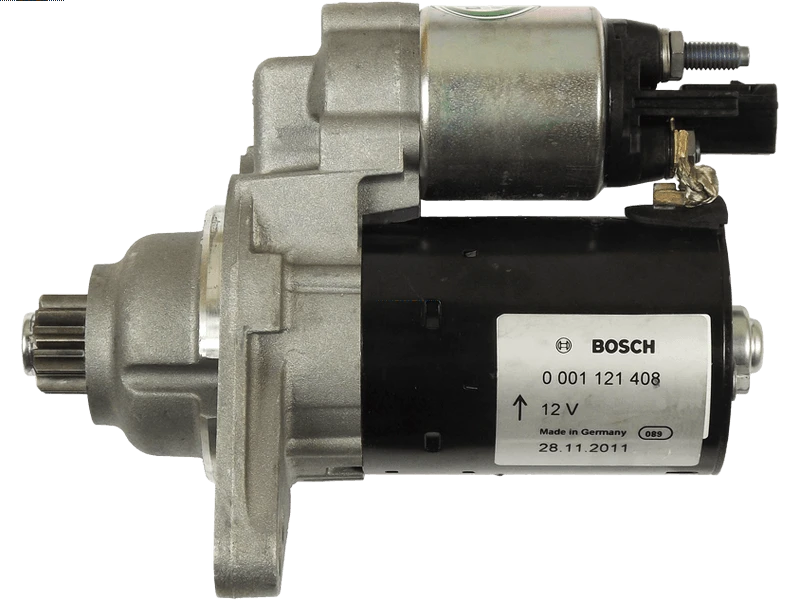

S0501(BOSCH) - Brand new OEM BOSCH Starter motor

We will be closed Wednesday 29 May, Thursday 30 May, Friday 31 May & Monday 3 June (Kings Birthday) - reopening Tuesday 4 June.  Any orders placed while we are closed will be shipped on Tuesday 4 June - Thanks

Brand new OEM BOSCH Starter motor
Brand new OEM BOSCH Starter motor
PREMIUM LINE
Bosch
BOSCH
Price:
NZ$ 557.75 including GST

NZ$ 485.00 excluding GST
each
S3055
S0501(BOSCH)
2
Purchase Qty:

0001121408 0001121409 02Z911023E 02Z911023EX 02Z911023G 02Z911023GX 02Z911024P 02Z911024PX 063521214080 0986020240 101294 101294V 114163 12062 17967N 20479991 22.1294 22.1294M 25-3222 300.565.102 300.565.103 3038 42020240 438171 458213 6015199 8020240 8213184 88213184 8EA012526-521 8EA738157-001 944280202400 AEU1294 CS1294 CST15199 CST15199AS CST15199ES CST15199GS CST15199OS CST15199RS D6GS11 D6GS11M DRT0240 EAA-121586 EAA-121605 IS9431 LRS01676 M1207 M1207E M1207H SS498 STB1294 STB1294ZL STM1030 STQ1294RN STR54092 STV1294 TS12MR11 AUTOELECTRO BOSCHList BOSCH CARGO CASCO CEVAM DELCO EAA121586 EAA EAA121605 EAI 253222 ELSTOCK FRIESEN HC PARTS 8EA012526521 HELLA 8EA738157001 HERTH+BUSS ISKRA / LETRIKA KRAUF KUHNER LAUBER LUCAS MAGNETI MARELLI POWERMAX PRESTOLITE PSH REAL ROLLCO SANDO SOVEREIGN VALEOList VALEO VW WAI TRANSPO WOODAUTO 701069G bxs0180 Superseded From: Valeo Substitutes: J N 41040053 References: Arrowhead SVA0025 V438171 J& Bosch Delco Lester 17967 191428 Volkswagen Wilson 90203567 30919 Lucas PIC Picture ID 108492 Remy Light Duty 16149 ruil 11020240 EuroTec Cargo 120444 17967R 198529 202149 Elstock 300565102 300565103 406509 442014 4769SP Spidan 738157001 Hella 8020240F Friesen 915111E Magneton A20240 ATL F042S0H094 HCS1294 Rolling Components STR00085sa Electrolog STR1366sa STRH094 Unipoint 70-1069G J&N
Kilowatt1.1 kW
Length (L.1)200 mm
Mount Hole Center - Center (O.1)18 mm
Mount Hole Center - Center (O.2)112 mm
Mount Hole Center - Center (O.3)128 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10 qty
Pinion at Rest (B)53 mm
RotationACW
Spigot Diameter (A)76 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
AUDI A1 1.4 TFSi Sportback [CAXA] 11.2011-
AUDI A1 1.4 TFSi Sportback [CNVA] 11.2011-
AUDI A3 1.4 TFSi [CAXC] 09.2007-03.2013
AUDI A3 1.4 TFSi [CAXC] 09.2007-08.2012
AUDI A3 1.8 TFSi [BYT] 11.2006-08.2012
AUDI A3 1.8 TFSi [BZB] 04.2008-01.2009
AUDI A3 1.8 TFSi [BZB] 06.2007-06.2008
AUDI A3 1.8 TFSi [CDAA] 01.2009-05.2013
AUDI A3 1.8 TFSi [CDAA] 07.2008-
AUDI A3 1.8 TFSi Quattro [CDAA] 07.2008-03.2013
AUDI A3 1.8 TFSi Quattro [CDAA] 07.2008-08.2012
AUDI A3 1.8 TFSi Sportback [BYT] 11.2006-06.2007
AUDI A3 1.8 TFSi Sportback [BZB] 06.2007-06.2008
AUDI A3 1.8 TFSi Sportback [CDAA] 07.2008-03.2013
AUDI A3 2.0 FSi [AXW] 05.2003-06.2008
AUDI A3 2.0 FSi [BLX] 05.2003-06.2008
AUDI A3 2.0 FSi [BVY] 05.2003-06.2008
AUDI A3 2.0 FSi Sportback [AXW] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BLR] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BLX] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BLY] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BMB] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BVY] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BVZ] 09.2004-06.2008
AUDI TT 1.8 TFSi [CDAA] 06.2008-
SEAT Altea 1.4 TSi [CAXC] 11.2007-
SEAT Altea 1.8 TFSi [BYT] 01.2007-
SEAT Altea 1.8 TFSi [BZB] 01.2007-
SEAT Altea 1.8 TFSi [CDAA] 01.2007-
SEAT Altea 2.0 FSi [BLR] 05.2004-
SEAT Altea 2.0 FSi [BLY] 05.2004-
SEAT Altea 2.0 FSi [BVY] 05.2004-
SEAT Altea XL 1.8 TFSi [BYT] 01.2007-
SEAT Altea XL 1.8 TFSi [BZB] 01.2007-
SEAT Altea XL 1.8 TFSi [CDAA] 01.2007-
SEAT Altea XL 2.0 FSi [BVY] 10.2006-
SEAT Altea XL 2.0 FSi [BVZ] 10.2006-
SEAT Ibiza Cupra R 1.8 Turbo [BBU] 01.2004-
SEAT Leon 1.4 TSi [CAXC] 11.2007-
SEAT Leon 1.8 TSi [BZB] 06.2007-
SEAT Leon 1.8 TSi [CDAA] 06.2007-
SEAT Leon 2.0 FSi [BLR] 09.2005-
SEAT Leon 2.0 FSi [BLY] 09.2005-
SEAT Leon 2.0 FSi [BVY] 09.2005-
SEAT Toledo 1.8 TFSi [BYT] 01.2007-
SEAT Toledo 1.8 TFSi [BZB] 01.2007-
SEAT Toledo 1.8 TFSi [CDAA] 01.2007-
SEAT Toledo 2.0 FSi [BLR] 10.2004-
SEAT Toledo 2.0 FSi [BLY] 10.2004-
SEAT Toledo 2.0 FSi [BVY] 11.2005-
SEAT Toledo 2.0 FSi [BVZ] 11.2005-05.2006
SKODA Octavia 1.4 TSi [CAXA] 11.2008-
SKODA Octavia 1.6 FSi [BLF] 06.2004-
SKODA Octavia 1.8 TSi [BZB] 06.2007-
SKODA Octavia 1.8 TSi [CDAA] 06.2007-
SKODA Octavia 1.8 TSi [CDAB] 03.2009-
SKODA Octavia 2.0 FSi [BLR] 11.2004-11.2005
SKODA Octavia 2.0 FSi [BLY] 11.2004-11.2005
SKODA Octavia 2.0 FSi [BVX] 11.2005-
SKODA Octavia 2.0 FSi [BVY] 11.2005-
SKODA Octavia 2.0 FSi [BVZ] 11.2005-
SKODA Octavia 2.0 FSi 4x4 [BLX] 11.2004-11.2005
SKODA Octavia 2.0 FSi 4x4 [BLY] 11.2004-11.2005
SKODA Octavia 2.0 FSi 4x4 [BVX] 11.2005-
SKODA Superb 1.4 TSi [CAXC] 07.2008-
SKODA Superb 1.4 TSi [CAXC] 10.2009-
SKODA Superb 1.8 TSi [BZB] 07.2008-
SKODA Superb 1.8 TSi [CDAA] 07.2008-
SKODA Superb 1.8 TSi [CDAA] 10.2009-
SKODA Superb 1.8 TSi [CDAB] 03.2009-
SKODA Superb 1.8 TSi [CDAB] 10.2009-
SKODA Superb 1.8 TSi 4x4 [CDAA] 11.2008-
SKODA Superb 1.8 TSi 4x4 [CDAB] 03.2009-
SKODA Superb 1.8 TSi 4x4 [CDAB] 10.2009-
SKODA Yeti 1.4 TSi [CAXA] 06.2010-
VW Eos 1.4 TSi [CAVD] 05.2008-
VW Eos 1.4 TSi [CAXA] 11.2007-
VW Eos 1.4 TSi [CTHD] 05.2008-
VW Eos 2.0 FSi [BVY] 03.2006-
VW Eos 2.0 FSi [BVZ] 03.2006-
VW Golf Plus 1.4 TSi [BLG] 05.2006-
VW Golf Plus 1.4 TSi [BMY] 05.2006-
VW Golf Plus 1.4 TSi [CAVD] 06.2008-
VW Golf Plus 1.4 TSi [CAXA] 06.2007-
VW Golf Plus 1.4 TSi [CNWA] 06.2008-
VW Golf Plus 2.0 FSi [BLR] 05.2005-
VW Golf Plus 2.0 FSi [BVY] 05.2005-
VW Golf Plus 2.0 FSi [BVZ] 05.2005-
VW Golf V 1.4 [CAXA] 05.2007-
VW Golf V 1.4 TSi [BLG] 06.2007-07.2009
VW Golf V 1.4 TSi [BMY] 05.2006-
VW Golf V 1.4 TSi [BMY] 06.2007-07.2009
VW Golf V 1.4 TSi [CAVD] 07.2008-07.2009
VW Golf V 1.4 TSi [CAXA] 06.2007-07.2009
VW Golf V 2.0 [CBPA] 08.2006-
VW Golf V 2.0 FSi [AXW] 01.2004-
VW Golf V 2.0 FSi [BLR] 01.2004-
VW Golf V 2.0 FSi [BLX] 01.2004-
VW Golf V 2.0 FSi [BLY] 01.2004-
VW Golf V 2.0 FSi [BVX] 01.2004-
VW Golf V 2.0 FSi [BVY] 01.2004-
VW Golf V 2.0 FSi [BVZ] 01.2004-
VW Golf V 2.0 FSi 4-Motion [BLX] 08.2004-
VW Golf VI 1.4 TSi [CAVD] 06.2011-
VW Golf VI 1.4 TSi [CNWA] 06.2011-
VW Golf VI 1.4 TSi [CNWA] 07.2009-07.2013
VW Golf VI 1.4 TSi [CTHD] 06.2011-
VW Golf VI 1.4 TSi [CTHD] 07.2009-07.2013
VW Golf VI 1.4 TSi [CTKA] 06.2011-
VW Golf VI 1.4 TSi [CTKA] 07.2009-07.2013
VW Golf VI 1.8 TSi [CDAA] 06.2009-01.2011
VW Jetta 1.4 TSi [BLG] 07.2006-
VW Jetta 1.4 TSi [BMY] 07.2006-
VW Jetta 1.4 TSi [CAVD] 04.2011-
VW Jetta 1.4 TSi [CAVD] 07.2008-
VW Jetta 1.4 TSi [CAXA] 05.2007-
VW Jetta 1.4 TSi [CTHD] 04.2011-
VW Jetta 2.0 [CBPA] 06.2010-
VW Jetta 2.0 FSi [BLY] 08.2005-
VW Jetta 2.0 FSi [BVY] 08.2005-
VW Jetta 2.0 FSi [BVZ] 08.2005-
VW Jetta 2.5 [BTK] 09.2006-
VW Multivan 2.0 [AXA] 04.2003-
VW New Beetle 1.4 TSi [CAVD] 12.2012-
VW New Beetle 1.4 TSi [CNWA] 12.2012-
VW New Beetle 1.4 TSi [CTHD] 12.2012-
VW New Beetle 1.4 TSi [CTKA] 12.2012-
VW Passat 1.4 TSi [CAXA] 05.2007-
VW Passat 1.4 TSi [CAXA] 08.2010-
VW Passat 1.4 TSi [CTHD] 11.2012-
VW Passat 1.4 TSi EcoFuel [CDGA] 01.2009-
VW Passat 1.4 TSi EcoFuel [CDGA] 08.2010-
VW Passat 1.4 TSi MultiFuel [CKMA] 11.2010-
VW Passat 1.8 TSi [BZB] 05.2007-
VW Passat 1.8 TSi [BZB] 06.2008-
VW Passat 1.8 TSi [CDAA] 05.2007-
VW Passat 1.8 TSi [CDAA] 08.2010-
VW Passat 1.8 TSi [CDAA] 11.2009-
VW Passat 1.8 TSi [CDAB] 02.2011-
VW Passat 1.8 TSi [CDAB] 11.2008-05.2010
VW Passat 1.8 TSi [CGYA] 11.2008-05.2010
VW Passat 2.0 FSi [BLR] 03.2005-11.2005
VW Passat 2.0 FSi [BLR] 08.2005-11.2005
VW Passat 2.0 FSi [BLY] 03.2005-11.2005
VW Passat 2.0 FSi [BLY] 08.2005-11.2005
VW Passat 2.0 FSi [BVY] 11.2005-
VW Passat 2.0 FSi [BVZ] 11.2005-
VW Passat 2.0 FSi 4-Motion [BLX] 09.2005-
VW Passat 2.0 FSi 4-Motion [BLY] 09.2005-
VW Passat 2.0 FSi 4-Motion [BVX] 09.2005-
VW Passat CC 1.4 TSi MultiFuel [CKMA] 01.2011-01.2012
VW Polo 1.8 GTi [BJX] 09.2005-
VW Polo 1.8 GTi Cup Edition [BBU] 05.2006-
VW Scirocco 1.4 TSi [CAVD] 09.2008-
VW Scirocco 1.4 TSi [CAXA] 09.2008-
VW Scirocco 1.4 TSi [CMSB] 09.2008-
VW Scirocco 1.4 TSi [CNWA] 09.2008-
VW Scirocco 1.4 TSi [CTHD] 09.2008-
VW Scirocco 1.4 TSi [CTKA] 09.2008-
VW Touran 1.4 FSi [BLG] 12.2006-
VW Touran 1.4 TSi [BMY] 02.2006-
VW Touran 1.4 TSi [CAVC] 02.2006-
VW Touran 1.4 TSi EcoFuel [CDGA] 05.2009-
VW Touran 2.0 FSi [AXW] 10.2003-
VW Touran 2.0 FSi [BJZ] 10.2004-
VW Touran 2.0 FSi [BLR] 10.2003-
VW Touran 2.0 FSi [BLX] 10.2003-
VW Touran 2.0 FSi [BLY] 10.2003-
VW Touran 2.0 FSi [BVY] 10.2003-
VW Touran 2.0 FSi [BVZ] 10.2003-
VW Transporter 2.0 [AXA] 04.2003-
VW Transporter 2.0 [AXA] 05.2011-08.2015
0001121408 0001121409 02Z911023E 02Z911023EX 02Z911023G 02Z911023GX 02Z911024P 02Z911024PX 063521214080 0986020240 101294 101294V 114163 12062 17967N 20479991 22.1294 22.1294M 25-3222 300.565.102 300.565.103 3038 42020240 438171 458213 6015199 8020240 8213184 88213184 8EA012526-521 8EA738157-001 944280202400 AEU1294 CS1294 CST15199 CST15199AS CST15199ES CST15199GS CST15199OS CST15199RS D6GS11 D6GS11M DRT0240 EAA-121586 EAA-121605 IS9431 LRS01676 LRS1676 M1207 M1207E M1207H MS 124 SS498 STB1294 STB1294ZL STM1030 STQ1294RN STR54092 STV1294 TS12MR11 220445
