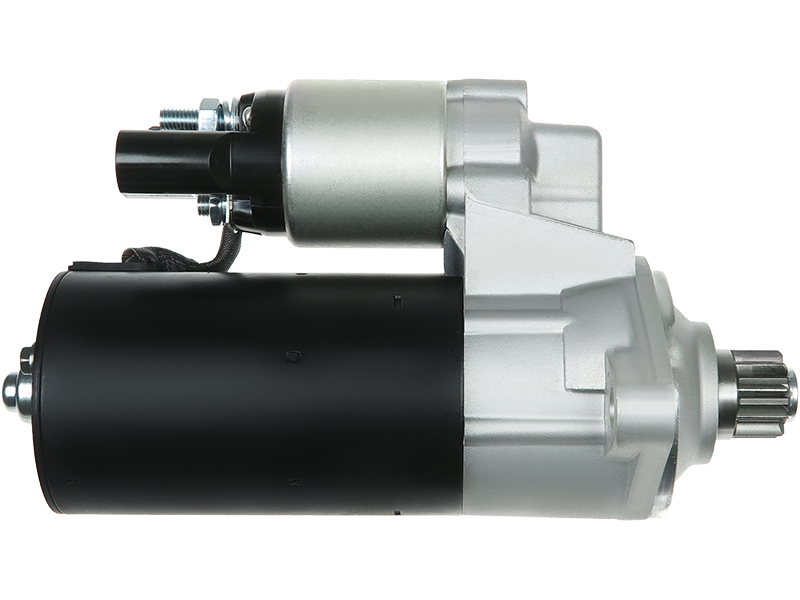

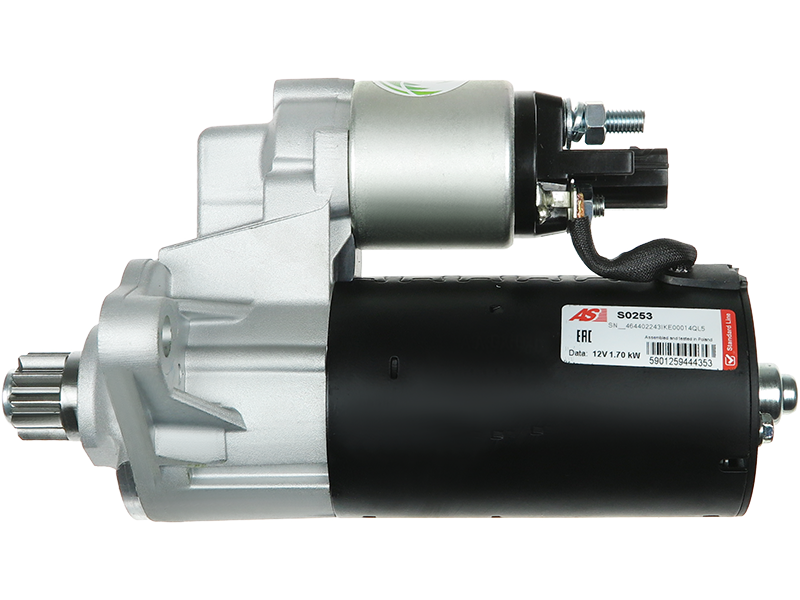

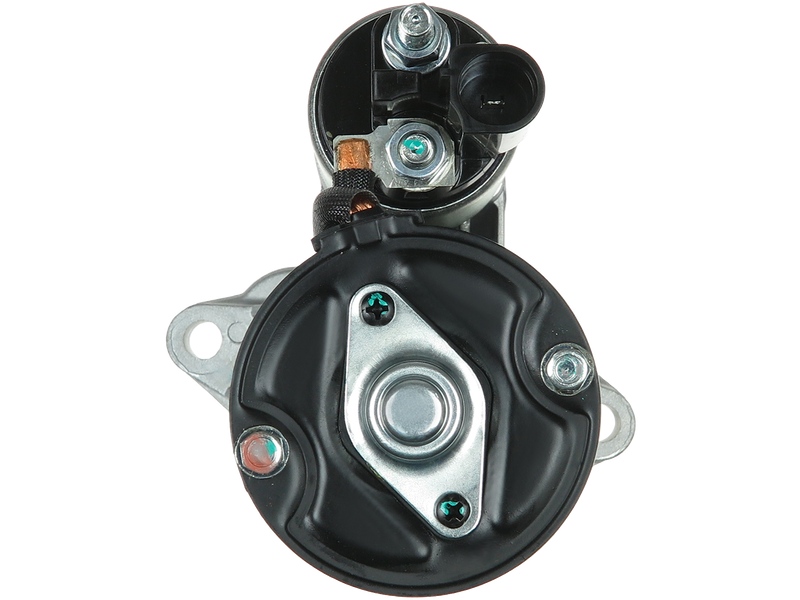

S0253 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 244.79 including GST

NZ$ 212.86 excluding GST



or four payments of $61.20 with
Afterpay Payment Offer Learn More

each
S0659S
S0253
3
Purchase Qty:

0001123016
0001123016 0001123017 02E911023H 02E911023HX 0986020280 101286 101286B 17971N 17971R 20401444OE 20401652 220606 25-3218 300.549.102 3041 42020280 6010256 6010444 91-15-7239 944280202800 AEU1286 BOS0001123016 CS1286 CST10256 CST10256AS CST10256ES CST10256GS CST10256OS CST10256RS CST10444GS DRT0280 DT1390 EAA-121054 LRS01672 LRS1672 MRS20280 RAS41391 S-6254 S0253 SG0696 STR50252 50-021 50021 ASPLList AUTOELECTRO BOSCHList BOSCH CASCO CEVAM DELCO S6254 DIXIE EAA121054 EAA 253218 ELSTOCK ERA GHIBAUDI HC PARTS HERTH+BUSS LUCAS MAGNETI MARELLI PSH REAL SANDO VW WAI / TRANSPO 91157239 WILSON WOODAUTO AEY2464 0001123036 0001123037 0986024360 115311 CARGO CST10444 3067 DRS0241 DS1351 RAS31352 12069 EAI 254136 220698 SG2101 CS1512 8EA012526191 HELLA 42024360 STB1286 KRAUF LRS02464 LRS2464 063521230360 MSN2158 88212628 POWERMAX 300.585.112 02E911023L 02E911023LX 17656N BOS0001123036 STR50672 S0659PR 701072 bxs4020 SNB043 Bosch ruil 11020280 EuroTec 113509 Cargo 120445 PIC 17971 Lester Elstock 300549102 458727 Valeo 4755SP Spidan 738119001 Hella 8020280F Friesen 920280 A20280 ATL Remy DSN3008 Denso F042S0H054 HCS1286 Lucas OSM11360 Optimum STM952 Rolling Components STR1406sa Electrolog STRH054 Unipoint 120445A 17656 300585112 910241 EDR STM1319 Arrowhead SBO0186 SR0496X Picture ID Light Duty 16033 Wilson J N 41024139 References: BSR0496X J& Audi Volkswagen 70-1072 0-001-123-016 0-001-123-017 J&N ELECTRICAL PRODUCTS 410-24139 LESTER ELECTRIC VOLKSWAGEN 02E-911-023H ARROWHEAD show 063521230160 Magneti Marelli 063720020010 0986020281 0986020287 311203102 DRI 359001400100 Herth Buss 635212301 8020280 943212861010 Auto Electro CS1286RD RNL DEM501286 ADI MO0010MA MQS020 MQS1286 MSN2106 MSRC1286 NSM1488 Napa (UK) QRS1212 QH RNL2028 (USA)
Kilowatt1.70 kW
Length (L.1)243 mm
Mount Hole Center - Center (O.1)118 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10. 11 qty
OEM ProductNo
Pinion at Rest (B)42.50 mm
Product LineStandard Line
Product TypeBrand new
RotationACW
Spigot Diameter (A)76 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
AUDI A3 1.9 TDi [BLS] 01.2006-12.2008
AUDI A3 2.0 [BUY] 06.2006-
AUDI A3 2.0 Sportback [BUY] 06.2006-
AUDI A3 2.0 TDi [AZV] 01.2005-12.2008
AUDI A3 2.0 TDi [AZV] 05.2003-
AUDI A3 2.0 TDi [BKD] 01.2005-12.2008
AUDI A3 2.0 TDi [BMM] 01.2003-12.2008
AUDI A3 2.0 TDi [BMM] 06.2005-
AUDI A3 2.0 TDi [BMN] 01.2003-12.2008
AUDI A3 2.0 TDi [BMN] 03.2006-
AUDI A3 2.0 TDi [BUY] 01.2003-12.2008
AUDI A3 2.0 TDi [BUY] 01.2005-12.2008
AUDI A3 2.0 TDi [BUY] 06.2006-06.2008
AUDI A3 2.0 TDi [CBAA] 04.2008-
AUDI A3 2.0 TDi [CBAB] 04.2008-
AUDI A3 2.0 TDi 16V [BKD] 05.2003-
AUDI A3 2.0 TDi 16V Quattro [BKD] 08.2004-
AUDI A3 2.0 TDi 16V Sportback [BKD] 09.2004-
AUDI A3 2.0 TDi Quattro [AZV] 01.2005-12.2006
AUDI A3 2.0 TDi Quattro [AZV] 05.2003-
AUDI A3 2.0 TDi Quattro [BKD] 01.2005-12.2006
AUDI A3 2.0 TDi Quattro [BMM] 01.2003-12.2008
AUDI A3 2.0 TDi Quattro [BMM] 01.2006-
AUDI A3 2.0 TDi Quattro [BMN] 01.2003-12.2008
AUDI A3 2.0 TDi Sportback [AZV] 09.2004-
AUDI A3 2.0 TDi Sportback Quattro [BMM] 06.2005-
AUDI A3 2.0 TDi Sportback Quattro [BMN] 03.2006-
AUDI A3 3.2 Quattro [BMJ] 07.2003-
AUDI A3 3.2 V6 [BMJ] 11.2005-
AUDI A3 3.2 V6 [BUB] 11.2005-
AUDI A3 3.2 V6 Quattro [BDB] 07.2003-
AUDI A3 3.2 V6 Sportback Quattro [BMJ] 09.2004-
AUDI TT 1.8 T [BVP] 01.2006-12.2008
AUDI TT 1.8 T [BVR] 01.2005-12.2006
AUDI TT 1.8 Turbo Quattro [ATC] 10.1998-08.2000
AUDI TT 3.2 Quattro [BUB] 01.2004-
AUDI TT 3.2 V6 Quattro [BUB] 10.2006-
SEAT Altea 1.9 TDi [BJB] 01.2004-12.2010
SEAT Altea 1.9 TDi [BKC] 01.2004-12.2010
SEAT Altea 1.9 TDi XL [BLS] 10.2006-
SEAT Altea 1.9 TDi XL [BXE] 10.2006-
SEAT Altea 2.0 TDi [AZV] 01.2006-
SEAT Altea 2.0 TDi [AZV] 04.2004-
SEAT Altea 2.0 TDi [BKD] 01.2006-
SEAT Altea 2.0 TDi [BKD] 03.2004-
SEAT Altea 2.0 TDi [BMM] 01.2006-
SEAT Altea 2.0 TDi [BMM] 11.2005-
SEAT Altea 2.0 TDi [BMN] 01.2006-
SEAT Altea 2.0 TDi 16V [AZV] 11.2006-
SEAT Altea 2.0 TDi 16V XL [BKD] 10.2006-
SEAT Altea 2.0 TDi 4x4 [BMM] 06.2007-
SEAT Altea 2.0 TDi XL [BMM] 10.2006-
SEAT Altea XL 1.9 TDi [BLS] 01.2005-12.2008
SEAT Altea XL 1.9 TDi [BXE] 01.2005-12.2008
SEAT Leon 1.9 TDi [BKC] 01.2005-12.2009
SEAT Leon 1.9 TDi [BKC] 09.2005-
SEAT Leon 1.9 TDi [BLS] 01.2005-12.2009
SEAT Leon 1.9 TDi [BLS] 09.2005-
SEAT Leon 1.9 TDi [BXE] 01.2005-12.2009
SEAT Leon 1.9 TDi [BXE] 09.2005-
SEAT Leon 1.9 TDi [BXF] 01.2005-12.2009
SEAT Leon 2.0 TDi [AZV] 01.2004-
SEAT Leon 2.0 TDi [AZV] 10.2005-
SEAT Leon 2.0 TDi [BKD] 01.2004-
SEAT Leon 2.0 TDi [BMM] 01.2004-
SEAT Leon 2.0 TDi [BMM] 10.2005-
SEAT Leon 2.0 TDi [BMN] 01.2004-
SEAT Leon 2.0 TDi 16V [BKD] 09.2005-
SEAT Toledo 1.9 TDi [BXE] 02.2006-
SEAT Toledo 2.0 TDi [AZV] 01.2004-12.2010
SEAT Toledo 2.0 TDi [AZV] 09.2004-
SEAT Toledo 2.0 TDi [BKD] 01.2004-12.2010
SEAT Toledo 2.0 TDi [BKD] 10.2004-
SEAT Toledo 2.0 TDi [BMM] 01.2006-
SKODA Octavia 1.9 TDi [BJB] 01.2004-12.2010
SKODA Octavia 1.9 TDi [BKC] 01.2004-12.2010
SKODA Octavia 1.9 TDi [BKC] 06.2004-02.2006
SKODA Octavia 1.9 TDi [BLS] 01.2004-12.2010
SKODA Octavia 1.9 TDi [BLS] 04.2007-
SKODA Octavia 1.9 TDi [BLS] 06.2004-
SKODA Octavia 1.9 TDi [BXE] 01.2004-12.2010
SKODA Octavia 1.9 TDi [BXE] 03.2006-
SKODA Octavia 1.9 TDi 4x4 [BJB] 01.2004-
SKODA Octavia 1.9 TDi 4x4 [BKC] 01.2004-
SKODA Octavia 1.9 TDi 4x4 [BLS] 01.2004-
SKODA Octavia 1.9 TDi 4x4 [BLS] 05.2006-
SKODA Octavia 1.9 TDi 4x4 [BXE] 01.2004-
SKODA Octavia 1.9 TDi 4x4 [BXE] 03.2006-
SKODA Octavia 2.0 TDi [AZV] 01.2006-12.2013
SKODA Octavia 2.0 TDi [AZV] 01.2008-
SKODA Octavia 2.0 TDi [BKD] 01.2006-12.2013
SKODA Octavia 2.0 TDi [BKD] 01.2008-
SKODA Octavia 2.0 TDi [BMM] 01.2008-
SKODA Octavia 2.0 TDi [BMM] 11.2005-
SKODA Octavia 2.0 TDi [BMN] 04.2006-
SKODA Octavia 2.0 TDi [CEGA] 01.2004-
SKODA Octavia 2.0 TDi [CEGA] 04.2006-
SKODA Octavia 2.0 TDi 16V [BKD] 06.2004-
SKODA Octavia 2.0 TDi 16V 4x4 [BMM] 05.2004-
SKODA Octavia 2.0 TDi RS [CEGA] 01.2008-
SKODA Superb 2.0 TDi [BKD] 01.2009-
SKODA Superb 2.0 TDi [BMP] 01.2008-
SKODA Superb 2.0 TDi [BMP] 07.2008-
SKODA Superb 2.0 TDi [CBBB] 01.2008-
SKODA Superb 2.0 TDi [CBBB] 07.2008-
SKODA Superb 2.0 TDi [CFFB] 03.2010-
SKODA Superb 2.0 TDi [CLJA] 02.2010-
SKODA Superb 2.0 TDi 4x4 [CBBB] 01.2008-
SKODA Superb 2.0 TDi 4x4 [CBBB] 09.2008-
SKODA Superb 3.6 4x4 [CDVA] 11.2008-
SKODA Superb 3.6 V6 4x4 [CDVA] 01.2005-12.2010
SKODA Superb 3.6 V6 4x4 [CDVA] 10.2009-
VW Caddy 1.9 TDi [BJB] 01.2008-12.2010
VW Caddy 1.9 TDi [BSU] 01.2008-12.2010
VW Caddy 1.9 TDi 4-Motion [BLS] 01.2008-
VW Caddy 2.0 TDi 4-Motion [BLS] 01.2011-
VW CC 3.6 FSi 4-Motion [BWS] 01.2006-12.2008
VW Eos 2.0 TDi [BMM] 01.2006-
VW Eos 2.0 TDi [BMM] 06.2006-
VW Eos 2.0 TFSi [BWA] 01.2009-12.2010
VW Eos 2.0 TFSi [CAWB] 03.2006-
VW Eos 3.2 FSi [BUB] 06.2006-
VW Eos 3.6 V6 [CDVA] 01.2002-12.2005
VW Golf IV 3.2 4-Motion [BFH] 06.2002-05.2004
VW Golf IV 3.2 4-Motion [BML] 06.2002-06.2006
VW Golf IV 3.2 R32 [BFH] 01.2005-12.2008
VW Golf Plus 1.9 TDi [BKC] 01.2005-12.2007
VW Golf Plus 1.9 TDi [BLS] 01.2005-
VW Golf Plus 1.9 TDi [BLS] 01.2005-12.2007
VW Golf Plus 1.9 TDi [BXE] 01.2005-12.2007
VW Golf Plus 2.0 TDi [AZV] 01.2009-
VW Golf Plus 2.0 TDi [AZV] 05.2005-
VW Golf Plus 2.0 TDi [BEE] 01.2005-
VW Golf Plus 2.0 TDi [BKD] 01.2009-
VW Golf Plus 2.0 TDi [BMM] 12.2005-
VW Golf Plus 2.0 TDi [CBDC] 03.2009-
VW Golf V 1.9 TDi [BKC] 01.2004-12.2008
VW Golf V 1.9 TDi [BKC] 10.2003-
VW Golf V 1.9 TDi [BLS] 01.2004-12.2008
VW Golf V 1.9 TDi [BLS] 10.2003-
VW Golf V 1.9 TDi [BRU] 01.2004-12.2008
VW Golf V 1.9 TDi [BXE] 10.2003-
VW Golf V 1.9 TDi 4-Motion [BKC] 01.2005-12.2008
VW Golf V 1.9 TDi 4-Motion [BKC] 08.2004-
VW Golf V 1.9 TDi 4-Motion [BLS] 01.2005-12.2008
VW Golf V 1.9 TDi 4-Motion [BLS] 08.2004-
VW Golf V 1.9 TDi 4-Motion [BRU] 01.2005-12.2008
VW Golf V 1.9 TDi 4-Motion [BXE] 08.2004-
VW Golf V 2.0 TDi [AZV] 01.2003-12.2008
VW Golf V 2.0 TDi [AZV] 10.2003-
VW Golf V 2.0 TDi [BKD] 01.2004-12.2008
VW Golf V 2.0 TDi [BMM] 01.2005-12.2009
VW Golf V 2.0 TDi [BMM] 12.2004-
VW Golf V 2.0 TDi [BMN] 01.2003-12.2008
VW Golf V 2.0 TDi [BMN] 11.2005-
VW Golf V 2.0 TDi 16V [BKD] 10.2003-
VW Golf V 2.0 TDi 16V 4-Motion [BKD] 08.2004-
VW Golf V 2.0 TDi 16V 4-Motion [BMM] 08.2004-
VW Golf V 3.2 R32 4-Motion [BFH] 01.2004-
VW Golf VI 2.0 TDi [BMM] 01.2011-
VW Golf VI 2.0 TDi [CBAA] 10.2008-11.2009
VW Golf VI 2.0 TDi [CBAB] 10.2008-
VW Golf VI 2.0 TDi [CJAA] 10.2008-
VW Golf VI 2.0 TDi 4-Motion [CBAB] 10.2008-
VW Jetta 1.9 TDi [BKC] 08.2005-
VW Jetta 1.9 TDi [BXE] 08.2005-
VW Jetta 2.0 TDi [BKD] 08.2005-
VW Jetta 2.0 TDi [BMM] 10.2005-
VW Jetta 2.0 TDi [BMN] 10.2006-
VW Passat 2.0 TDi [BMP] 03.2005-
VW Passat 2.0 TDi [BMR] 08.2005-
VW Passat 2.0 TDi [CBAA] 01.2008-
VW Passat 2.0 TDi [CBAB] 06.2008-
VW Passat 2.0 TDi 16V [CBAB] 01.2008-
VW Passat 2.0 TDi 16V 4-Motion [BKP] 03.2005-
VW Passat 2.0 TDi 16V 4-Motion [CBAB] 05.2008-
VW Passat 2.0 TDi 4-Motion [BMP] 03.2005-
VW Passat 2.0 TDi 4-Motion [CBBB] 05.2009-
VW Passat 2.0 TDi Blue TDi [CBAC] 01.2009-
VW Passat 3.2 FSi [AXZ] 11.2005-
VW Passat 3.2 FSi 4-Motion [AXZ] 11.2005-
VW Passat 3.6 4-Motion [BWS] 06.2008-
VW Passat 3.6 FSi 4-Motion [BWS] 01.2007-
VW Passat 3.6 R36 [BWS] 01.2005-12.2010
VW Passat 3.6 R36 4-Motion [BWS] 04.2007-
VW Passat CC 2.0 TDi [CBAA] 06.2008-
VW Passat CC 2.0 TDi [CBBB] 06.2008-
VW Scirocco 2.0 TDi [CBBB] 05.2009-
VW Scirocco 2.0 TDi [CBDB] 09.2008-
VW Touran 1.9 TDi [AVQ] 02.2003-
VW Touran 1.9 TDi [BKC] 08.2003-02.2006
VW Touran 1.9 TDi [BXE] 08.2003-02.2006
VW Touran 2.0 TDi [BMM] 01.2005-12.2010
VW Touran 2.0 TDi [BMN] 01.2005-12.2010
VW Touran 2.0 TDi 16V [BKD] 01.2003-12.2010

S0629 - 1.0 kW Version

S0659 - 2.0 kW Version

0001123016BOSCH
0001123017BOSCH
011-001-000059RREMANTE
02E911023HVW
02E911023HXVW
02E911023LVW
02E911023LXVW
063521230160MAGNETI MARELLI
063521230360MAGNETI MARELLI
063721286010MAGNETI MARELLI
0986020280BOSCH
10010256AVITAB AUTOMOTIVE
10010256OVITAB AUTOMOTIVE
101286KUHNER
101286BKUHNER
10441261ALANKO
105281FARCOM
11020280EUROTEC
113509CARGO
13981MAPCO
1638121080EUROREPAR
17971NWAI / TRANSPO
188514FEBI BILSTEIN
201060VALEO
20401652BNREAL
20401652OEREAL
220606ERA
25-3218ELSTOCK
2E911023HVW
2E911023HXVW
2S0020RIDEX
2S0020RRIDEX
300.549.102.010PSH
300.549.102.018PSH
300.549.102.210PSH
300.549.102.215PSH
300.549.102.280PSH
3041CEVAM
311203102DRI
3116817HENKEL PARTS
3116818HENKEL PARTS
331411LOGISTIK
359001400100MAGNETI MARELLI
42020280HERTH+BUSS
458727VALEO
4720290NK
5010103MEAT & DORIA
6010256.0SANDO
6010256.1SANDO
6.7013.1IKA
8020280FRIESEN
88212628POWERMAX
8EA012526-191HELLA
91-15-7239WILSON
943212861010MAGNETI MARELLI
944280202800MAGNETI MARELLI
A20280ATL AUTOTECHNIK
AC-CBS1286ACAUTO
AI-80021AINDE
ANM22500ANDEL
ANM22500XANDEL
ASM1488APEC
AZMT-53-010-1038A.Z. MEISTERTEILE
BOS0001123016WOODAUTO
BST2004BORG & BECK
CMA-621054COMLINE
CS1286HC PARTS
CST10256ASCASCO
CST10256GSCASCO
DSN3008DENSO
EZ0587ELTA AUTOMOTIVE
F032113509CARGO
H5010103HOFFER
IR9664PROTECH
LES0564LE PART
LRS01672LUCAS
LRS1672LUCAS
MAV122560SIOM
MAV122560ASIOM
MO0010MAMAGNETI MARELLI
MQS1286MAGNETI MARELLI
MRS20280MAGNETI MARELLI
MSN2106MAGNETI MARELLI
MSRC1286MAGNETI MARELLI
NPANSM1488NAPA
PRSS0023EFFE
PRSS002B3EFFE
S0253AS-PL
S12BH0116SIDAT
S12BH0116A2SIDAT
S-50252DTS
S512215BTS TURBO
SBO256AUTOTEAM
SBO256AAUTOTEAM
SEG0001123016WOODAUTO
SG0696GHIBAUDI
SKSTR-0330019STARK
ST01282TMI
STA0344RBOVEZ
STM952ROLLCO
STR1406ELECTROLOG
STR50252WOODAUTO
STRS0023EFFE
STRS002B3EFFE
STRS002NE3EFFE
STX200056STARDAX
STX200056RSTARDAX
WG2013170WILMINK GROUP
WG2013171WILMINK GROUP
WG2170229WILMINK GROUP
WG2196587WILMINK GROUP
WG2372484WILMINK GROUP
S0253
