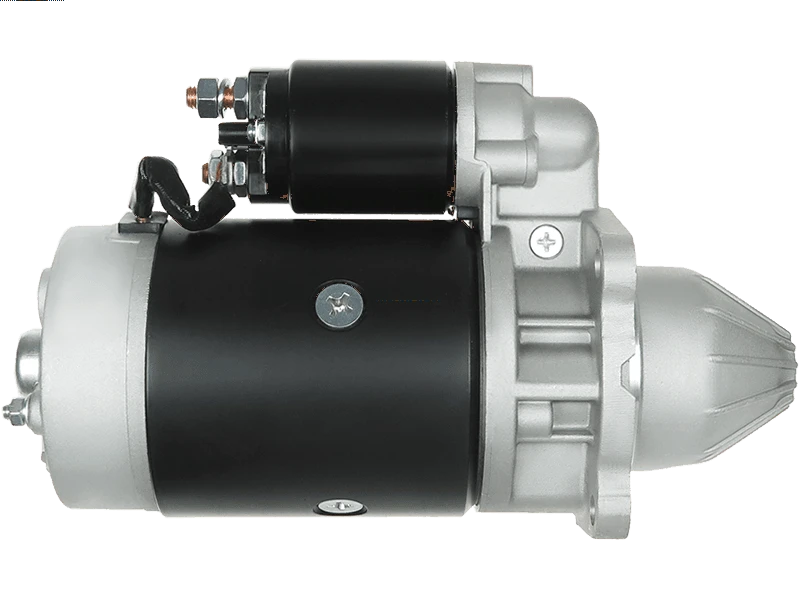

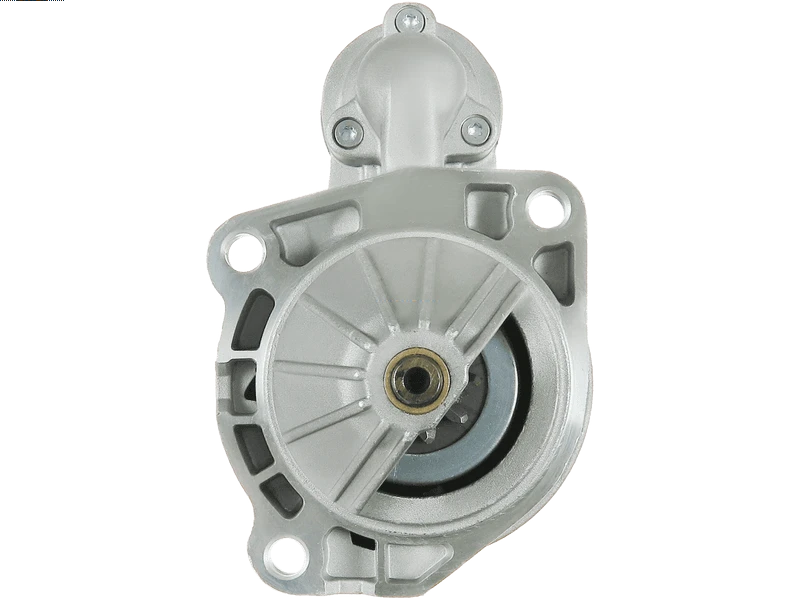

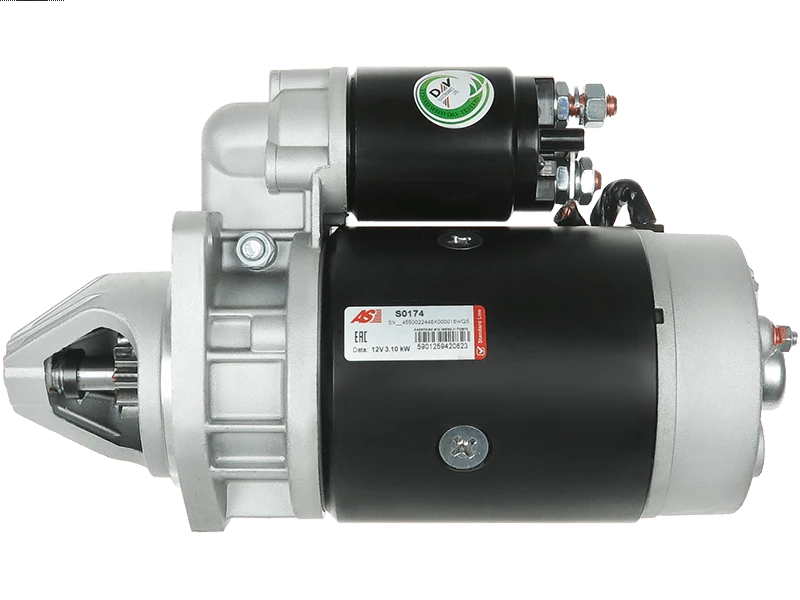

S0174 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 466.03 including GST

NZ$ 405.24 excluding GST


or four payments of $116.51 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
S0174
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001369014
0001369014 0001369024 0986016550 10887 10887M 11.130.567 112555 1179319 1180805 18026N 25-2110 33885 8035 8038 861093 8816550 8EA737086-001 AES9187 AZJ3179 CS887 DRS6550 EAA-121339 IS0567 LRS00987 M100R2014SE S0174 STR22060 ASPLList AUTOELECTRO BOSCHList BOSCH CARGO CEVAM DELCO EAA121339 EAA EAI 252110 ELSTOCK FRIESEN HC PARTS 8EA737086001 HELLA ISKRA / LETRIKA LETRIKAList KHD LUCAS PRESTOLITE WAI TRANSPO WOODAUTO 7017652 702650 708842 bxs9004 0001121034 snb101 0001358046 Bosch 0001358049 0001359027 0001359073 05712904R Bomag ruil 11011140 EuroTec 11016550 11130026 Mahle 11130567 1161384 1163669 1164668 1164994 1173240 1179318 1182233 120590 PIC 18026 Lester 18026R Elstock 433318 Valeo 560002093 PSH 8816550F Friesen 91156896 Wilson B15R12X3H7622 CS103 DEM110 ADI Remy IS0026 Lucas LRS921 LRS987 MS308 MSR697 Magneti Marelli STM1266 Rolling Components S0129 0001230006 0001230014 0986019020 112071 CST10230AS CASCO CST10230GS CST10361GS CST21151GS DRS9020 EAA121120 33943 253123 8819020 CS1130 8EA737629001 11.130.841 11.230.841 AZF4514 01180928KZ 01182233KZ 1180928 1180928KZ 1181976 1182233KZ 28.1130 LAUBER 28.1130M LRS01603 8212487 POWERMAX 20401032BN REAL 20401032OE 20419151OE RNL1902 RNL 6010230 SANDO 6010361 6021151 18232N STR2301 0001262001 0001262002 0001262033 0001262034 01182925 01183235 01183677 01183712 05719269 090015728 090021179 0986019021 11019020 11131754 11131769 11132137 11132256 11132291 Cargo 1182925 1183235 1206045 1206462 18232 18232R 230390 4595SP Spidan 510502093 6005025776 Clark 6599N 8819020F 91014315 91157139 919020 EDR A19020 ATL AZF4194 AZF4197 AZF4343 F042002083 F042S02083 HCS1130 IS1254 IS1440 MS197 MS65 SM2822 Honda STM560 STR1110sa Electrolog STR1424sa Unipoint STR7988sa Electrolo AES7162 05710901 BOMAG 05710905 05710917 05710923 05710927 05710990 05710991 05710992 05719897 0001358027 0001358033 0001358044 0001358073 0001358305 0001359012 0001359046 0001359049 0001359078 0001362016 0001362025 0001362034 0001362091 0001362305 0001362311 0001362313 0001367004 0986010990 0986011140 0986011200 0986011270 0986013680 110536 110964 V941501 CASE X830100007 8650 1113286 DELCOList 19024224 19024235 19024252 19024824 DRS0960 DRS0990 DRS1060 DRS1140 DRS1143 DRS1200 DRS3680 1178026 DEUTZ 1178686 33334 10430 EFEL 11640 EFELList 14100 806012000.0 ELMOT 867000.0 R11.12 R11K ELMOTList 250037 250155 250157 250282 25155 G380900060010 FENDT X830100001 8810990 8811140 8811200 CS114 8EA725962001 8EA725967001 11.130.026 11.130.074 11.130.117 11.130.484 11.130.551 11.130.552 AZJ0402 AZJ0404 AZJ3128 AZJ3169 AZJ3170 AZJ3199 AZJ3508 IS0484 IS0551 IS0552 1164669 1170051 1174166 1174167 1175726 1175886 B13R12X4H7622 B15R12X3H762 B23R12X3H7622 B28R12X4H7622 B4R12X3H7622 26025155A 61924050 LES0038 LRS00762 LRS00921 LRS01057 LRS01978 063523623 MAGNETI MARELLI 063523623050 943216818 943217407 943252071 943252071010 943252204 943252204010 943252217 943252271 MSN697 MSR218 MSR240 MSR683 MSR707 MT68T MARELLIList MT74G 9142802 MAGNETONList 9142803 81382305 MONARK 81387004 605720100084 MWM 120507 120513 120516 120530 1206002 1206002A 1206131 182104 182188 900236 20500762 20500923GB 35259940 861053 M100R2004SE M12905 M93R3004SE 6000102270 RENAULT 6000102394 6005001146 6005003155 6005003156 6005016395 VALEO 436077 21908BO 509103 509109 5091091 509124 5091241 STR22006 S0115 0001367010 0001367052 116139 CST10123AS CST10123ES CST10449AS 33421 01161384 01163669 01164994 01173240 22.0103 22.0114 28.0114 9142805 8212960 35261435 560.001.093 20401321BN 20401321EL 20401944BN 6010123 6010449 17074N 17075N STR50591 0986011201 11011200 11130484 11130552 11130865 1163758 17074 17074R 42498131 Iveco 520002093 560005093 Claas 720071 KAGER 91156828 91156870 Magneton AZJ3196 CS398 DEM126 IS0865 LRS672 MS220 SM2503 STM1235 STR1067sa STR7944sa EAA121207 RNL1114 S9044 28.0114M S4032 S0262
Kilowatt3.10 kW
Length (L.1)304 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)127.50 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
OEM ProductNo
Pinion at Rest (B)28 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)89 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
BOSCH DDOD 27 2.8 [F3L912] 01.1992-01.1999
BOSCH DDOD 27 2.8 F3L912 04.1982-01.1999
BOSCH DDOD 36 4.0 [F4L912] 01.1992-01.1999
BOSCH DDOD 36 4.0 F4L912 04.1982-01.1999
DEUTZ-FAHR AGROSTAR DX 6.38 BF6L913T 01.1990-12.1993
DEUTZ-FAHR D07 D7007 F4L912 01.1980-
DEUTZ-FAHR D 6807 3.8 Diesel [F4L912] 01.1992-
DEUTZ-FAHR D 7007 3.8 Diesel [F4L912] 01.1992-
DEUTZ-FAHR DX 3.10 F3L912 01.1984-12.1990
DEUTZ-FAHR DX 3.10 F3L912 01.1984-12.1990
DEUTZ-FAHR DX 3.10 2.8 Diesel [F3L912] 01.1992-06.2001
DEUTZ-FAHR DX 3.30 F3L912 01.1978-12.1995
DEUTZ-FAHR DX 3.30 2.8 Diesel [F3L912] 01.1992-06.2001
DEUTZ-FAHR DX 3.50 F3L913 01.1984-
DEUTZ-FAHR DX 3.50 3.1 Diesel [F3L913] 01.1992-06.2001
DEUTZ-FAHR DX 3.60 F4L912 01.1986-12.1995
DEUTZ-FAHR DX 3.60 F4L912 01.1986-12.1995
DEUTZ-FAHR DX 3.60 3.8 Diesel [F4L912] 01.1992-06.2001
DEUTZ-FAHR DX 3.70 F4L912 01.1985-12.1989
DEUTZ-FAHR DX 3.70 F4L912 01.1985-12.1989
DEUTZ-FAHR DX 3.70 3.8 Diesel [F4L912] 01.1992-06.2001
DEUTZ-FAHR DX 3.80 F4L913 01.1985-12.1990
DEUTZ-FAHR DX 3.80 4.1 Diesel [F4L913] 01.1992-06.2001
DEUTZ-FAHR DX 3.90 F4L913 01.1985-12.1989
DEUTZ-FAHR DX 3.90 F4L913 01.1985-12.1989
DEUTZ-FAHR DX 3.90 4.1 Diesel [F4L913] 01.1992-06.2001
DEUTZ-FAHR DX 4.10 F4L912 01.1985-
DEUTZ-FAHR DX 4.10 3.8 Diesel [F4L912] 01.1992-06.2001
DEUTZ-FAHR DX 4.30 F4L913 01.1983-
DEUTZ-FAHR DX 4.30 4.1 Diesel [F4L913] 01.1992-06.2001
DEUTZ-FAHR DX 4.31 4.1 Diesel [F4L913] 01.1992-
DEUTZ-FAHR DX 4.50 BF4L913T 01.1983-
DEUTZ-FAHR DX 4.50 4.1 Diesel [BF4L913] 01.1992-06.2001
DEUTZ-FAHR DX 4.51 4.1 Diesel [BF4L913] 01.1992-
DEUTZ-FAHR DX 4.70 BF4L913T 01.1983-
DEUTZ-FAHR DX 4.70 4.1 Diesel [BF4L913] 01.1992-
DEUTZ-FAHR DX 6.05 F6L912 01.1987-12.1991
DEUTZ-FAHR DX 6.05 5.7 Diesel [F6L912] 01.1992-06.2001
DEUTZ-FAHR DX 6.10 F6L912 01.1983-
DEUTZ-FAHR DX 6.30 F6L913 01.1983-
DEUTZ-FAHR DX 6.30 6.1 Diesel [F6L913] 01.1992-06.2001
DEUTZ-FAHR DX 6.31 6.0 Diesel [BF6L913] 01.1992-01.2005
DEUTZ-FAHR DX 6.50 BF6L913 01.1983-
DEUTZ-FAHR DX 6.50 6.1 Diesel [BF6L913] 01.1992-06.2001
DEUTZ-FAHR DX 6.60 6.0 Diesel [BF6L913] 01.1992-10.2003
DEUTZ-FAHR DX 7.10 BF6L913 01.1984-12.1989
DEUTZ-FAHR DX 7.10 6.1 Diesel [BF6L913] 01.1992-06.2001
DEUTZ-FAHR Intrac 6.30 6.0 TD [BF6L913] 01.1992-01.2004
DEUTZ-FAHR M 1080 4.7 Diesel [F5L912] 01.1992-01.1996
DEUTZ-FAHR M 1202 5.7 Diesel [F6L912] 01.1992-01.1995
DEUTZ-FAHR M 2385 5.7 Diesel [F6L912] 01.1992-01.1997
DEUTZ-FAHR M 3330 2.8 [F3L912] 01.1992-03.2002
DEUTZ-FAHR M 3360 3.8 [F4L912] 01.1992-03.2002
DEUTZ-FAHR M 980 3.8 Diesel [F4L912] 01.1992-01.1996
FENDT Farmer 204 P, 204 V F4L912 01.1974-
FENDT Farmer 204 PA, 204 VA F4L912 01.1974-
KHD Engine 2.8 Diesel [F3L912..] 01.1992-
KHD Engine 2.8 Diesel F3L912.. 07.1986-12.1991
KHD Engine 3.8 Diesel [F4L912] 01.1992-
KHD Engine 3.8 Diesel F4L912 07.1989-12.1991
KHD Engine 5.7 Diesel [F6L912] 12.1991-
KHD Engine 5.7 Diesel F6L912 05.1990-11.1991
0001369014BOSCH
0001369024BOSCH
042620DA SILVA
05712904RBOMAG
05712907BOMAG
0986016550BOSCH
0986016557BOSCH
103534FARCOM
10440917ALANKO
10887KUHNER
10887BKUHNER
10887MKUHNER
10887SKUHNER
112555CARGO
1179319DEUTZ
1180805DEUTZ
18026NWAI
18026RWAI
25-2110ELSTOCK
2934710DEUTZ
30-1498AIRSTAL
3121344HENKEL PARTS
331039LOGISTIK
33885EAI
560.002.093.010WAI
688015092DRI
8035CEVAM
8816550FRIESEN
8EA015642-711HELLA
8EA737086-001HELLA
91-15-6896WILSON
91-15-6896NWILSON
A16550ATL AUTOTECHNIK
AC-CBS0887ACAUTO
AES9187AUTOELECTRO
AM-2973AUTO MAGNETO
ANM18770ANDEL
ANM18770XANDEL
C000900060120AGCO
CS887HC PARTS
DRS6550DELCO
F032112555CARGO
F716903060040FENDT
LES0472LE PART
LETIS0567WOODAUTO
LRS00987LUCAS
LRS987LUCAS
RNL1655RNL
S0174AS-PL
S100950BTS TURBO
S133.675WAI
SG0064GHIBAUDI
SG0064RBGHIBAUDI
ST00782TMI
STM1266ROLLCO
STM8653AES
STR1301ELECTROLOG
STR1639ELECTROLOG
STR22060WOODAUTO
STR60657WOODAUTO
STR7888ELECTROLOG
STRS0633EFFE
STX200554STARDAX
WOOSTR22060WOODAUTO
S0174

This Starter is 3.1kW,

it will replace Lucas, Mahle/Iskra, Magneton and Prestolite options.

Check the length measurement of your starter, May not fit all applications if the length is to long. This starter is 304mm in length TOTAL

This starter is a DD ( Direct Drive) starter and will replace OSGR ( Off Set Gear Reduction) PMGR ( Permanent Magnet Gear Reduction), PLGR ( Planetary Gear Reduction) style starters
