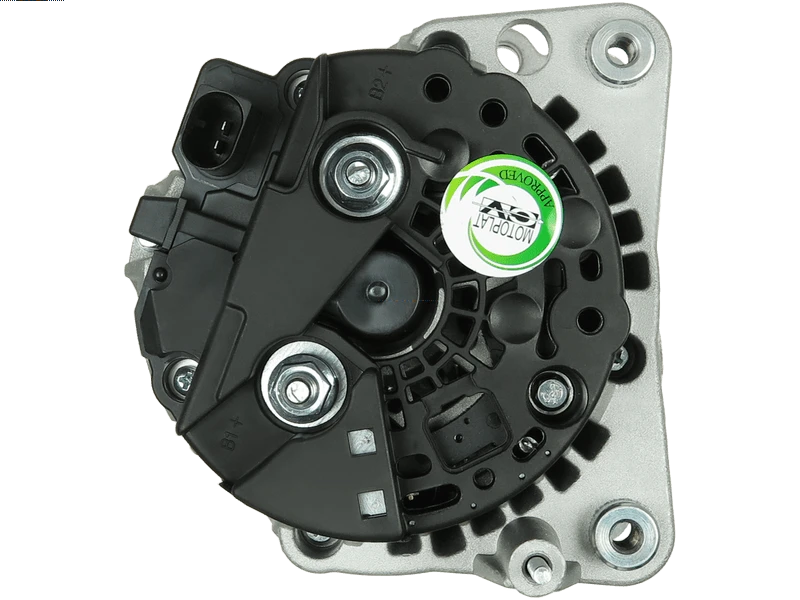

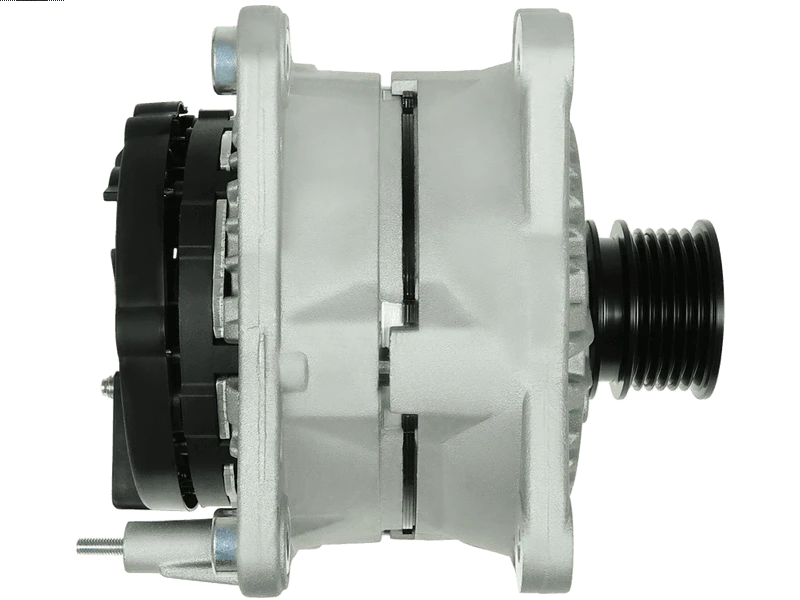

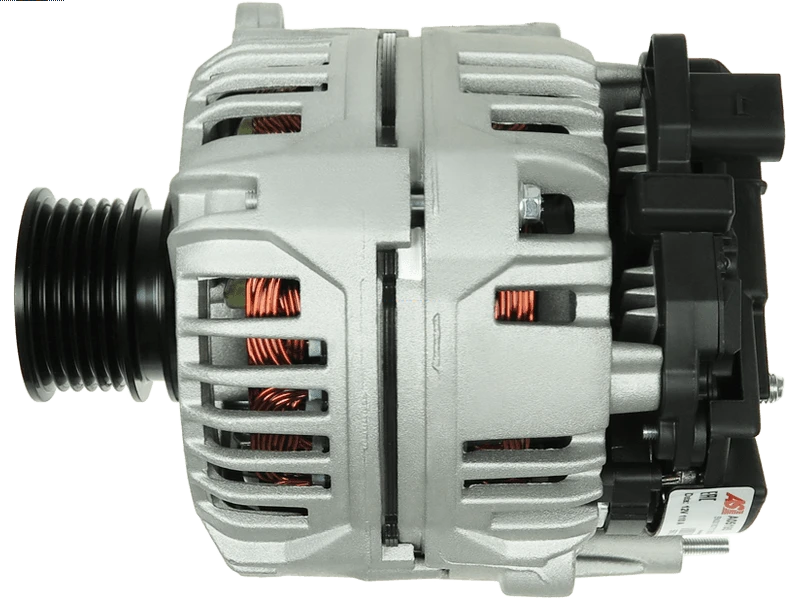

A0519S - Brand new AS-PL Alternator

Brand new AS-PL Alternator
Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 392.43 including GST

NZ$ 341.24 excluding GST


or four payments of $98.11 with
Afterpay Payment Offer Learn More

UOM:
each
Alternative Item:
AAM-S6032
Product Code:
A0519S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:
Would you like to add?:



UD14851A ASPL List
AEC1729 AUTOELECTRO
0124325056 BOSCH List
0124325081 BOSCH List
0124325090 BOSCH
0124325125 BOSCH List
0124325127 BOSCH List
0124325160 BOSCH List
0986046070 BOSCH
113874 CARGO
CAL1532 CASCO
CAL15342 CASCO
4641 CEVAM
DRB5300 DELCO
EAA251112 EAA
56846 EAI
284713 ELSTOCK
210498 ERA
CA1729IR HC PARTS
8EL012428731 HELLA
8EL738066001 HELLA
6.3093.9 IKA
LRA02238 LUCAS
944390453000 MAGNETI MARELLI
9213349 POWERMAX
305.519.090 PSH
305.519.110 PSH
2542696 VALEO List
2542696C VALEO List
TG11C014 VALEO List
036903018B VW
036903018BX VW
036903024D VW
036903024H VW
036903024HX VW
036903024J VW
036903024JX VW
036903024N VW
23205N WAI / TRANSPO
23205R WAI / TRANSPO
ALT10422 WOODAUTO
Alternatives for Origineel: 305519110

Original Number
0124325050
0124325056
0124325081
0124325090
0124325125
0124325127
0124325138
0124325160
036903018B
036903024D
036903024H
036903024J
036903024P
0986045300
0986046070
0986081320
2205538
23205
2542696
2542696B
284707
284713
305519110
437502
439511
542696
6159SP
6163SP
9045300F
934159
945300
CA1729IR
CA1733IR
DRA4159
HCA1729IR
HCA1733IR
L41505
L45300
LRA02238
OAN11494
TG11C014
VALTG11C014 WOODAUTO

0124325056 0124325081 0124325090 0124325125 0124325127 0124325160 036903018B 036903018BX 036903024D 036903024H 036903024HX 036903024J 036903024JX 036903024N 0986046070 113874 2015342 210498 23205N 23205R 2542696 2542696C 28-4713 301729RI 301729RIV 301816RIV 305.519.090 305.519.110 4641 56846 6.3093.9 8EL012428-731 8EL738066-001 9213349 944390453000 AEC1729 ALT10422 CA1729IR CAL1532 CAL15342 CAL15342AS CAL15342ES CAL15342GS CAL15342OS CAL15342RS DRB5300 EAA-251112 LRA02238 TG11C014 UD14851A VALTG11C014
Amp110 A
Bottom Mounting Foot Width (B)14 mm
Diameter (D.1)8.50 mm
Diameter (D.2)8.50 mm
Diameter (D.3)M8x1.25 mm
Diameter (D.4)M8x1.25 mm
Length (L.1)186 mm
Mount Inside Length or Pad Mount C-C (C)61 mm
OEM ProductNo
Plug CodePL_2300
Product LineStandard Line
Product TypeBrand new
Pulley Grooves6 qty
Pulley Outside Diameter (O.D.2)50 mm
Pulley to Mount Distance (A)40 mm
Pulley TypeSolid
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
AUDI A2 1.6 FSi [BAD] 01.2002-12.2005
AUDI A2 (8Z0) 1.6 FSI BAD 05.2002-08.2005
SEAT Altea 1.4 [BXW] 01.2006-
SEAT ALTEA (5P1) 1.4 16V BXW 05.2006-05.2011
SEAT ALTEA (5P1) 1.4 16V CGGB 05.2006-05.2011
SEAT ALTEA XL (5P5, 5P8) 1.4 16V BXW 10.2006-06.2013
SEAT ALTEA XL (5P5, 5P8) 1.4 16V CGGB 10.2006-06.2013
SEAT Cordoba 1.4 [BXW] 01.2006-
SEAT CORDOBA (6L2) 1.4 16V BBY 09.2002-12.2007
SEAT CORDOBA (6L2) 1.4 16V BKY 09.2002-12.2007
SEAT CORDOBA (6L2) 1.4 16V BXW 05.2006-11.2009
SEAT Ibiza 1.4 [BKY] 01.2004-12.2007
SEAT Ibiza 1.4 [BXW] 03.2008-
SEAT Ibiza 1.4 [BXW] 07.2008-
SEAT Ibiza 1.4 ST [CGGB] 03.2010-
SEAT IBIZA III (6L1) 1.4 16V BBY 02.2002-12.2007
SEAT IBIZA III (6L1) 1.4 16V BKY 02.2002-12.2007
SEAT IBIZA III (6L1) 1.4 16V BXW 05.2006-11.2009
SEAT IBIZA IV (6J5, 6P1) 1.4 BXW 03.2008-05.2015
SEAT IBIZA IV (6J5, 6P1) 1.4 CGGB 03.2008-05.2015
SEAT IBIZA IV (6J5, 6P1) 1.4 LPG BXW 03.2008-05.2011
SEAT IBIZA IV SC (6J1, 6P5) 1.4 BXW 07.2008-05.2015
SEAT IBIZA IV SC (6J1, 6P5) 1.4 CGGB 07.2008-05.2015
SEAT IBIZA IV SC (6J1, 6P5) 1.4 LPG BXW 07.2008-05.2011
SEAT IBIZA IV ST (6J8, 6P8) 1.4 CGGB 03.2010-05.2015
SEAT Leon 1.4 [BXW] 01.2006-
SEAT LEON (1M1) 1.4 16V AHW 11.1999-06.2006
SEAT LEON (1M1) 1.4 16V APE 11.1999-06.2006
SEAT LEON (1M1) 1.4 16V AXP 11.1999-06.2006
SEAT LEON (1M1) 1.4 16V BCA 11.1999-06.2006
SEAT LEON (1P1) 1.4 16V BXW 06.2006-12.2012
SEAT LEON (1P1) 1.4 16V CGGB 06.2006-12.2012
SEAT Toledo 1.4 16V [BXW] 05.2006-05.2009
SEAT TOLEDO III (5P2) 1.4 16V BXW 05.2006-05.2009
SKODA Fabia 1.4 [BXW] 06.2007-
SKODA Fabia 1.4 [CGGB] 06.2007-
SKODA Fabia 1.4 16V [AUA] 05.2000-
SKODA Fabia 1.4 16V [AUA] 10.1999-
SKODA Fabia 1.4 16V [AUA] 12.1999-
SKODA Fabia 1.4 16V [AUB] 07.2001-
SKODA Fabia 1.4 16V [AUB] 12.1999-
SKODA Fabia 1.4 16V [BBY] 05.2000-
SKODA Fabia 1.4 16V [BBY] 12.1999-
SKODA Fabia 1.4 16V [BBZ] 12.1999-
SKODA Fabia 1.4 16V [BKY] 05.2000-
SKODA Fabia 1.4 16V [BKY] 10.1999-
SKODA Fabia 1.4 16V [BKY] 12.1999-
SKODA FABIA I (6Y2) 1.4 16V AUA 12.1999-03.2008
SKODA FABIA I (6Y2) 1.4 16V AUB 12.1999-03.2008
SKODA FABIA I (6Y2) 1.4 16V BBY 12.1999-03.2008
SKODA FABIA I (6Y2) 1.4 16V BBZ 12.1999-03.2008
SKODA FABIA I (6Y2) 1.4 16V BKY 12.1999-03.2008
SKODA FABIA I Combi (6Y5) 1.4 16V AUA 05.2000-12.2007
SKODA FABIA I Combi (6Y5) 1.4 16V BBY 05.2000-12.2007
SKODA FABIA I Combi (6Y5) 1.4 16V BKY 05.2000-12.2007
SKODA FABIA I Combi (6Y5) 1.4 16V BUD 04.2006-12.2007
SKODA FABIA II (542) 1.4 BXW 01.2007-12.2014
SKODA FABIA II (542) 1.4 CGGB 01.2007-12.2014
SKODA FABIA II (542) 1.4 LPG BXW 01.2007-11.2014
SKODA FABIA II (542) 1.4 LPG CGGB 01.2007-11.2014
SKODA FABIA II Combi (545) 1.4 BXW 10.2007-12.2014
SKODA FABIA II Combi (545) 1.4 CGGB 10.2007-12.2014
SKODA FABIA II Combi (545) 1.4 LPG BXW 10.2007-11.2014
SKODA FABIA II Combi (545) 1.4 LPG CGGB 10.2007-11.2014
SKODA FABIA I Praktik (6Y5) 1.4 BKY 05.2004-12.2007
SKODA FABIA I Saloon (6Y3) 1.4 16V AUA 10.1999-12.2007
SKODA FABIA I Saloon (6Y3) 1.4 16V AUB 12.1999-12.2007
SKODA FABIA I Saloon (6Y3) 1.4 16V BBY 10.1999-12.2007
SKODA FABIA I Saloon (6Y3) 1.4 16V BBZ 12.1999-12.2007
SKODA FABIA I Saloon (6Y3) 1.4 16V BKY 10.1999-12.2007
SKODA FABIA I Saloon (6Y3) 1.4 16V BUD 04.2006-12.2007
SKODA Octavia 1.4 [BCA] 01.2004-
SKODA Octavia 1.4 [BUD] 06.2004-
SKODA OCTAVIA II (1Z3) 1.4 BCA 05.2004-05.2006
SKODA OCTAVIA II (1Z3) 1.4 BUD 06.2004-04.2013
SKODA OCTAVIA II (1Z3) 1.4 CGGA 06.2004-04.2013
SKODA OCTAVIA II Combi (1Z5) 1.4 BCA 05.2004-05.2006
SKODA OCTAVIA II Combi (1Z5) 1.4 BUD 05.2006-06.2013
SKODA OCTAVIA II Combi (1Z5) 1.4 CGGA 05.2006-06.2013
SKODA Roomster 1.4 [BXW] 09.2006-
SKODA Roomster 1.4 [CGGB] 09.2006-
SKODA ROOMSTER (5J7) 1.4 BXW 09.2006-05.2015
SKODA ROOMSTER (5J7) 1.4 CGGB 09.2006-05.2015
SKODA ROOMSTER (5J7) 1.4 LPG BXW 03.2010-05.2015
SKODA ROOMSTER (5J7) 1.4 LPG CGGB 03.2010-05.2015
SKODA ROOMSTER Praktik (5J) 1.4 BXW 03.2007-05.2015
SKODA ROOMSTER Praktik (5J) 1.4 CGGB 03.2007-05.2015
VW BORA I (1J2) 1.6 16V ATN 05.2000-05.2005
VW BORA I (1J2) 1.6 16V AUS 05.2000-05.2005
VW BORA I (1J2) 1.6 16V AZD 05.2000-05.2005
VW BORA I (1J2) 1.6 16V BCB 05.2000-05.2005
VW BORA I (1J2) 1.6 FSI BAD 01.2002-05.2005
VW BORA Variant (1J6) 1.6 16V ATN 02.2000-05.2005
VW BORA Variant (1J6) 1.6 16V AUS 02.2000-05.2005
VW BORA Variant (1J6) 1.6 16V AZD 02.2000-05.2005
VW BORA Variant (1J6) 1.6 16V BCB 02.2000-05.2005
VW BORA Variant (1J6) 1.6 FSI BAD 01.2002-05.2005
VW Caddy 1.4 [BCA] 03.2004-05.2006
VW Caddy 1.4 [BUD] 01.2006-12.2008
VW CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.4 BCA 03.2004-05.2006
VW CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) 1.4 BUD 05.2006-08.2010
VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.4 BCA 03.2004-05.2006
VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) 1.4 BUD 05.2006-08.2010
VW GOLF IV (1J1) 1.6 16V ATN 02.2000-06.2005
VW GOLF IV (1J1) 1.6 16V AUS 02.2000-06.2005
VW GOLF IV (1J1) 1.6 16V AZD 02.2000-06.2005
VW GOLF IV (1J1) 1.6 16V BCB 02.2000-06.2005
VW GOLF IV (1J1) 1.6 FSI BAD 01.2002-06.2005
VW GOLF IV Variant (1J5) 1.6 16V ATN 02.2000-06.2006
VW GOLF IV Variant (1J5) 1.6 16V AUS 02.2000-06.2006
VW GOLF IV Variant (1J5) 1.6 16V AZD 02.2000-06.2006
VW GOLF IV Variant (1J5) 1.6 16V BCB 02.2000-06.2006
VW GOLF IV Variant (1J5) 1.6 FSI BAD 01.2002-06.2006
VW Golf Plus V 1.4 [BCA] 01.2005-
VW Golf Plus V 1.4 [BUD] 01.2005-
VW Golf Plus V 1.4 [CGGA] 01.2005-
VW Golf Plus V 1.4 16V [BUD] 01.2005-
VW Golf Plus V 1.4 16V [CGGA] 01.2009-
VW GOLF PLUS V (5M1, 521) 1.4 16V BCA 01.2005-11.2006
VW GOLF PLUS V (5M1, 521) 1.4 16V BUD 05.2006-12.2013
VW GOLF PLUS V (5M1, 521) 1.4 16V CGGA 05.2006-12.2013
VW Golf V 1.4 [BCA] 01.2003-
VW Golf V 1.4 [BUD] 01.2006-
VW Golf V 1.4 16V [BUD] 05.2006-
VW GOLF V (1K1) 1.4 16V BCA 10.2003-05.2006
VW GOLF V (1K1) 1.4 16V BUD 05.2006-11.2008
VW GOLF V (1K1) 2.0 GTI AXX 10.2004-02.2009
VW GOLF V (1K1) 2.0 GTI BPY 10.2004-02.2009
VW GOLF V (1K1) 2.0 GTI BWA 10.2004-02.2009
VW GOLF V (1K1) 2.0 GTI BYD 09.2006-12.2008
VW GOLF V (1K1) 2.0 GTI CAWB 10.2004-02.2009
VW GOLF V (1K1) 2.0 GTI CBFA 10.2004-02.2009
VW GOLF V (1K1) 2.0 GTI CCTA 10.2004-02.2009
VW Golf VI 1.4 [CGGA] 07.2009-07.2013
VW Golf VI 2.0 [CCZA] 07.2009-07.2013
VW GOLF VI (5K1) 1.4 CGGA 10.2008-11.2012
VW GOLF VI (5K1) 2.0 GTi CCZB 04.2009-11.2012
VW GOLF VI Variant (AJ5) 1.4 CGGA 07.2009-07.2013
VW GOLF VI Variant (AJ5) 2.0 TFSI CCZA 07.2009-07.2013
VW GOLF V Variant (1K5) 1.4 BUD 06.2007-07.2009
VW GOLF V Variant (1K5) 1.9 TDI 4motion BLS 01.2008-07.2009
VW GOLF V Variant (1K5) 2.0 TDI AZV 06.2007-07.2009
VW GOLF V Variant (1K5) 2.0 TDI CBDA 06.2007-07.2009
VW GOLF V Variant (1K5) 2.0 TDI 16V BKD 06.2007-07.2009
VW GOLF V Variant (1K5) 2.0 TDI 16V CBDB 06.2007-07.2009
VW GOLF V Variant (1K5) 2.0 TFSI BWA 06.2007-07.2009
VW GOLF V Variant (1K5) 2.0 TFSI CAWB 06.2007-07.2009
VW GOLF V Variant (1K5) 2.0 TFSI CBFA 06.2007-07.2009
VW GOLF V Variant (1K5) 2.0 TFSI CCTA 06.2007-07.2009
VW LUPO I (6X1, 6E1) 1.4 FSI ARR 02.2001-07.2005
VW Polo 1.4 [BAH] 01.2005-
VW Polo 1.4 [BBY] 07.2003-
VW Polo 1.4 [CGGB] 01.2009-
VW Polo 1.4 [CGGB] 06.2009-
VW Polo 1.4 16V [AHW] 10.1999-09.2001
VW Polo 1.4 16V [APE] 10.1999-09.2001
VW Polo 1.4 16V [AUA] 10.1999-09.2001
VW Polo 1.4 16V [BUD] 05.2006-
VW Polo 1.4 BiFuel [CMAA] 01.2010-12.2011
VW Polo 1.4 Flexfuel [CMAA] 03.2010-01.2011
VW POLO (6N2) 1.4 16V AHW 10.1999-09.2001
VW POLO (6N2) 1.4 16V APE 10.1999-09.2001
VW POLO (6N2) 1.4 16V AUA 10.1999-09.2001
VW POLO III CLASSIC (6V2) 75 1.4 16V APE 10.1999-09.2001
VW POLO III CLASSIC (6V2) 75 1.4 16V AUA 10.1999-09.2001
VW POLO IV (9N_, 9A_) 1.4 16V AUA 10.2001-05.2008
VW POLO IV (9N_, 9A_) 1.4 16V BBY 10.2001-05.2008
VW POLO IV (9N_, 9A_) 1.4 16V BKY 10.2001-05.2008
VW POLO IV (9N_, 9A_) 1.4 16V BUD 05.2006-11.2009
VW POLO IV (9N_, 9A_) 1.4 BiFuel BUD 05.2006-11.2009
VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) 1.4 BBY 11.2002-04.2012
VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) 1.4 BKY 11.2002-04.2012
VW POLO V (6R1, 6C1) 1.4 (6R1) CDDA 03.2009-05.2014
VW POLO V (6R1, 6C1) 1.4 (6R1) CGGB 03.2009-05.2014
VW POLO V (6R1, 6C1) 1.4 (6R1) CLPA 03.2009-05.2014
VW POLO V (6R1, 6C1) 1.4 BiFuel CMAA 03.2010-01.2011
VW POLO Van (6R) 1.4 CGGB 03.2009-05.2014
VW POLO Variant (6V5) 1.4 16V APE 10.1999-09.2001
VW POLO Variant (6V5) 1.4 16V AUA 10.1999-09.2001

A0027 - 90Amp Option

A0027PR - Remanufactured 90 Amp Option

0124325056BOSCH
0124325081BOSCH
0124325090BOSCH
0124325125BOSCH
0124325127BOSCH
0124325160BOSCH
0124325279BOSCH
036903018BVW
036903018BXVW
036903024DVW
036903024HVW
036903024HXVW
036903024JVW
036903024JXVW
036903024NVW
036903025HVW
036903026JVW
0986046070BOSCH
113874CARGO
1986A00562BOSCH
1986A01119BOSCH
200260VALEO
2015342.0SANDO
2015342.1SANDO
20179243BNREAL
20179243OEREAL
210498ERA
23205NWAI
23205RWAI
2542696VALEO
2542696CVALEO
28-4713ELSTOCK
301729RIKUHNER
301729RIVKUHNER
301816RIVKUHNER
305.519.090.346WAI
305.519.110.000WAI
305.519.110.004WAI
305.519.110.010WAI
305.519.110.281WAI
305.519.110.340WAI
305.519.110.460WAI
305.519.110.461WAI
305.519.110.462WAI
36903018BVW
36903024DVW
36903024HVW
36903024HXVW
36903024JVW
36903024JXVW
36903025HVW
36903026JVW
437502VALEO
439511VALEO
441876LOGISTIK
442080LOGISTIK
4641CEVAM
55101368GMEAT & DORIA
55151096MEAT & DORIA
56846EAI
6.3093.9IKA
8EL012428-731HELLA
8EL738066-001HELLA
9213349POWERMAX
944390453000MAGNETI MARELLI
A0519SAS-PL
A12BH1159A2SIDAT
A12VA0400SIDAT
A12VA0400ASSIDAT
A132.362WAI
A148.169WAI
AEC1729AUTOELECTRO
ALT00749ELECTROLOG
ALT10422WOODAUTO
ALT1464ELECTROLOG
ALT173420SIOM
ALT173420ASIOM
ALT454ROLLCO
ALTF9323EFFE
ALTL7433EFFE
ALTL743V3EFFE
ANM47520XANDEL
AZMT-49-035-1477A.Z. MEISTERTEILE
CA1729IRHC PARTS
CAL15342ASCASCO
CAL15342GSCASCO
CGB-84713AINDE
DRB5300DELCO
F000BL06U8BOSCH
F032113874CARGO
H55101368GHOFFER
H55151096HOFFER
LRA02238LUCAS
LRA2238LUCAS
PRAF9323EFFE
PRAL7433EFFE
PRAL743V3EFFE
RNL4607RNL
STX100372STARDAX
STX100372RSTARDAX
TG11C014VALEO
UD14851AAS-PL
VALTG11C014WOODAUTO
A0519S

View your shopping basket or Browse other items in Alternators.
