Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 8.3 mm |
L.B+ | 14.2 mm |
Length (L.1) | 73.6 mm |
Outside Diameter (O.D.1) | 52.5 mm |
Outside Diameter (O.D.2) | 46.7 mm |

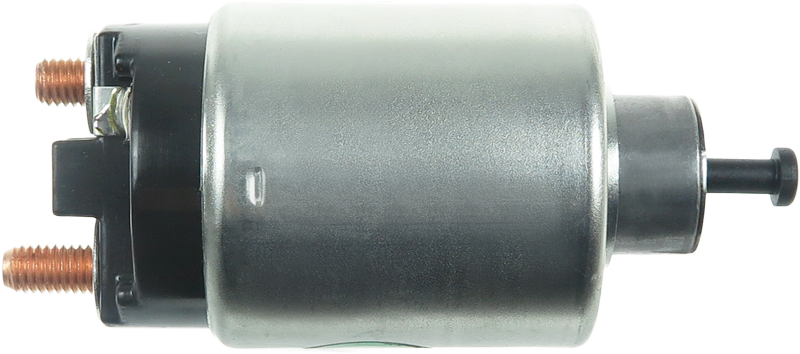

Type | Solenoid |
Unit Type | DELCO |
Voltage | 12 V |
Reference Information
UD805190(DELCO)SS 10524755 SOL2058Video/Publications
10524755 UD805190(DELCO)SSAdd Your Number
