A3309S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A3309S
Price: 794.73 NZD
Availability: OutOfStock

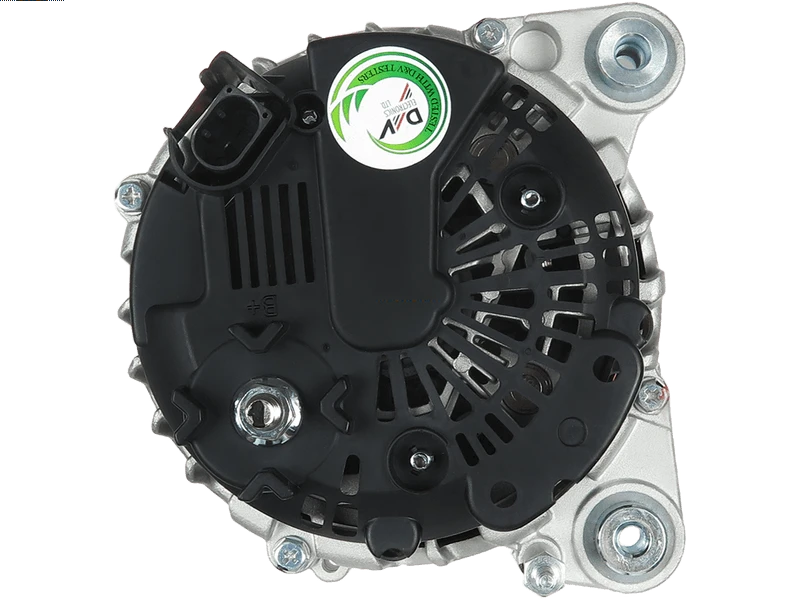

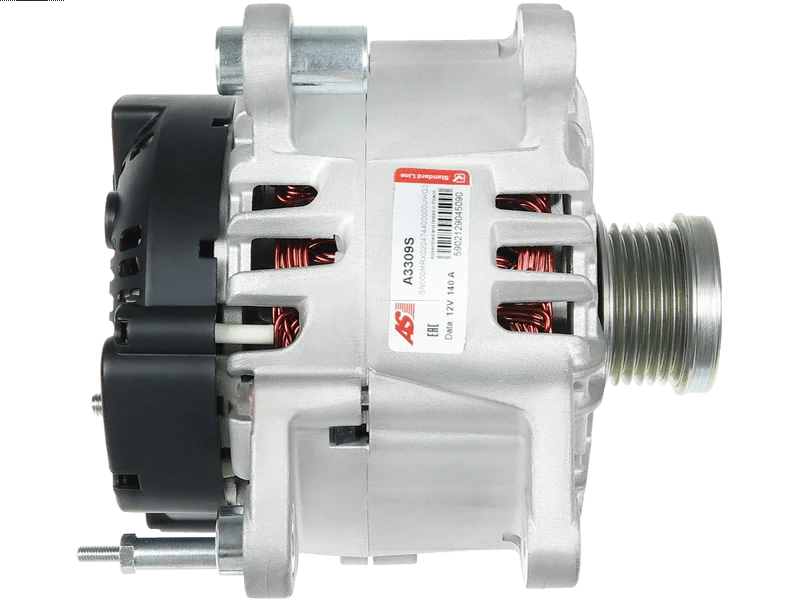

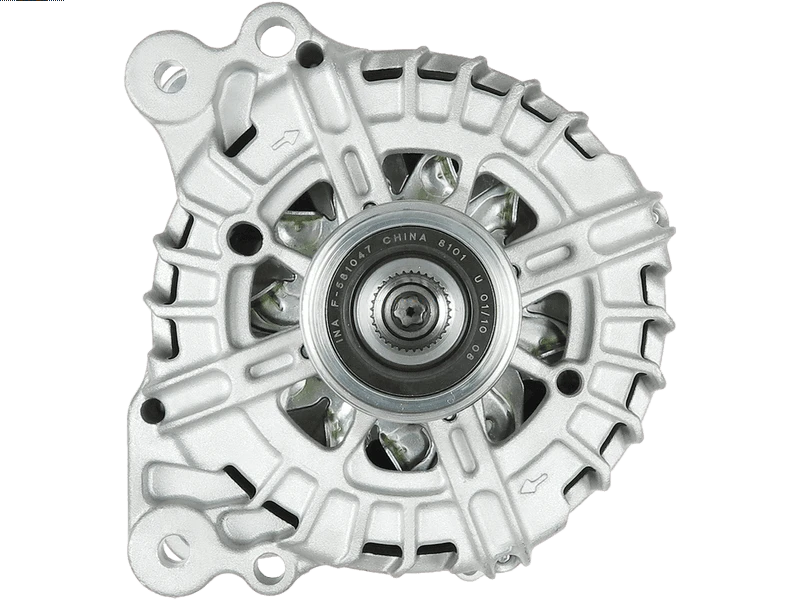

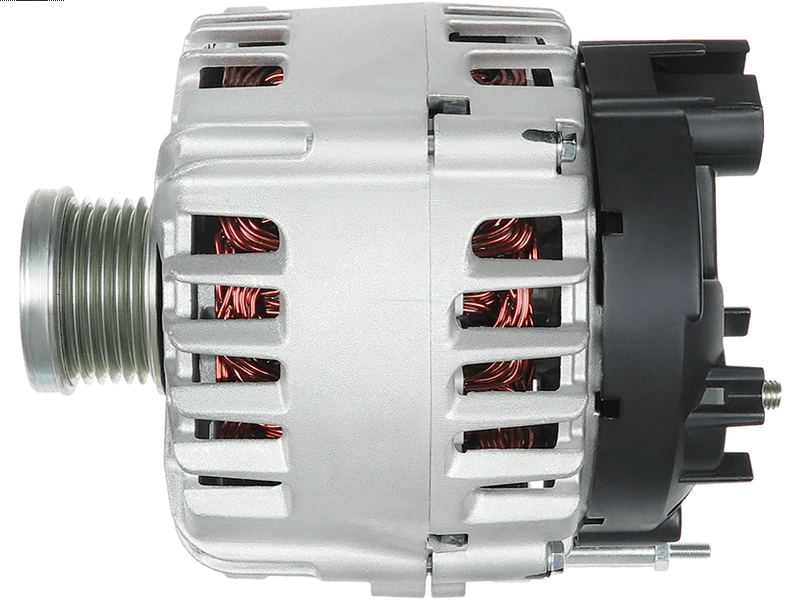

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

VALEO

Price:

NZ$ 794.73 including GST

NZ$ 691.07 excluding GST

UOM:

each

Alternative Item:

AAM-C6052

Product Code:

A3309S

Quantity In Stock Nationally:

No stock in NZ

Availability:

No stock in NZ

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

40-308 UD13566A ASPL AEK3552 AUTOELECTRO 0124525188 BOSCH List 0124525543 0986083530 115528 CARGO CAL15577 CASCO 4158 CEVAM EAA254582 EAA 57380 EAI 286662 ELSTOCK 209226 ERA CA2190IR HC PARTS 8EL012240181 HELLA LRA03552 LUCAS 89215539 POWERMAX 9215539 305.572.140 PSH 2608427 VALEO 2608427A TG14C028 TG14C054 03C903023S VW 03C903023T 03C903023TX 03C903024F 20147NOS WAI / TRANSPO BOS0124525543 WOODAUTO VALTG14C028 0986083140 DRA0601 DELCO 9090584 FRIESEN 305.598.140 012240181 03C903024FX 305572140 439720 439850 440310 608427 617851 9090584F 931294 DRA1294 03C903023SX 305598140 930601 651789 20147N-OS 2015577 28-6662 553840RI 553840RIV 8EL012240-181 CAL15577AS CAL15577ES CAL15577GS CAL15577OS CAL15577RS EAA-254582 A3309S/A0468S

Amp	140 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Grooves	6 qty
Length (L.1)	189 mm
Mount Inside Length or Pad Mount C-C (C)	60.5 mm
OEM Product	No
Outside Diameter (O.D.1)	49 mm
Plug Code	PL_2306
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	30.5 mm
Pulley Type	CLUTCH
Unit Type	VALEO
Voltage	12 V

Make	Model	Type	Year
AUDI	A1 1.4 TFSi	[CAXA]	05.2010-
AUDI	A1 1.4 TFSi	[CAXA]	11.2011-
AUDI	A1 1.4 TFSi	[CNVA]	05.2010-
AUDI	A1 1.4 TFSi	[CNVA]	11.2011-
AUDI	A3 1.4 TFSi	[CAXC]	05.2013-
AUDI	A3 1.4 TFSi	[CAXC]	09.2007-08.2012
AUDI	A3 1.4 TFSi	[CMSA]	04.2010-
AUDI	A3 1.4 TFSi	[CMSA]	04.2010-08.2012
SEAT	Alhambra 1.4 TSi	[CAVA]	06.2010-
SEAT	Alhambra 1.4 TSi	[CNWB]	06.2010-
SEAT	Alhambra 1.4 TSi	[CTHA]	06.2010-
SEAT	Toledo 1.4 TSi	[CAXA]	01.2012-
SKODA	Rapid 1.4 TSi	[CAXA]	01.2012-
SKODA	Superb 1.4 TSi	[CAXC]	07.2008-
SKODA	Superb 1.4 TSi	[CAXC]	10.2009-
SKODA	Yeti 1.4 TSi	[CAXA]	06.2010-
VW	CC 1.4 TSi	[CTHD]	11.2011-
VW	CC 1.4 TSi MultiFuel	[CKMA]	11.2011-
VW	Eos 1.4 TSi	[CAXA]	11.2007-
VW	Golf Plus 1.4 TSi	[CAVD]	01.2009-
VW	Golf Plus 1.4 TSi	[CAXA]	06.2007-
VW	Golf VI 1.4 TSi	[CAVD]	10.2008-11.2012
VW	Golf VI 1.4 TSi	[CAXA]	10.2008-11.2012
VW	Golf VI 1.4 TSi	[CNWA]	10.2008-11.2012
VW	Golf VI 1.4 TSi	[CTHD]	10.2008-11.2012
VW	Golf VI 1.4 TSi	[CTKA]	10.2008-11.2012
VW	Passat 1.4 TSi	[CAXA]	05.2007-
VW	Passat 1.4 TSi	[CAXA]	08.2010-
VW	Passat 1.4 TSi	[CDGA]	08.2010-
VW	Passat 1.4 TSi	[CTHD]	11.2012-
VW	Passat 1.4 TSi MultiFuel	[CKMA]	11.2010-
VW	Passat CC 1.4 TSi MultiFuel	[CKMA]	01.2011-01.2012
VW	Scirocco 1.4 TSi	[CAXA]	09.2008-
VW	Scirocco 1.4 TSi	[CMSB]	09.2008-
VW	Scirocco 1.4 TSi	[CSMB]	09.2008-
VW	Sharan 1.4 TSi	[CAVA]	07.2010-
VW	Sharan 1.4 TSi	[CNWB]	07.2010-
VW	Sharan 1.4 TSi	[CTHA]	07.2010-
VW	Tiguan 1.4 TSi	[BWK]	09.2007-
VW	Tiguan 1.4 TSi	[CAVA]	09.2007-
VW	Tiguan 1.4 TSi	[CAVD]	05.2011-
VW	Tiguan 1.4 TSi	[CAXA]	08.2010-
VW	Tiguan 1.4 TSi	[CTHA]	09.2007-
VW	Tiguan 1.4 TSi	[CTHA]	11.2008-
VW	Tiguan 1.4 TSi	[CTHD]	05.2011-
VW	Touran 1.4 TSi	[CAVB]	05.2010-
VW	Touran 1.4 TSi	[CAVC]	05.2010-
VW	Touran 1.4 TSi	[CDGA]	05.2010-
VW	Touran 1.4 TSi	[CTHB]	05.2010-
VW	Touran 1.4 TSi	[CTHC]	05.2010-

EAA-254582 BOS0124525543 LRA3552 305.572.140 VALTG14C028 57380 124525543 124525188 2608427A 03C903024FX CAL15577GS 03C903024F 2015577 TC14C028 0124525543 0124525188 CAL15577 ALTL569 CA2190IR CAL15577OS 89215539 03C903023TX 0986083530 LRA03552 3C903023T 3C903023TX 442589 553840RIV A12BH0860 20147N-OS 03C903023T 03C903023S 28-6662 CAL15577RS A12BH0860AS UD18593A 441969 553840RI 03C903023SX CAL15577ES 209226 AEK3552 209228 CAL15577AS A12VA0851AS 8EL012240-181 TG14C054 ALT00523 986083530 9215539 A12VA0851A2 UD13566A 115528 2608427 4158 210851 TG14C028

0124525188 0124525543 03C903023S 03C903023T 03C903023TX 03C903024F 0986083530 115528 20147N-OS 2015577 209226 2608427 2608427A 28-6662 305.572.140 4158 553840RI 553840RIV 57380 89215539 8EL012240-181 AEK3552 ALTL569 BOS0124525543 CA2190IR CAL15577 CAL15577AS CAL15577ES CAL15577GS CAL15577OS CAL15577RS EAA-254582 LRA03552 LRA3552 TC14C028 TG14C028 TG14C054 UD13566A UD18593A VALTG14C028 209228 210851
