or four payments of $117.17
with
Learn More
Associated Numbers
UD14847A ASPL List
AEK3874 AUTOELECTRO
CAL40439 CASCO
DA2594 DELCO
DRA1484 DELCO
1042118380 DENSO List
DAN1328 DENSO
286984 ELSTOCK
210974 ERA
ALN1328 KRAUF
LRA03874 LUCAS
305935140 PSH
03L903024 VW
03L903024X VW
DENDAN1328 WOODAUTO
UD14847A AS-PL List
AEK3874 AUTOELECTRO
CAL40439 CASCO
DA2594 DELCO
DRA1484 DELCO
104211-8380 DENSO List
DAN1328 DENSO
28-6984 ELSTOCK
210974 ERA
ALN1328 KRAUF
LRA03874 LUCAS
305935140 PSH
03L903024 VW
03L903024X VW
DENDAN1328 WOODAUTO
03L903024
03L903024X
1042118380
1042118380+
286984
305935140
931484
DAN1328
DRA1484
LRA03874
Specifications
Fitted with OEM Regulator and INA Clutch Pulley (if fitted)
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |

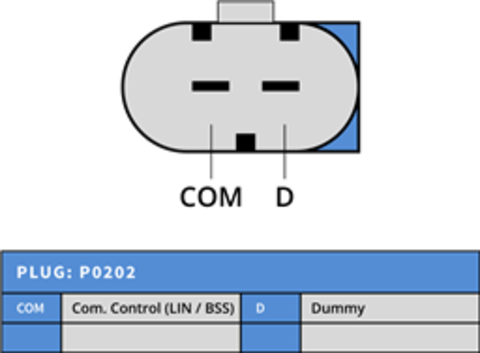

| Plug Code | PL_2306 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | CLUTCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Tiguan 2.0 TDi | [CBAB] | 03.2008- |
| VW | Tiguan 2.0 TDi | [CFFB] | 03.2008- |
| VW | Tiguan 2.0 TDi | [CFFD] | 05.2010- |
| VW | Tiguan 2.0 TDi | [CUVE] | 05.2010- |
| VW | Tiguan 2.0 TDi 4-Motion | [CBAA] | 11.2007- |
| VW | Tiguan 2.0 TDi 4-Motion | [CBAB] | 09.2007- |
| VW | Tiguan 2.0 TDi 4-Motion | [CFFA] | 11.2007- |
| VW | Tiguan 2.0 TDi 4-Motion | [CFFB] | 09.2007- |
| VW | Tiguan 2.0 TDi 4-Motion | [CFGC] | 11.2012- |
| VW | Tiguan 2.0 TDi 4-Motion | [CLJA] | 09.2007- |
Reference Information
03L903024 03L903024X 104211-8380 2040439 210974 28-6984 305.935.140 554465RID AEK3874 ALN1328 ALTE769 CAL40439 CAL40439AS CAL40439ES CAL40439GS CAL40439OS CAL40439RS DA2594 DAN1328 DENDAN1328 DRA1484 LRA03874 LRA3874 UD14847AView your shopping basket or Browse other items in Alternators.
