Associated Numbers
AZJ3201 11130627 AZJ3212 11130659Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 .mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
Coil Bolt Length | 21.5 mm |
Inside Diameter (I.D.1) | 30 mm |
L.B+ | 23.6 mm |
Length (L.1) | 85.3 mm |
Outside Diameter (O.D.1) | 61.2 mm |
Outside Diameter (O.D.2) | 53.8 mm |

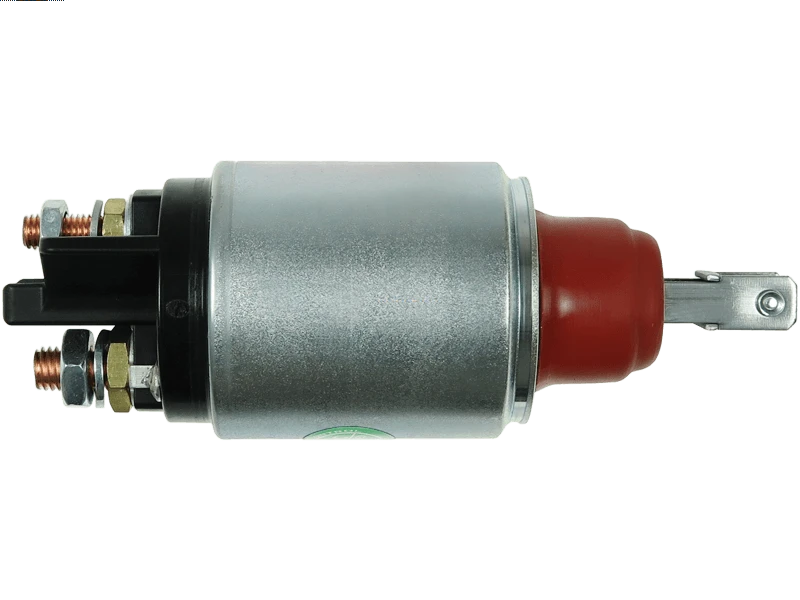

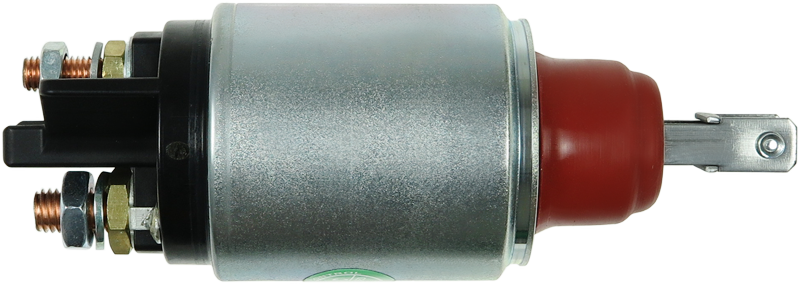

Type | Solenoid |
Unit Type | ISKRA / LETRIKA |
Voltage | 12 V |
Reference Information
UD809649(LETRIKA)SS 16.906.711 707KIT 72738548 MSX MSX707 MAHMSX707KIT 60-23-15013Video/Publications
11130627 UD809649(LETRIKA)SS 11130659 16.906.711 707KIT AZJ3201 AZJ3212 72738548 MSX MAHMSX707KIT 60-23-15013Add Your Number
