Associated Numbers
AZF4545 11131077 AZF4562 11131191 AZF4569 11131228 AZE4167 11131731
SS9079, UD13120SS Iskra 16908491, 16908918, 16915236, 16915607, 16915718 JOHN DEERE RE515428 KRAUF SSI4569LC, SSI4569SU, SSI9569SU MAHLE 72739279, 72740303, MSX1007, MSX1396 Используется для агрегатов11131077, 11131092, AZE4603, AZE4653, AZF4167, AZF4229, AZF4522, AZF4545, AZF4562, AZF4569, IS1023, STI0843NB, STI0968, STI0968UL, STI1758UL, STI3478MH, STI3478SU, STI3654SU, STI3655SU, STI3655UL, STI4320LC, STI4320SU, STI4562, STI4597MH, STI4597SU, STI4597UL, STI4603UL, STI7120SU, STI7120WA, STI7968UL
16.915.877 MSX1781 Switch AZE4667 12V 3,2kW 11.132.121 MS645
16.915.877 MSX1781 Switch AZE4668 12V 3,2kW 11.132.128
16.915.877 MSX1781 Switch AZE4679 12V 3,2kW 11.132.330
Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 .mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 25.6 mm |
| L.B+ | 18.7 mm |
| Length (L.1) | 85.3 mm |
| Outside Diameter (O.D.1) | 61 mm |
| Outside Diameter (O.D.2) | 53.9 mm |

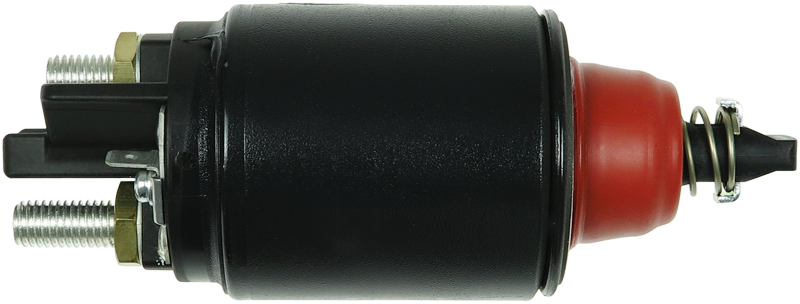

| Type | Solenoid |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Reference Information
MSX1396 1396KIT MAHMSX1396KIT MSX UD13119(LETRIKA)SS 16.915.607 72740303 SOL79225Video/Publications
1396KIT MAHMSX1396KIT 11131228 AZE4167 11131731 AZF4569 11131077 AZF4545 MSX 11131191 UD13119(LETRIKA)SS AZF4562 16.915.607 72740303Add Your Number
