Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 52.30 including GST
NZ$ 45.48 excluding GST
or four payments of $13.08
with
Learn More
UOM:
each
Product Code:
ARC6023
1
Associated Numbers
101211-2800 1012112801 CGH81 101211-3030 101211-3031 Toyota 27060-11261 27060-11260 1002111070 1002111280 1002111410 1002111411 1002111510 1002111520 1002111550 1002111560 1002111570 1002111571 1002111580 1002111590 1002111600 1002111601 1002111620 1002111660 1002112120 1002113370 1002113500 1002113800 1002114000 1002114001 1002114002 1002114003 1002114004 1002114070 1002114071 1002114080 1002114103 1002114104 1002114120 1002114130 1002114140 1002114141 1002114150 1002114160 1002114170 1002114180 1002114190 1002114191 1002114200 1002114200X 1002114201 1002114210 1002114230 1002114250 1002114280 1002114290 1002114300 1002114310 1002114320 1002114350 1002114351 1002114360 1002114361 1002114371 1002114372 1002114382 1002114383 1002114390 1002114410 1002114482 1002114540 1002114710 1002115730 1002116040 1002116270 1002116600 1002116640 1002116660 1002116710 1002116720 1002116730 1002116750 1002116780 1002116790 1002116801 1002116830 1002116860 1002116880 1002116881 1002116920 1002116930 1002116931 1002116940 1002116941 1002116950 1002116951 1002116960 1002116961 1002116970 1002116990 1002119051 1002119052 1002119053 1002119062 1002119080 1002119090 1002119100 1002119110 1002119111 1002119112 1002119181 1002119190 1002119240 1002119250 1002119260 1002119270 1002119280 1002119310 1002119320 1002119330 1002119331 1002119340 1002119351 1002119360 1002119370 1012112001 1012112011 1012112022 1012112030 1012112040 1012112060 1012112080 1012112090 1012112100 1012112130 1012112140 1012112160 1012112190 1012112230 1012112240 1012112270 1012112310 1012112350 1012112360 1012112370 1012112380 1012112411 1012112470 1012112730 1012112731 1012112750 1012112751 1012112770 1012112780 1012112941 1012112960 1012113010 1012113020 1012113021 1012113030 1012113040 1012113050 1012113070 1012113120 1012113160 1012113200 1012113350 1012113370 1012113561 1012113770 1012113860 1012118771 1012118810 102116600 102116720 102116721 2706078305 3140060B11 3140060B30 3140060B4 3140060B40 3140080E00 3140082610 3140082611 3140083010 3140086010 3140086510 SR1002111571 8944541880 8944541881 1735664012 1736964011 2706072330 1012118740 A6215 Cargo 132540 Denso 0215803130 Ghibaudi PRP633 GM D3926 Honda 31127PZ1J01 Lucas 21510074 Magneti Marelli AMP1251 Mobiletron RN15 RN15PL RN18P SJ JN724 Suzuki 3162171C50 3162186510 2735711170 2735711180 2735772150 Transpo INR724 INR737 Unipoint REC644 UTM EN1724A WPS 318200 1002114100 1002114101 1002114910 1002114911 1012112850 1012112950 1012112951 1012113380 1012113410 1752564011 2706031010 A6024 RFX2002 500295 CQ1080486 021580-3130 021580-3340 021580-4310 021580-4340 139261 RN-15 1110327 81110327 1103-022RS 27357-72120 27357-72150 27375-72150 REC-644 RTF49895 172-52009 AND1210 AND1233 8-94455-159-0 1052811 1052812 1449952 1449954 100211-1520 100211-1550 100211-1551 100211-1560 100211-1570 100211-1571 100211-4070 100211-4071 100211-4130 100211-4131 100211-4140 100211-4141 100211-4150 100211-4160 100211-4170 100211-4290 100211-4320 100211-4350 100211-4351 100211-4360 100211-4361 100211-4371 100211-4372 100211-4382 100211-4383 100211-6270 100211-6600 100211-6720 100211-6750 100211-6860 100211-6870 100211-6940 100211-6941 100211-6950 100211-6951 100211-6960 100211-6961 100211-6970 100211-6990 100211-9051 100211-9052 100211-9053 100211-9062 100211-9090 100211-9100 100211-9110 100211-9111 100211-9112 100211-9130 100211-9190 100211-9270 100211-9280 100211-9310 100211-9320 100211-9330 100211-9340 100211-9360 100211-9370 101211-2100 101211-2240 101211-2310 101211-2360 101211-2420 101211-2770 101211-2780 101211-2941 101211-3020 101211-3050 101211-3080 101211-3160 101211-3170 101211-3400 101211-3580 101211-3680 101211-3730 101211-3731 101211-3750 101211-3833 101211-3860 101211-8810 31100PN3J110 31100PN3J116M 31100PN4-0032 31100PN4-0037 31100PP0-0130 31100PP0-0134 31100PZ1-0033 31100PZ1-0034 31100PZ1A0430 31100PZ2-0033 31100PZ3-0031 31100PZ3-0032 31100PZ3A0230 18504-6470 600-861-1611 23700KA500 23700KA600 23700KA620 31400-60B11 31400-60B40 31400-83010 27060-10070 27060-10071 27060-10100 27060-11080 27060-58010 27060-66050 27060-72110 27060-72111 27060-72140 27060-72380 27060-78151-71 27060-78153-71 27060-78202-71 27070-23001-71 27070-31720-71 TA000B43801Z KUBOTA 1J730-64010 1J730-64011 1J730-64012 1J730-64013 1J73064010 1J73064011 1J73064012 1J73064013 DENSO 101211-8960 101211-8961 101211-8962 1012118960 1012118961 1012118962 ARC6004 ARC6023 334-2068 Arrowhead AND0172 AND0198 AND0204 AND0205 AND0211 AND0229 AND0234 AND0236 AND0238 AND0240 AND0243 AND0245 AND0350 AND0351 AND0369 AND0433 AND0436 AND0533 AND0550 AND0561 AND0566 AND0575 AND0599 Bobcat 6683304 6988708 Bomag 05741435 Bosch Aftermarket AL4440X AL5044N AL5044X Caterpillar 383-0134 383-0592 Club Car 102934701 Daihatsu 1758064012 27060-87103 27060-87221-000 27060-87601 27060-87602 27060-87704 27060-87705 27060-87707 27060-87709 27060-97202 27060-97203 27060-97282 021080-119 021080-1190 100211-247 100211-2470 100211-400 100211-4000 100211-4001 100211-4002 100211-4003 100211-4004 100211-4005 100211-4006 100211-408 100211-4080 100211-410 100211-4100 100211-4101 100211-4102 100211-4103 100211-4104 100211-412 100211-4120 100211-418 100211-4180 100211-419 100211-4190 100211-4191 100211-420 100211-4200 100211-4201 100211-421 100211-4210 100211-4220 100211-431 100211-4310 100211-439 100211-4390 100211-664 100211-6640 100211-666 100211-6660 100211-673 100211-6730 100211-678 100211-6780 100211-679 100211-6790 100211-680 100211-6800 100211-6801 100211-6802 100211-6803 100211-6804 100211-688 100211-6880 100211-6881 100211-6884 100211-692 100211-6920 100211-923 100211-9230 101211-204 101211-2040 101211-2042 101211-218 101211-2180 101211-220 101211-2200 101211-2201 101211-237 101211-2370 101211-247 101211-2470 101211-2471 101211-2472 101211-2473 101211-273 101211-2730 101211-2731 101211-275 101211-2750 101211-2751 101211-284 101211-2840 101211-2841 101211-285 101211-2850 101211-2851 101211-2852 101211-2853 101211-295 101211-2950 101211-2951 101211-2952 101211-2953 101211-296 101211-2960 101211-2961 101211-2962 101211-2963 101211-312 101211-3120 101211-3121 101211-3122 101211-335 101211-3350 101211-341 101211-3410 101211-3411 101211-852 101211-8520 101211-8521 101211-8522 101211-8523 101211-863 101211-8630 101211-8631 101211-8632 101211-877 101211-8770 101211-8771 101211-8772 101211-8773 101211-896 102211-7661 102211-8523 9760218-439 9760218-678 9760218-680 9760218-688 9761219-852 DAN2038 Auto Parts 210-0417 210-7003 Hyster 3049393 3049394 3049396 Industry 11691 11748 11903 12081 12181 12182 12186 12196 12200 12201 12204 12207 12210 12211 12351 12352 12534 12650 12656 12855 13633 13740 20543 21236 21881 22373 22456 22925 Iseki 6281-200-015-0 Isuzu 2-90123-781-0 8-97109-781-0 J&N 400-52052 400-52070 400-52090 400-52091 400-52121 400-52121R 400-52131 400-52132 400-52139 400-52173 400-52191 400-52196 400-52209 400-52214 400-52216 400-52245 400-52271 400-52273 400-52274 400-52278 400-52302 400-52303 400-52495 JLG K1K411-64012 John Deere 19630-64014 AM809216 AM880701 LVA12467 M809216 MIU800942 RE46043 RE72917 RE729171 TY25241 TY25242 Kawasaki 21001-1129 Kubota 16541-64010 16541-64011 16541-64012 16615-64011 16615-64012 16615-64015 16771-64010 16771-64011 16771-64012 17356-64010 17356-64011 17356-64012 17369-64010 17369-64011 17490-64010 17490-64011 17490-64012 17490-64014 17490-64015 17558-64010 17558-64011 17558-64012 17588-64010 17588-64011 17588-64012 19630-64012 19630-64013 19883-64011 1K411-64010 1K411-64011 1K411-64012 1K411-64013 3A611-74010 3A611-74011 3A611-74012 3a611-74014 K7561-61910 K7561-61911 K7561-61912 K7561-61914 KEARA16615 KEARA16771 KEARA19630 Letrika IA9537 IA9539 IA9542 IA9544 IA9546 (Europe) LRA02430 LRA04686 LRA1298 Massey Ferguson 3606220M91 Mitsubishi MD166662 New Holland Agriculture 72280446 VV11962677210 RELIANCE 41488 Remy 13462 27060-78300 27060-78300-71 27060-78301 27060-78301-71 27070-23000 27070-23000-71 27070-23040 27070-23040-71 27070-23060 27070-23060-71 Yanmar 119254-77200 119626-77210 129052-77220 129052-77221 100211-1510 Alternator 12V 45A 100211-1511 100211-1512 100211-1580 40A 100211-1590 24V 20A 50A 25A 100211-4230 100211-4240 100211-4250 100211-4300 100211-6710 100211-6830 100211-9181 100211-9240 100211-9250 100211-9260 100211-9300 100211-9351 101211-1720 101211-1741 60A 55A 101211-2210 Enlarge 101211-3130 101211-3230 101211-3260 101211-3280 101211-3290 101211-3330 101211-3561 101211-3890 101211-8620 101211-8750 31100PE9-9410M1 16652-64012 17077-64011 MD107462 MD107481 MD112363 MD112364 MD119421 MD119422 MD142777 MD147158 MD158818 MD300725 27060-78302-71 ValeoSpecifications

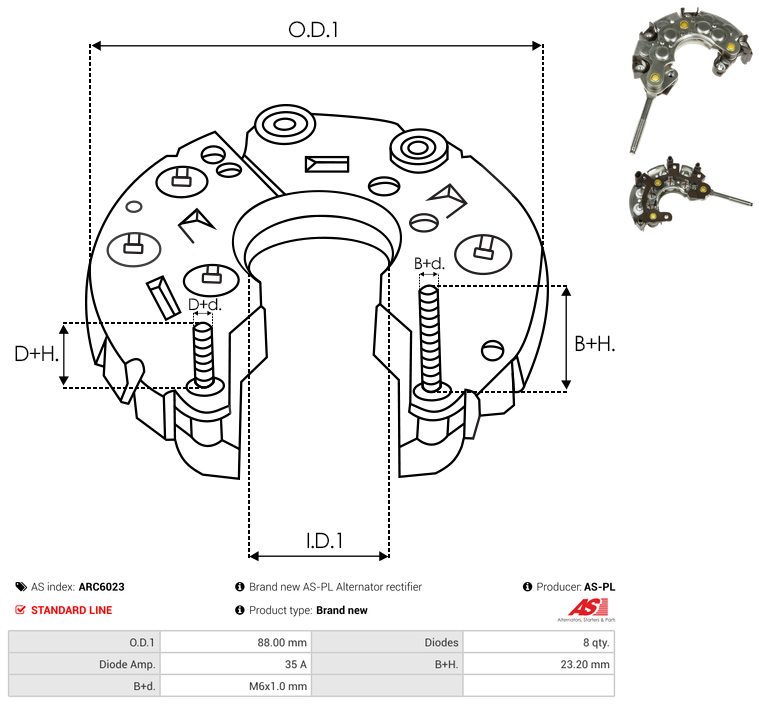

| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 23.20 mm |
| Diode Amp Rating | 35 A |
| Diodes (Main) | 8 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 88 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | DENSO |
| With Attached Bracket | No |
Reference Information
| 021580-3130 | DENSO |
| 021580-3340 | DENSO |
| 021580-4310 | DENSO |
| 021580-4340 | DENSO |
| 053.000.088.050 | PSH |
| 053.000.088.890 | PSH |
| 132540 | CARGO |
| 1.6699.1 | IKA |
| 21132121BN | REAL |
| 215719 | ERA |
| 27357-72120 | TOYOTA |
| 27375-72150 | TOYOTA |
| 500295 | CIVIC/DA PARTS |
| 81110327 | POWERMAX |
| AEN1724 | KRAUF |
| AM-26261 | AUTO MAGNETO |
| CQ1080486 | CQ |
| CRC40121AS | CASCO |
| F032132540 | CARGO |
| INR724 | WAI / TRANSPO |
| MOBRN-15 | WOODAUTO |
| PRP633 | GHIBAUDI |
| RCT6002 | ELECTROLOG |
| RFX2002 | ASHDOWN INGRAM |
| RN-15 | MOBILETRON |
| RTF49895 | WOODAUTO |
| SRC40121.0 | SANDO |
| UD18342ARC | AS-PL |
